Product Introduction

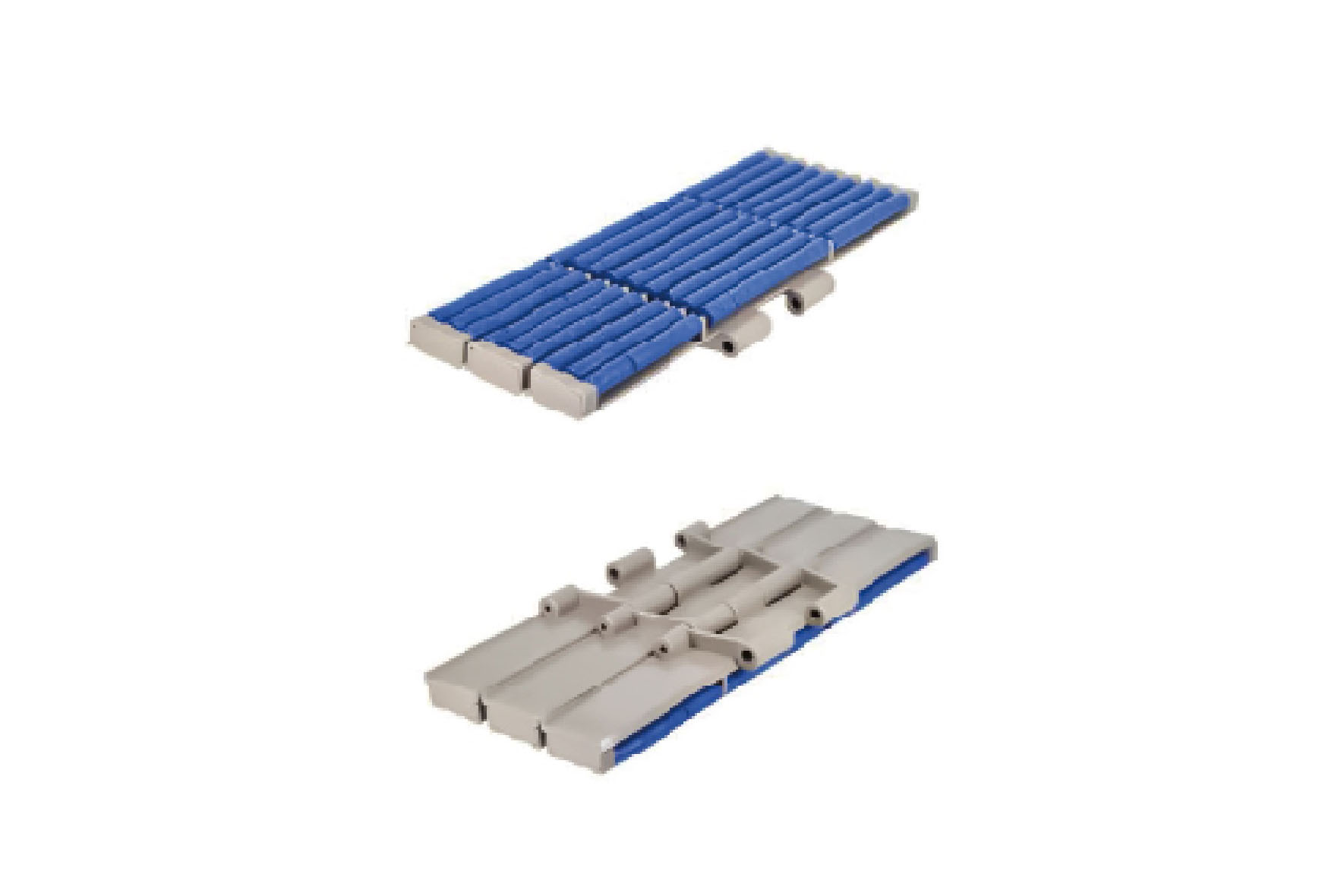

CY-822 Straight ball chain plate
- BELT TYPE
- DESIGN
- CY-822
- Straight running roller chain
- NOMINAL PITCH
- 38.1mm
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO

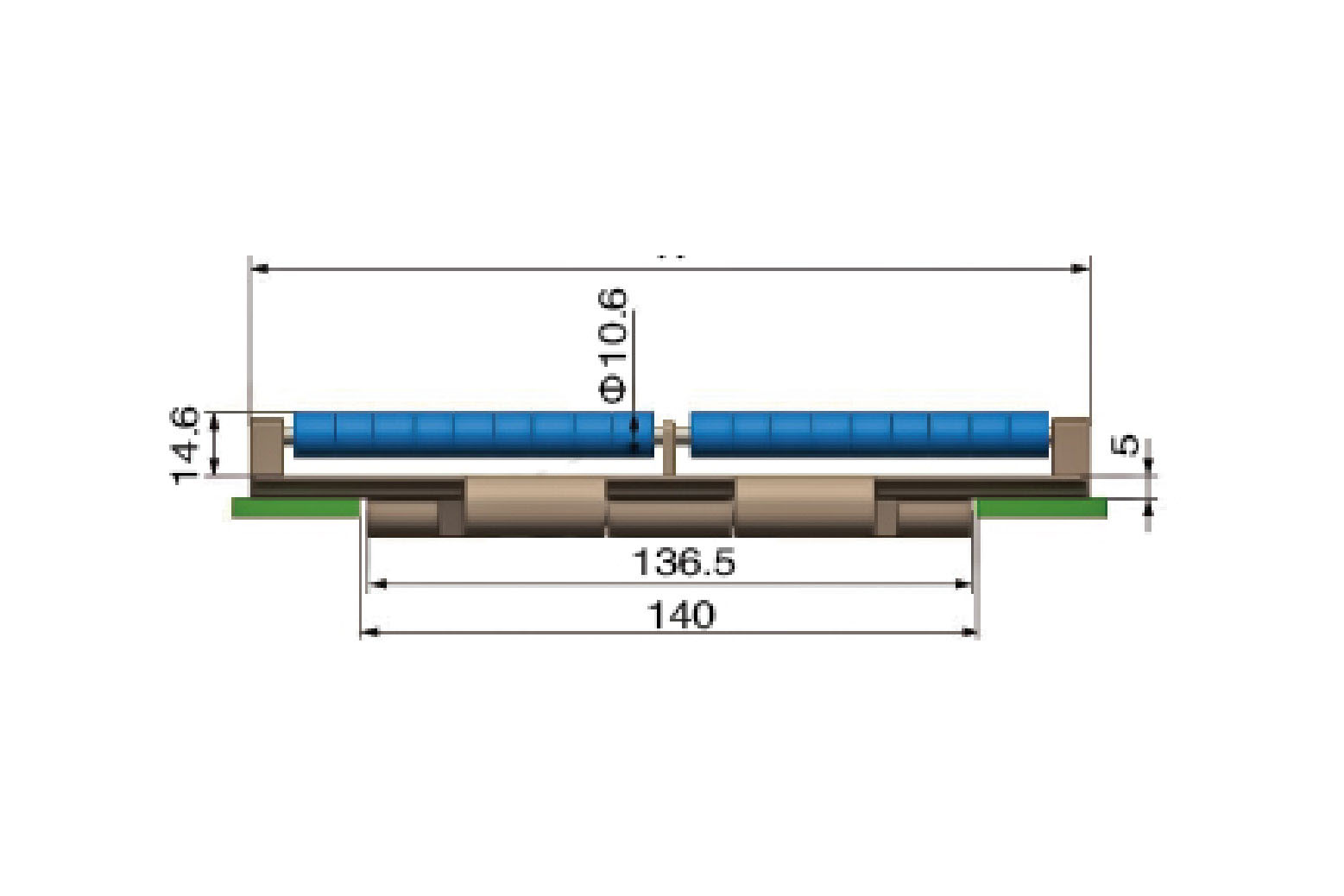

- Belt Thickness
- 28.8mm

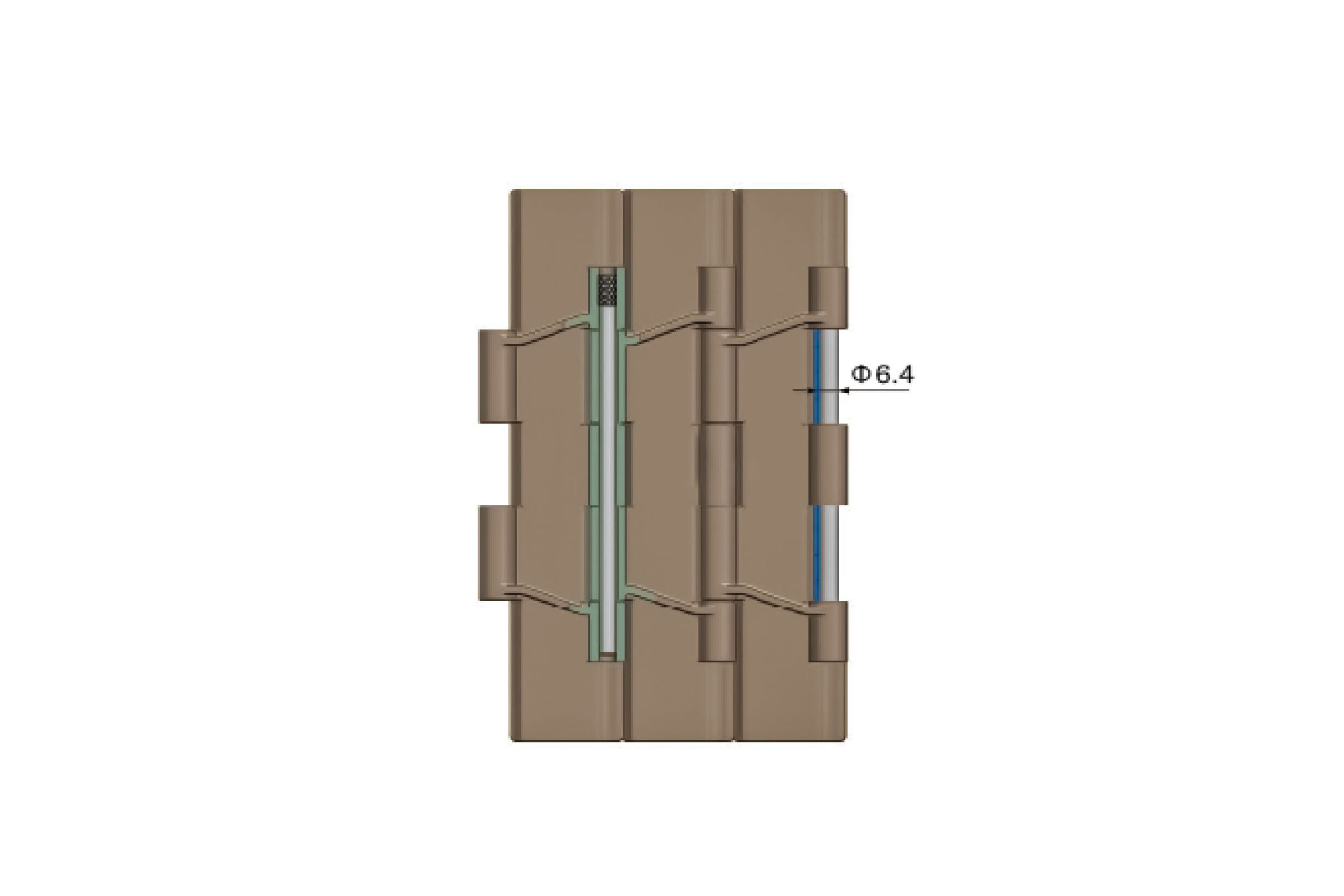

- Pin Diameter
- 6.4mm
- WIDTH
- 190.5mm/7.5inch

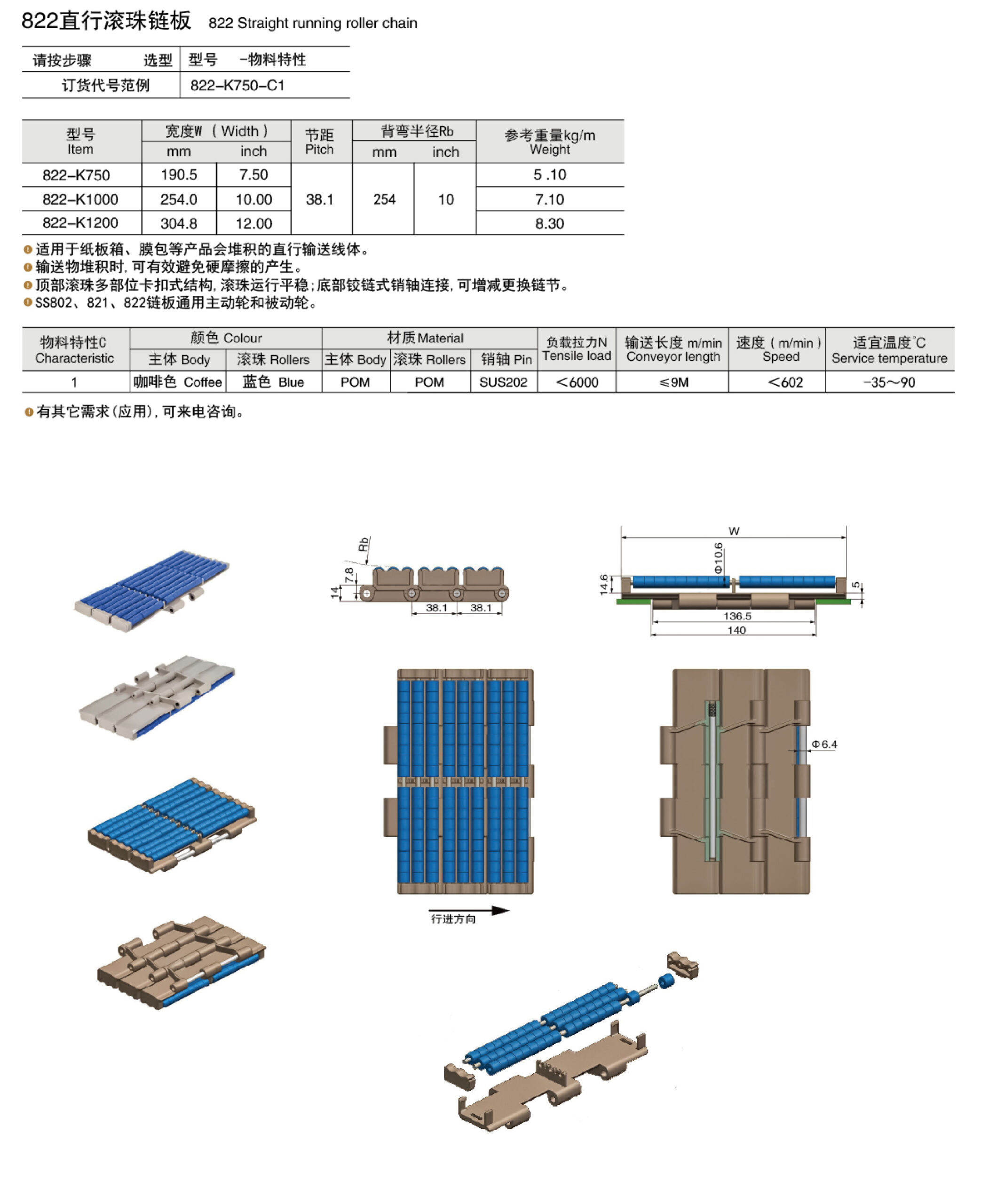

Technicial Specifications
| Model | Chain width | Chain pitch | radius RB | Weight (kg/m) | load tensile force | Speed |
|---|---|---|---|---|---|---|
| CY-822-K750 | 190.5MM | 38.1MM | 254 | 5.10 | <6000 | <602 |
| CY-822-K1000 | 254.0 | 38.1 | 254 | 7.1 | <6000 | <602 |
| CY-822-K1200 | 304.8 | 38.1 | 254 | 8.3 | <6000 | <602 |
Download
