Product Introduction

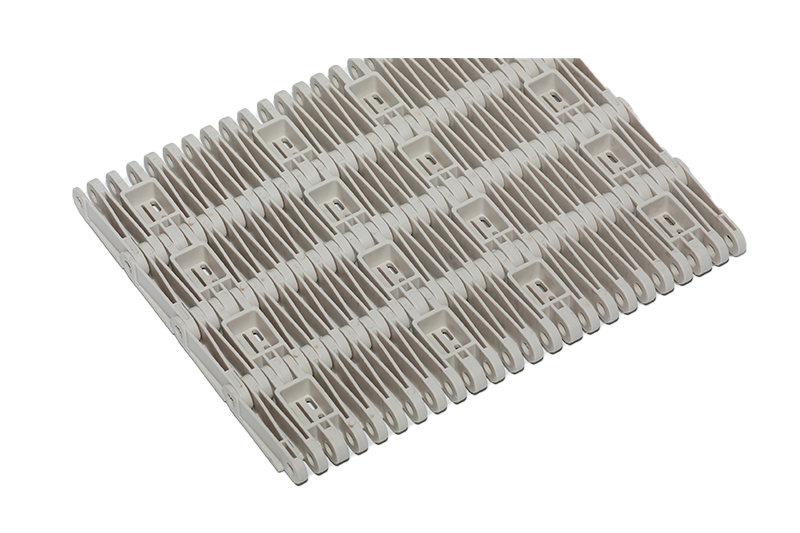

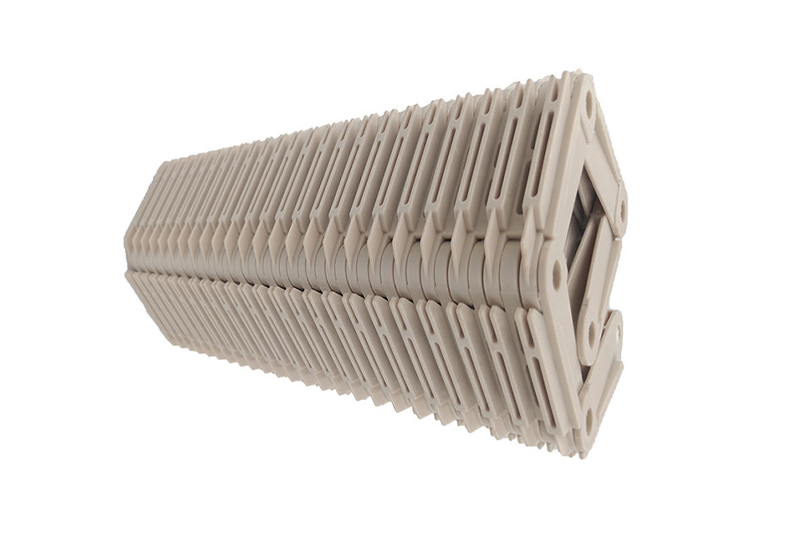

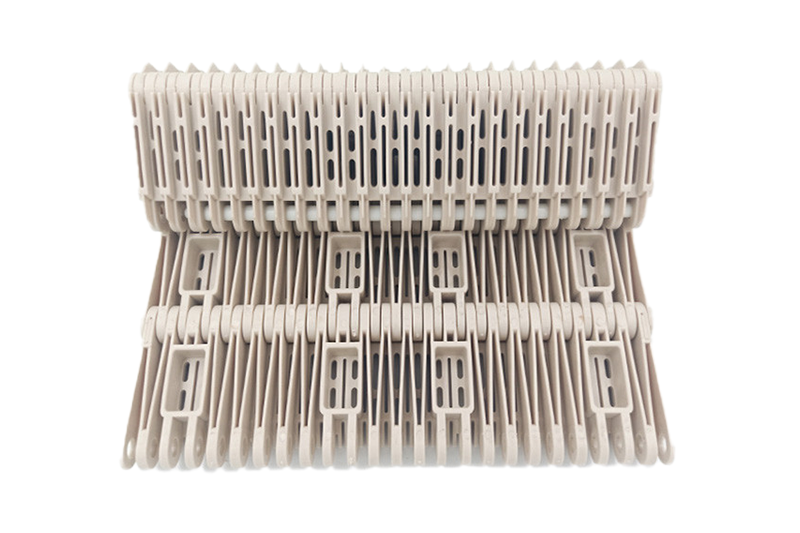

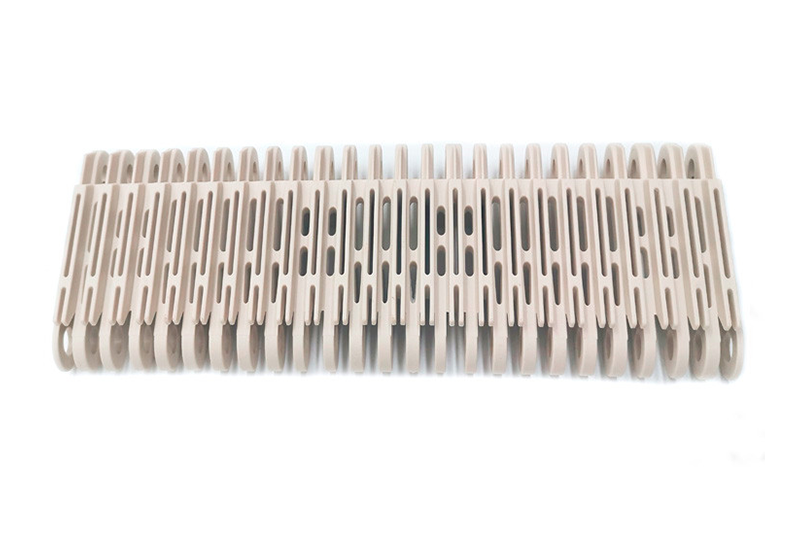

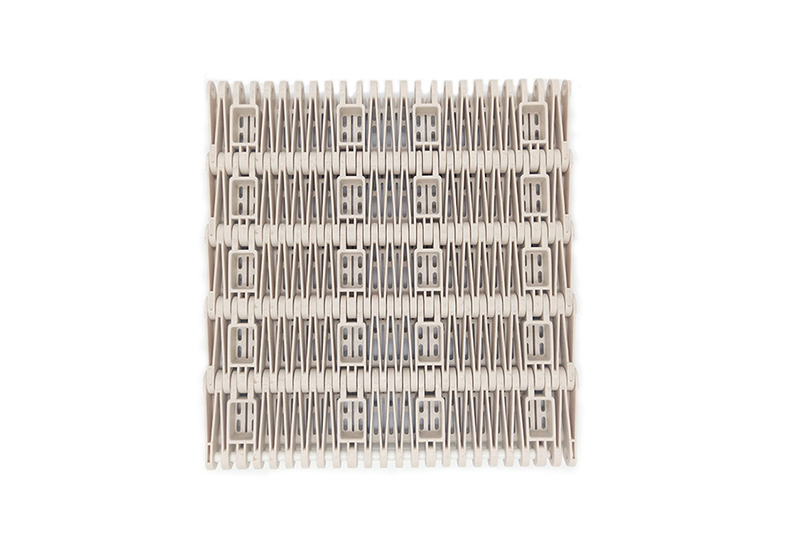

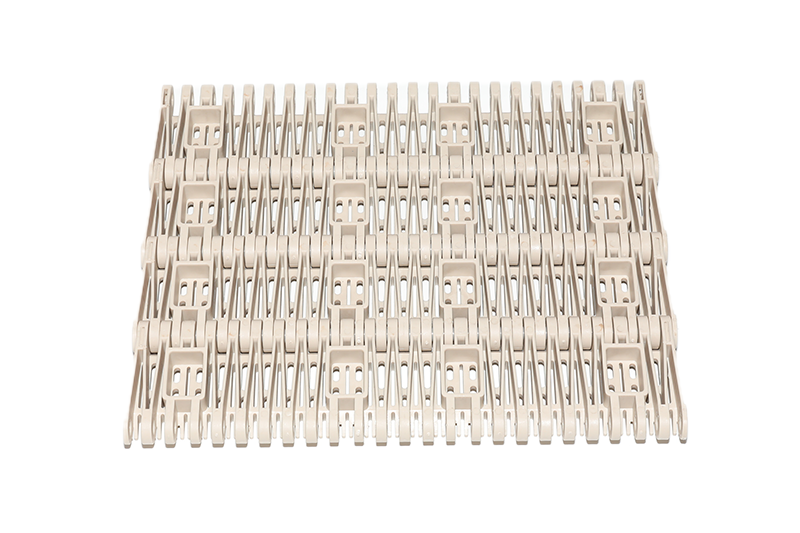

CY-571500TL Raised Rib
- BELT TYPE
- DESIGN
- CY-571500T
- Raised Rib Plastic Modular Chain
- NOMINAL PITCH
- 57.15mm
- Open Area
- 22%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 24.5mm
- Pin Diameter
- 9.15mm
- WIDTH
- W=304.8*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 29000 | 10 | 152.4/304.8 | W=152.4*N+304.8 |
| POM | PP | 43000 | 16 | 152.4/304.8 | W=152.4*N+304.8 |
| POM | PA | 44000 | 16.1 | 152.4/304.8 | W=152.4*N+304.8 |
| PE | PE | 21000 | 10.6 | 152.4/304.8 | W=152.4*N+304.8 |
