Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

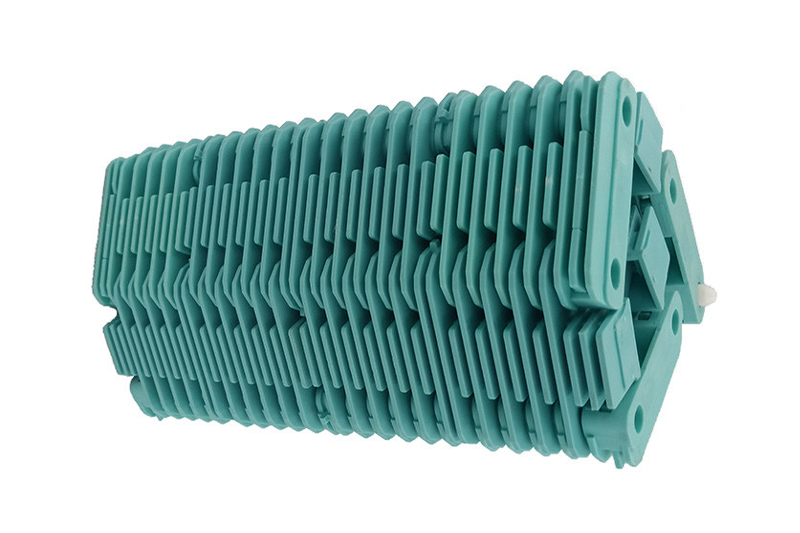

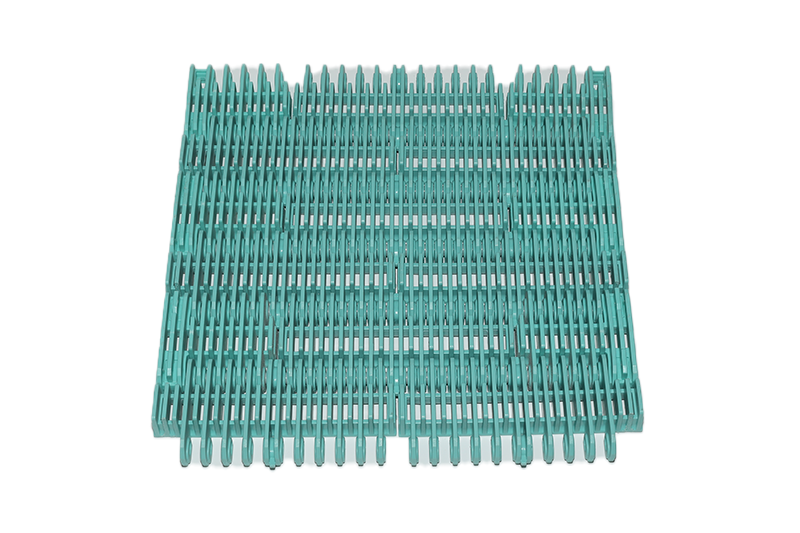

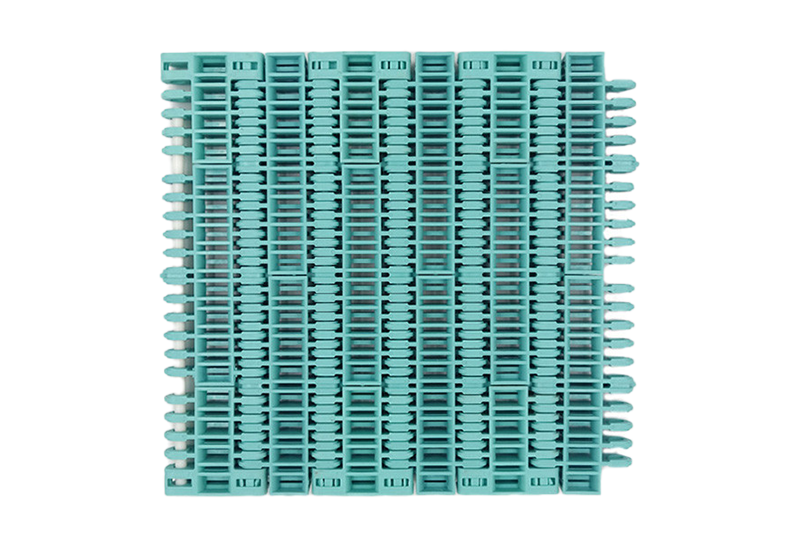

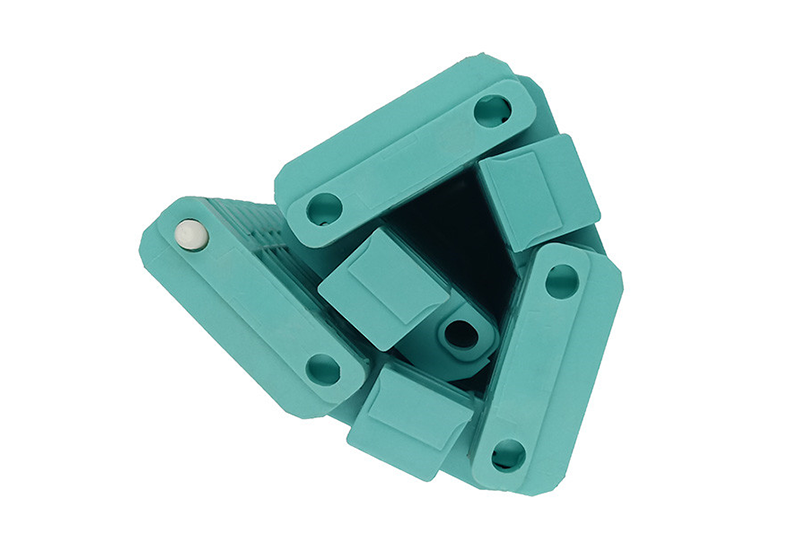

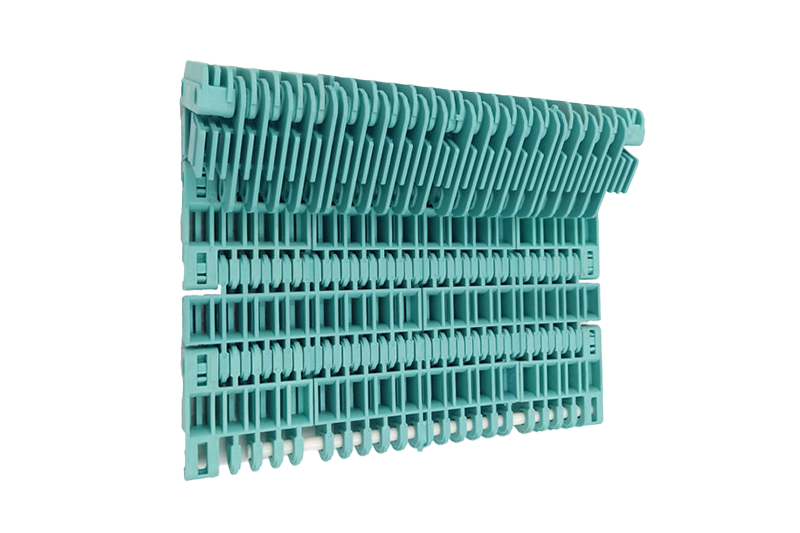

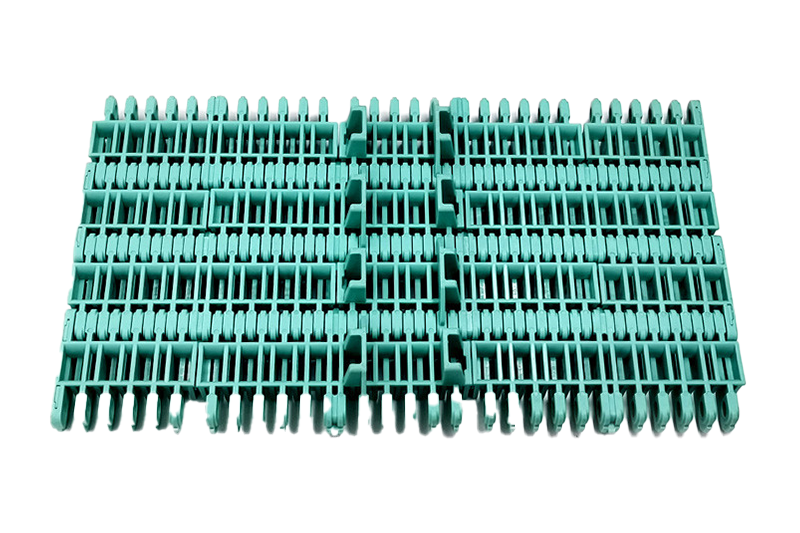

CY-50808T Raised Rib
- BELT TYPE
- DESIGN
- CY-50808T
- Raised Rib
- NOMINAL PITCH
- 50.8mm
- Open Area
- 30%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 24mm
- Pin Diameter
- 8mm
- WIDTH
- W=76.2*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| pp | PP | 29500 | 10.6 | 76/152 | W=76.2*N |
