Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

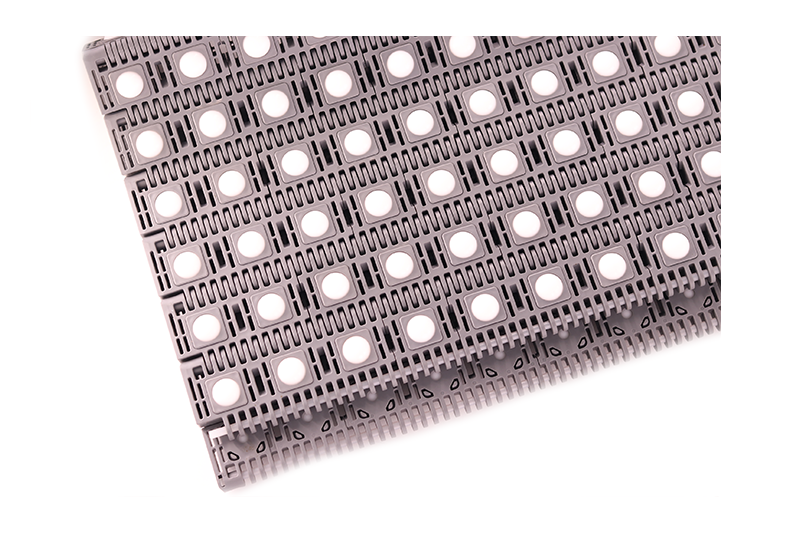

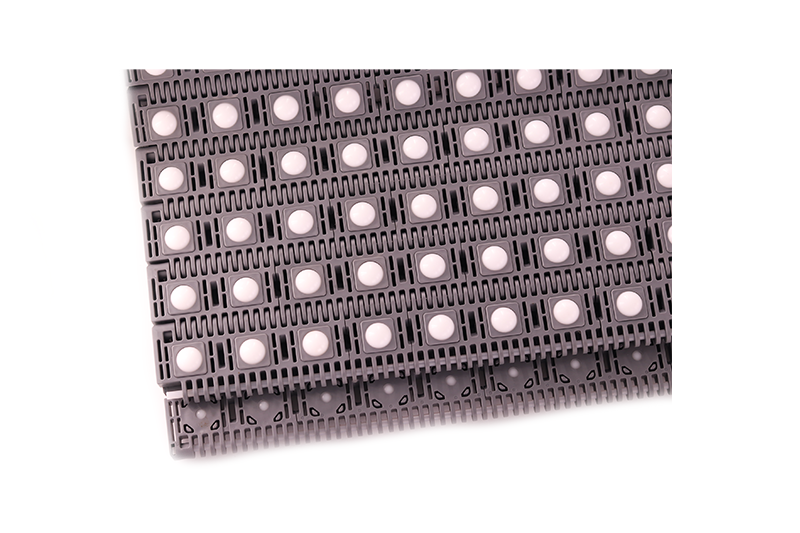

CY-50804Q2 Ball Top
- BELT TYPE
- DESIGN
- CY-50804Q2
- Ball Top
- NOMINAL PITCH
- 50.8mm
- Open Area
- 11%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 20.8mm
- Pin Diameter
- WIDTH
- W=99.64+49.82 W=149.46*N+49.82*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 36000 | 16.5 | 149.46 | W=99.64 |
| PE | PE | 27000 | 17.2 | 149.46 | W=99.64 |
| POM | PP | 47600 | 23 | 149.46 | W=99.64 |
| POM | PA | 48000 | 23.1 | 149.46 | W=99.64 |
Download
