Product Introduction

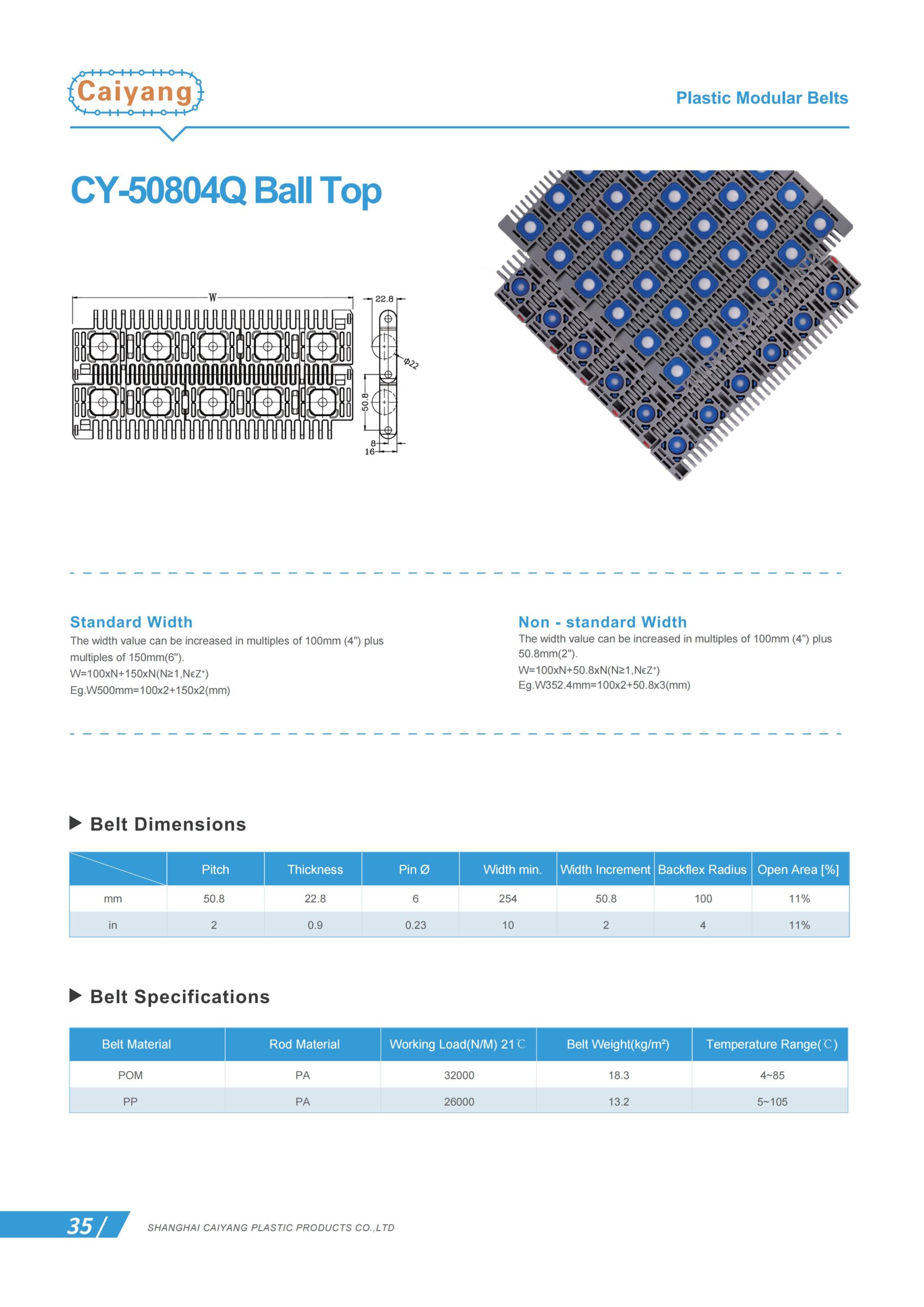

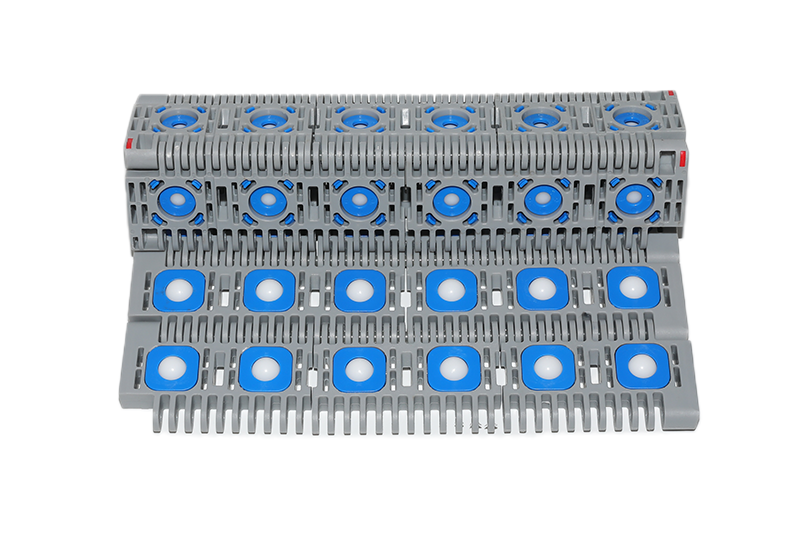

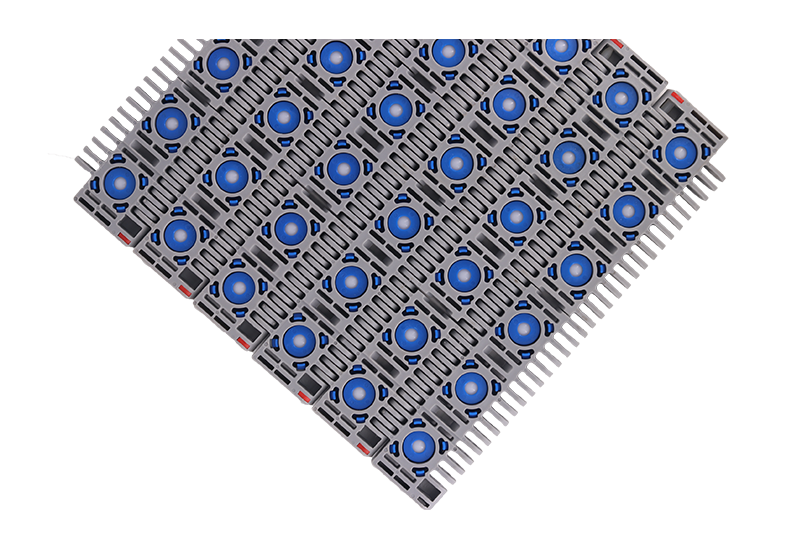

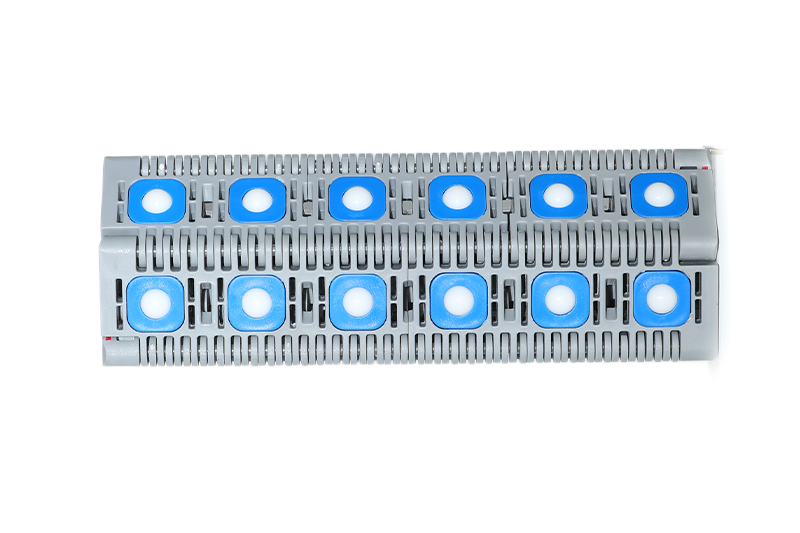

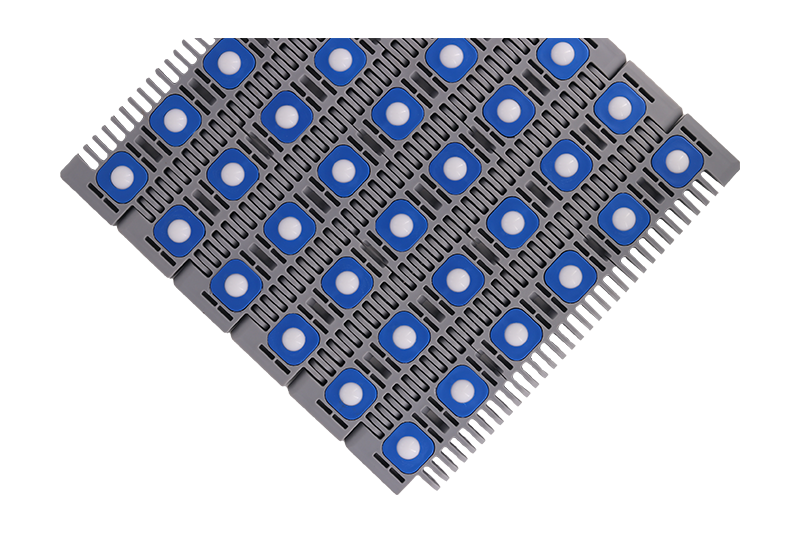

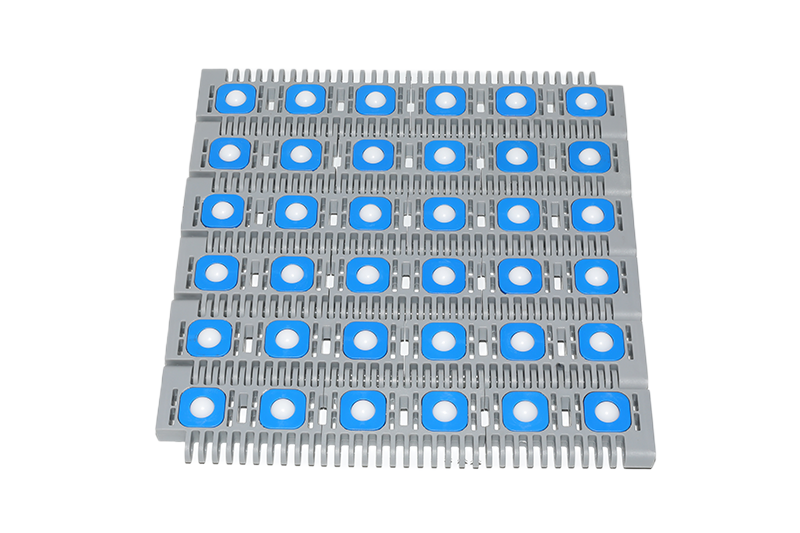

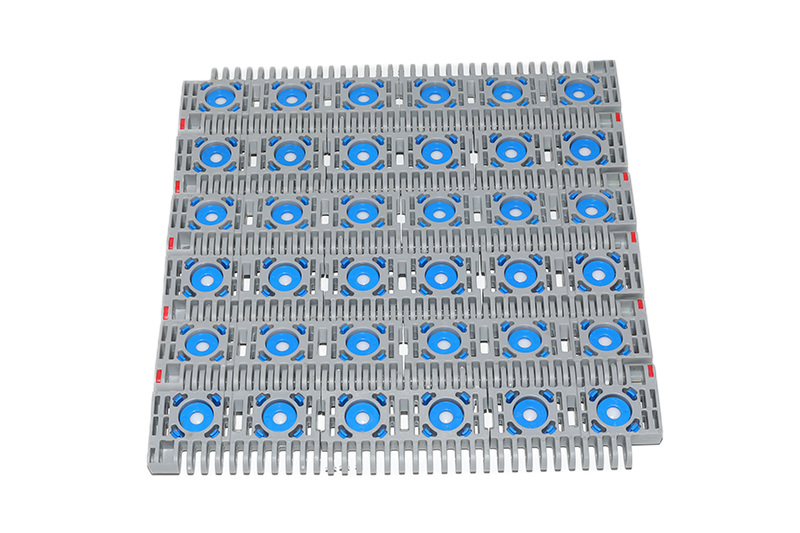

CY-50804Q Ball Top
- BELT TYPE
- DESIGN
- CY-50804
- Ball Top
- NOMINAL PITCH
- 50.8 mm / 2 inch
- Open Area
- 11%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 22.8 mm / 0.9 inch
- Pin Diameter
- 6 mm / 0.23 inch
- WIDTH
- The width value can be increased in multiples of 100mm (4") plus/The width value can be increased in multiples of 100mm (4") plus
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Temperature Range(℃) |
|---|---|---|---|---|
| PP | PA | 26000 | 13.2 | 5~105 |
| POM | PA | 32000 | 18.3 | 4~85 |
