Product Introduction

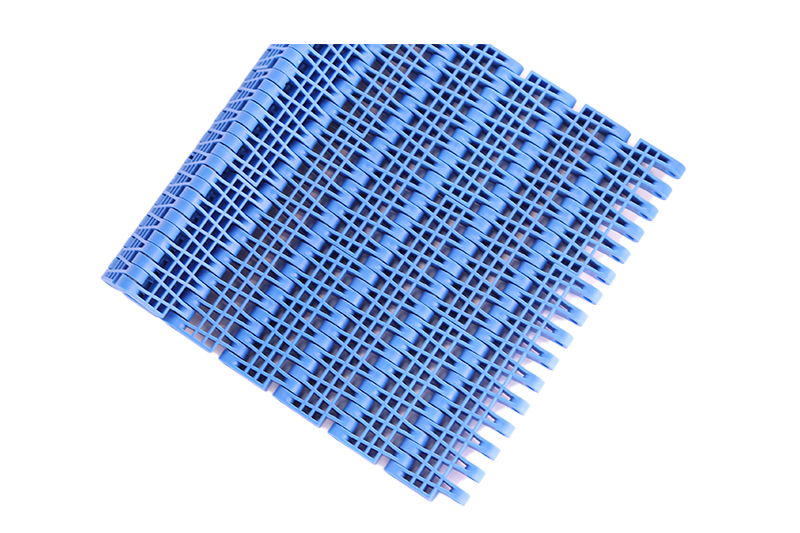

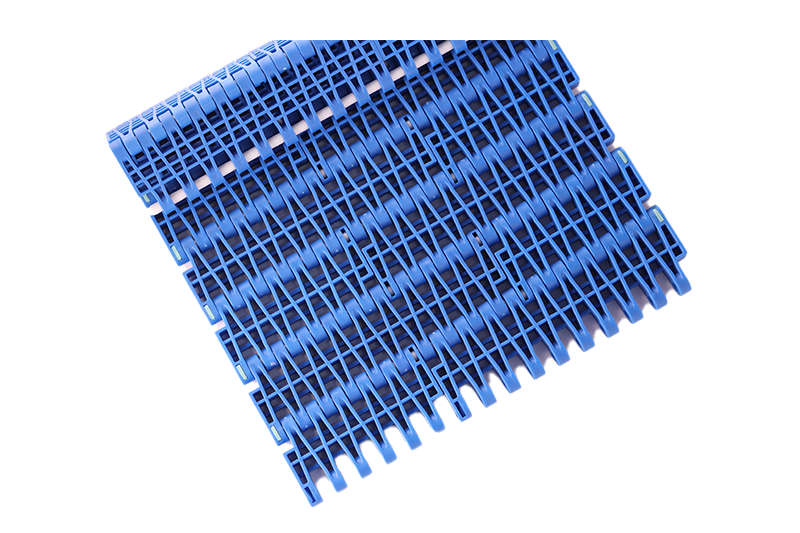

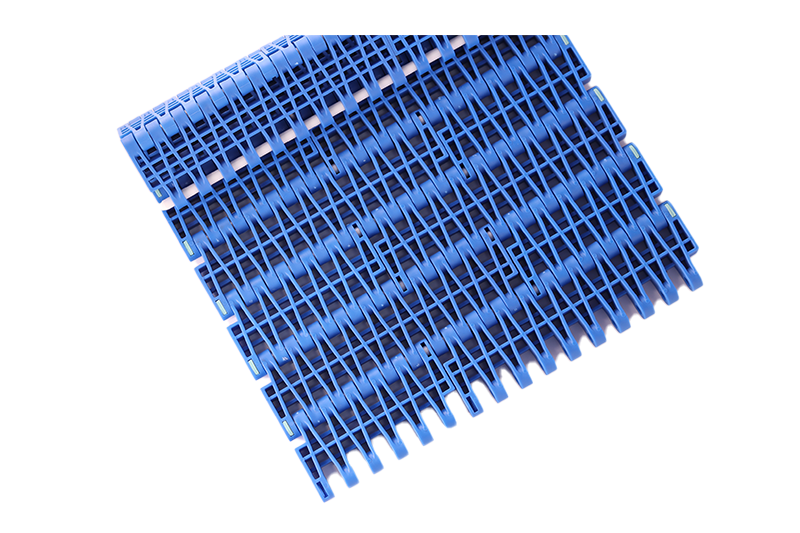

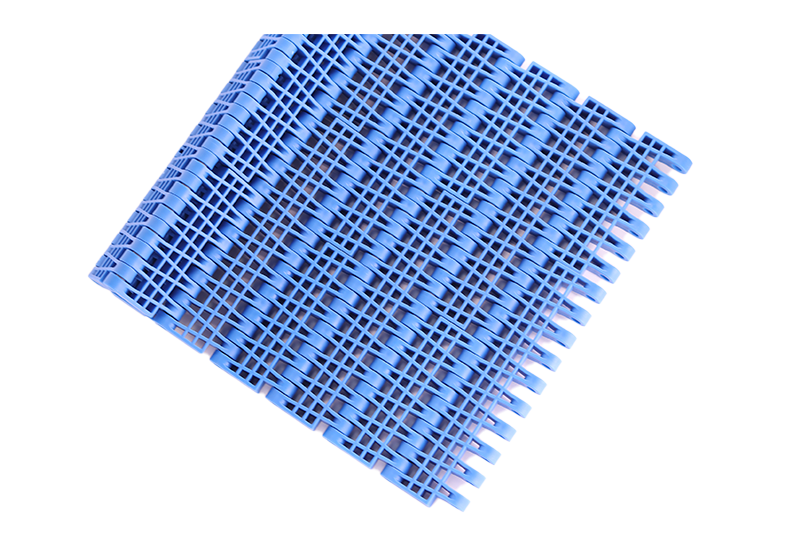

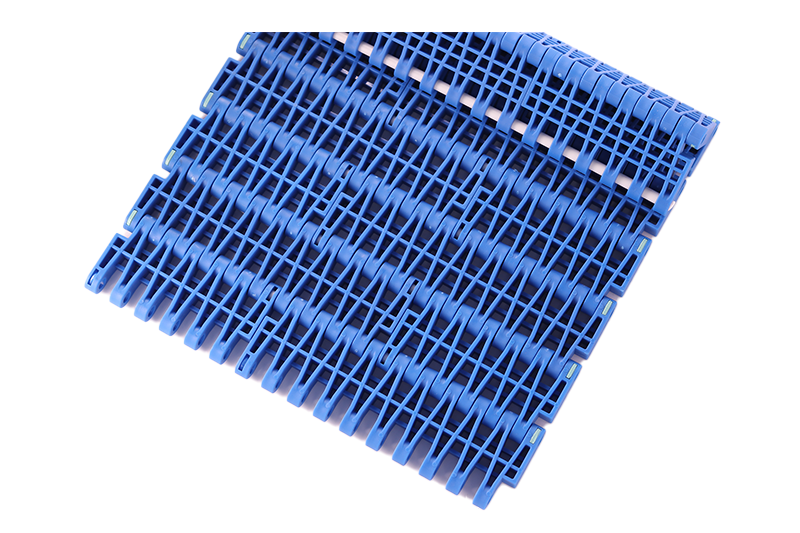

CY-50803B Flush Grid
- BELT TYPE
- DESIGN
- CY-50803B1
- Flush Grid Plastic Modular Chain
- NOMINAL PITCH
- 50.8mm
- Open Area
- 34%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 16mm
- Pin Diameter
- 8mm
- WIDTH
- W=146.5 +73.25 W=152.4*N+19.05*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 36000 | 8.0 | 146.5/73.25 | W=73.25*N+146 |
| PE | PE | 24000 | 8.3 | 146.5/73.25 | W=73.25*N+146 |
| POM | PP | 36000 | 12.0 | 146.5/73.25 | W=73.25*N+146 |
| POM | PA | 55000 | 12.1 | 146.5/73.25 | W=73.25*N+146 |
