Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

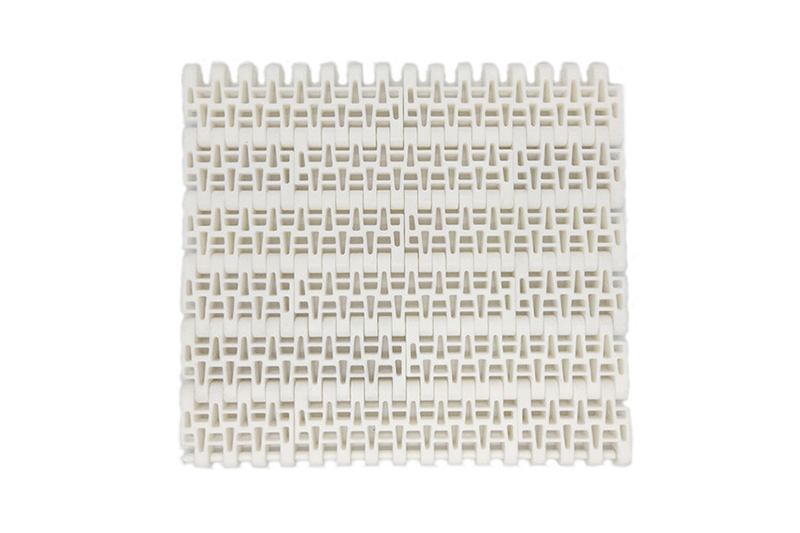

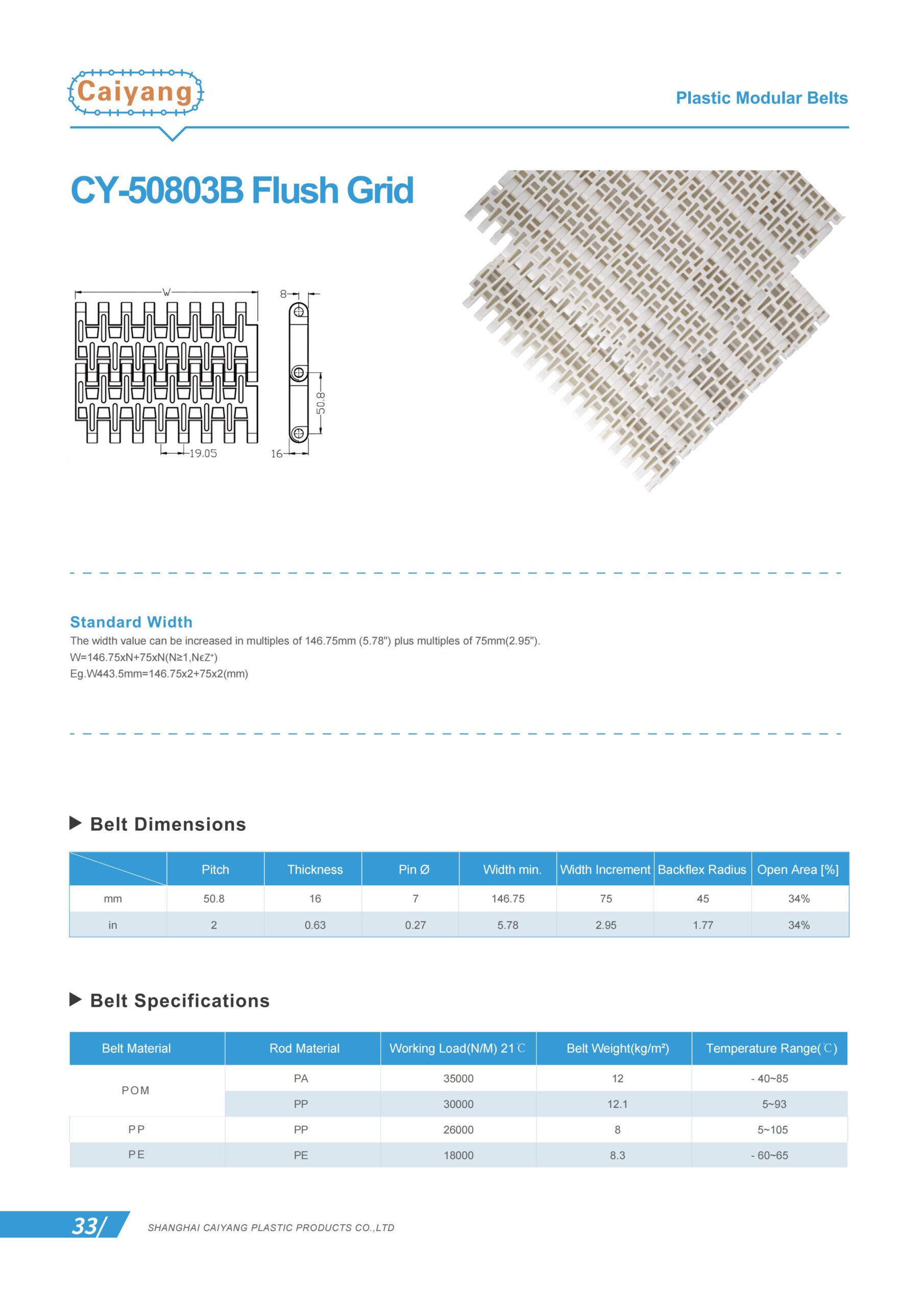

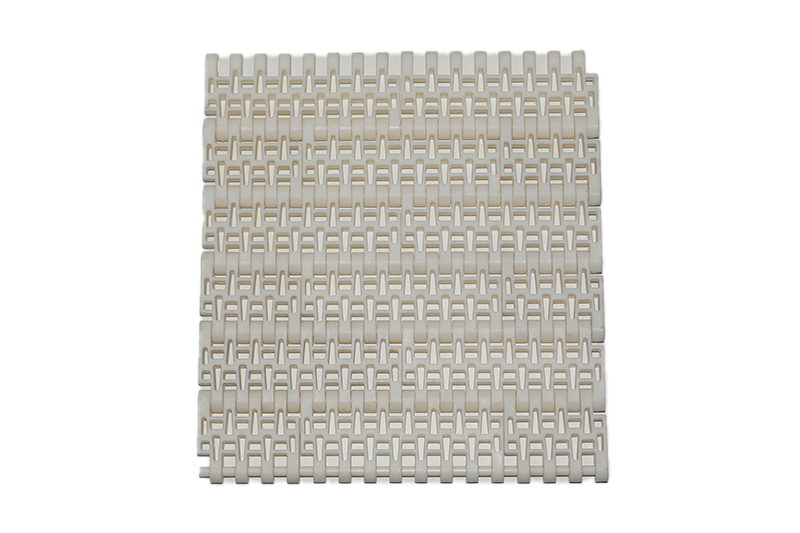

CY-50803B Flush Grid
- BELT TYPE
- DESIGN
- CY-50803
- Flush Grid
- NOMINAL PITCH
- 50.8 mm / 2 inch
- Open Area
- 34%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 16 mm / 0.63 inch
- Pin Diameter
- 7 mm / 0.27 inch
- WIDTH
- The width value can be increased in multiples of 146.75mm (5.78") plus multiples of 75mm(2.95").
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Temperature Range(℃) |
|---|---|---|---|---|
| PA | PA | 2500 | 5.5 | -40~110 |
| POM | PA | 2300 | 5.5 | -40~85 |
Download
