Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

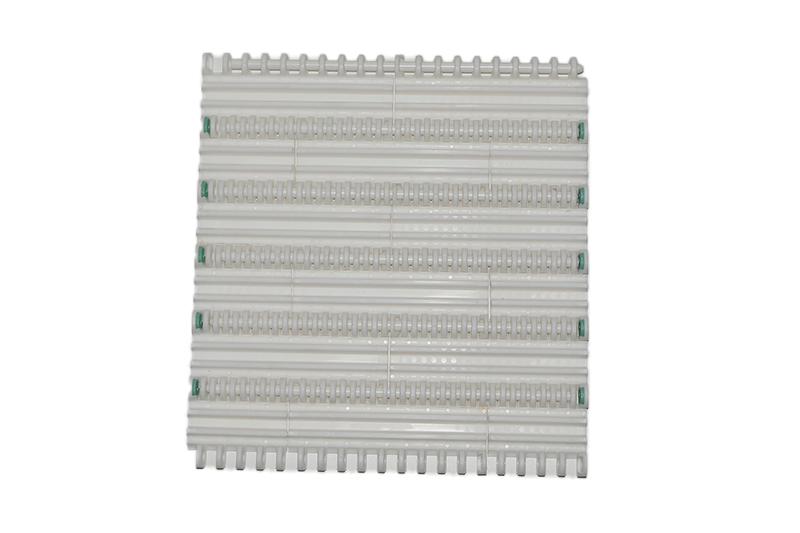

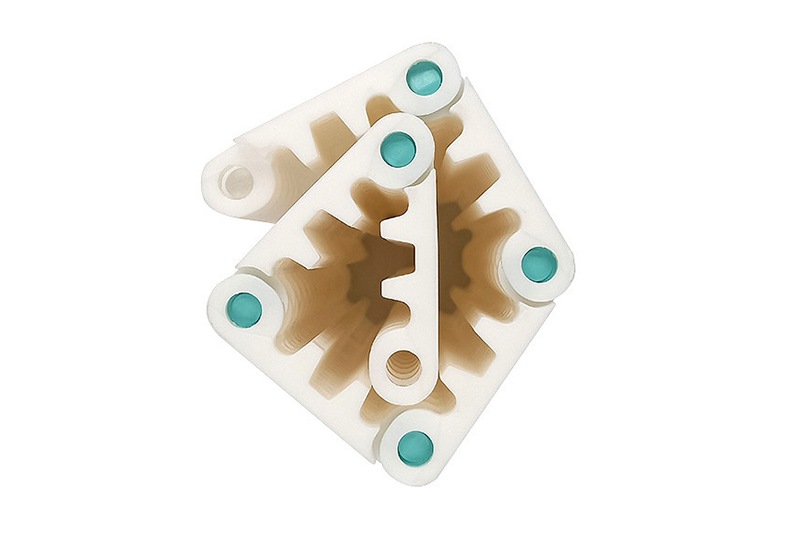

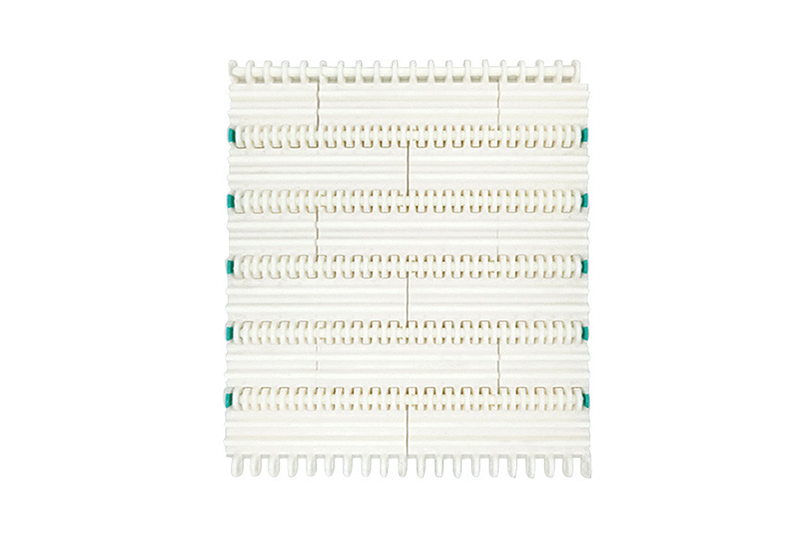

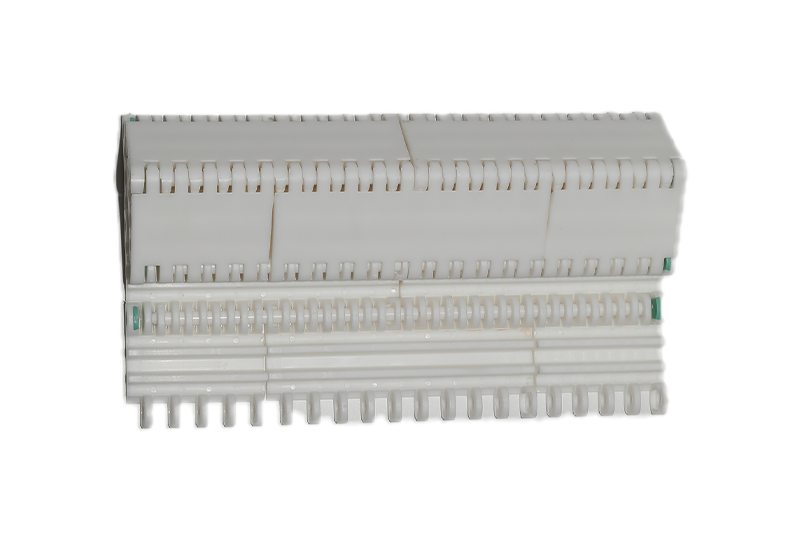

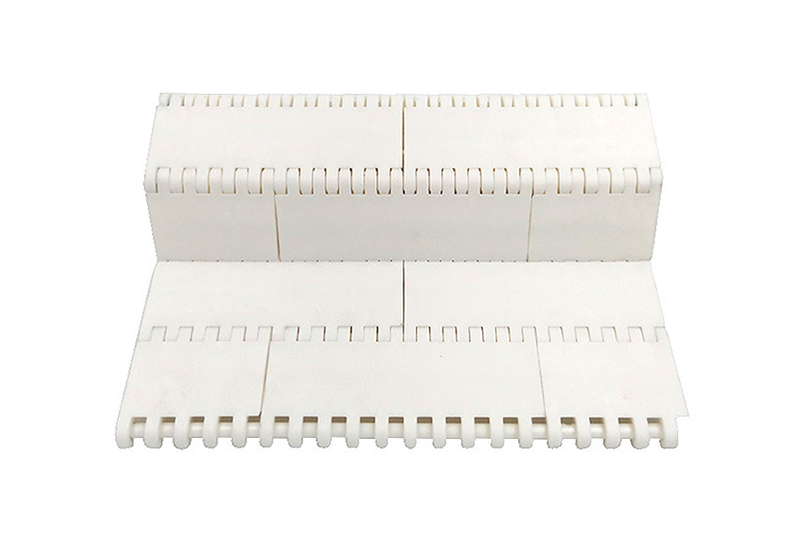

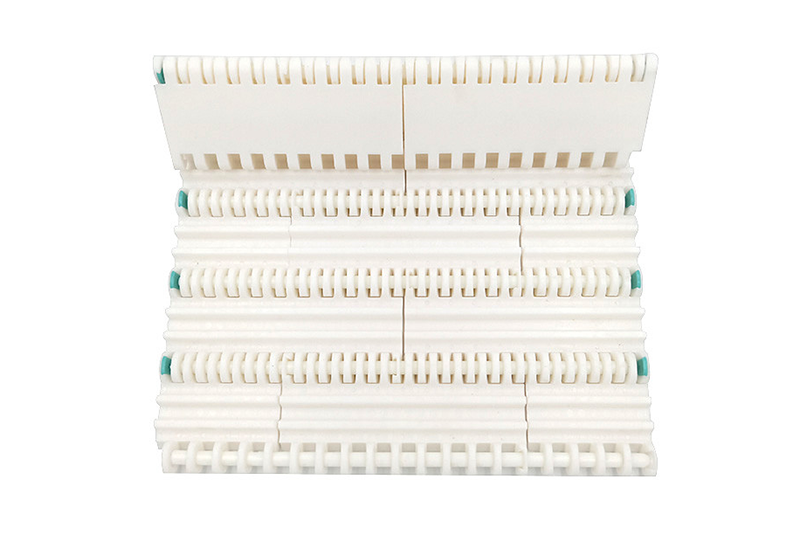

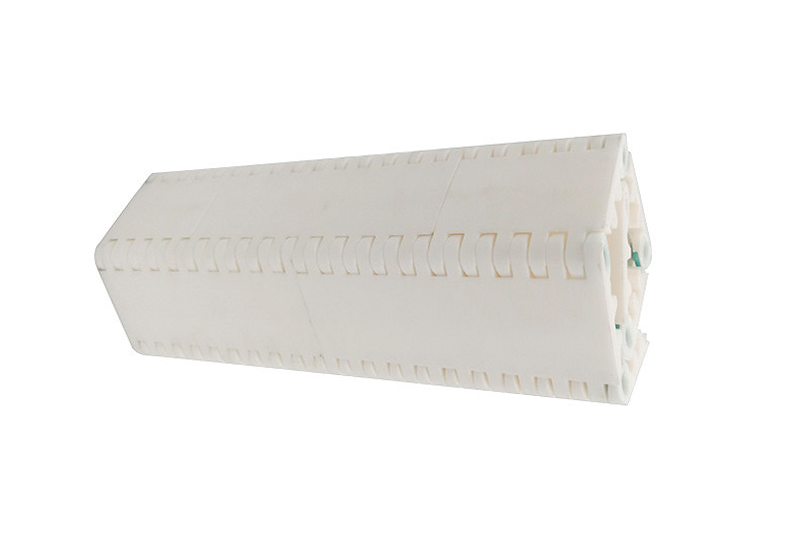

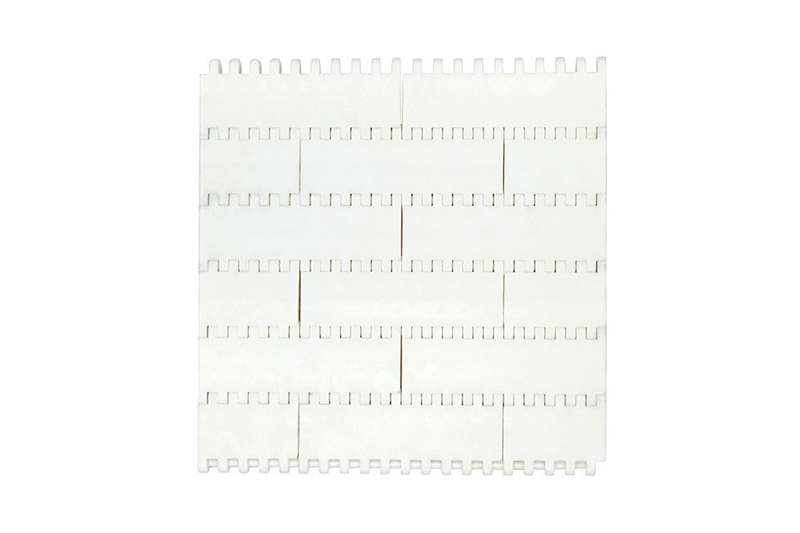

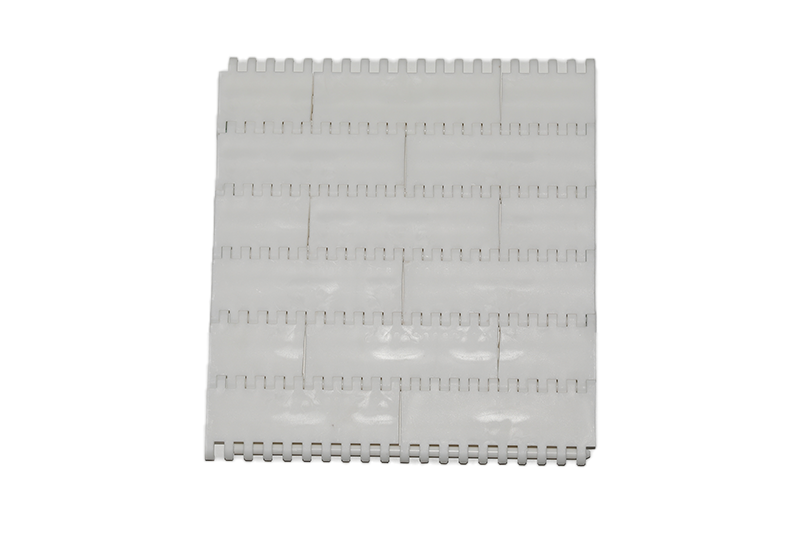

CY-50802A Flat Top
- BELT TYPE
- DESIGN
- CY-50802A
- Flat Top
- NOMINAL PITCH
- 50.8mm
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 16mm
- Pin Diameter
- 8mm
- WIDTH
- W=150*N W=150*N+15*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 12000 | 8.3 | 50/150 | W=150*N |
| PE | PE | 7800 | 12.4 | 50/150 | W=150*N |
| POM | PP | 20500 | 8.6 | 50/150 | W=150*N |
| POM | PA | 24000 | 9.1 | 50/150 | W=150*N |
