Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

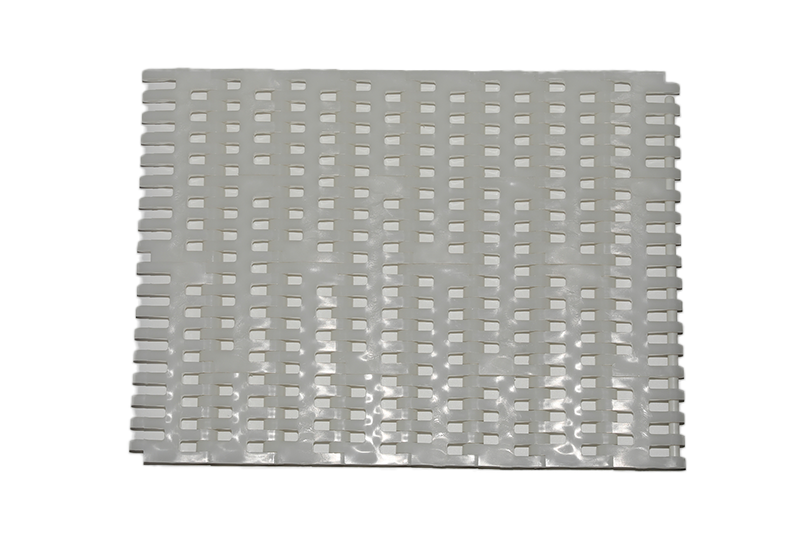

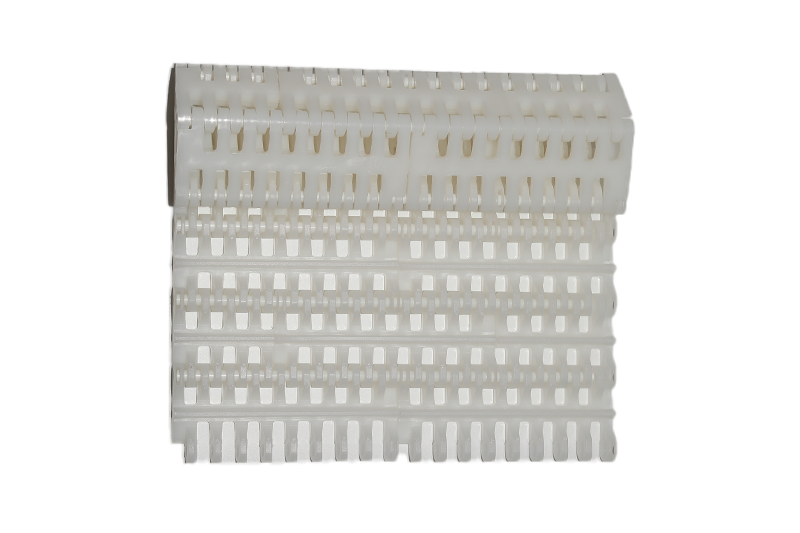

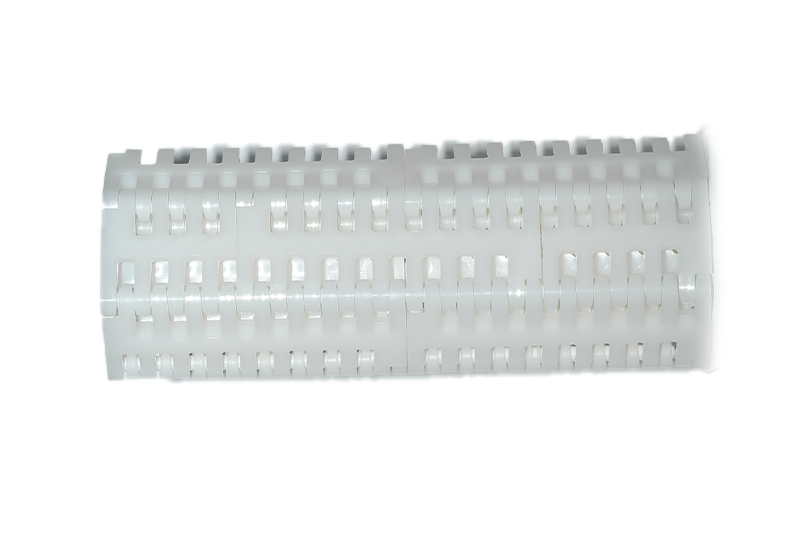

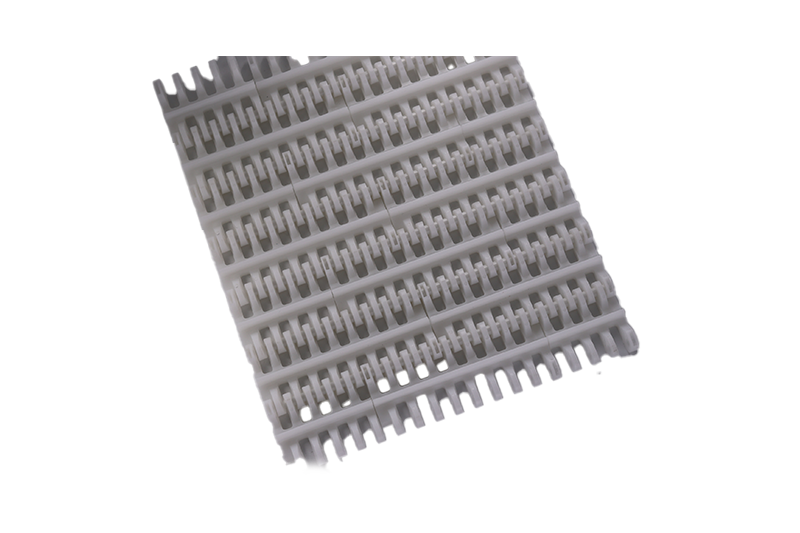

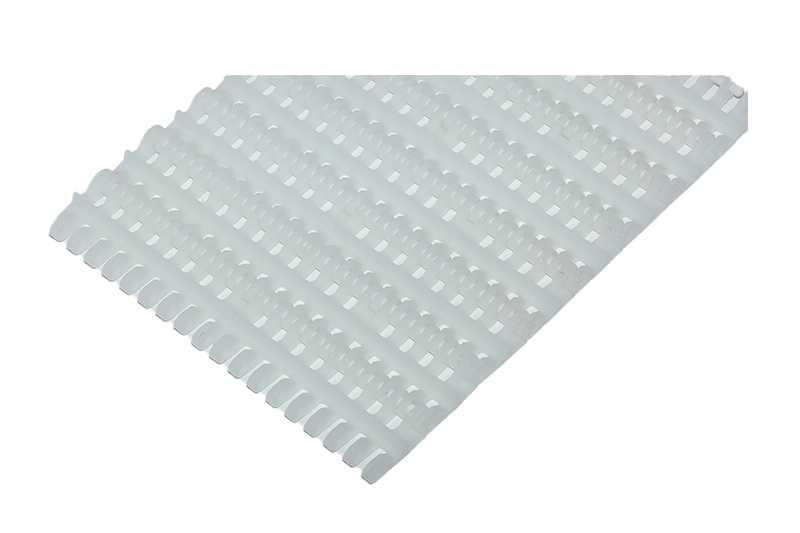

CY-50801B Flush Grid
- BELT TYPE
- DESIGN
- CY-50801B
- Flush Grid
- NOMINAL PITCH
- 50.8mm
- Open Area
- 18%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 16mm
- Pin Diameter
- 6mm
- WIDTH
- W=50.49*N W=151.47*N+16.9*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 15000 | 7.9 | 50.49/151.47/50.49 | W=50.49*N |
| PE | PE | 8000 | 8.4 | 50.49/151.47/50.49 | W=50.49*N |
| POM | PP | 20000 | 11.8 | 50.49/151.47/50.49 | W=50.49*N |
| POM | PA | 22000 | 11.9 | 50.49/151.47/50.49 | W=50.49*N |
