Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

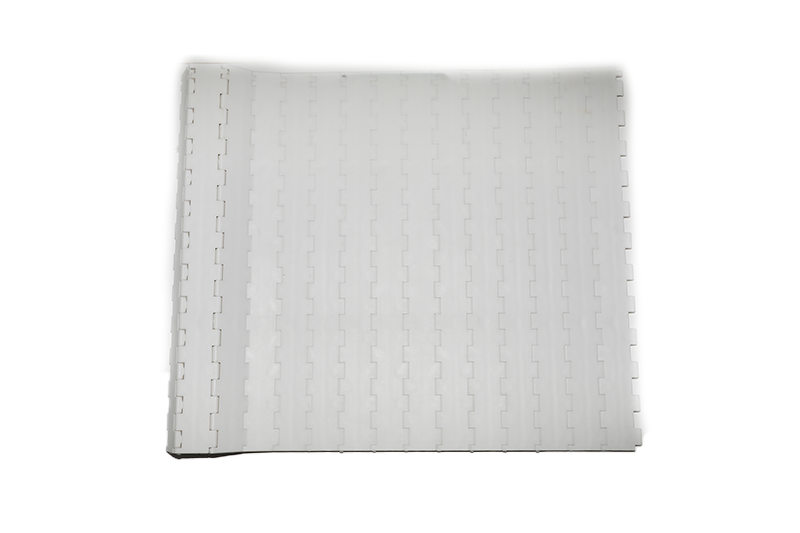

CY-50801A2 Flat Top(MTW)
- BELT TYPE
- DESIGN
- CY-50801A2
- Flat Top(MTW)
- NOMINAL PITCH
- 50.8
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 16mm
- Pin Diameter
- 8mm
- WIDTH
- W=50.8*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 9000 | 9.8 | 50.8/622 | W=50.8*N |
| PE | PE | 8000 | 8.7 | 50.8/622 | W=50.8*N |
| POM | PA | 15600 | 11.3 | 50.8/622 | W=50.8*N |
