Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

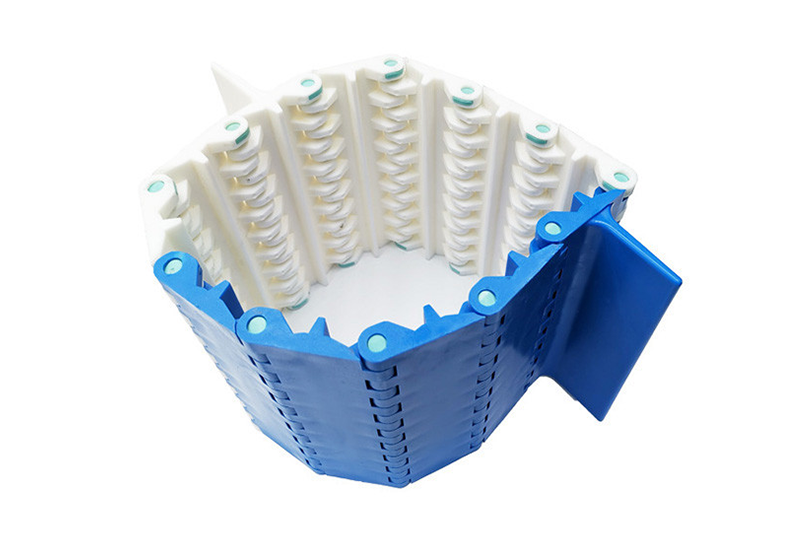

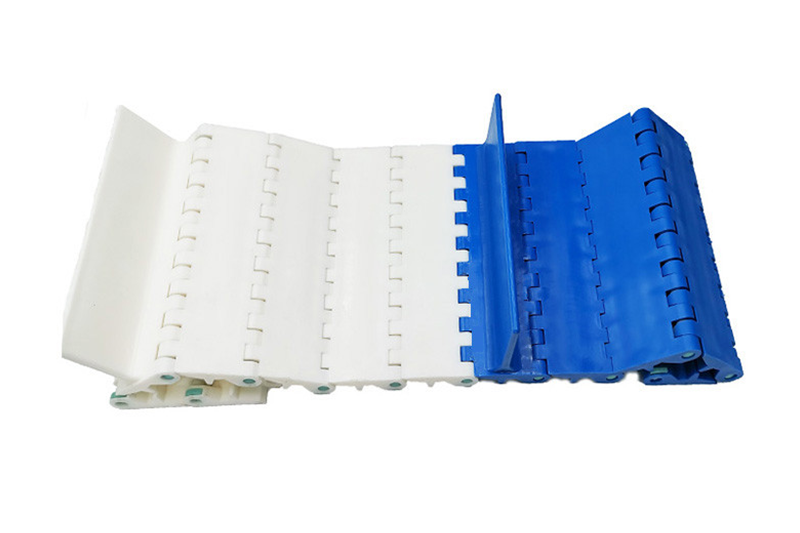

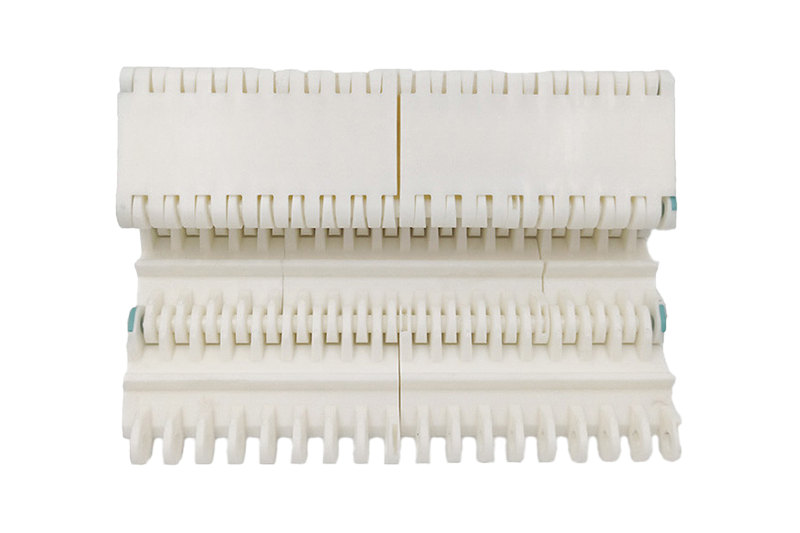

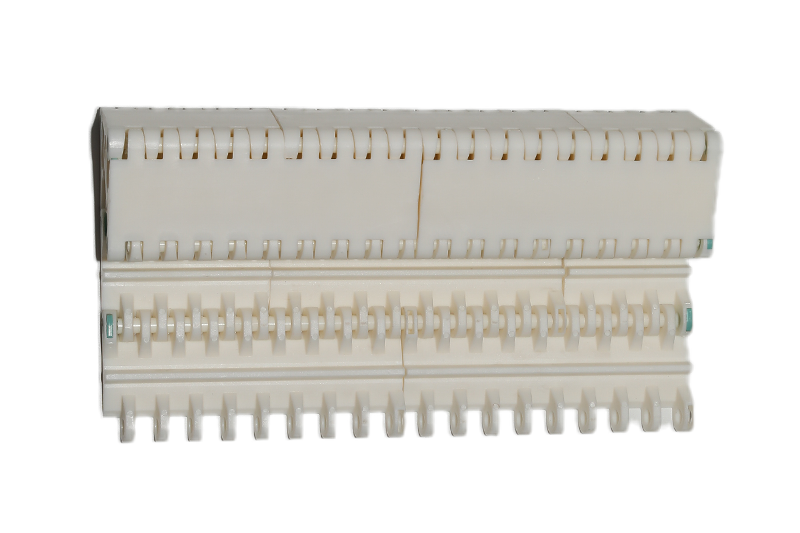

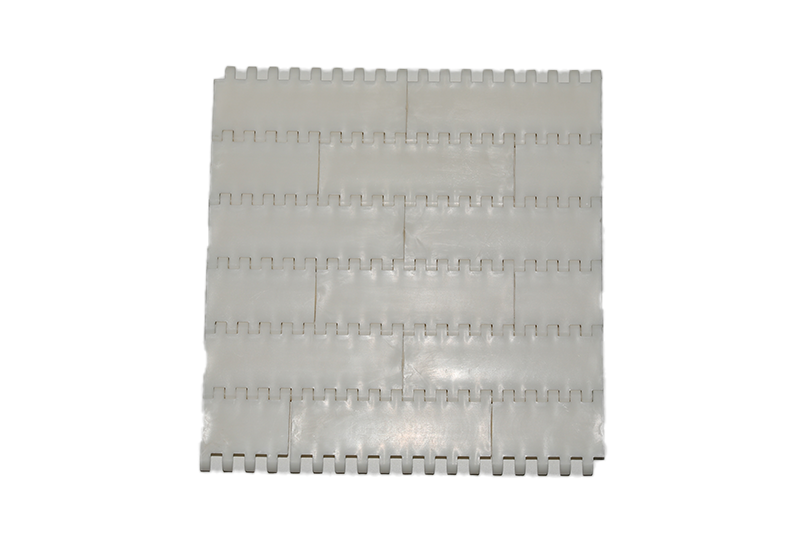

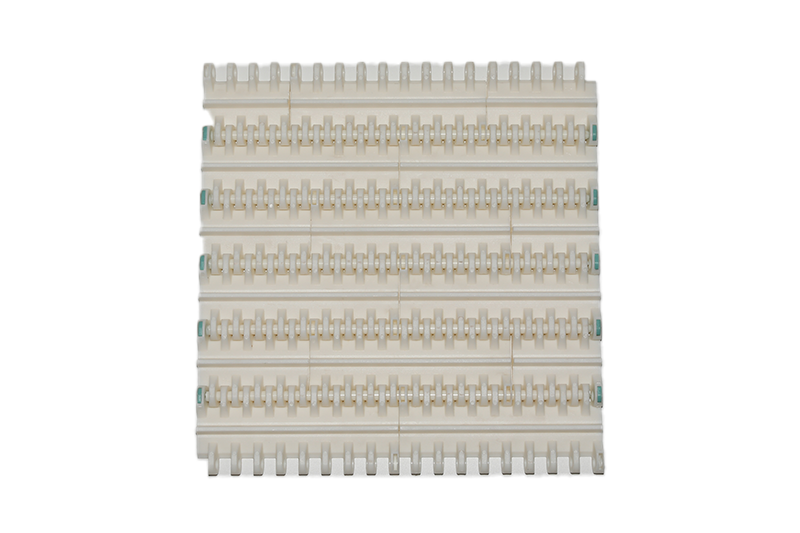

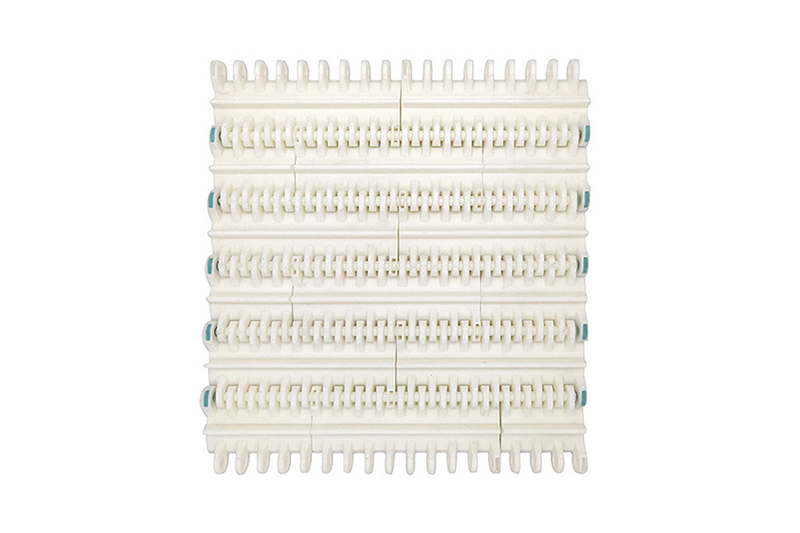

CY-50801A Flat Top
- BELT TYPE
- DESIGN
- CY-50801A
- Flat Top
- NOMINAL PITCH
- 50.8mm
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 16mm
- Pin Diameter
- 6mm
- WIDTH
- W=50.49*N W=151.47*N+16.9*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 11000 | 8.3 | 50.8/151.74/50.8 | W=50.8*N |
| PE | PE | 6600 | 8.8 | 50.8/151.74/50.8 | W=50.8*N |
| POM | PP | 19000 | 12.5 | 50.8/151.74/50.8 | W=50.8*N |
| POM | PA | 22000 | 12.6 | 50.8/151.74/50.8 | W=50.8*N |
