Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

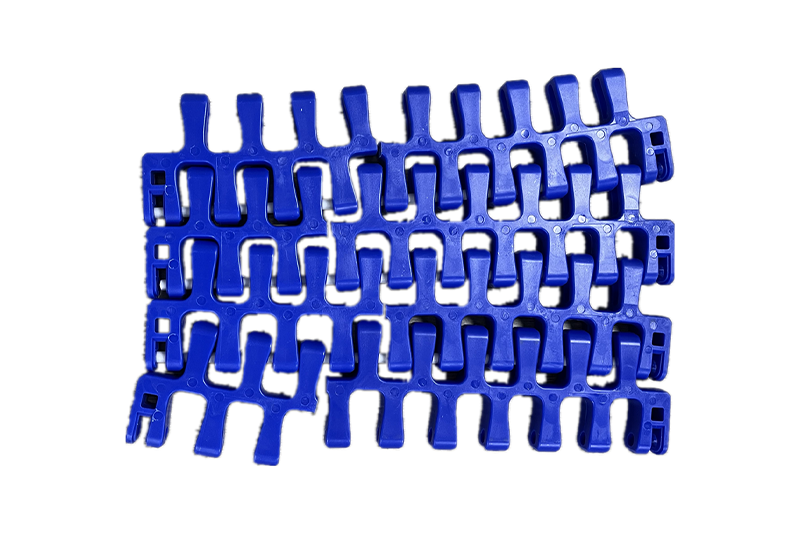

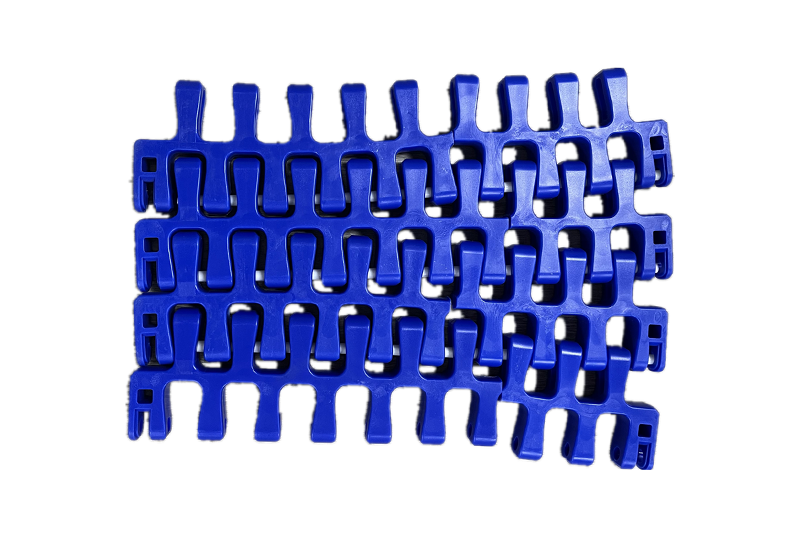

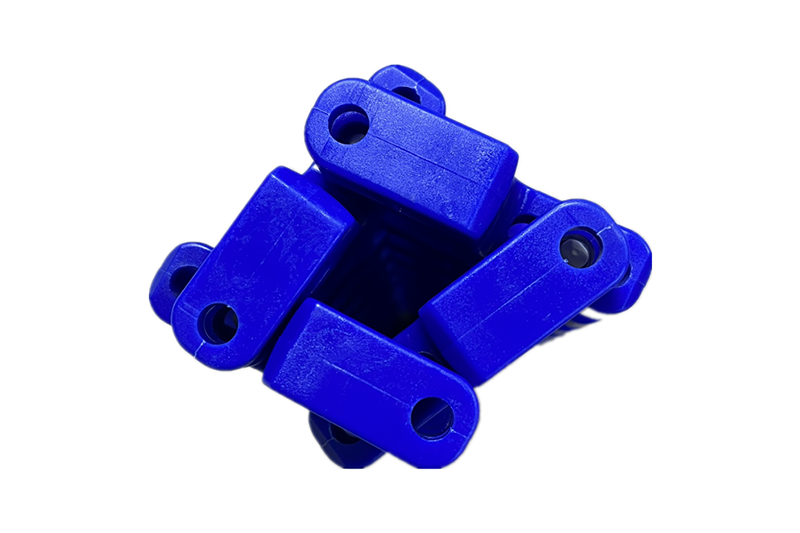

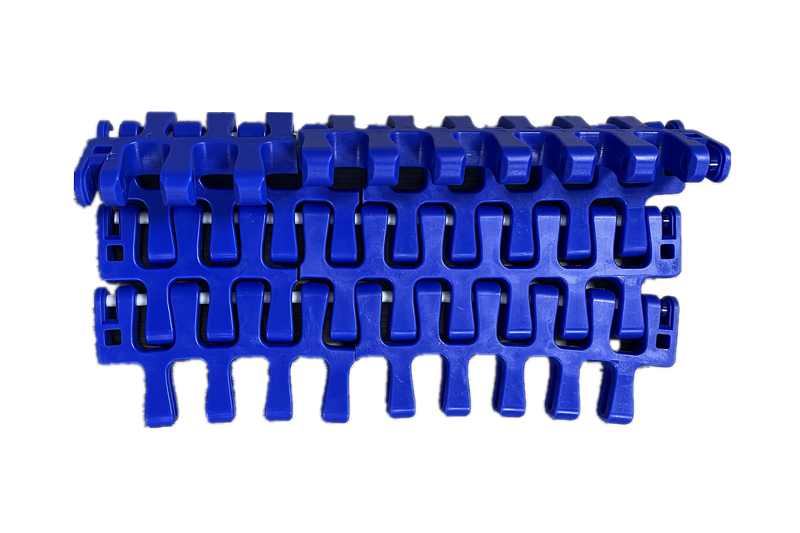

CY-46000W Radius Flush Grid
- BELT TYPE
- DESIGN
- CY-46000W
- Radius Flush Grid
- NOMINAL PITCH
- 46mm
- Open Area
- 50%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 14.7mm
- Pin Diameter
- 6mm
- WIDTH
- W=293.6+198.6 W=293.6+24.83*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PP | 23000 | 6.9 | 103.35/124.15/198.6/190.25 | W=198.6*N+293.6 |
| PE | PE | 17000 | 7.3 | 103.35/124.15/198.6/190.25 | W=198.6*N+293.6 |
| POM | PP | 43000 | 10.8 | 103.35/124.15/198.6/190.25 | W=198.6*N+293.6 |
| POM | PA | 44000 | 10.9 | 103.35/124.15/198.6/190.25 | W=198.6*N+293.6 |
