Product Introduction

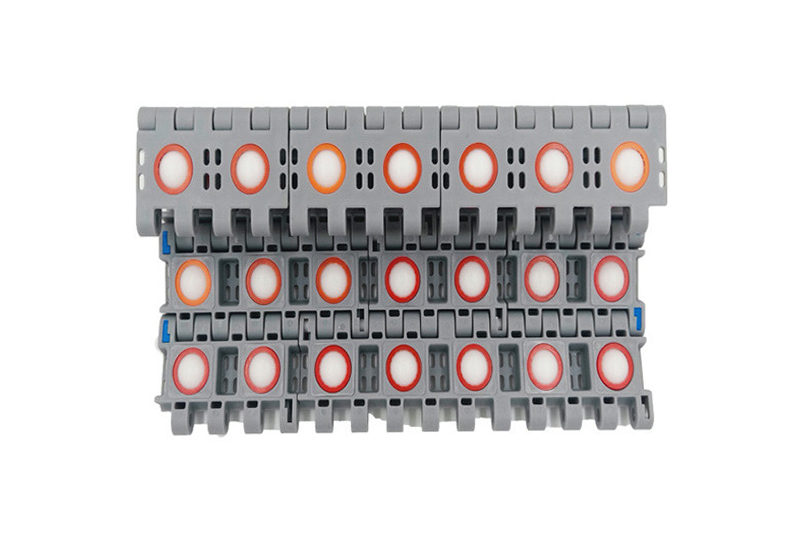

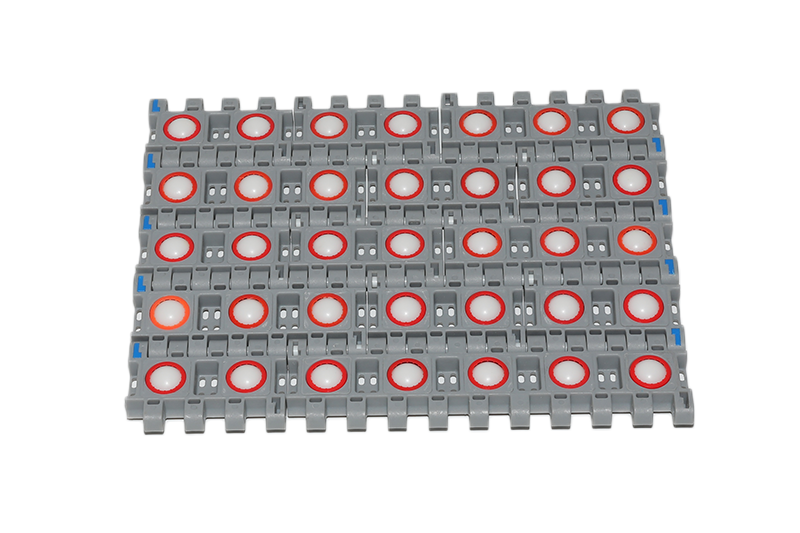

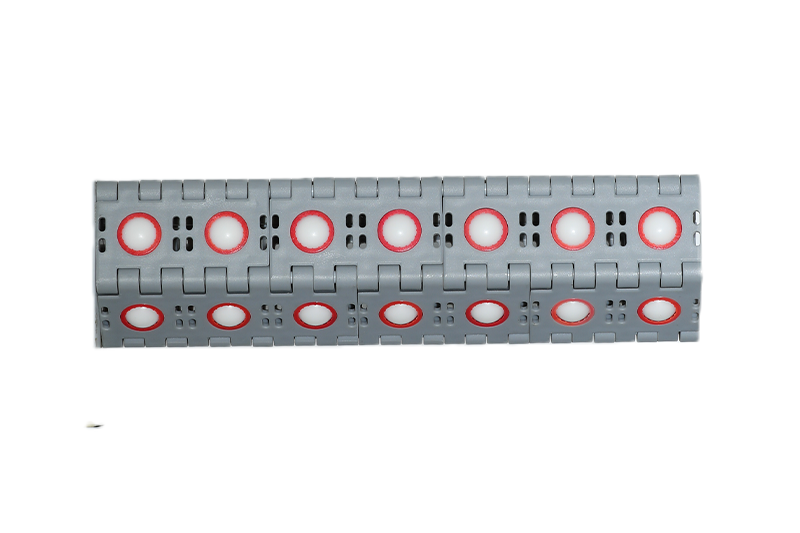

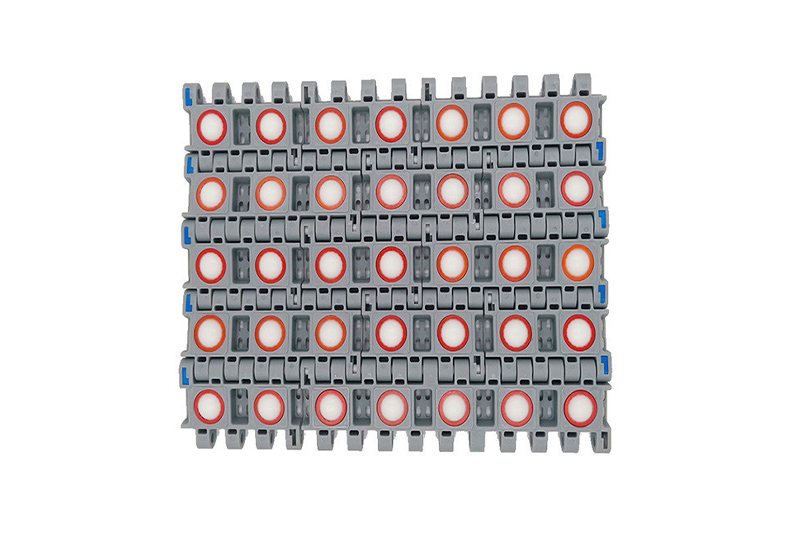

CY-40000Q Ball Top
- BELT TYPE
- DESIGN
- CY-40000Q
- Ball Top
- NOMINAL PITCH
- 40mm
- Open Area
- 51%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 13mm
- Pin Diameter
- 6mm
- WIDTH
- W=198+99
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | POM | 20000 | 5.59 | 99/198/99 | W=99*N+198 |
| POM | PA | 28000 | 7.9 | 99/198/99 | W=99*N+198 |
