Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

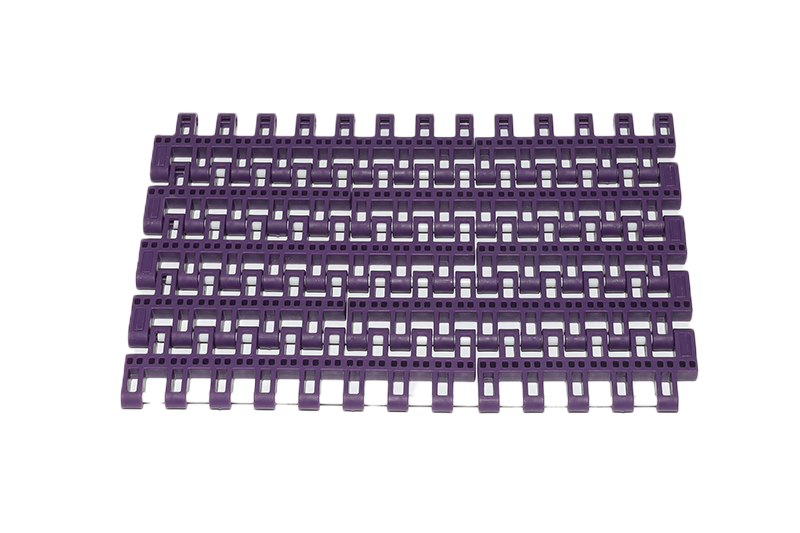

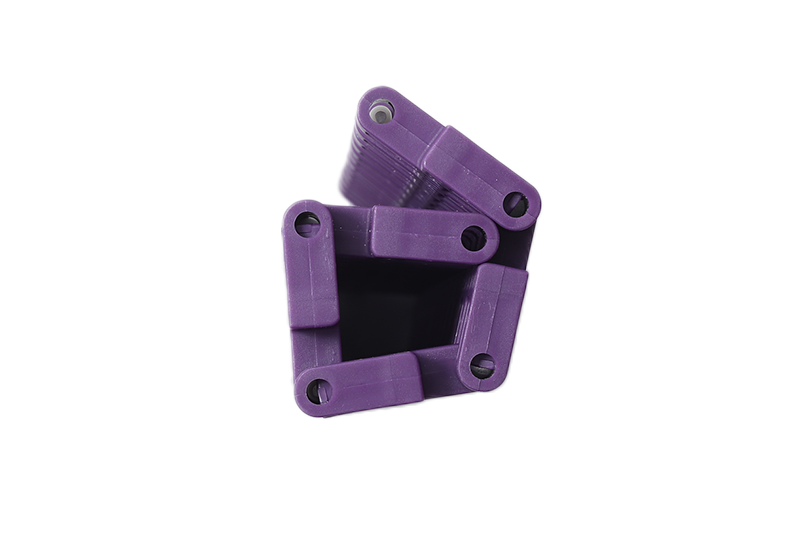

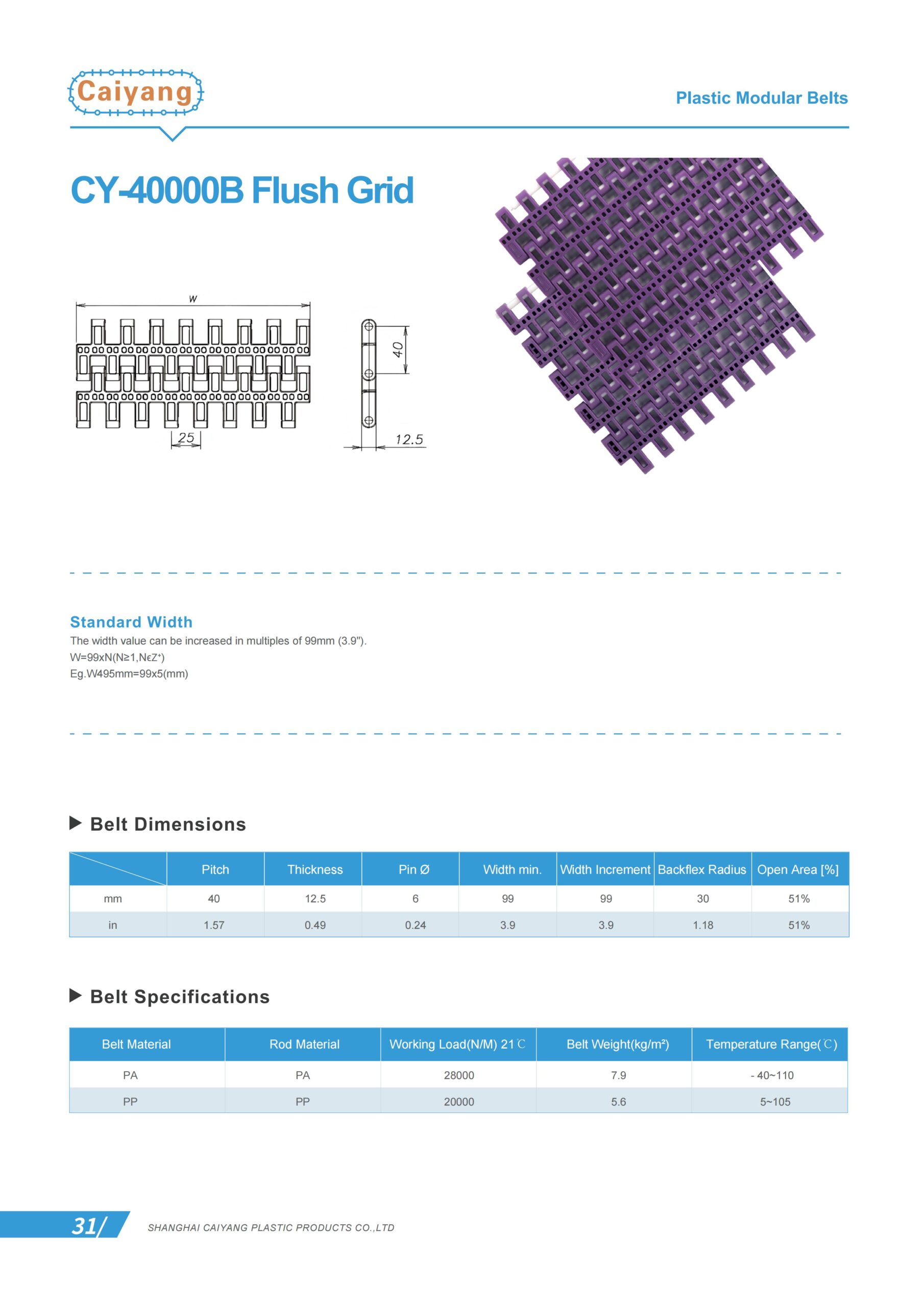

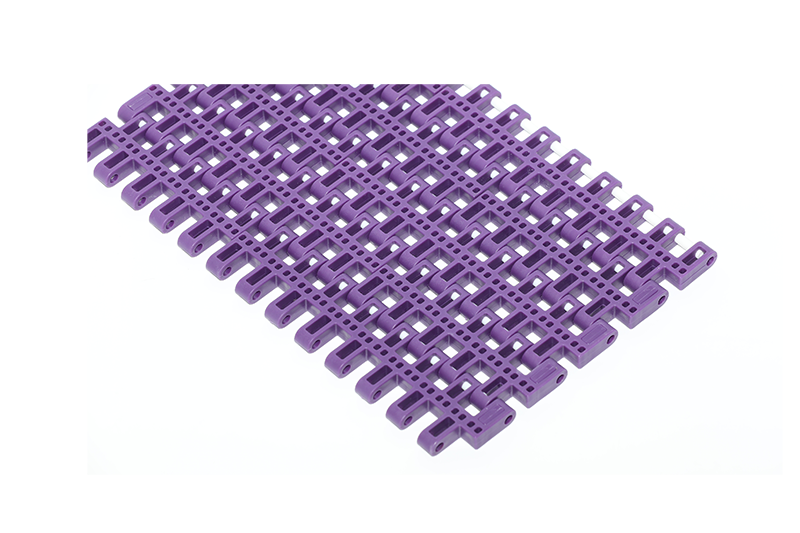

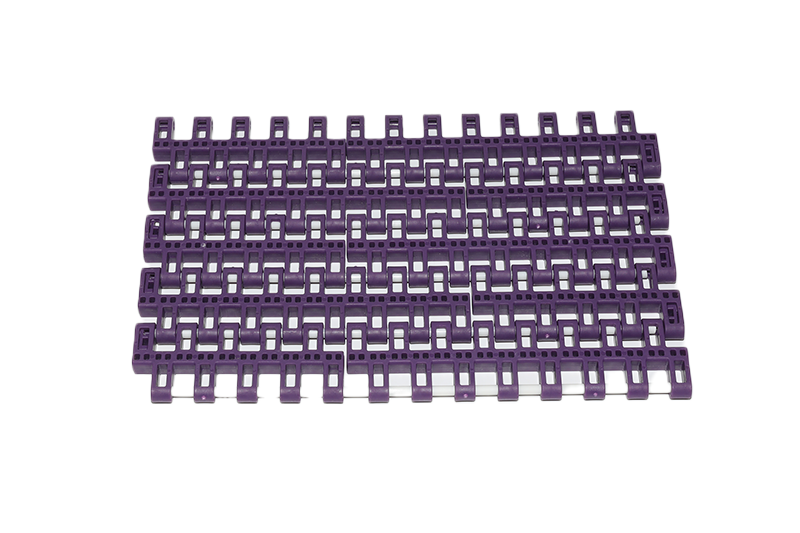

CY-40000B Flush Grid
- BELT TYPE
- DESIGN
- CY-40000
- Flush Grid
- NOMINAL PITCH
- 40 mm / 1.57 inch
- Open Area
- 51%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 12.5 mm / 0.49 inch
- Pin Diameter
- 6 mm / 0.24 inch
- WIDTH
- The width value can be increased in multiples of 99mm (3.9").
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | POM | 20000 | 5.59 | 99/198/99 | W=99*N+198 |
| PA | PA | 28000 | 7.9 | 99/198/99 | W=99*N+198 |
Download
If you have any inquiries or questions, welcome to contact us.
+86 17321328732
