Product Introduction

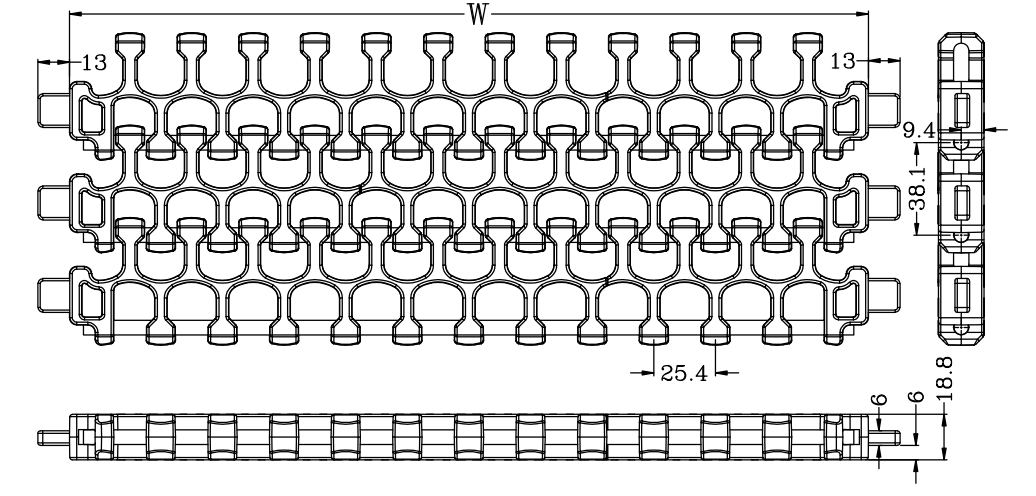

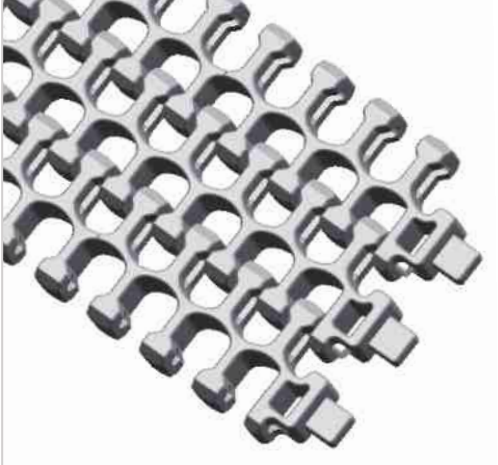

CY-38104W1 Radius Flush Grid
- BELT TYPE
- DESIGN
- CY-38104W1
- Radius Flush Grid
- NOMINAL PITCH
- 38.1mm
- Open Area
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 18.8mm
- Pin Diameter
- 6mm
- WIDTH
- W=342+127 W=152.4+25.4*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 37000 | 14 | 120.2/228.5/126.9/221.8 | W=342+127*N |
| POM | PP | 36000 | 13.9 | 120.2/228.5/126.9/221.8 | W=342+127*N |
| PP | PP | 21000 | 8.9 | 120.2/228.5/126.9/221.8 | W=342+127*N |
| PE | PE | 14000 | 9.6 | 120.2/228.5/126.9/221.8 | W=342+127*N |
