Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

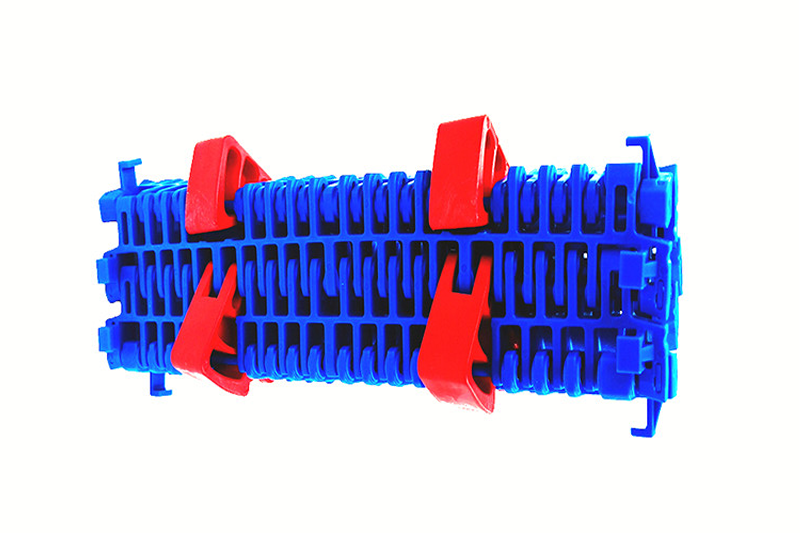

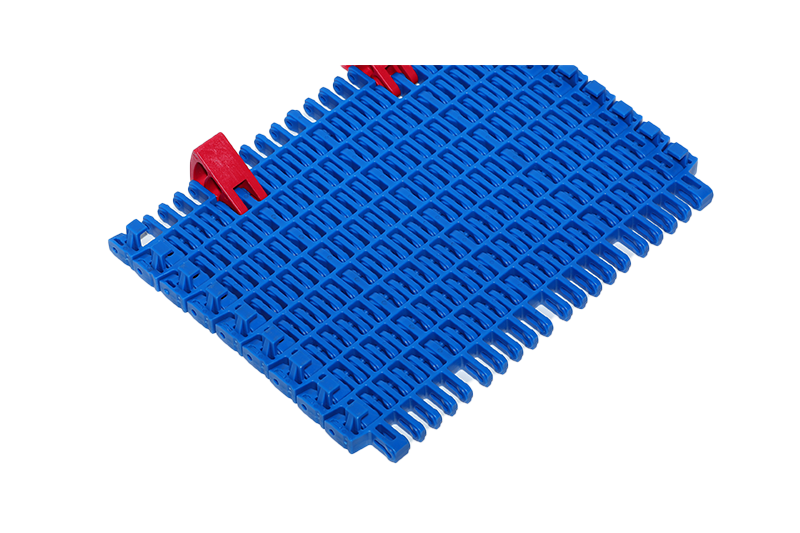

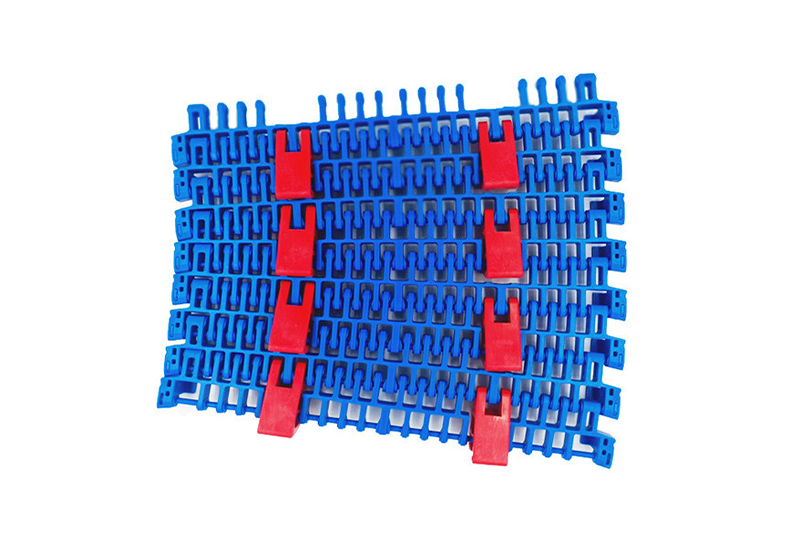

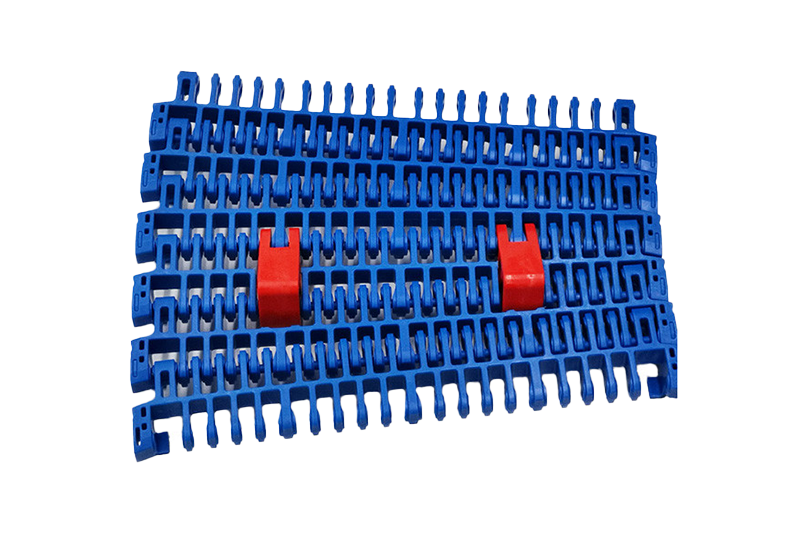

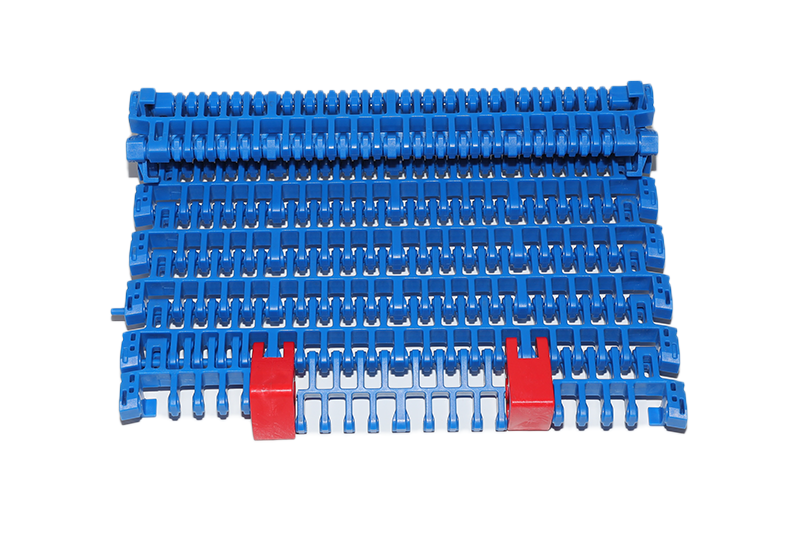

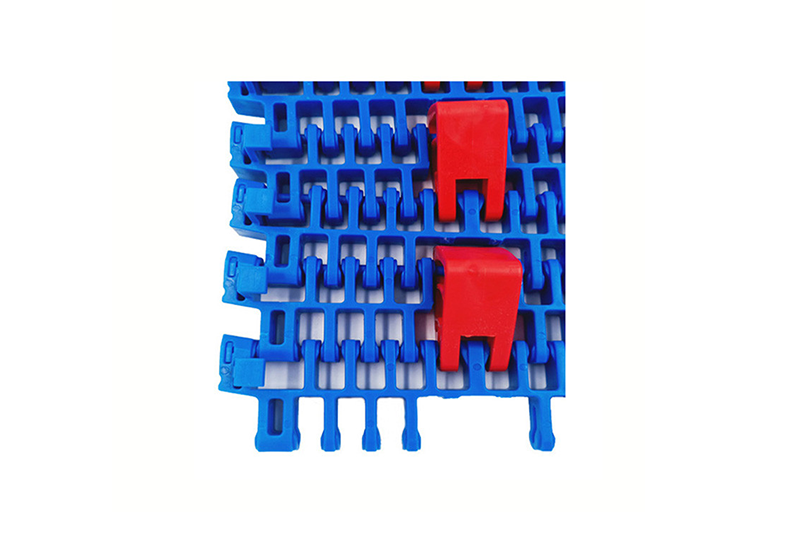

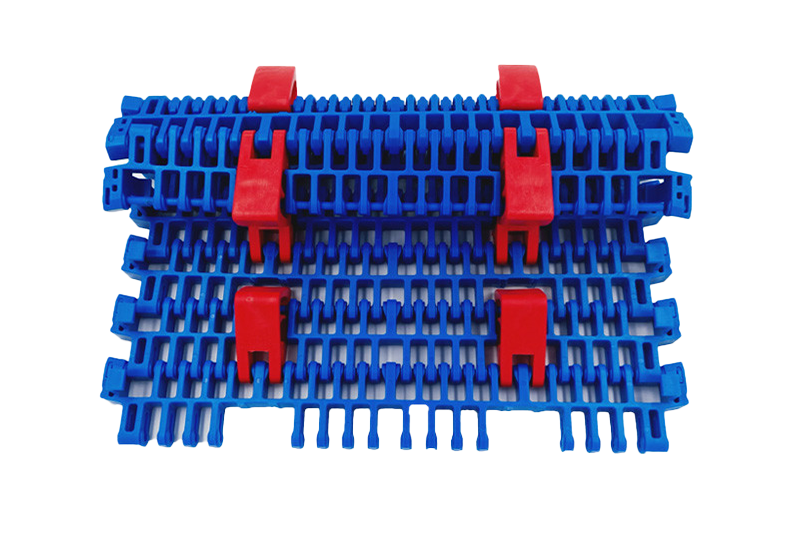

CY-38103W2 Radius Flush Grid with Tabs
- BELT TYPE
- DESIGN
- CY-38103W2
- Radius Flush Grid with Tabs
- NOMINAL PITCH
- 38.1mm
- Open Area
- 58%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 29mm
- Pin Diameter
- 4.5mm
- WIDTH
- W=330
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 21000 | 2.9 | 330 | W=330 |
| POM | PA | 22000 | 3.0 | 330 | W=330 |
| PP | PP | 12000 | 1.9 | 330 | W=330 |
| PE | PE | 9000 | 2.0 | 330 | W=330 |
