Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

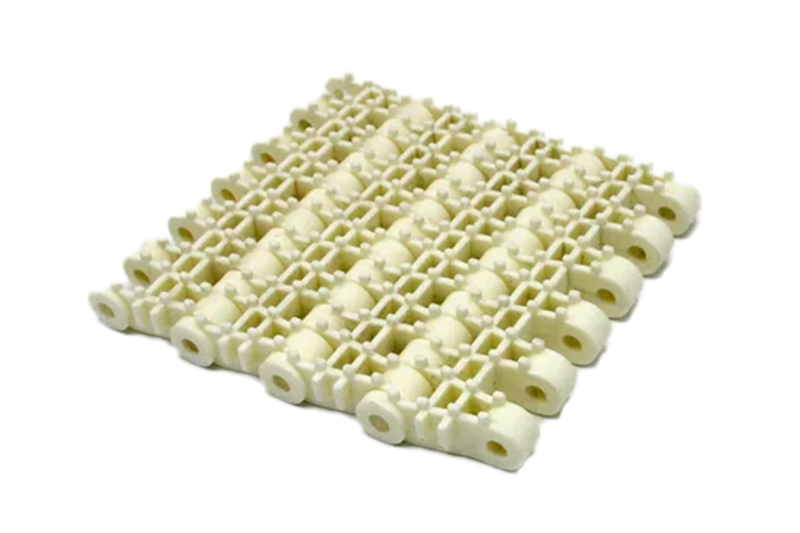

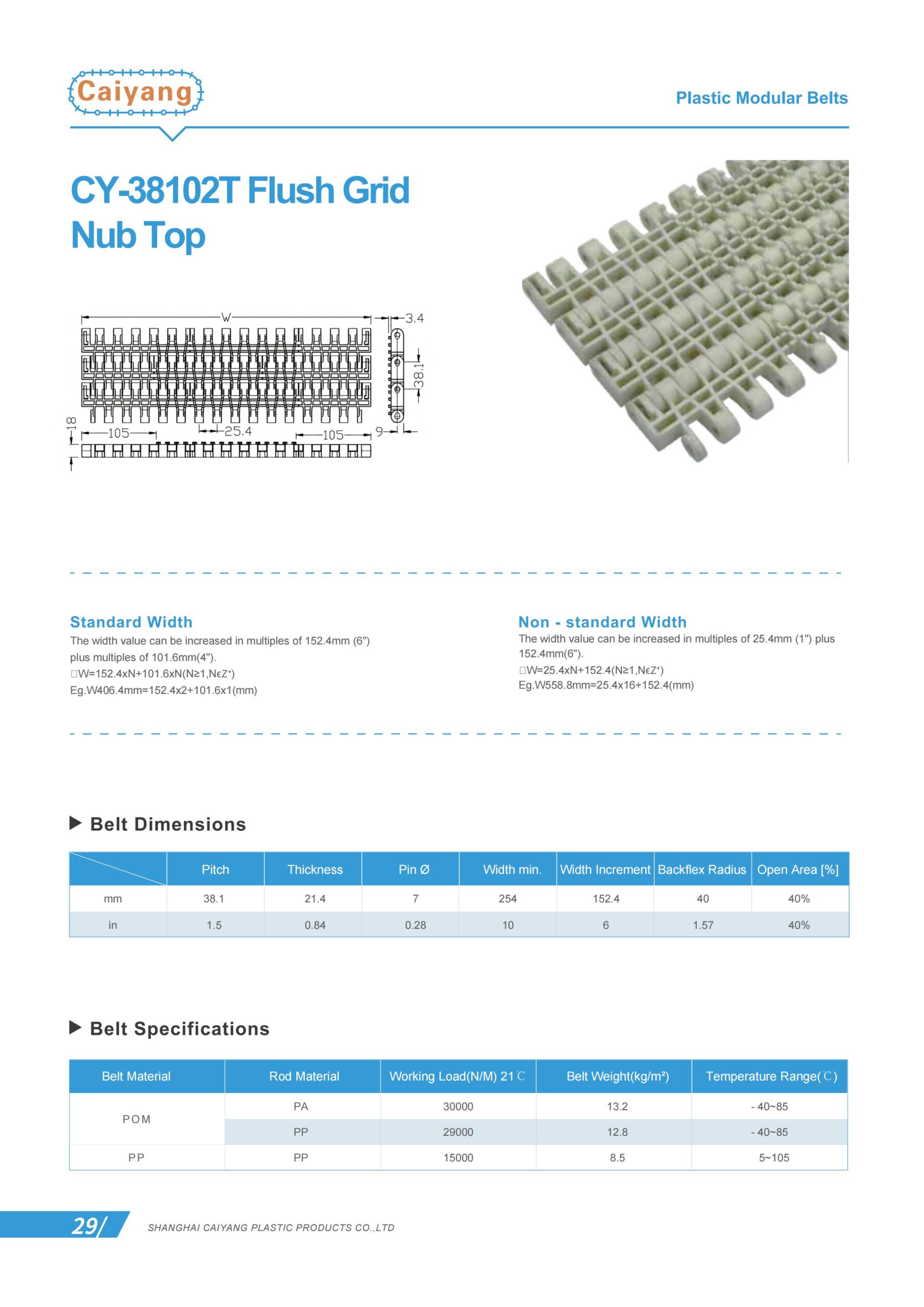

CY-38102T Flush Grid Nub Top
- BELT TYPE
- DESIGN
- CY-38102
- Flush Grid Nub Top
- NOMINAL PITCH
- 38.1 mm / 1.5 inch
- Open Area
- 40%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 21.4 mm / 0.84 inch
- Pin Diameter
- 7 mm / 0.28 inch
- WIDTH
- The width value can be increased in multiples of 152.4mm (6")/The width value can be increased in multiples of 25.4mm (1") plus
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PP | PA | 11000 | 5.1 | 300/150 | W=150*N |
| PP | PP | 10000 | 5.0 | 300/150 | W=150*N |
| PE | PP | 5400 | 5.3 | 300/150 | W=150*N |
