Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

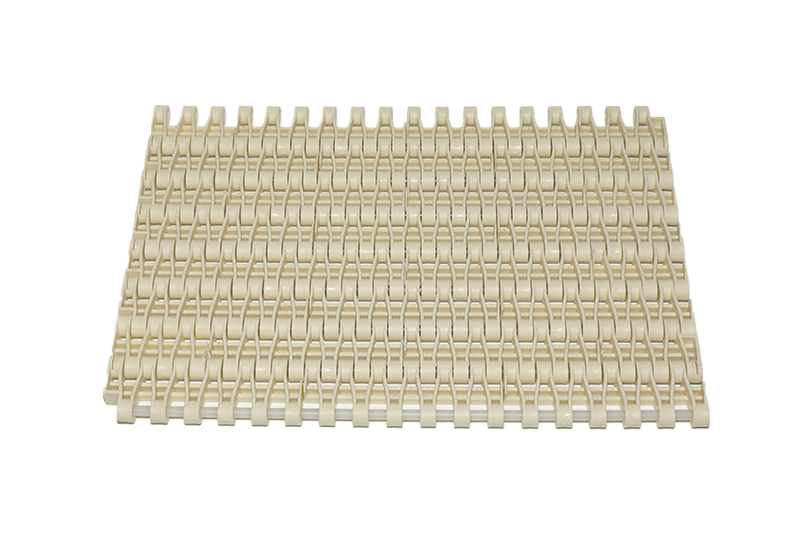

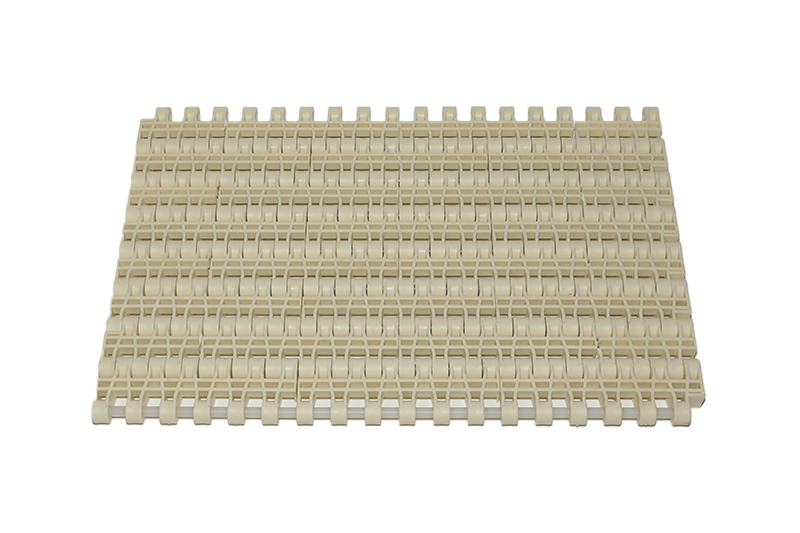

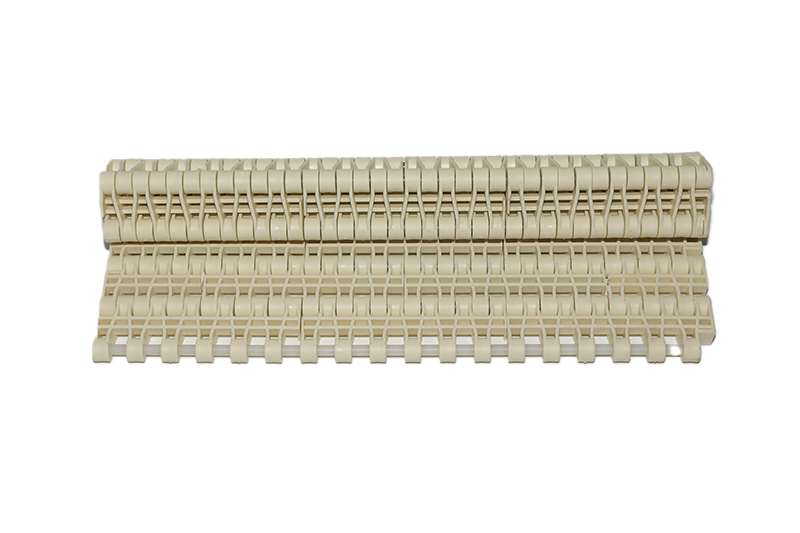

CY-38102B Flush Grid
- BELT TYPE
- DESIGN
- CY-38102
- Flush Grid
- NOMINAL PITCH
- 38.1 mm / 1.5 inch
- Open Area
- 40%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 18 mm / 0.71 inch
- Pin Diameter
- 7 mm / 0.28 inch
- WIDTH
- The width value can be increased in multiples of 152.4mm (6")/The width value can be increased in multiples of 25.4mm (1") plus

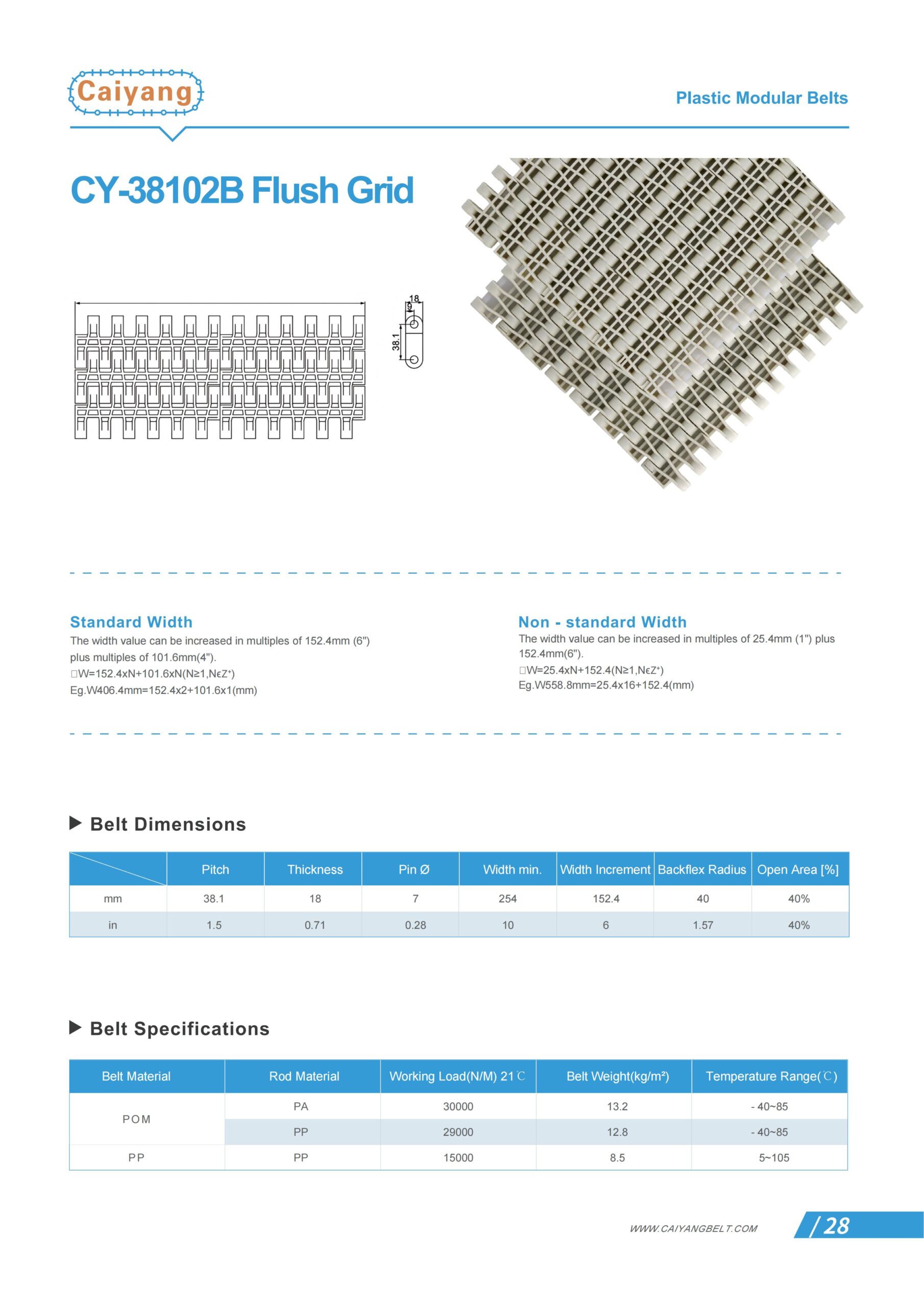

Technicial Specifications
Download
If you have any inquiries or questions, welcome to contact us.
+86 17321328732
