Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

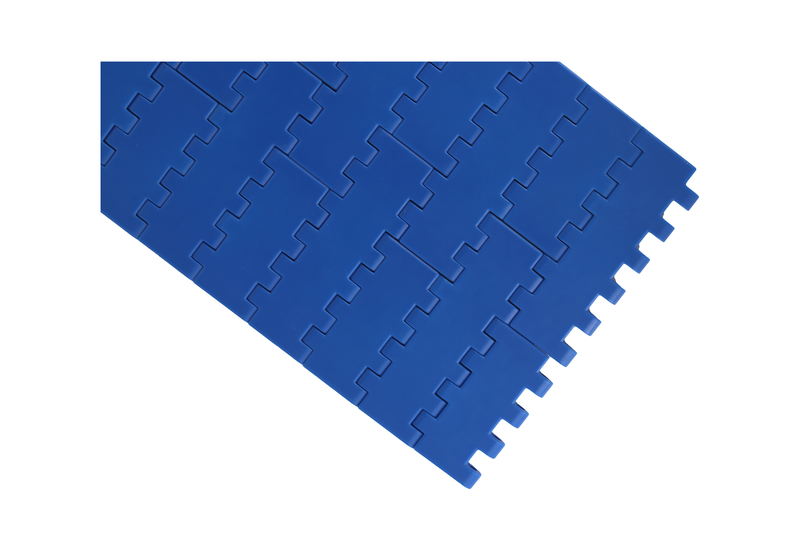

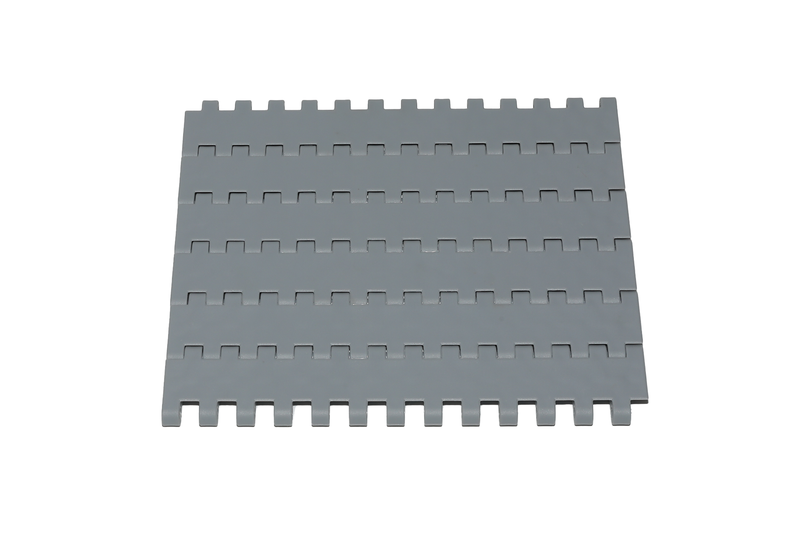

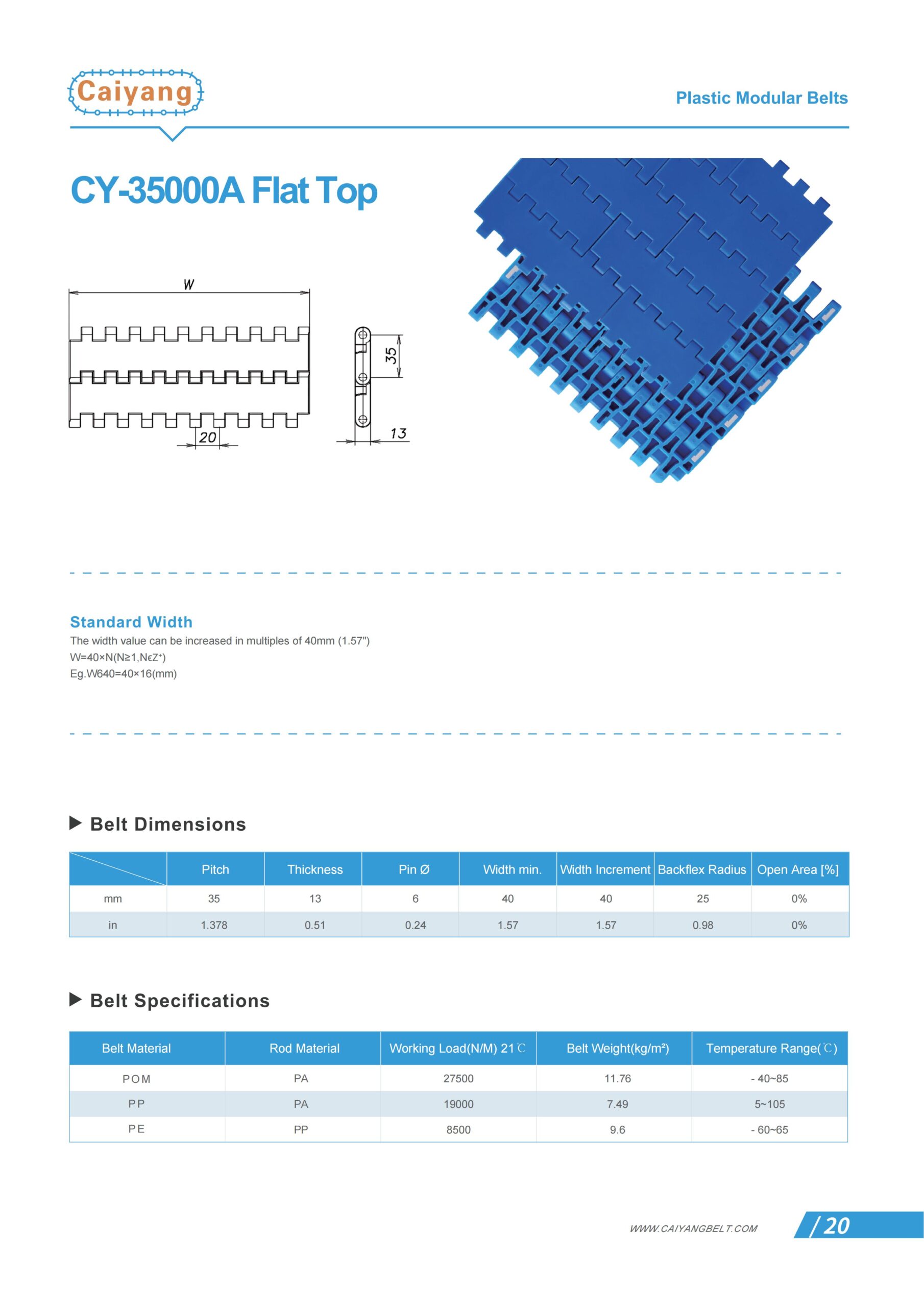

CY-35000A Flat Top
- BELT TYPE
- DESIGN
- CY-35000
- Flat Top
- NOMINAL PITCH
- 8.8 mm / 1.378 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 13 mm / 0.51 inch
- Pin Diameter
- 6 mm / 0.24 inch
- WIDTH
- The width value can be increased in multiples of 40mm (1.57")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 27500 | 11.76 | 40/200 | W=40*N |
| PP | PA | 19000 | 7.49 | 40/200 | W=40*N |
| PE | POM | 8500 | 11.2 | 40/200 | W=40*N |
Download
If you have any inquiries or questions, welcome to contact us.
