Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

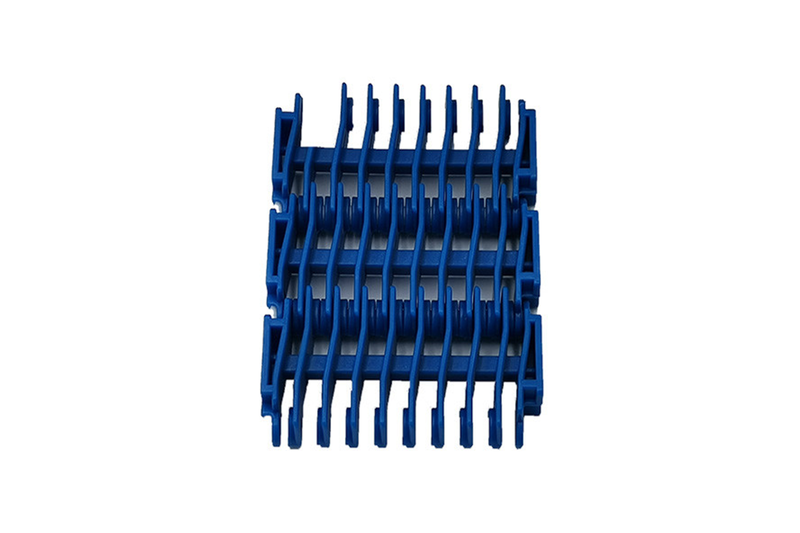

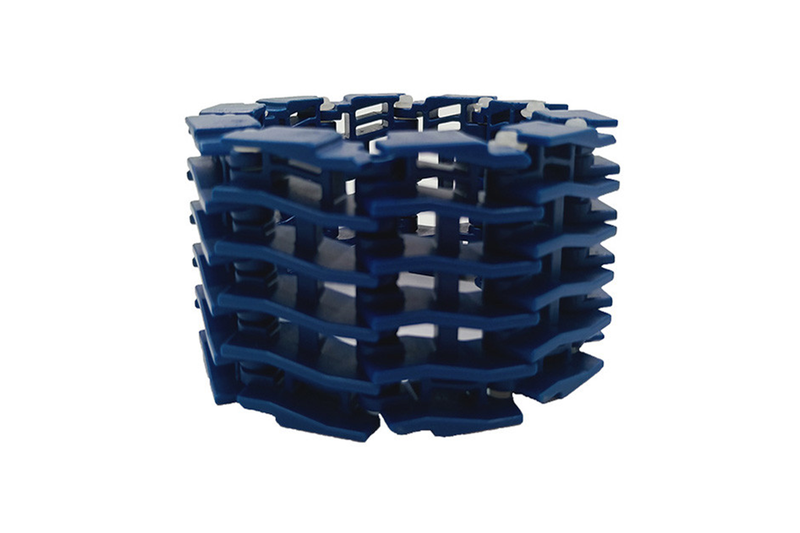

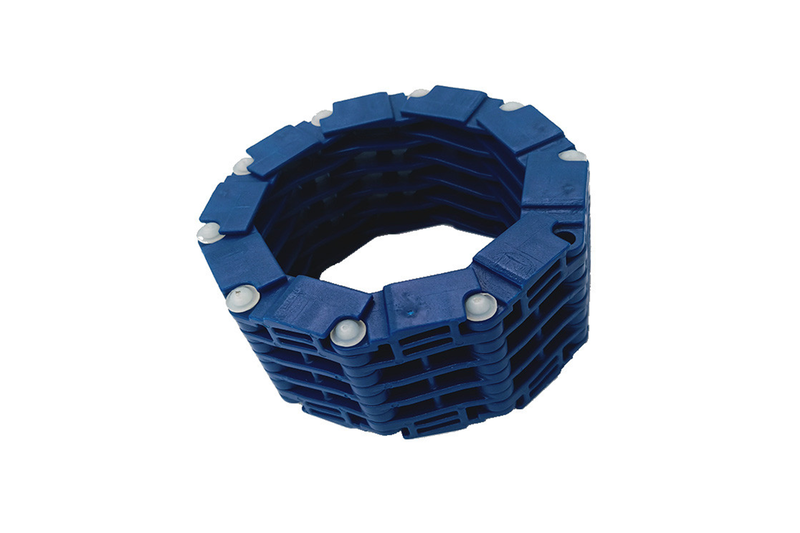

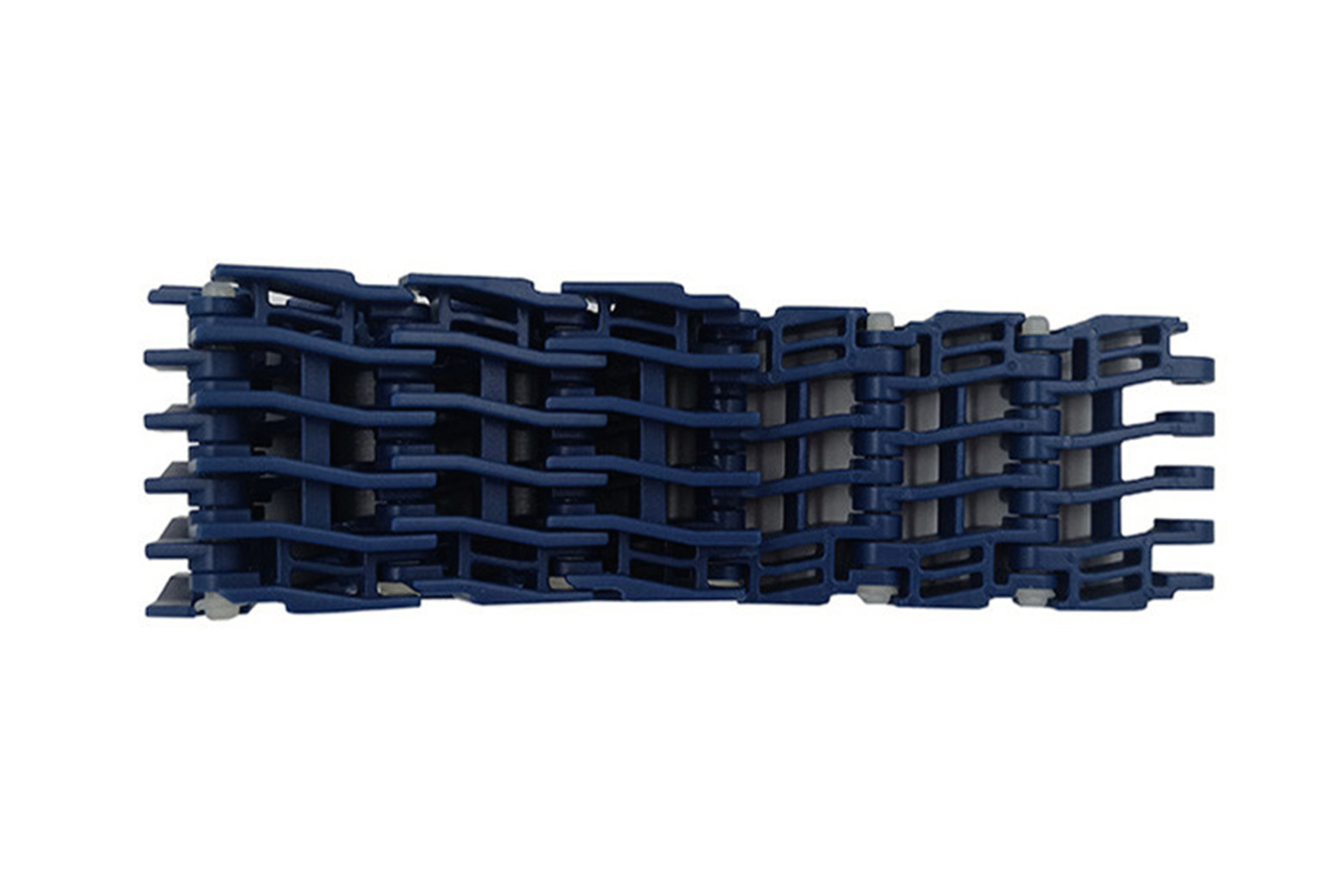

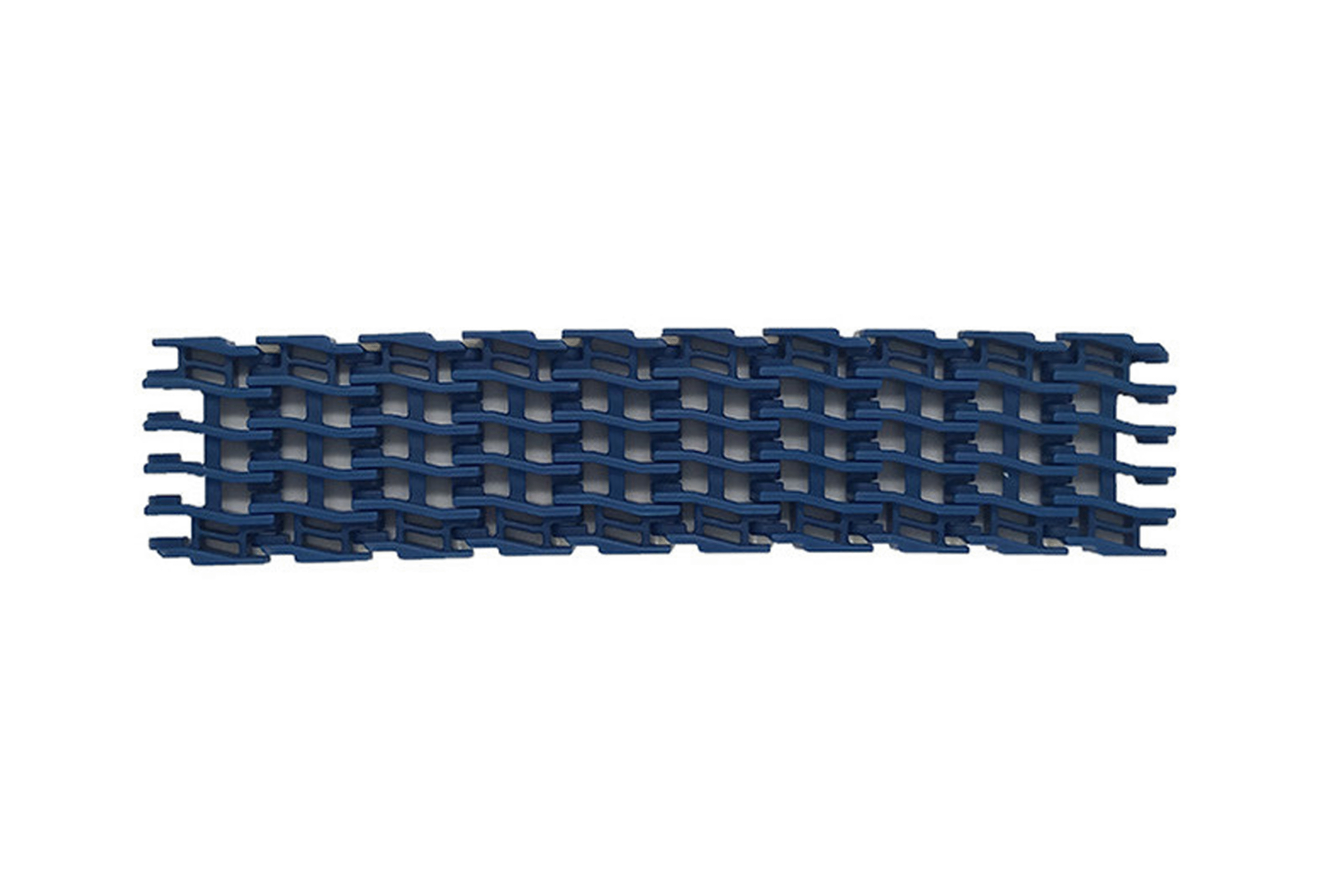

CY-27200T Raised Rib(MTW)
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 22000 | 8.0 | 50.8/254/203/101.6 | W=152.4*N |
| PA | PA | 19000 | 7.5 | 50.8/254/203/101.6 | W=152.4*N |
| POM | PP | 19800 | 7.9 | 50.8/254/203/101.6 | W=152.4*N |
| PP | PP | 12000 | 5.0 | 50.8/254/203/101.6 | W=152.4*N |
| PE | PE | 7500 | 5.4 | 50.8/254/203/101.6 | W=152.4*N |
