Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

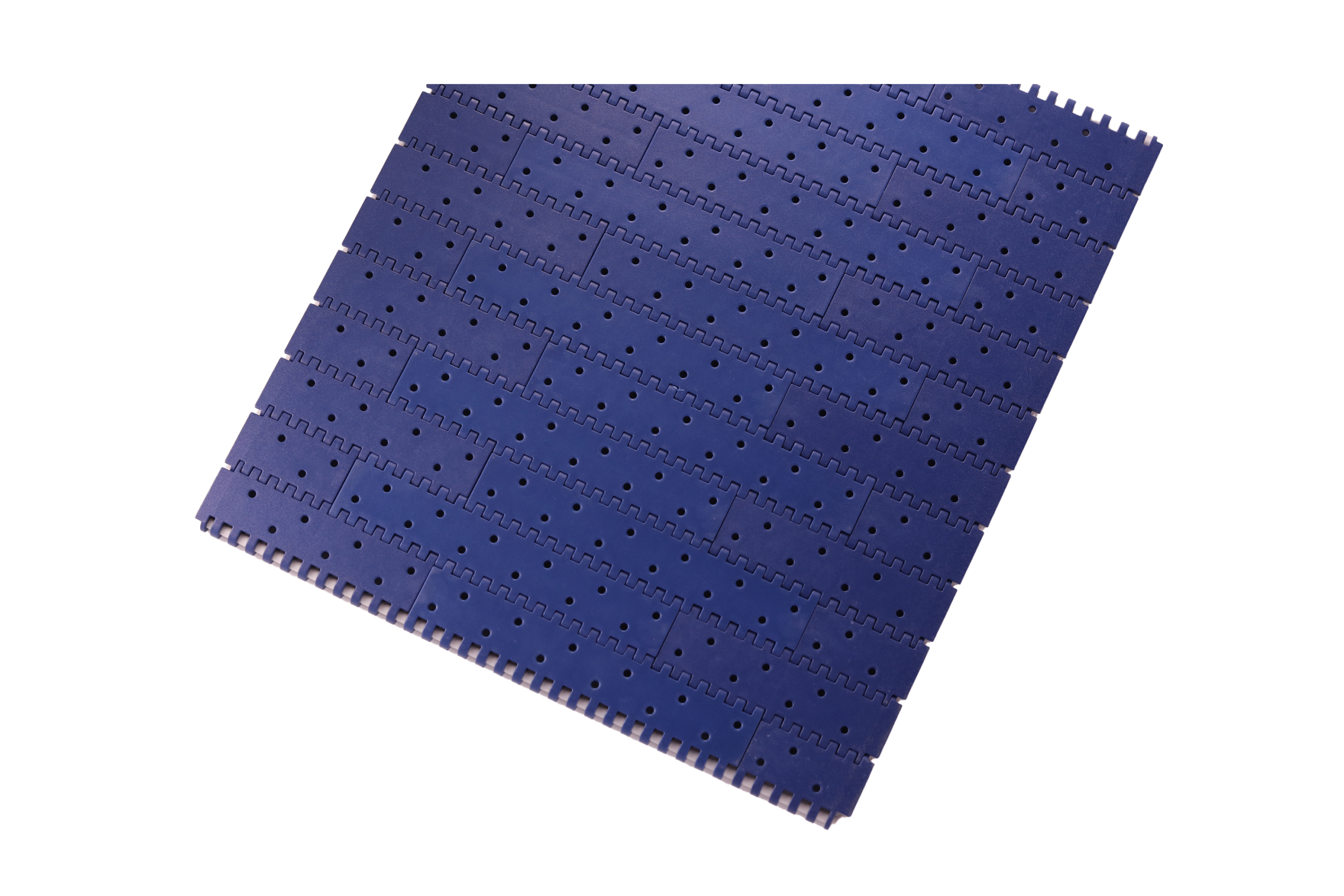

CY-27200C Perforated Top
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 22000 | 7.2 | 50.8/152.4/101.6 | W=152.4*N |
| PA | PA | 19000 | 6.6 | 50.8/152.4/101.6 | W=152.4*N |
| POM | PP | 22000 | 7.1 | 50.8/152.4/101.6 | W=152.4*N |
| PP | PP | 12000 | 4.6 | 50.8/152.4/101.6 | W=152.4*N |
| PE | PE | 7500 | 4.85 | 50.8/152.4/101.6 | W=152.4*N |
Download
If you have any inquiries or questions, welcome to contact us.
+86 18321599788
