Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction
CY-27200A1 Flat Top
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 19800 | 7.3 | 50.8/152.4/101.6 | W=152.4*N |
| POM | PA | 22000 | 7.4 | 50.8/152.4/101.6 | W=152.4*N |
| PA | PA | 19000 | 5.5 | 50.8/152.4/101.6 | W=152.4*N |
| PP | PP | 12000 | 6.8 | 50.8/152.4/101.6 | W=152.4*N |
| PE | PE | 7500 | 5.0 | 50.8/152.4/101.6 | W=152.4*N |

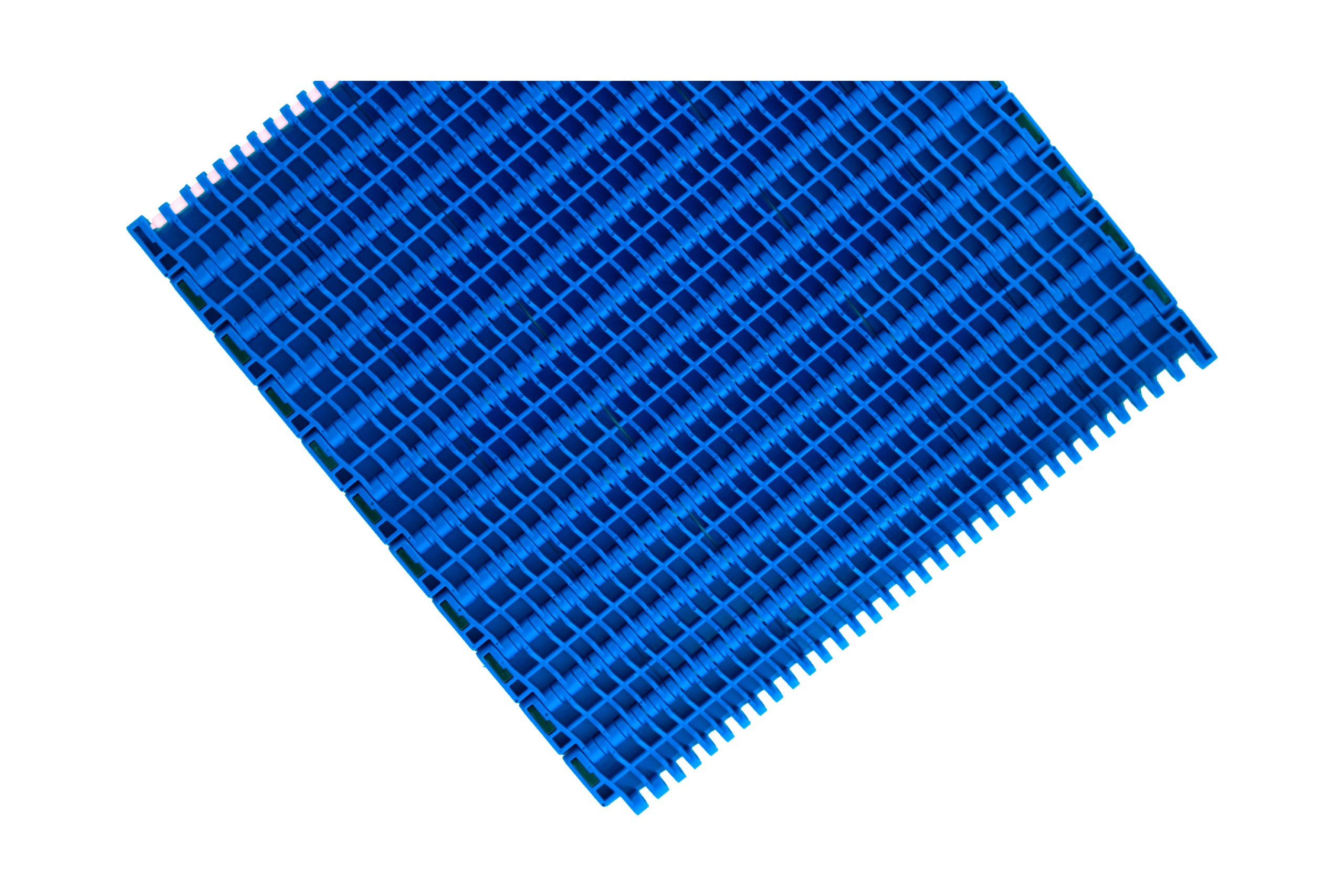

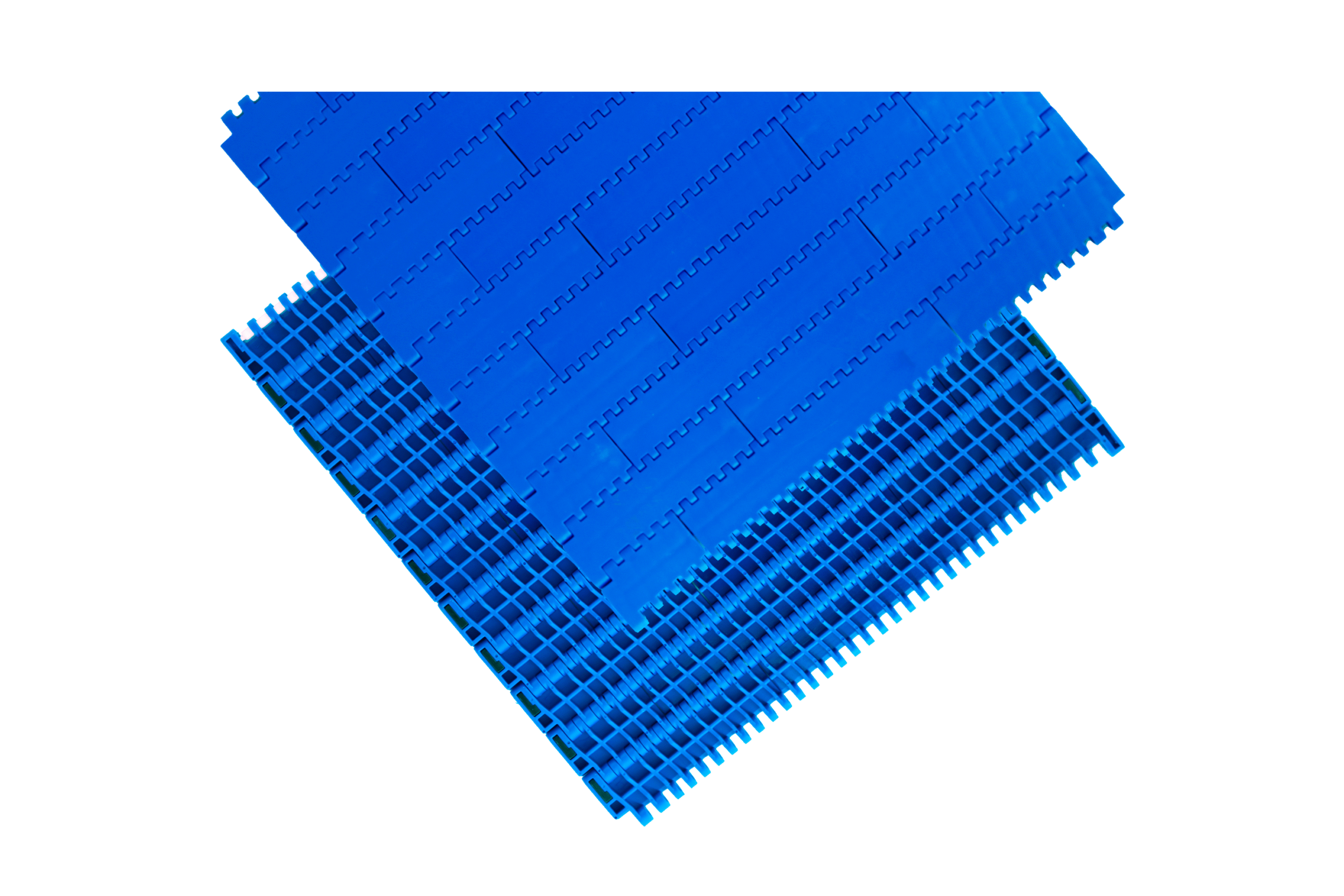

27200 Series Mesh Conveyors: Flat plate type is ideal for container handling (especially glass handling). The flat grid type is widely used in the can manufacturing industry, with a 38% opening ratio and a smooth, flat top surface for optimal container lateral movement. The round hole type is designed for vacuum conveying, suitable for empty can conveying systems, vacuum conveyors, internal drying systems, etc. All openings have rounded upper edges, operate quietly, and perform well in vacuum environments. The adhesive type is suitable for food processing and packaging; however, due to its high surface friction coefficient, it is not recommended for use when products are piled up.
