Modular plastic chain plate solution supplier

Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts

Product Introduction

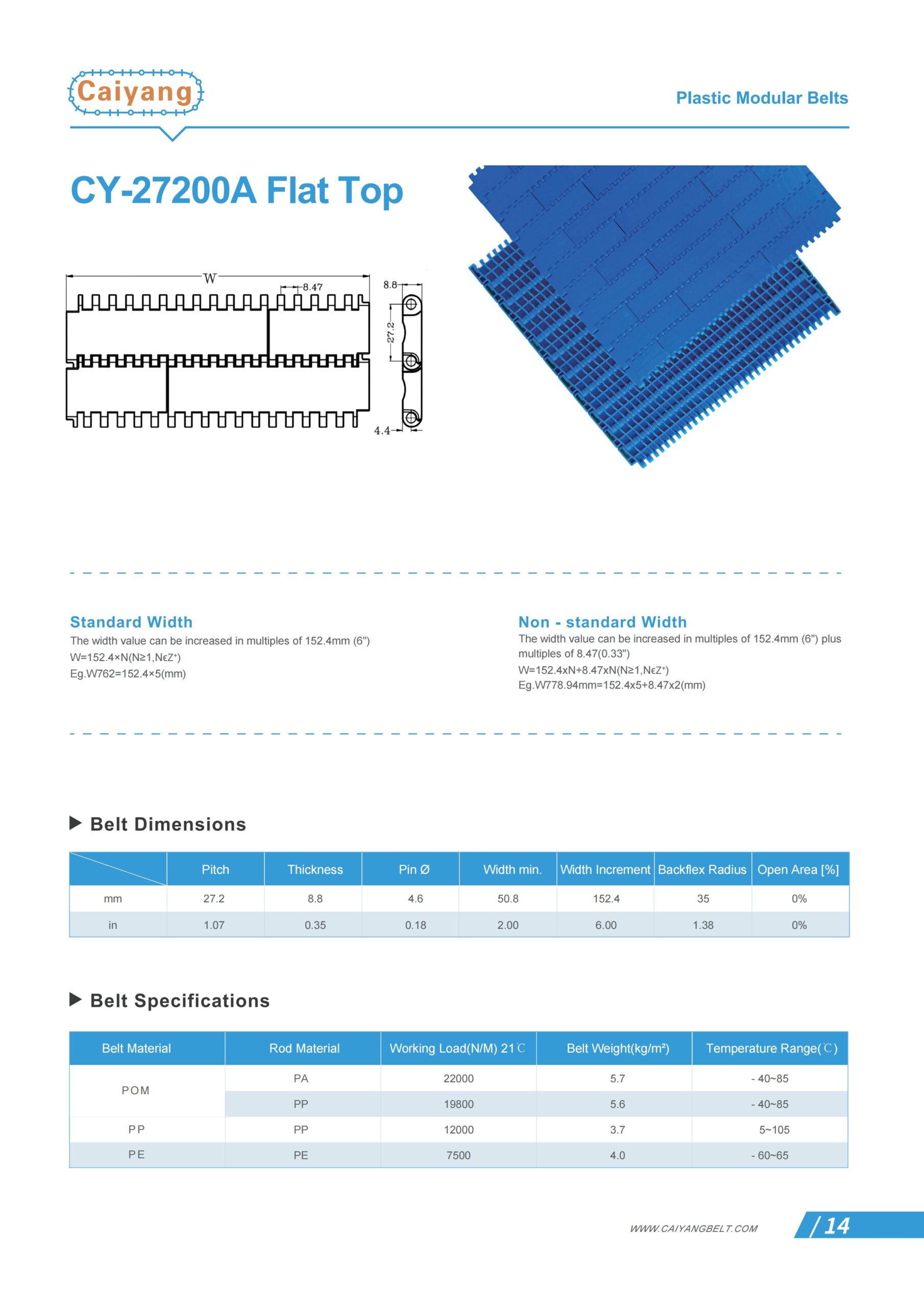

CY-27200A Flat Top

Technicial Specifications

Belt MaterialRod MaterialWorking Load(N/M) 21 ℃Belt weight(kg/㎡)Witdth of single Module(mm)Width increment (mm)
POMPP198007.350.8/152.4/101.6W=152.4*N
POMPA220007.450.8/152.4/101.6W=152.4*N
PAPA190005.550.8/152.4/101.6W=152.4*N
PPPP120006.850.8/152.4/101.6W=152.4*N
PEPE75005.050.8/152.4/101.6W=152.4*N

27200 Series Mesh Conveyors: Flat plate type is ideal for container handling (especially glass handling). The flat grid type is widely used in the can manufacturing industry, with a 38% opening ratio and a smooth, flat top surface for optimal container lateral movement. The round hole type is designed for vacuum conveying, suitable for empty can conveying systems, vacuum conveyors, internal drying systems, etc. All openings have rounded upper edges, operate quietly, and perform well in vacuum environments. The adhesive type is suitable for food processing and packaging; however, due to its high surface friction coefficient, it is not recommended for use when products are piled up.

Download

Product data sheet

Supporting Sprocket

2D & 3D CAD Model

belt

If you have any inquiries or questions, welcome to contact us.

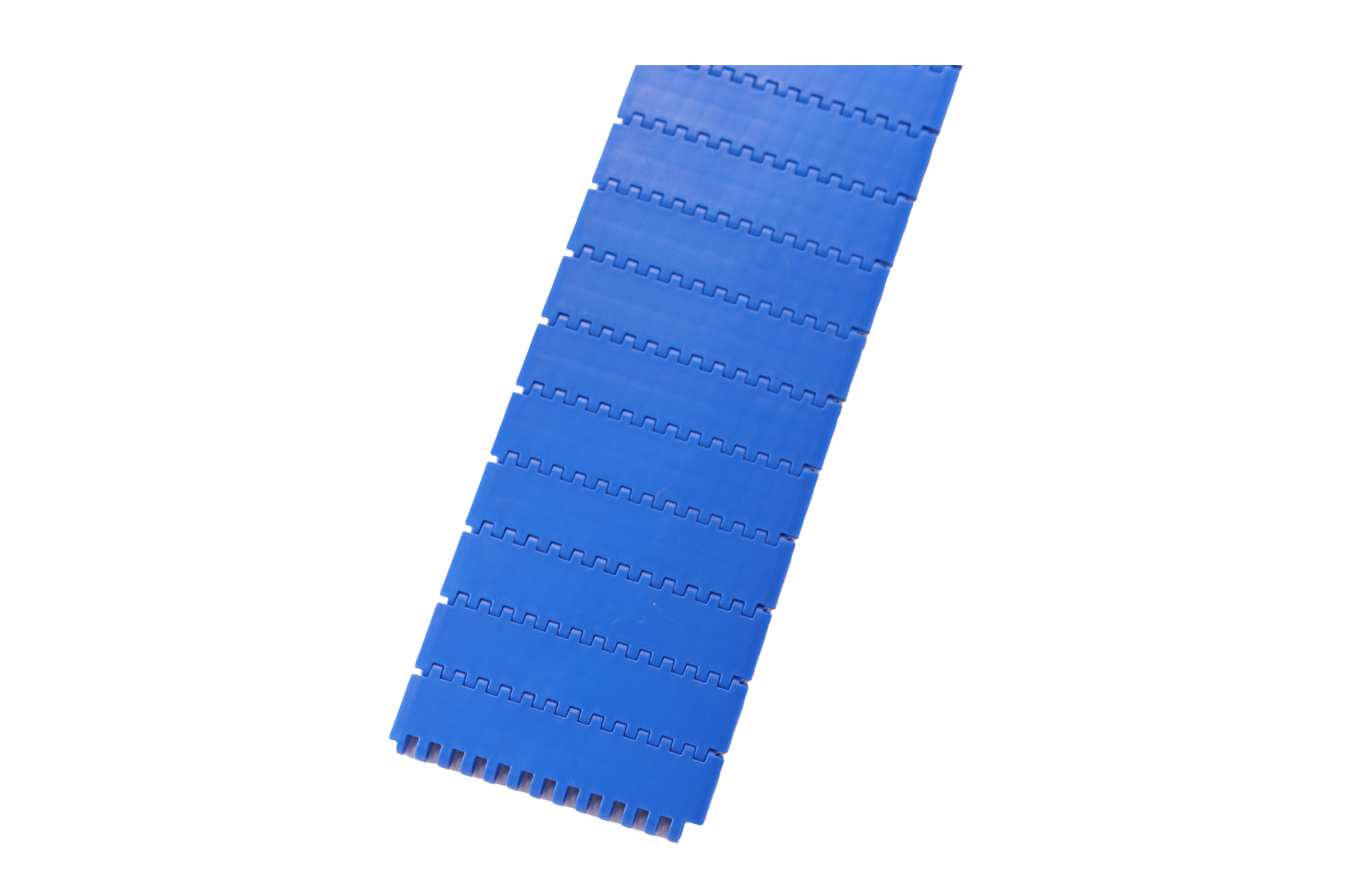

50.8mm Flush Grid Plastic Modular Chain
