Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

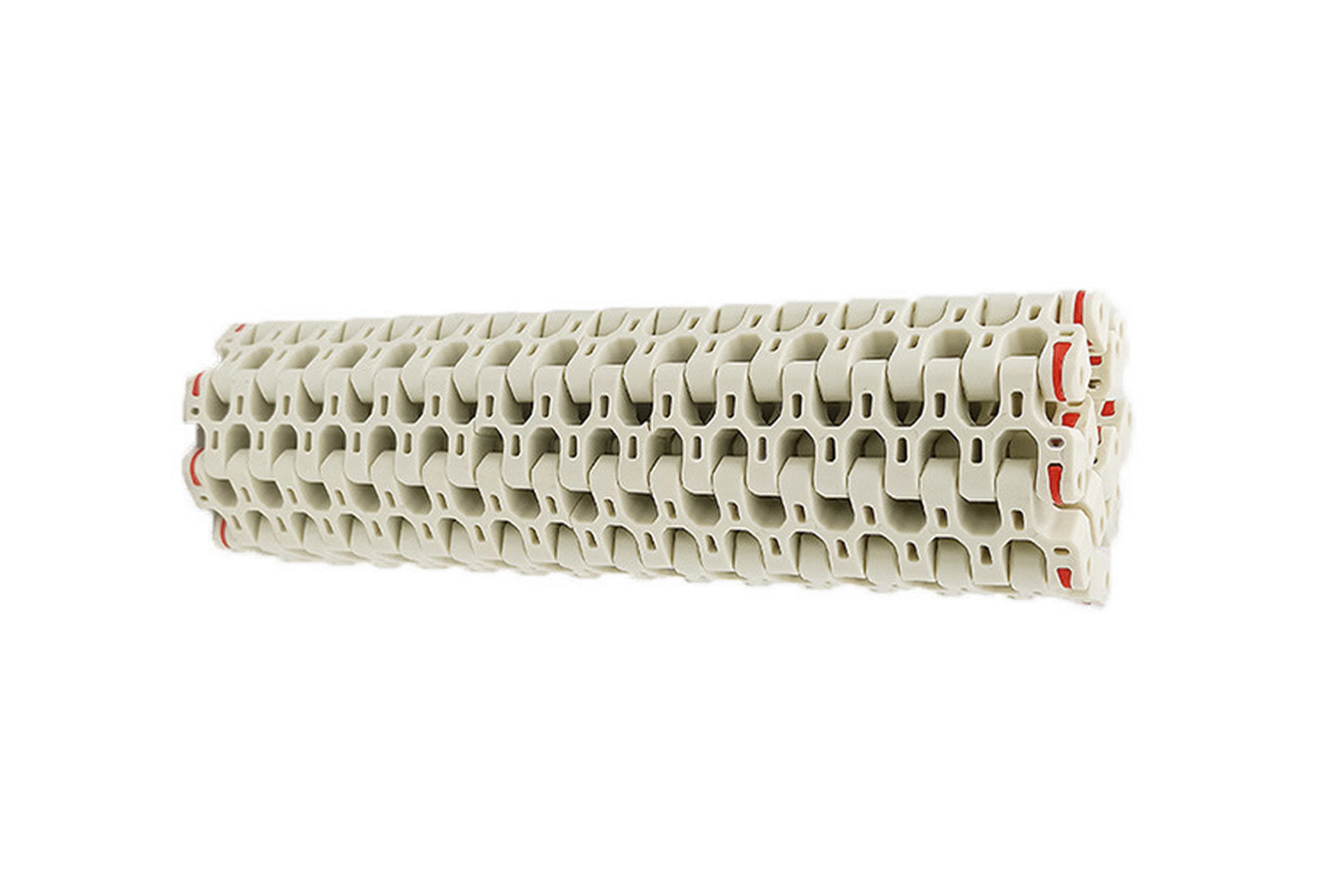

CY-25408B Flush Grid
- BELT TYPE
- DESIGN
- CY-25408
- Flush Grid
- NOMINAL PITCH
- 25.4 mm / 1.00 inch
- Open Area
- 40%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 12.7 mm / 0.5 inch
- Pin Diameter
- 5 mm / 0.2 inch
- WIDTH
- The width value can be increased in multiples of 76mm (2.99")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 17200 | 9.6 | 76/152 | W=76*N |
| PP | PP | 10600 | 5.0 | 76/152 | W=76*N |
| PE | PE | 10300 | 5.2 | 76/152 | W=76*N |
