Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

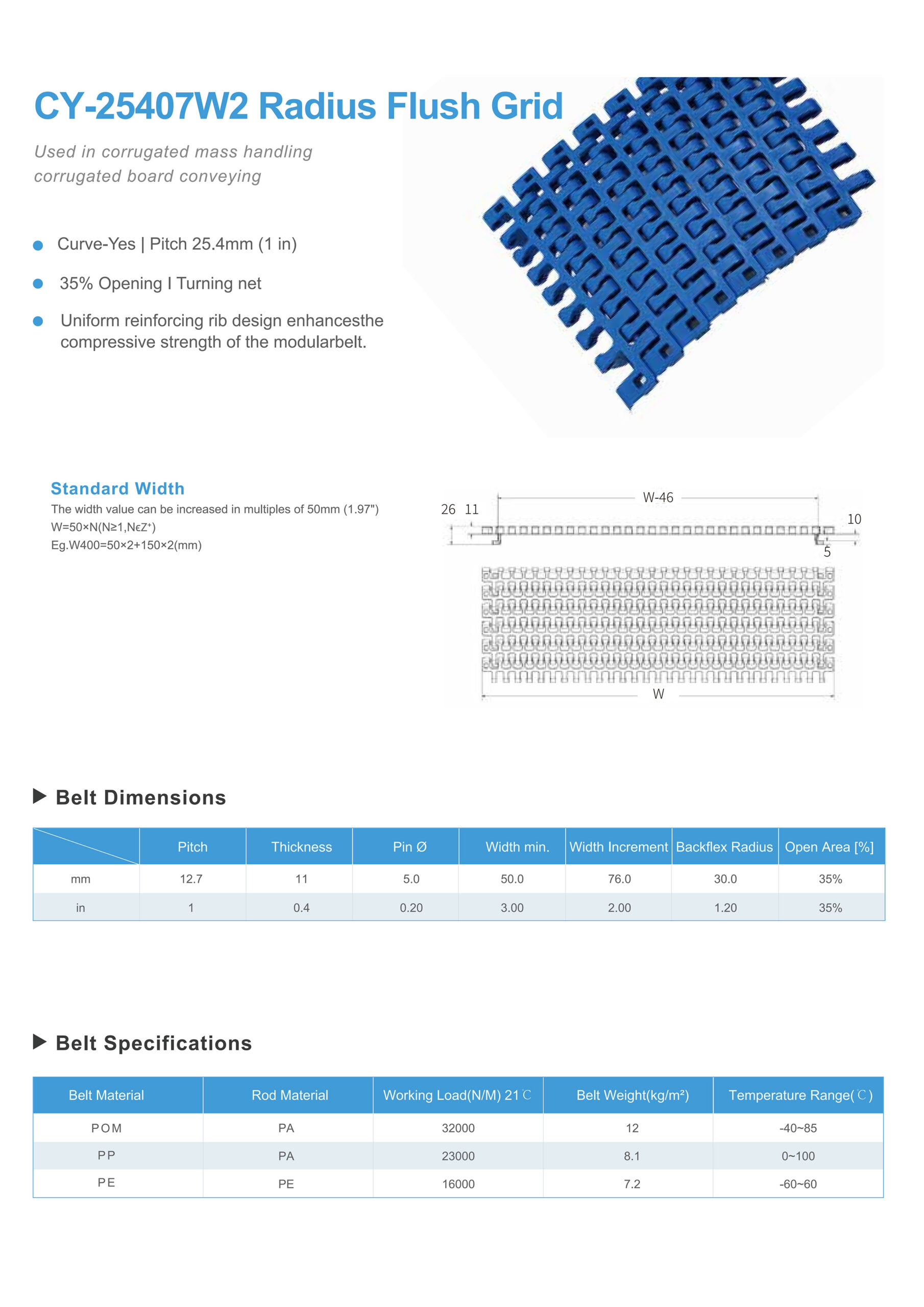

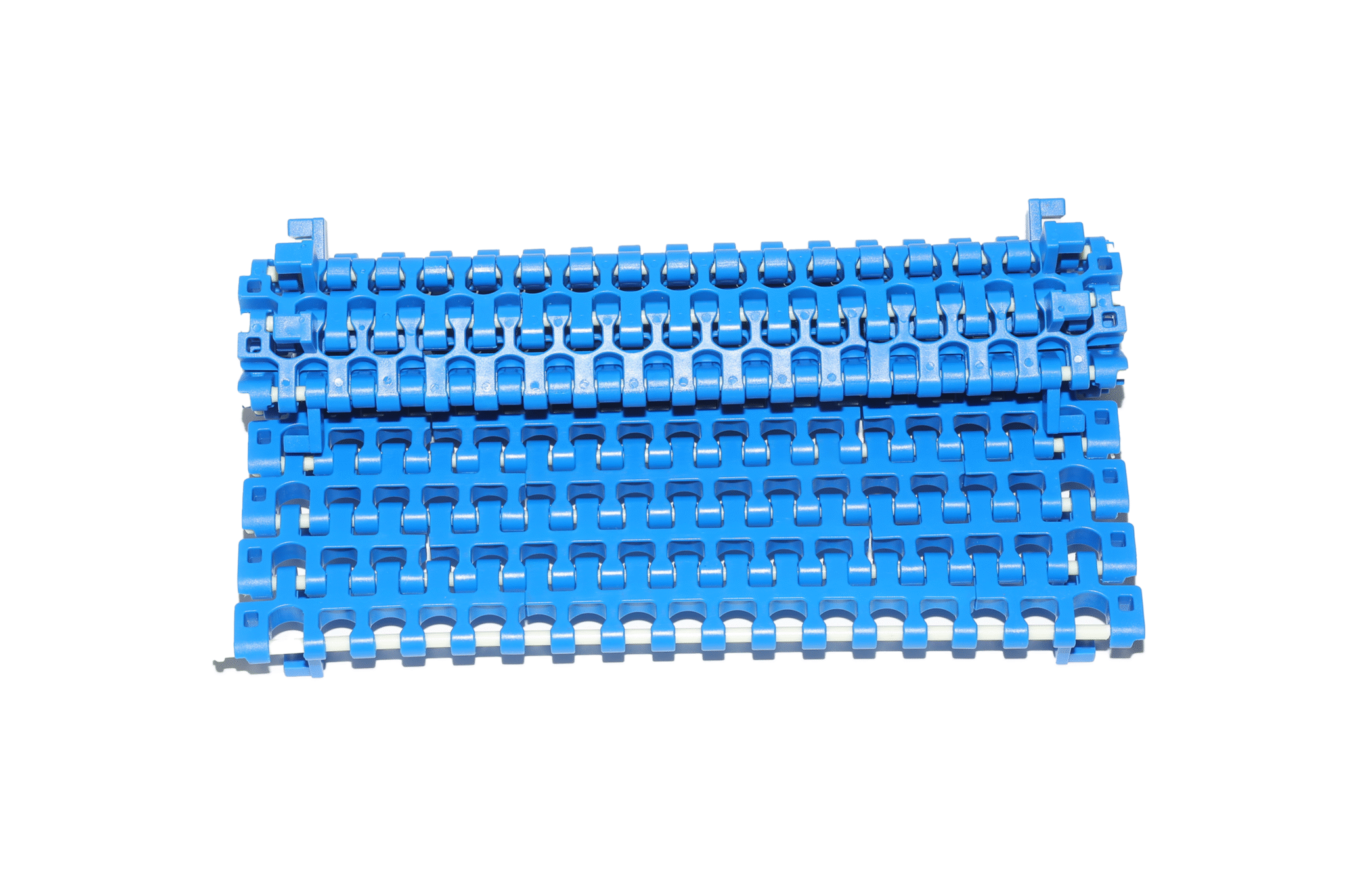

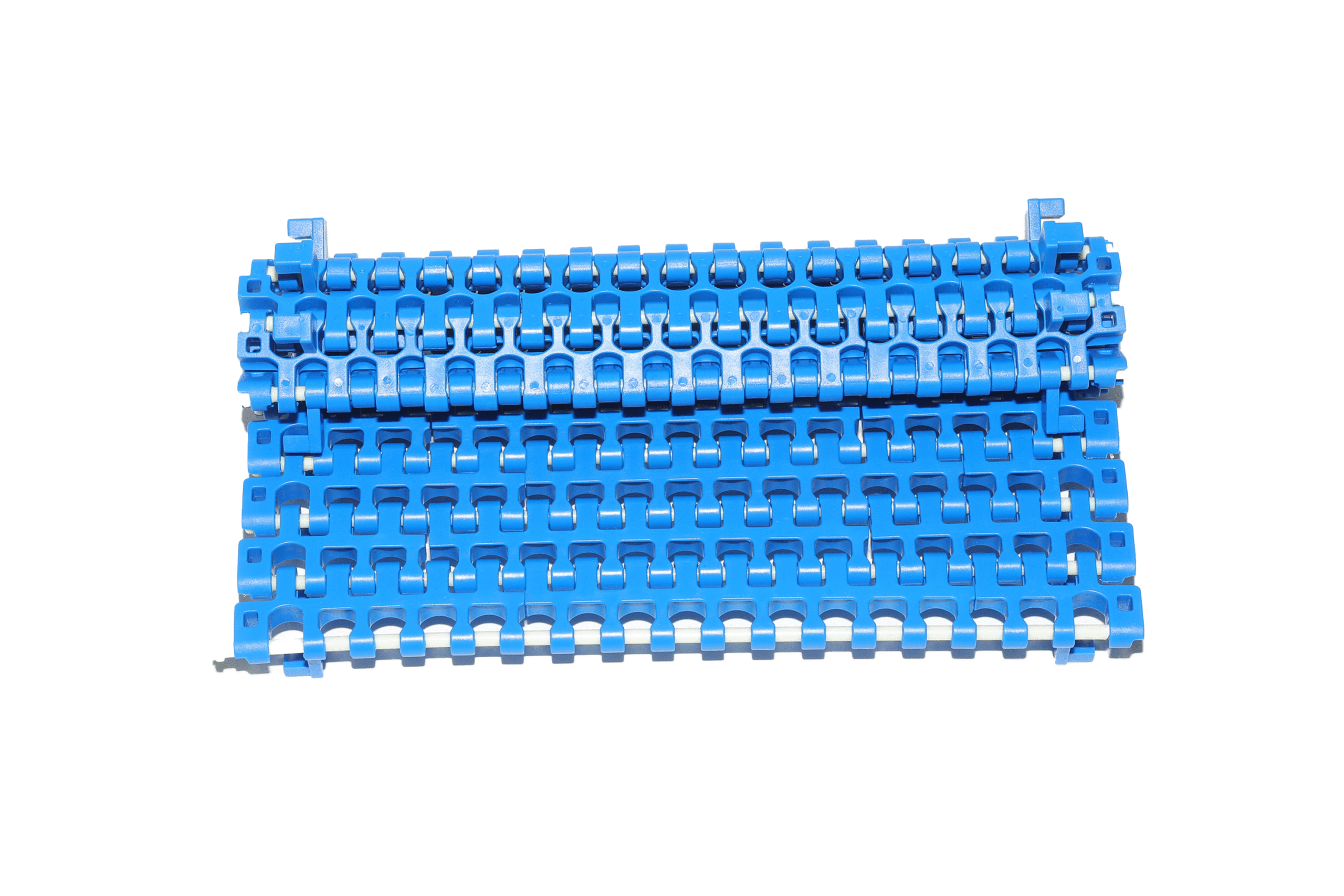

CY-25407W2 Radius Flush Grid
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 32000 | 12 | 50/150 | W=50*N |
| PP | PA | 23000 | 8.1 | 50/150 | W=50*N |
| PE | PP | 16000 | 7.2 | 50/150 | W=50*N |
The 25407 series turning conveyor belts are primarily used in the beverage, packaging, and food industries, as well as in screw conveyors. Openings throughout the belt facilitate cleaning. In food processing environments, the ribbed design ensures ample airflow for cooling. Compared to the standard 25401B series conveyor belts, the ribbed design offers higher beam strength, reducing the cost of screw modification. The minimum inner turning radius is equal to 2.2 times the belt width.
Download
If you have any inquiries or questions, welcome to contact us.
+86 17321328732
