Product Introduction

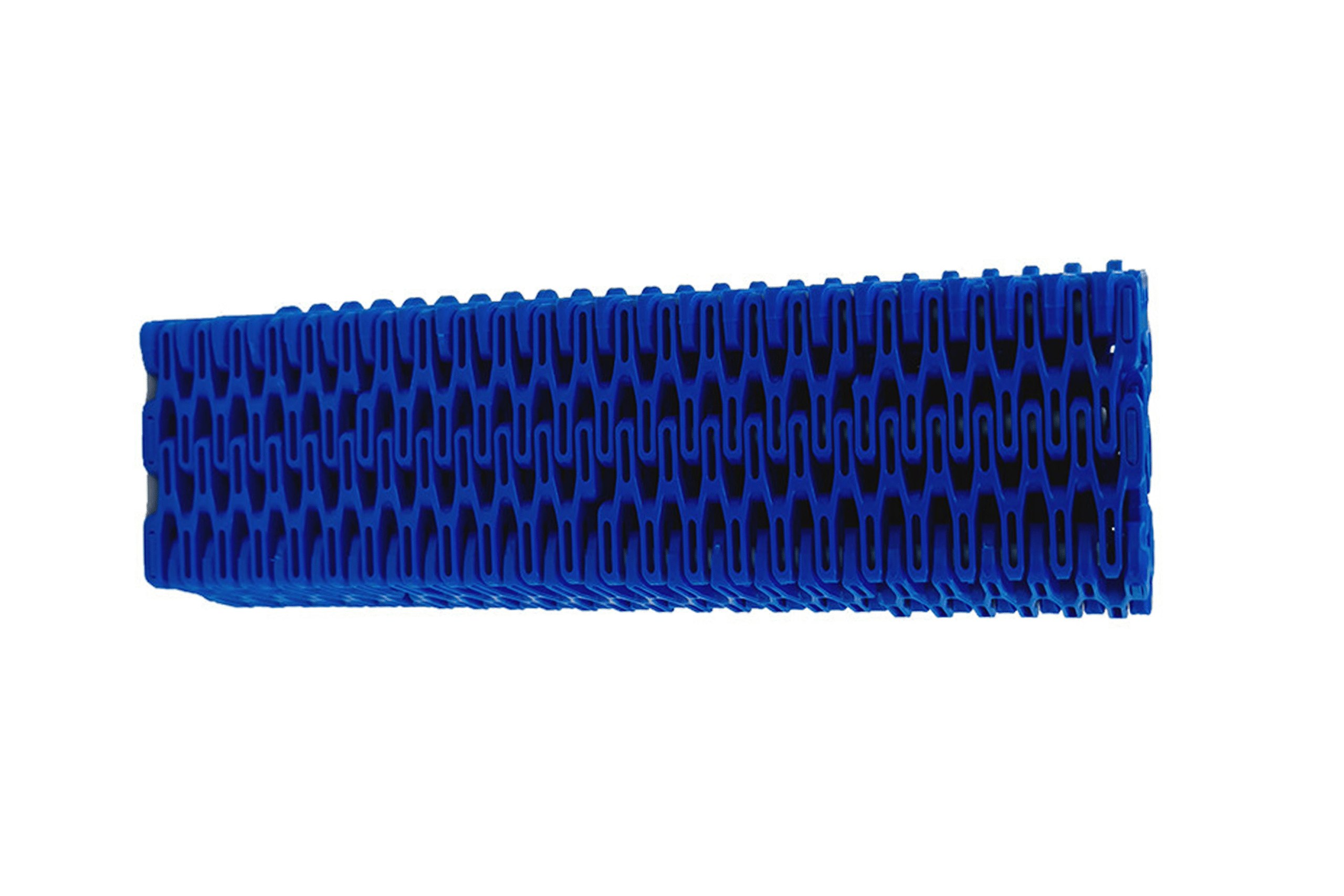

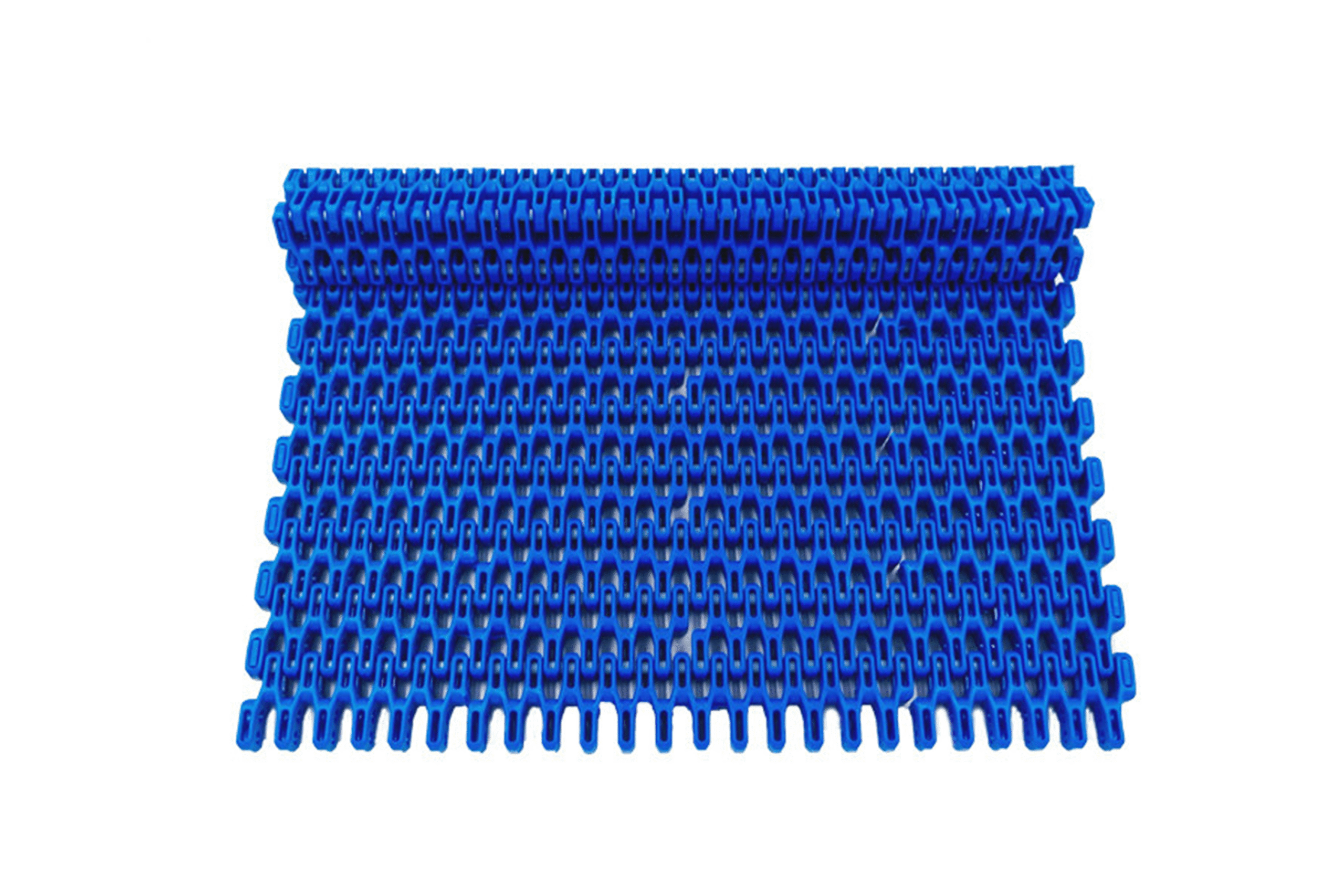

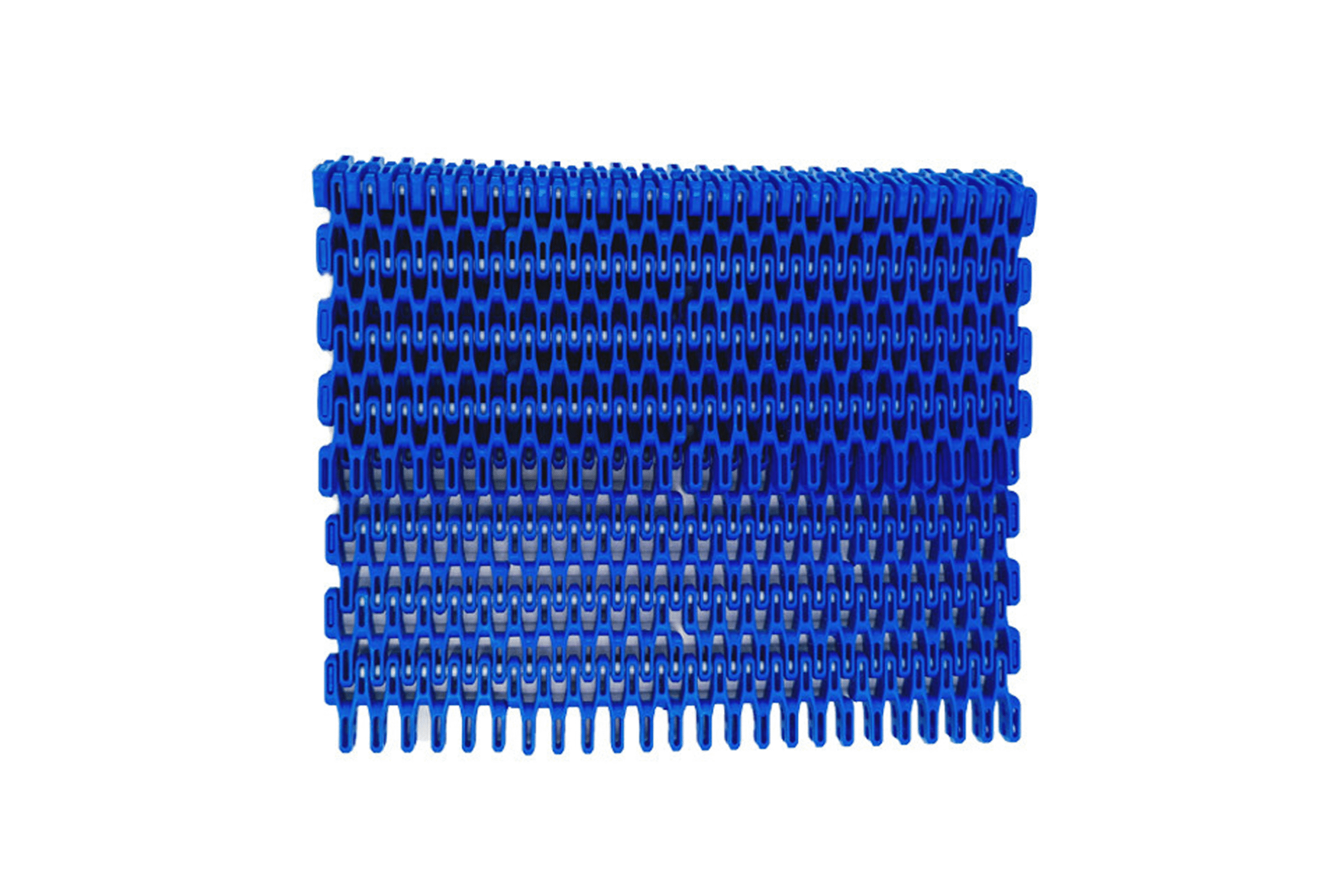

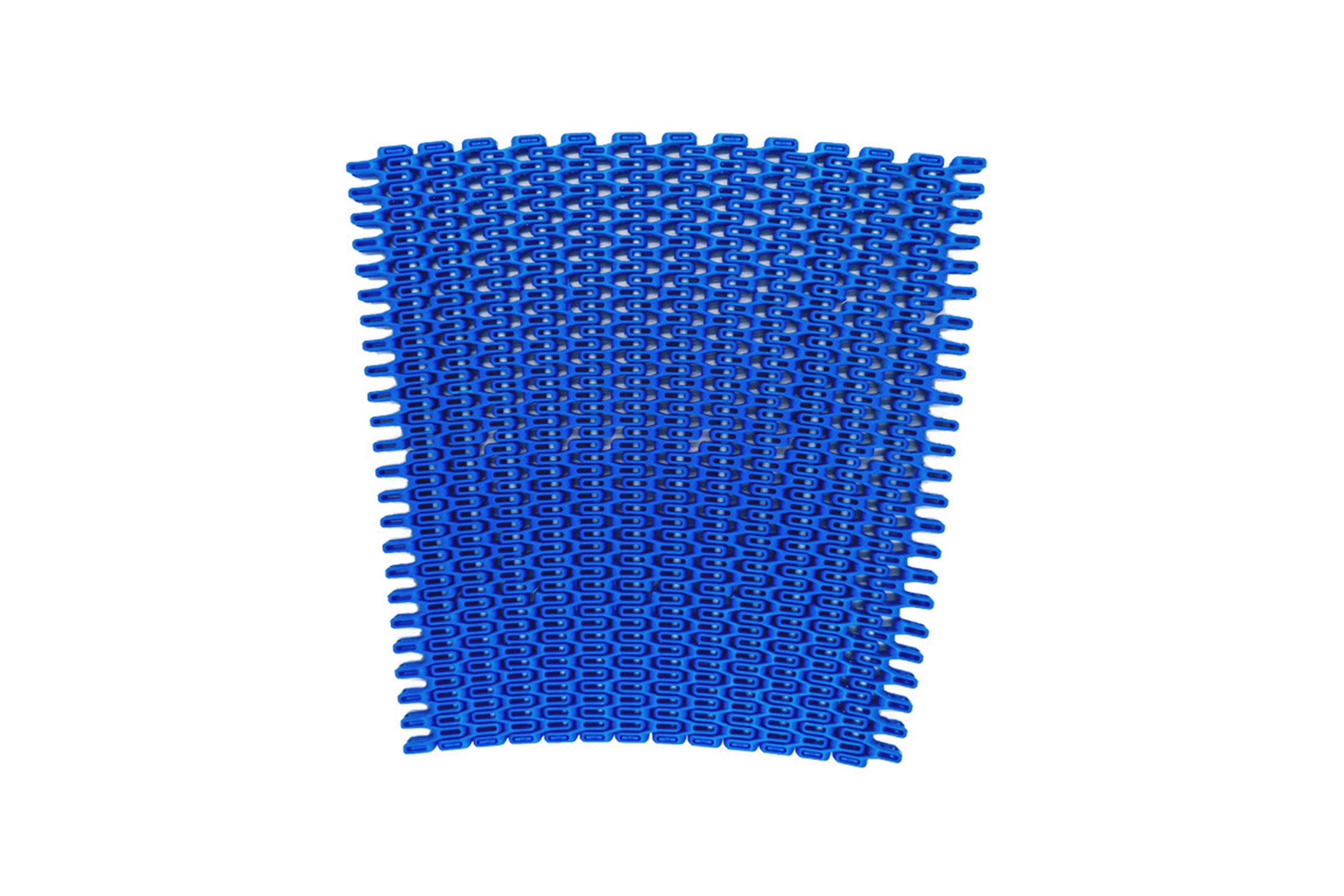

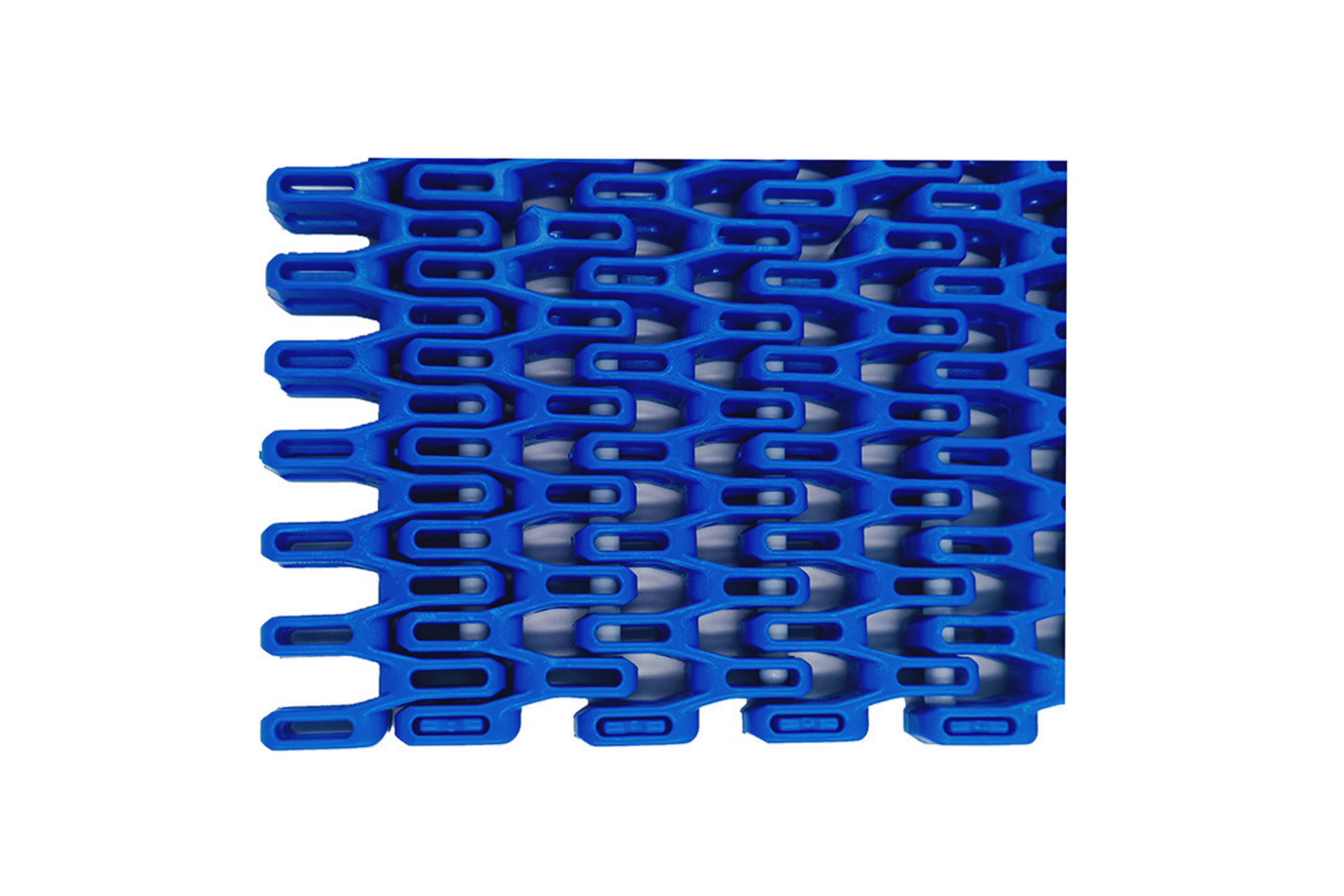

CY-25406W Radius Flush Grid
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 25000 | 10.0 | 82/152/76 | W=76*N |
| POM | PA | 29000 | 10.1 | 82/152/76 | W=76*N |
| PP | PP | 16000 | 6.5 | 82/152/76 | W=76*N |
Suitable for use in the baking, fruit and vegetable, noodle making, and snack food industries, as well as for conveying display items or lighter goods through bends, offering excellent ventilation. Open area ratio: 55%.
