Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

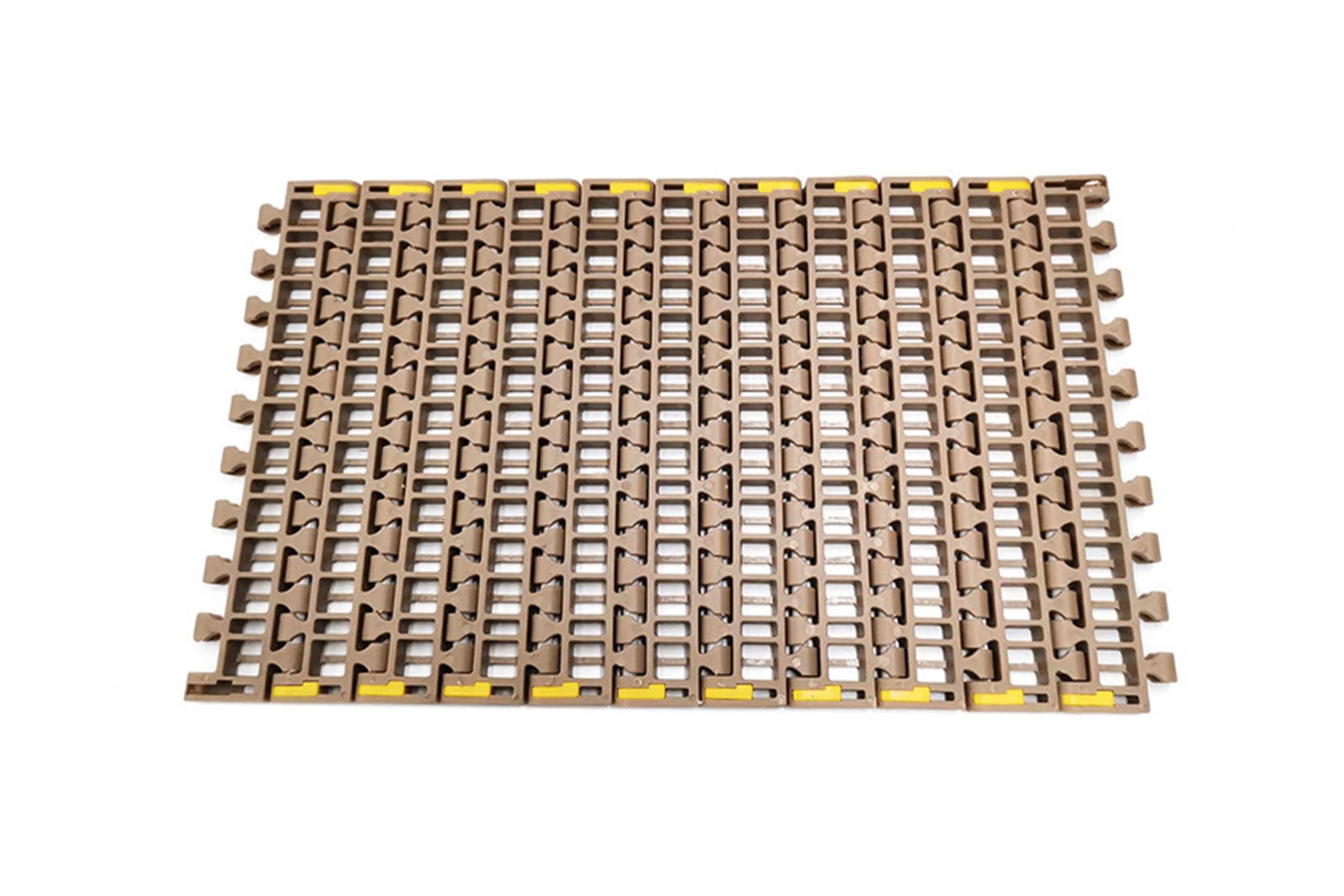

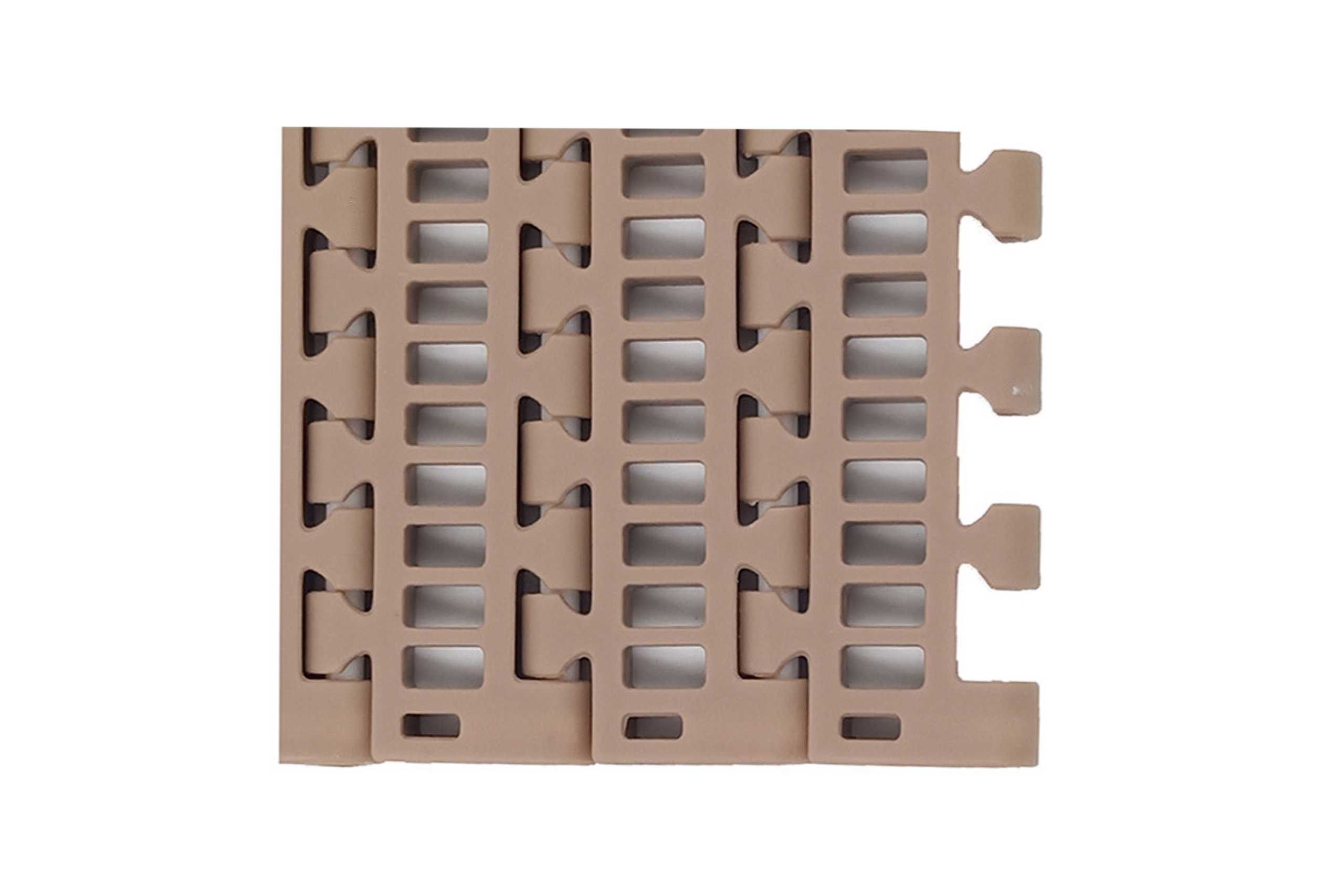

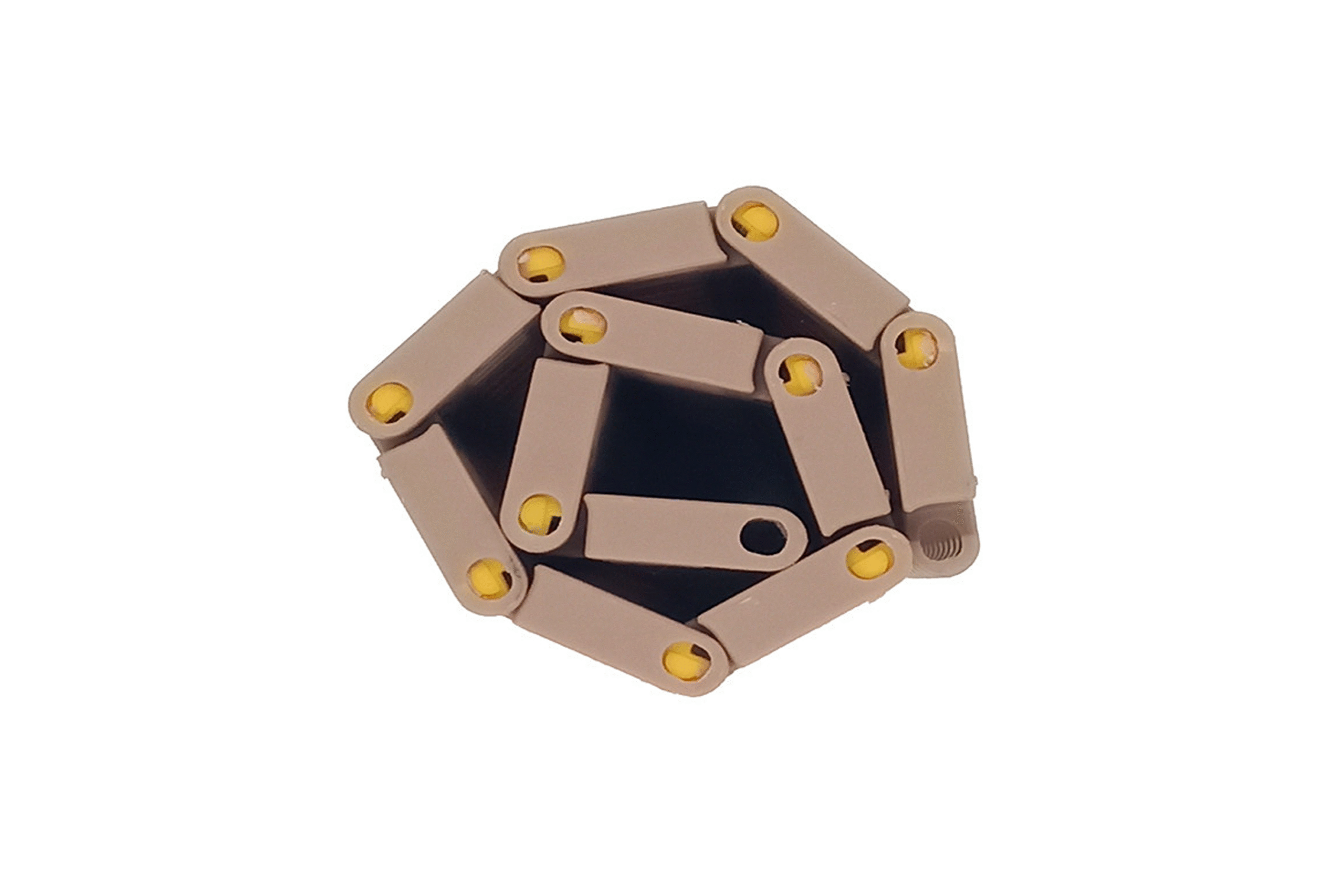

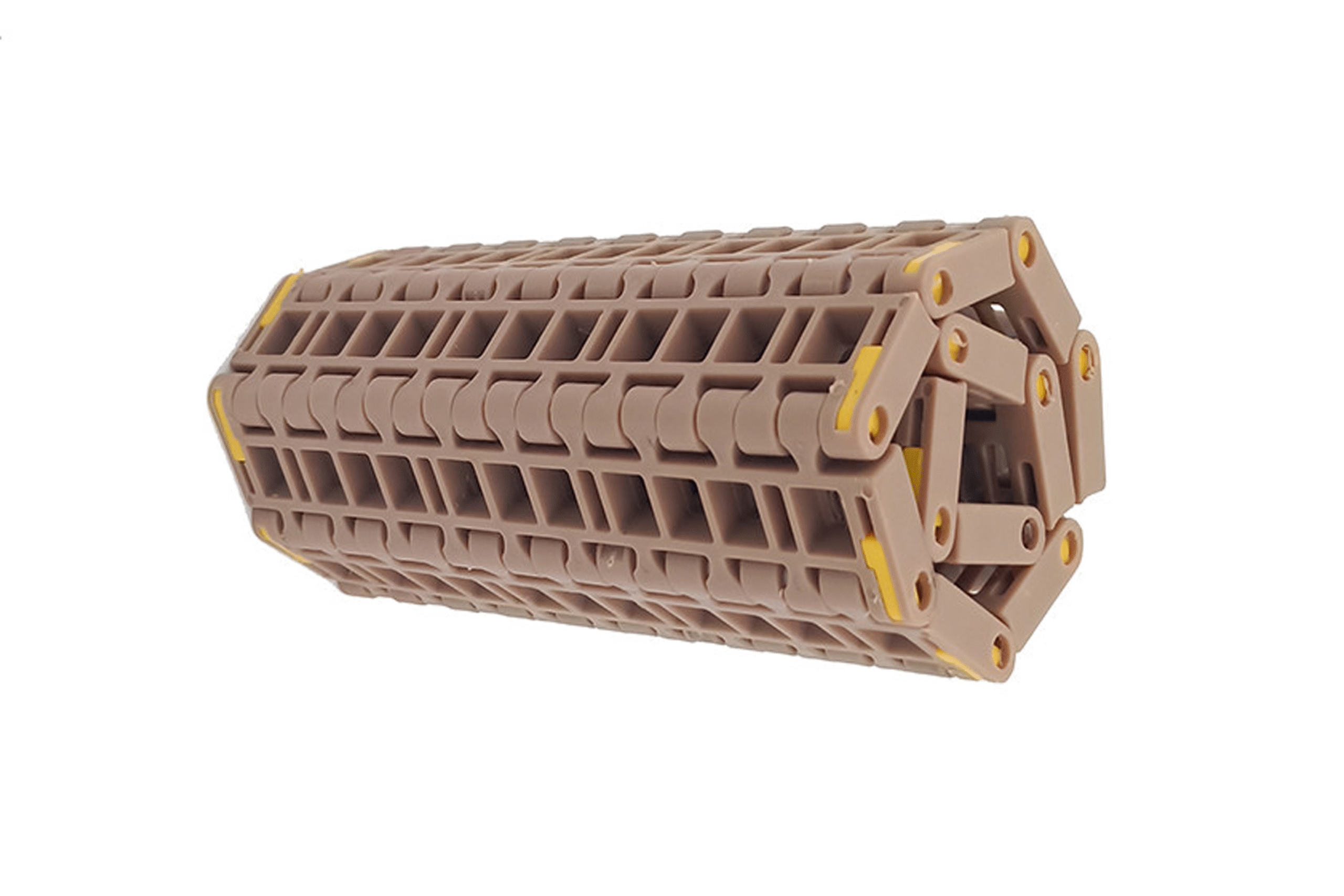

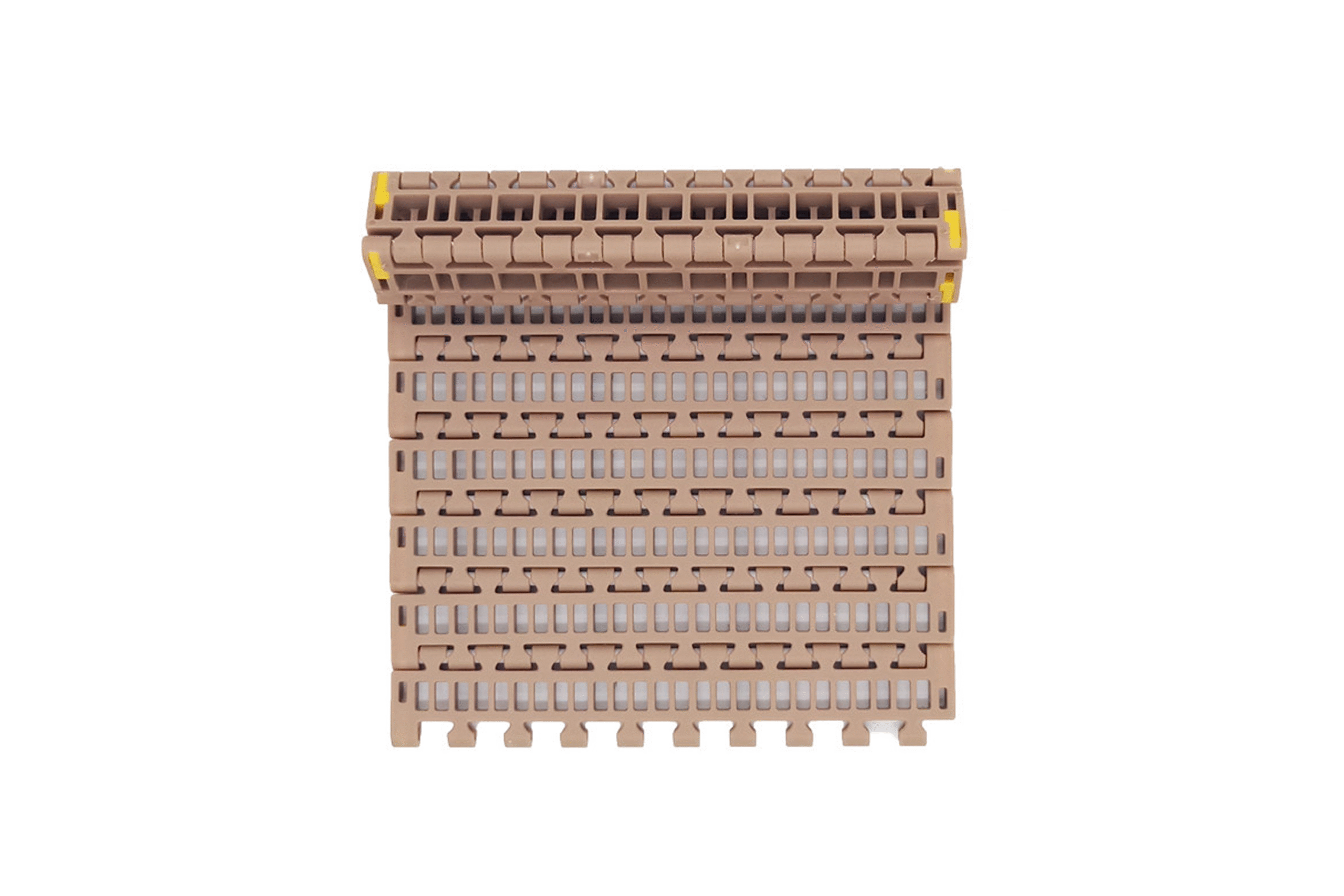

CY-25404B Flush Grid
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 19800 | 7.6 | 85/170/83.8 | W=85*N |
| POM | PA | 21600 | 7.7 | 85/170/83.8 | W=85*N |
| PP | PP | 12000 | 4.9 | 85/170/83.8 | W=85*N |
The 25404 series conveyor belts feature a flat surface, providing excellent support and minimizing product tipping. They are particularly suitable for glass products, small items, and unstable containers (e.g., PET flap-base bottles). Flat-grid models are suitable for conveying aluminum cans.
