Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

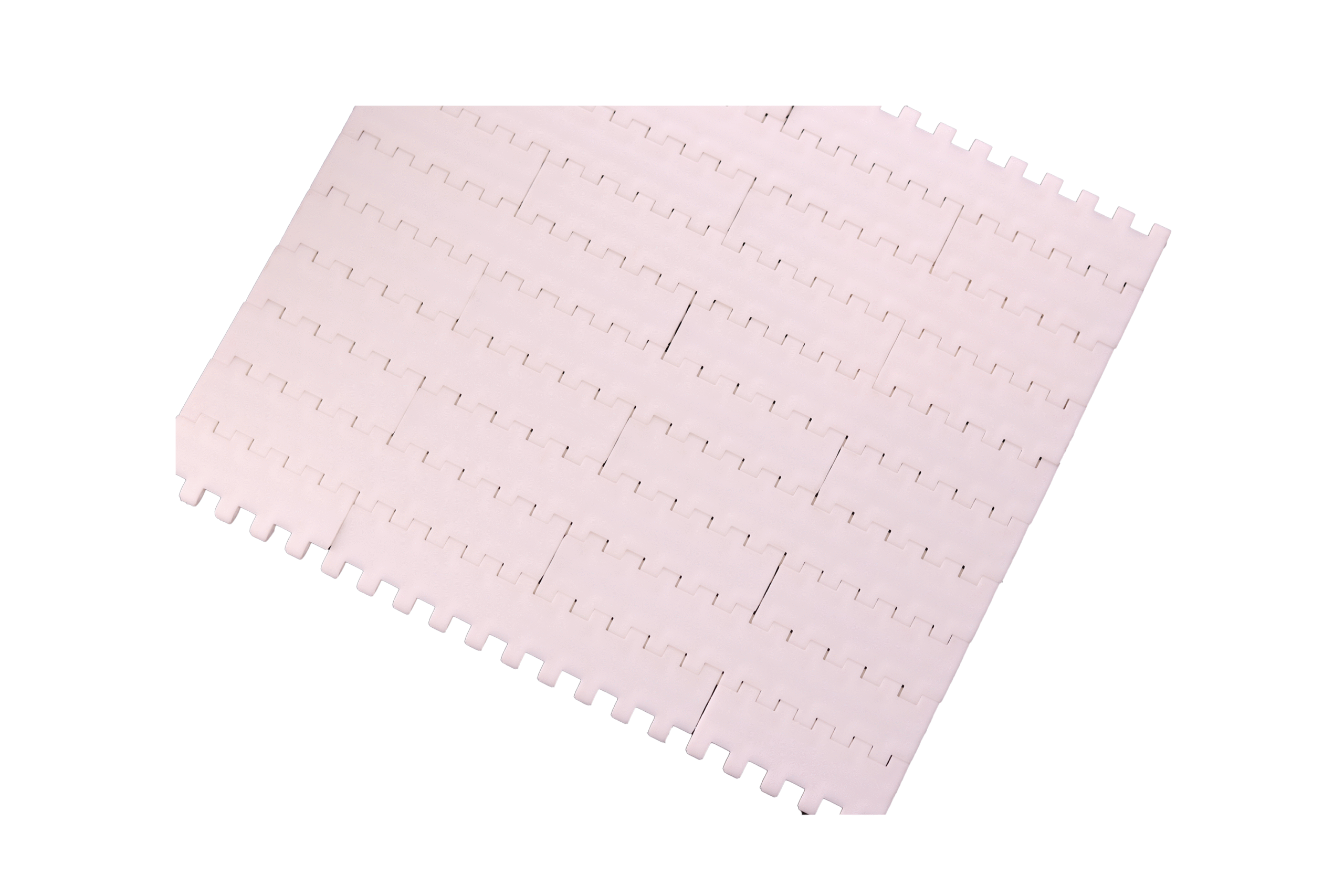

CY-25403A Flat Top
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 12500 | 7.6 | 75/150 | W=75*N |
| POM | PA | 15200 | 7.7 | 75/150 | W=75*N |
| PA | PA | 13100 | 6.6 | 75/150 | W=75*N |
| PP | PP | 8000 | 5.2 | 75/150 | W=75*N |
| PE | PE | 7500 | 5.4 | 75/150 | W=75*N |
The 25403 series conveyor belts have a flat surface that provides excellent product support and minimizes product tilting. They are particularly suitable for conveying small products and unstable containers, such as PET bottles with petal bases, glass bottles, and products with small diameters.
