Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

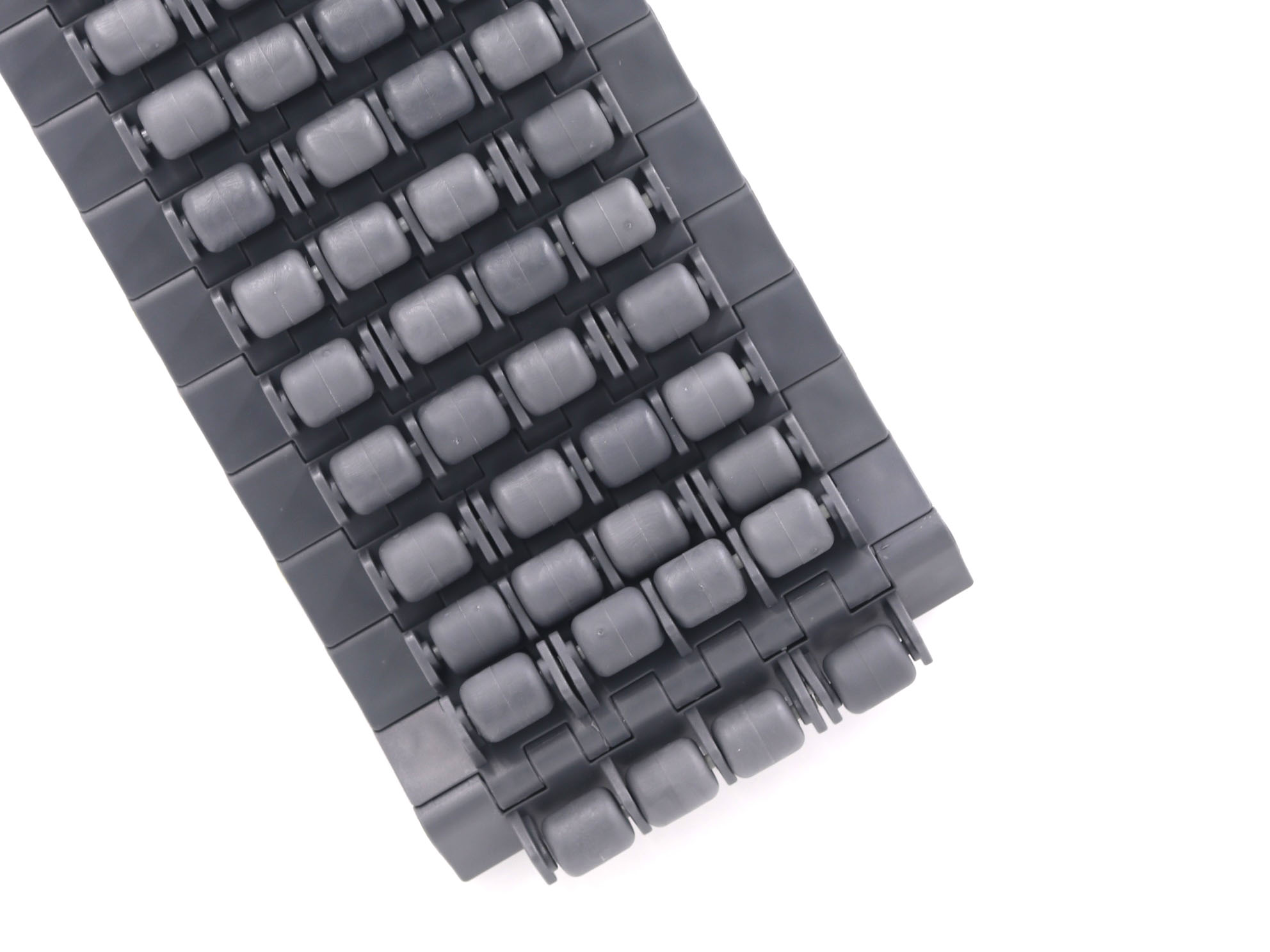

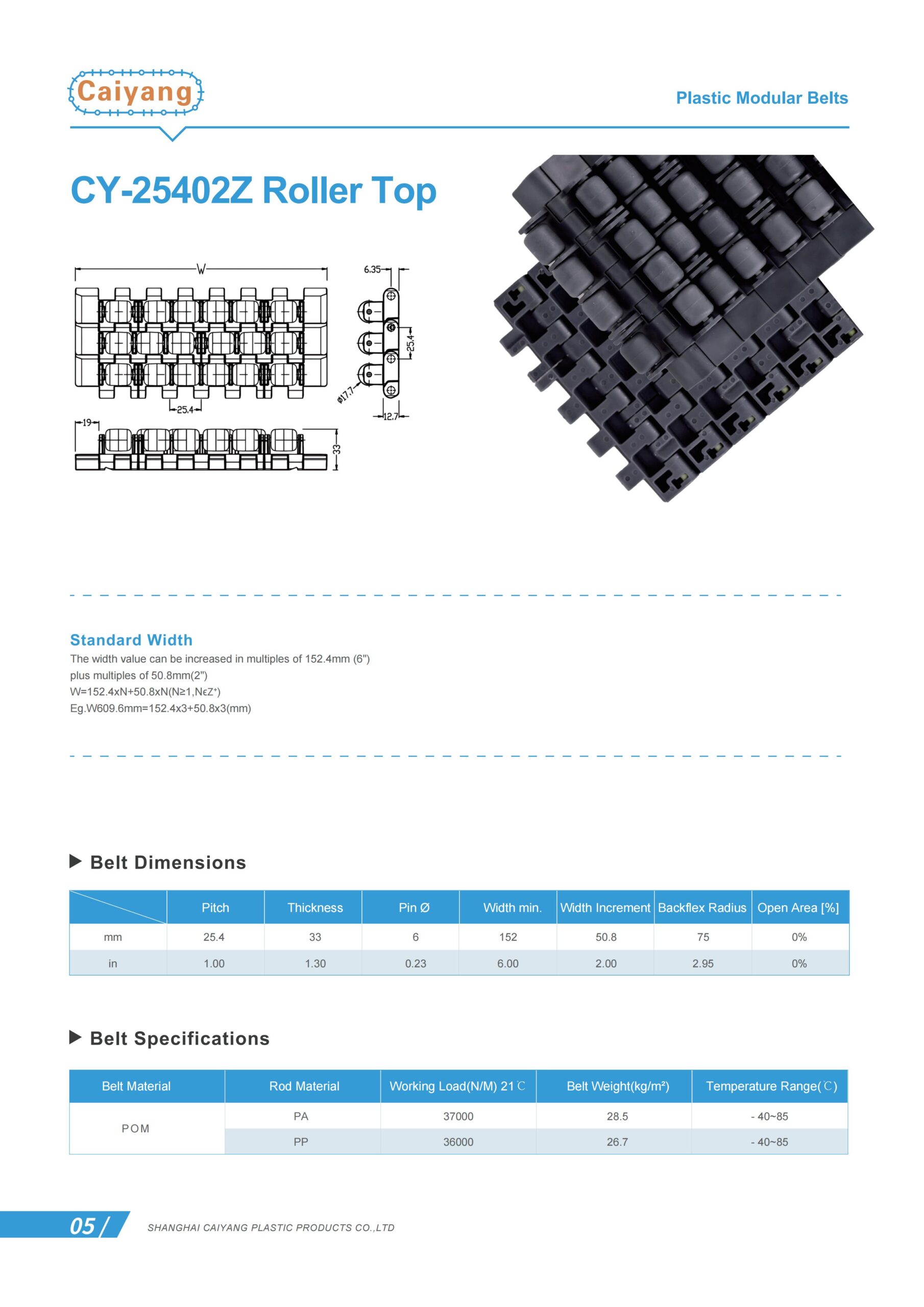

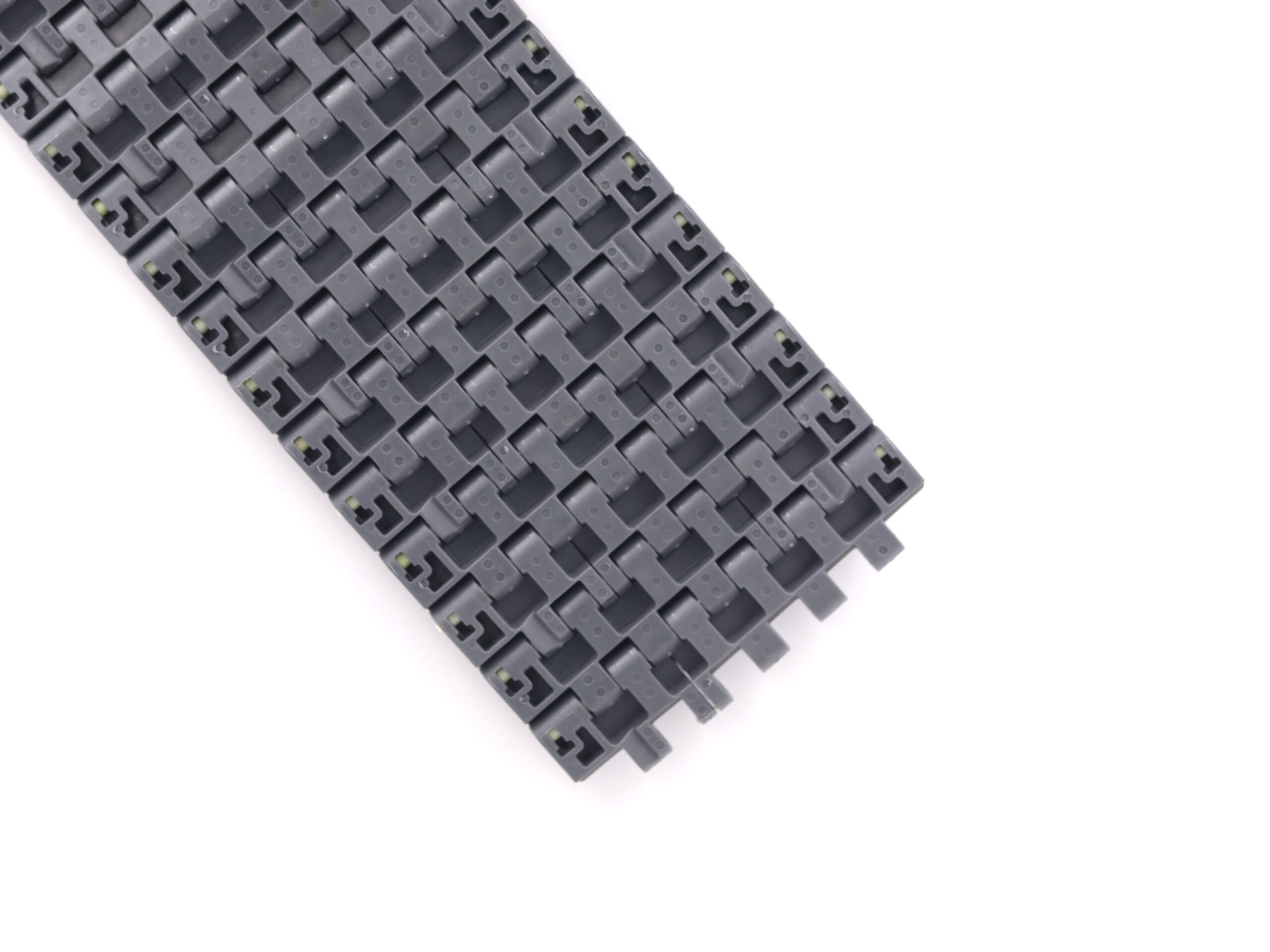

CY-25402Z Roller Top
- BELT TYPE
- DESIGN
- CY-25402
- Roller Top
- NOMINAL PITCH
- 25.4 mm / 1.00 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 33 mm / 1.30 inch
- Pin Diameter
- 6 mm / 0.23 inch
- WIDTH
- The width value can be increased in multiples of 152.4mm (6")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 36000 | 26.7 | 152/50.8/200 | W=152*N+50.5 |
| PP | PA | 37000 | 28.5 | 152/50.8/200 | W=152*N+50.5 |
