Product Introduction

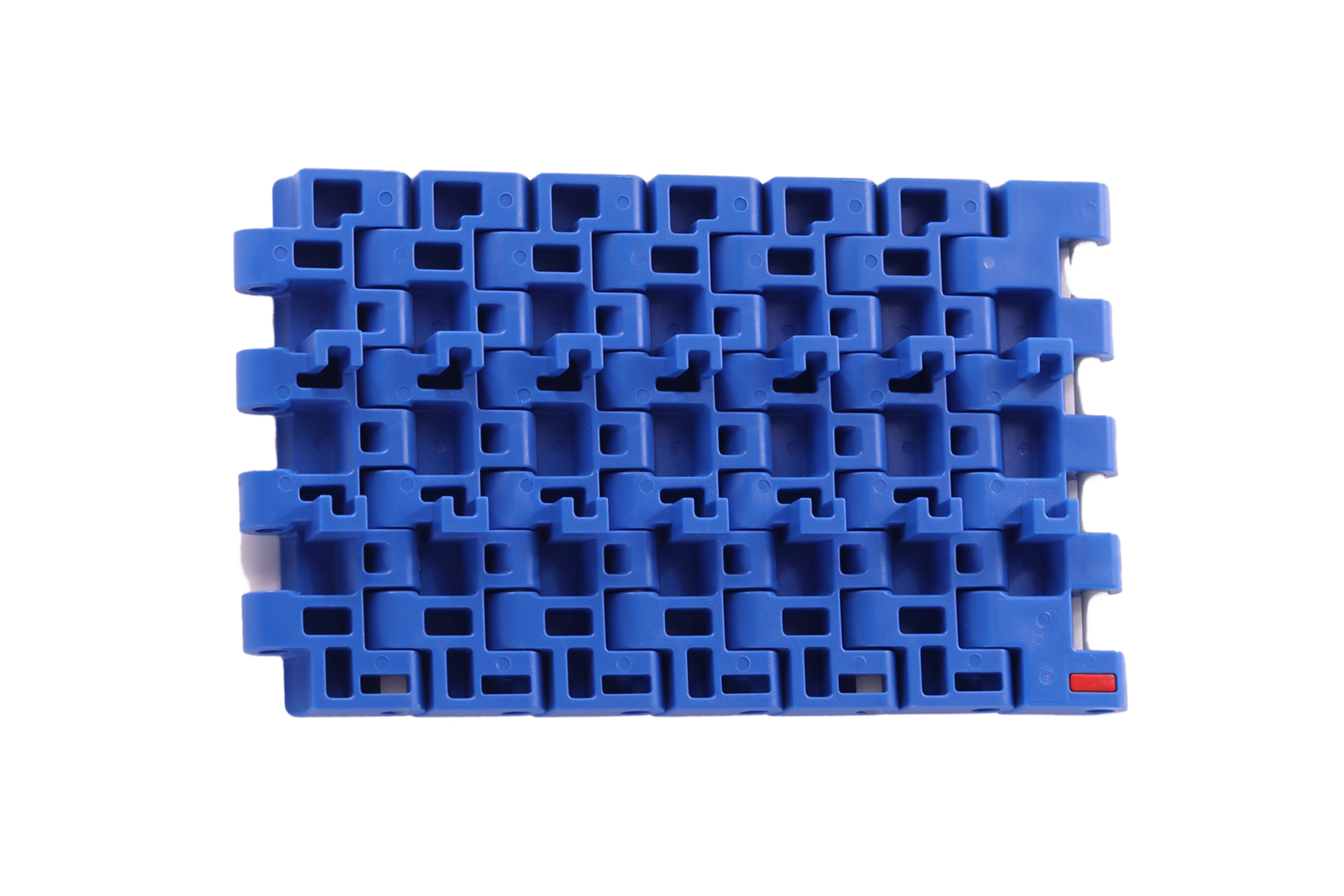

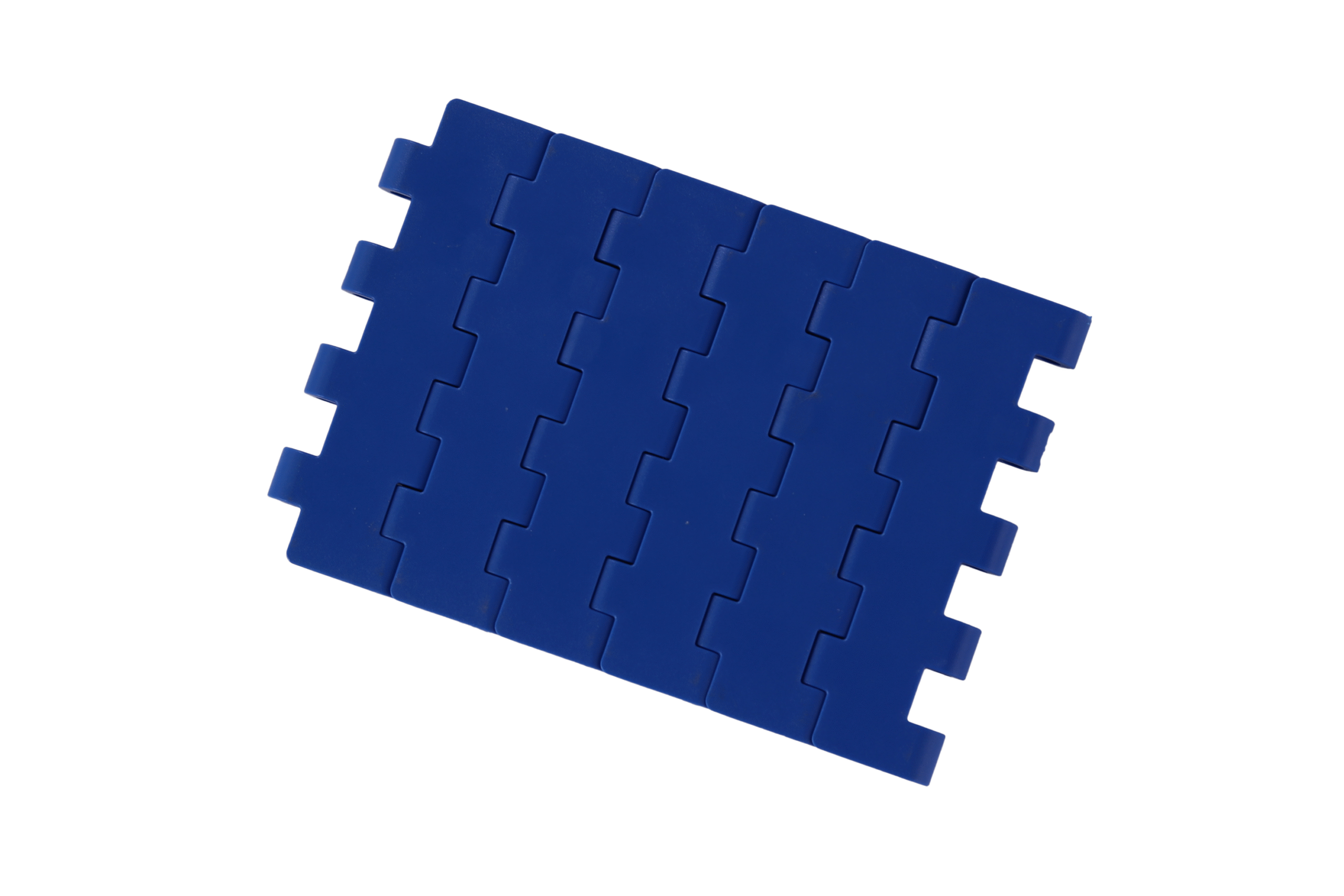

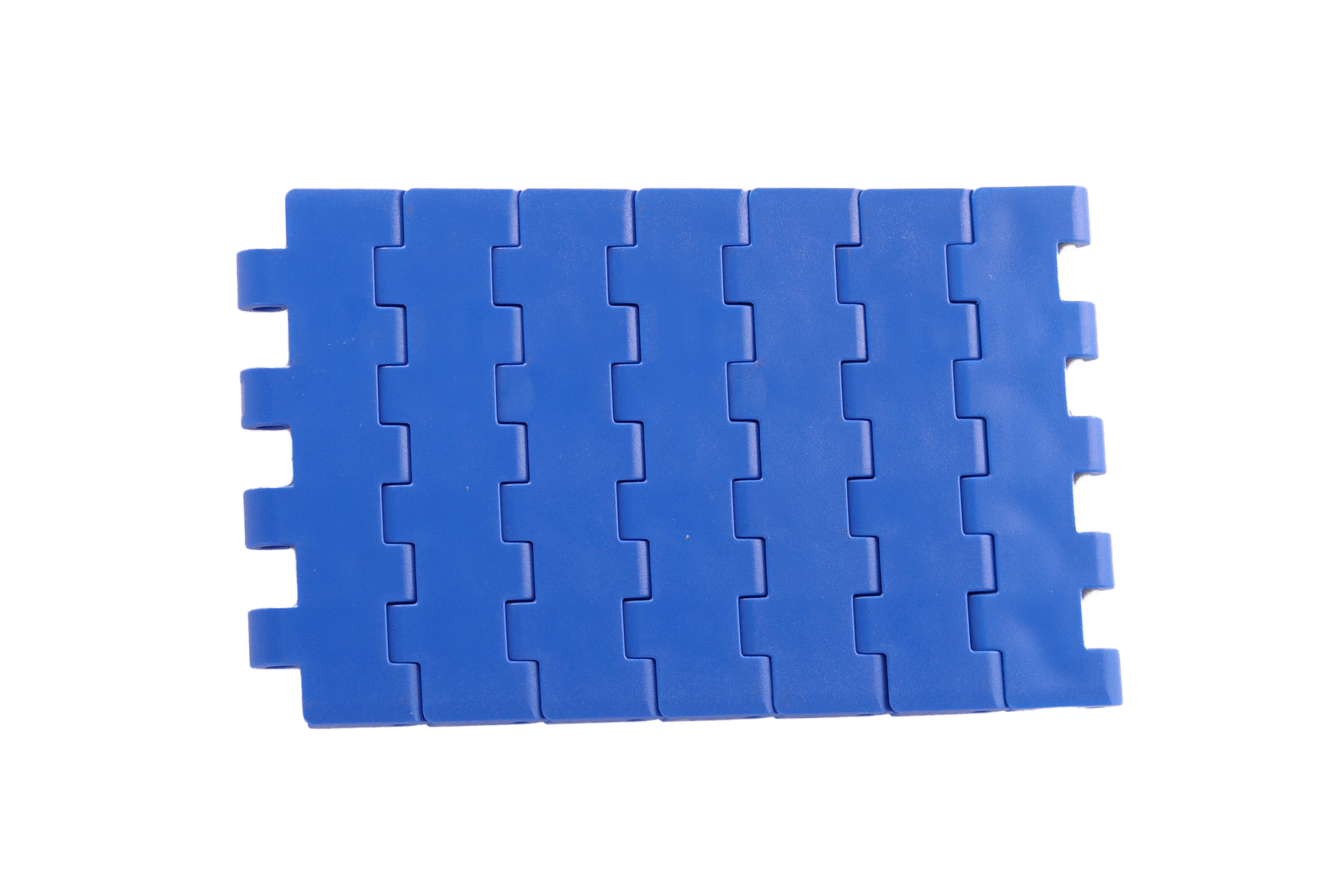

CY-25402A-W Flat Top
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 36500 | 13.43 | 101/152 | W=101*N |
| POM | Metal | 40200 | 22.43 | 101/152 | W=101*N |
| PP | PA | 26000 | 9.03 | 101/152 | W=101*N |
25402 Ball Series: Low back pressure accumulation, suitable for gentle product conveying.
