Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

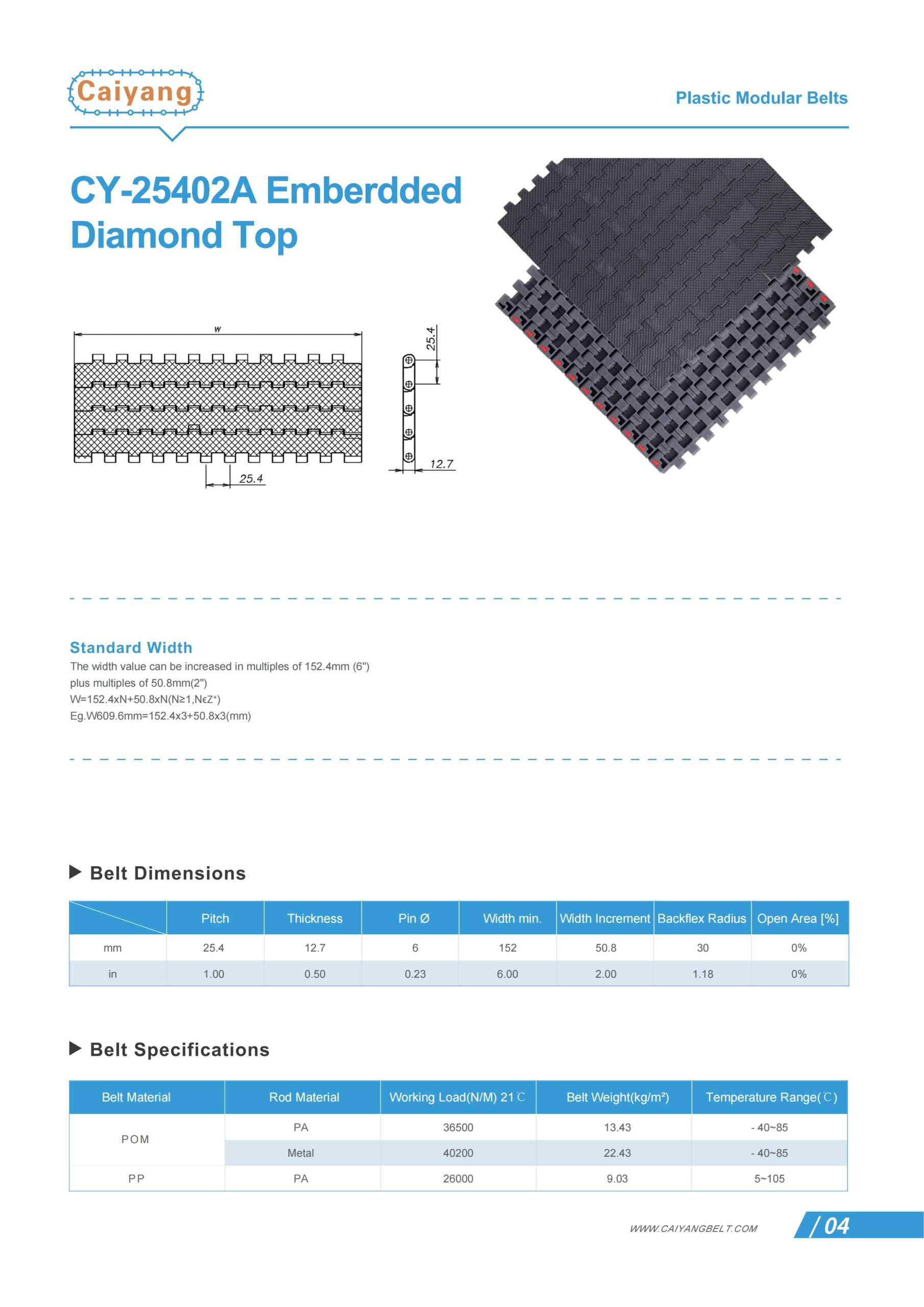

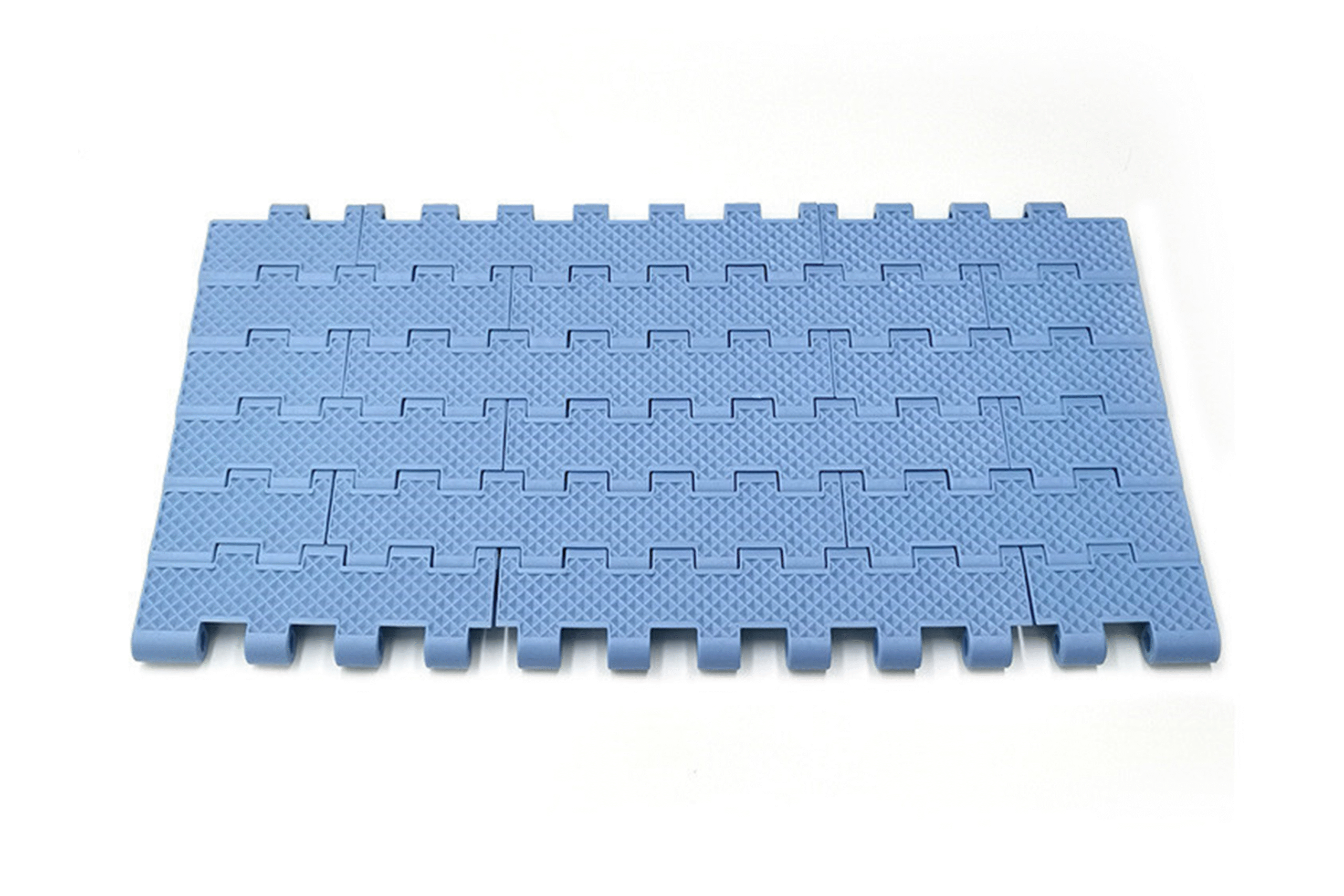

CY-25402A Emberdded Diamond Top
- BELT TYPE
- DESIGN
- CY-25402A
- Emberdded Diamond Top
- NOMINAL PITCH
- 25.4 mm / 1.00 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 12.7 mm / 0.50 inch
- Pin Diameter
- 6 mm / 0.23 inch
- WIDTH
- The width value can be increased in multiples of 152.4mm (6")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 36500 | 13.43 | 101/152 | W=101*N |
| POM | Metal | 40200 | 22.43 | 101/152 | W=101*N |
| PP | PA | 26000 | 9.03 | 101/152 | W=101*N |
Download
If you have any inquiries or questions, welcome to contact us.
+86 18321599788
