Modular plastic chain plate solution supplier
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

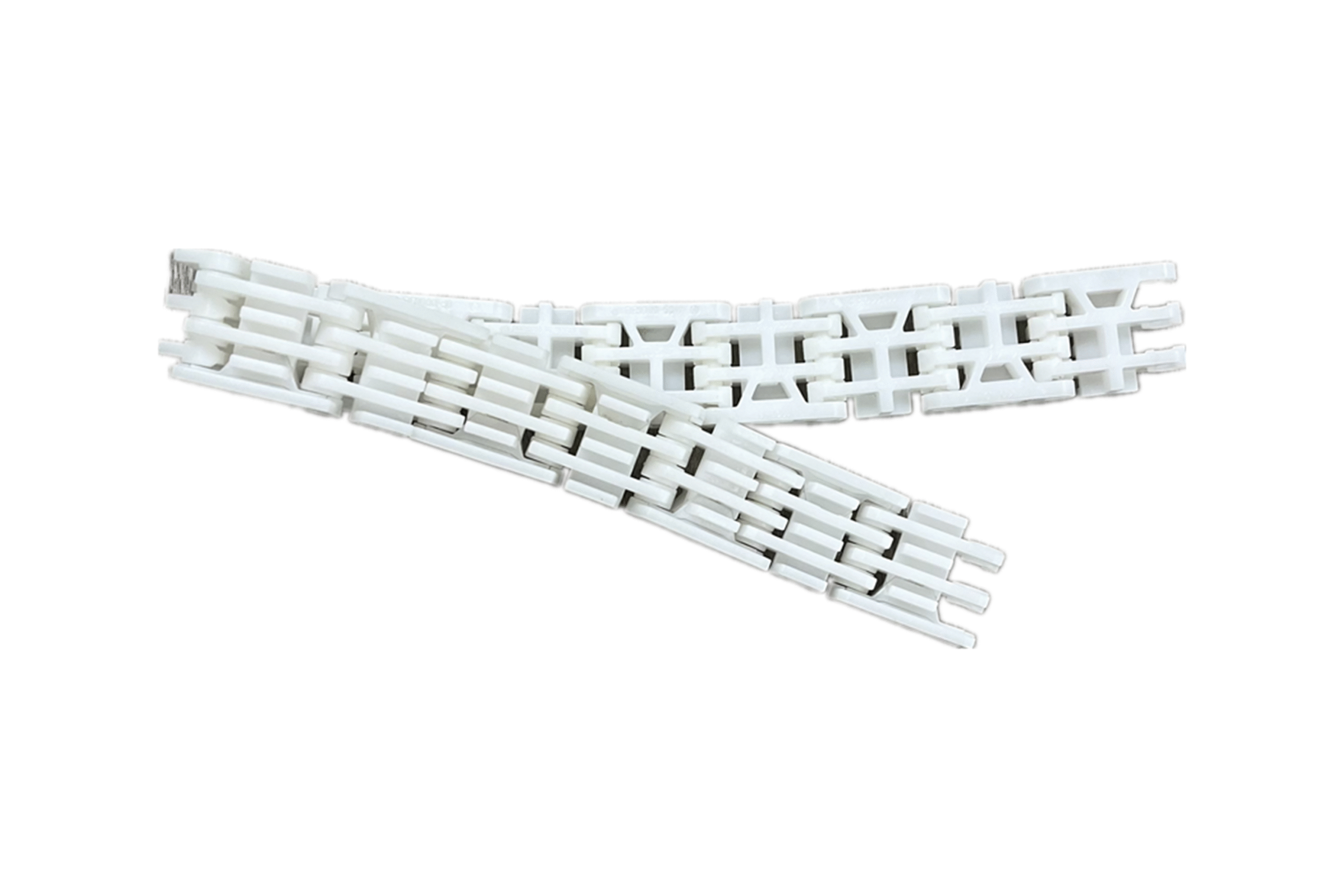

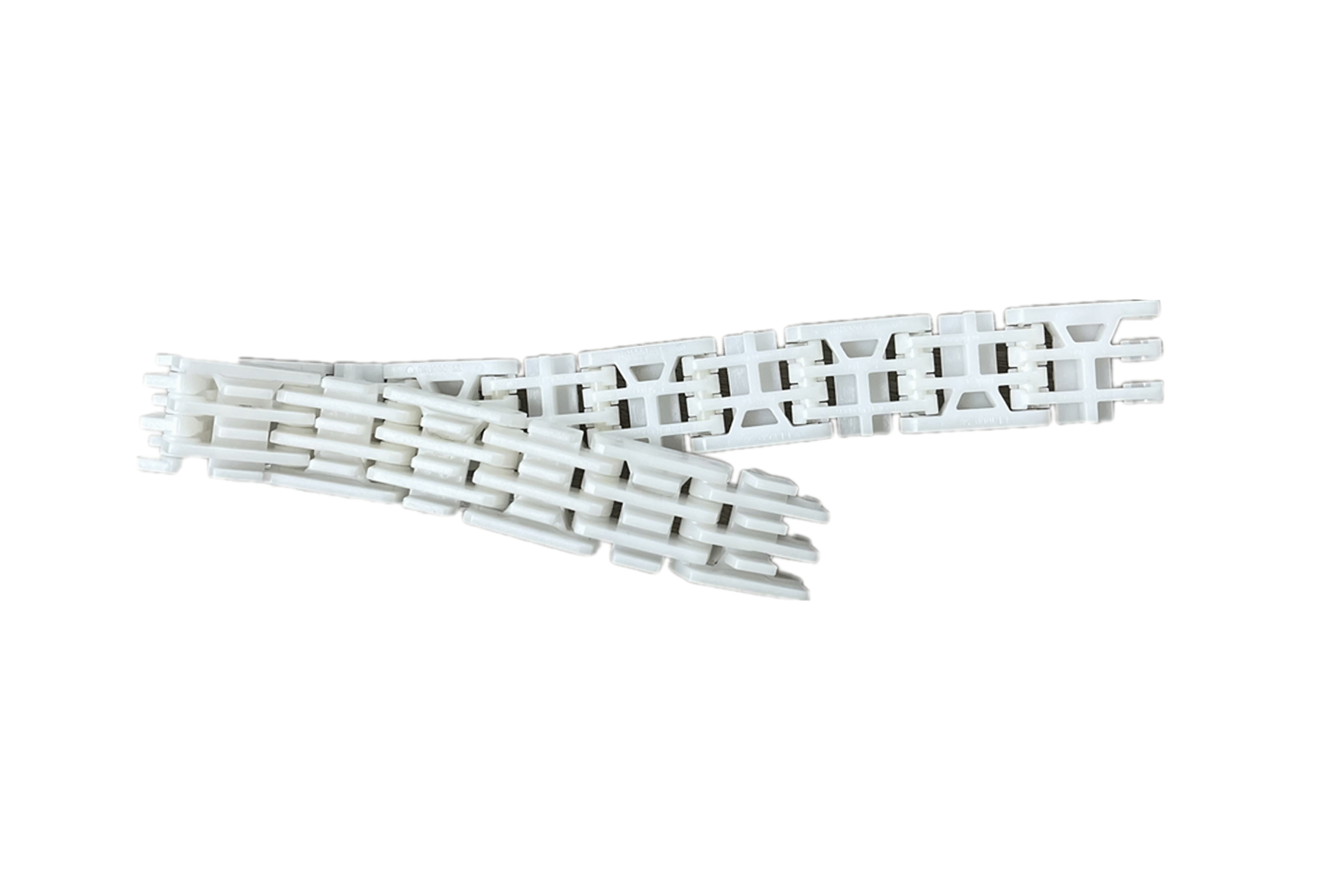

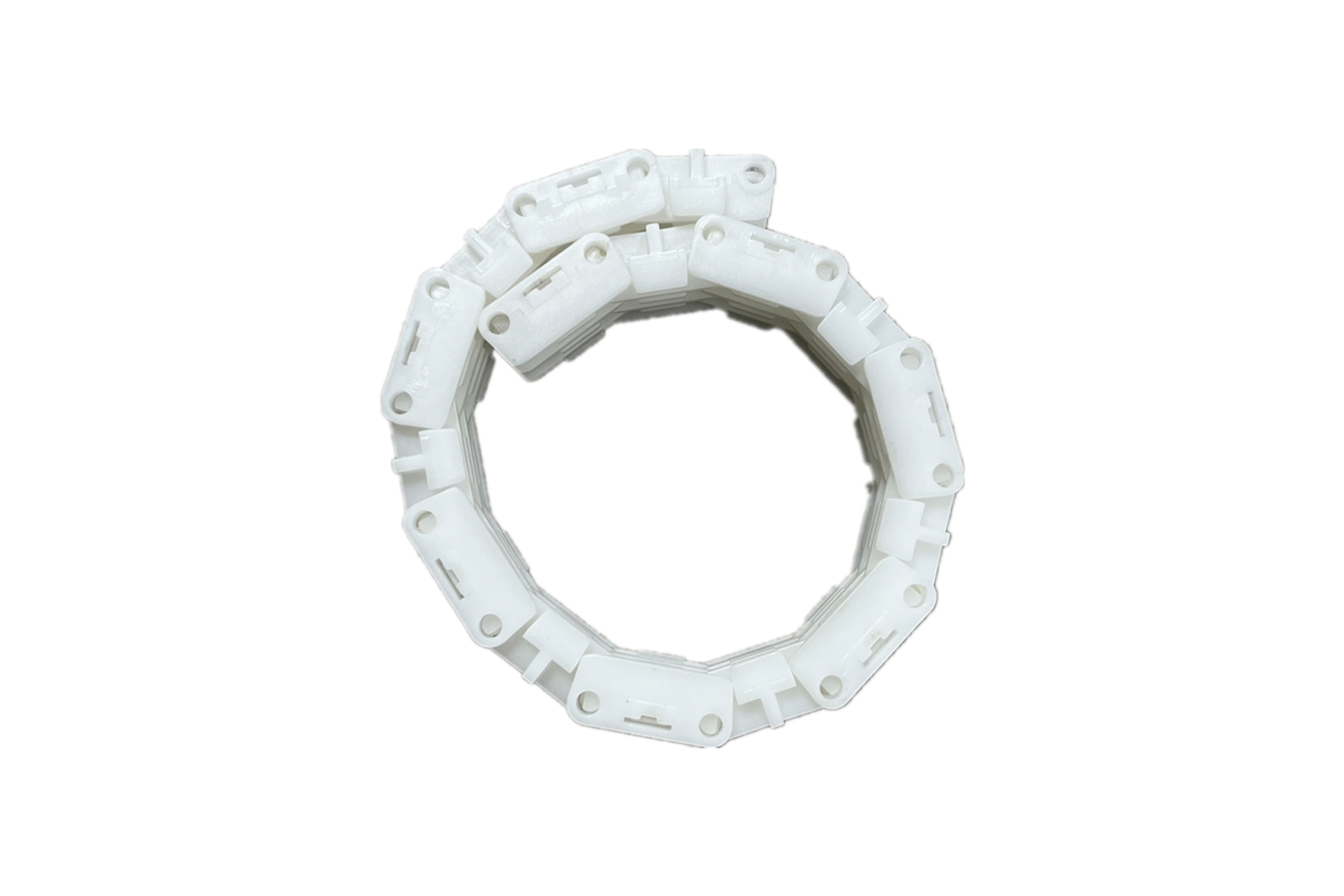

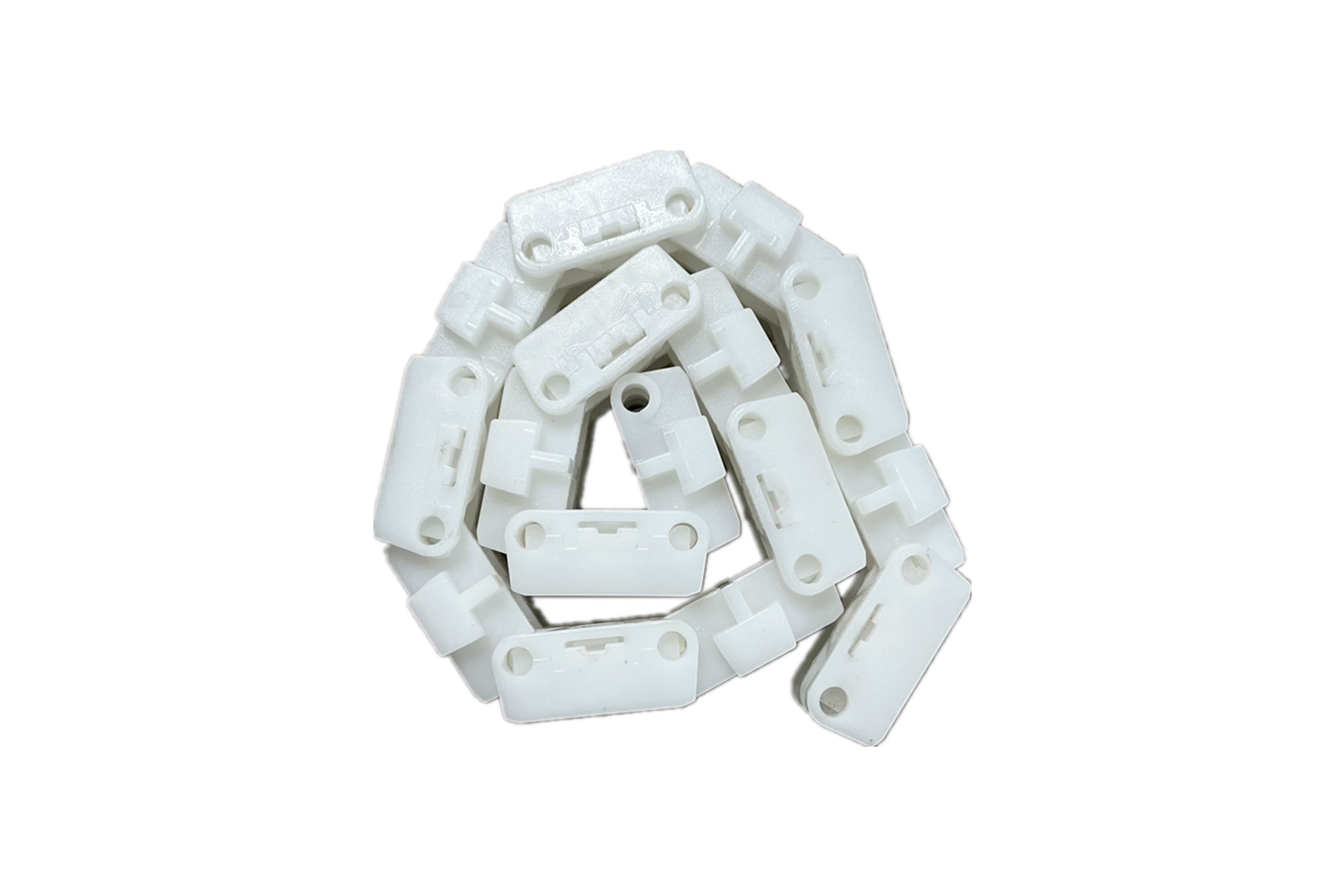

CY-25401T Raised Rib(MTW)
- BELT TYPE
- DESIGN
- NOMINAL PITCH
- Open Area
- Flight
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 22000 | 7.95 | 85/170 | W=85*N |
| POM | PA | 23000 | 8.05 | 85/170 | W=85*N |
| PP | PP | 11000 | 5.30 | 85/170 | W=85*N |
The 25041 series mesh conveyor features comprehensive links and outstanding design characteristics, making it a multi-functional conveyor. It is suitable for the beverage, packaging, and food industries. The flat, closed surface provides high strength, making it suitable for handling glass and PET containers, and the gapless surface prevents small particles from getting stuck.
