Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

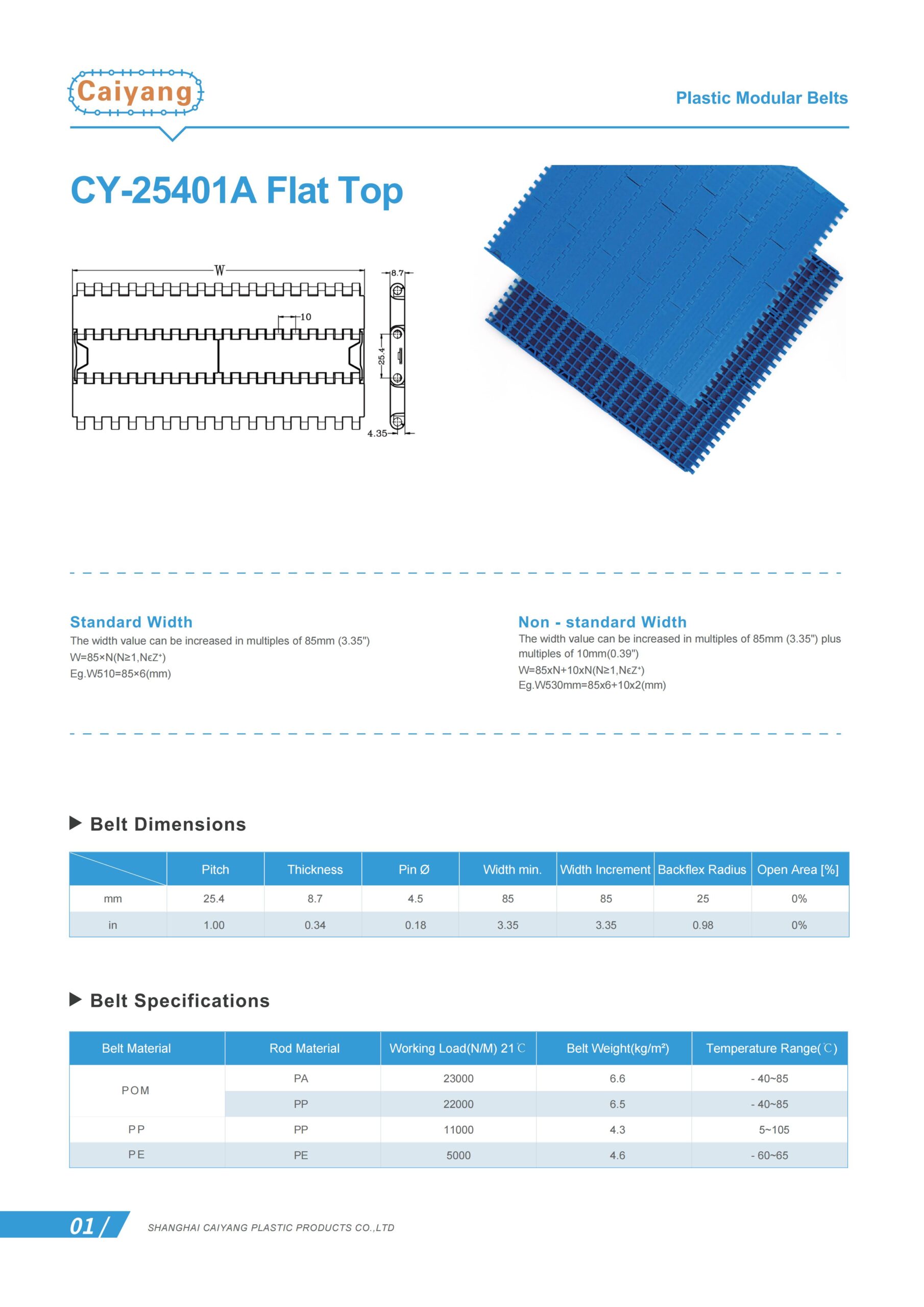

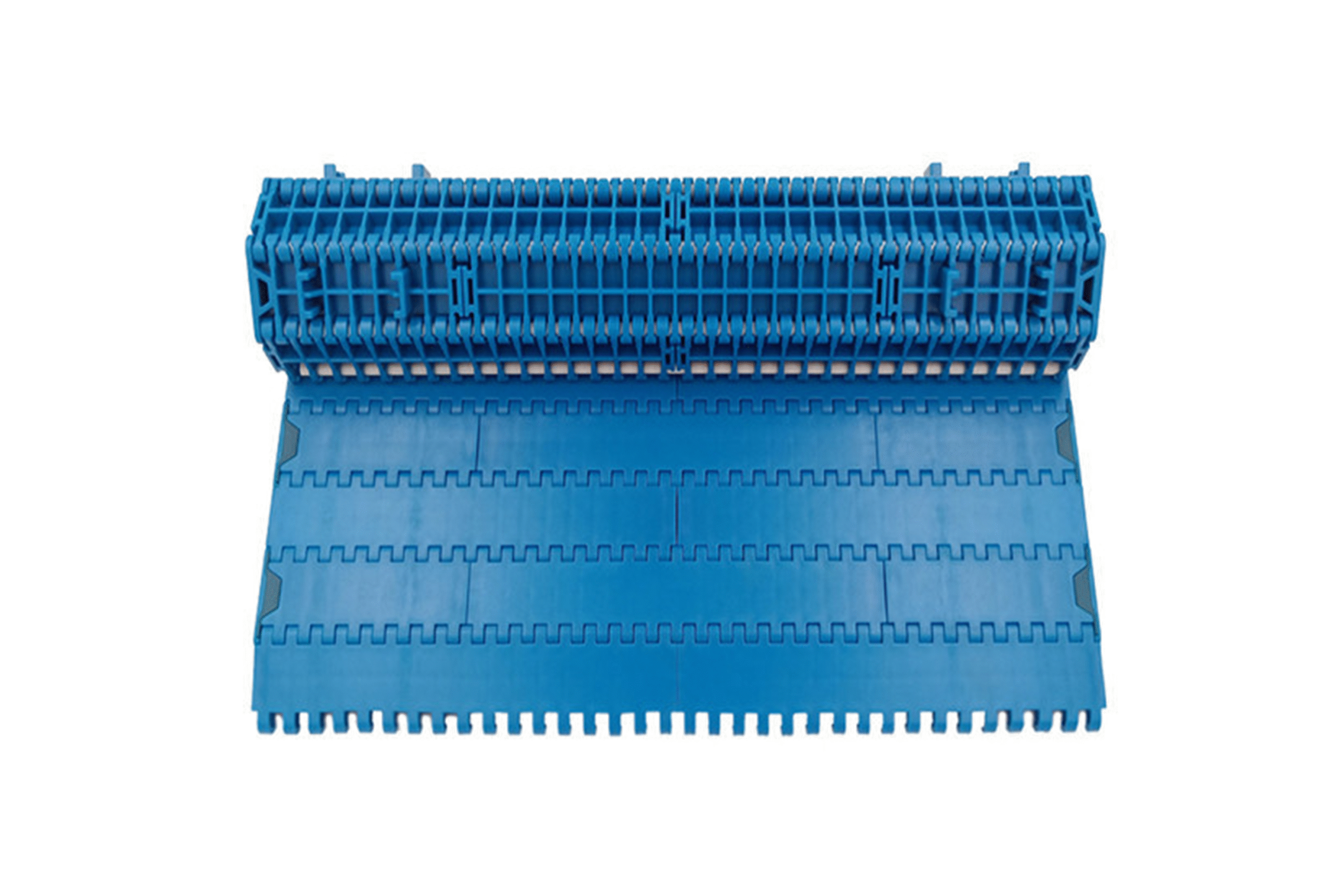

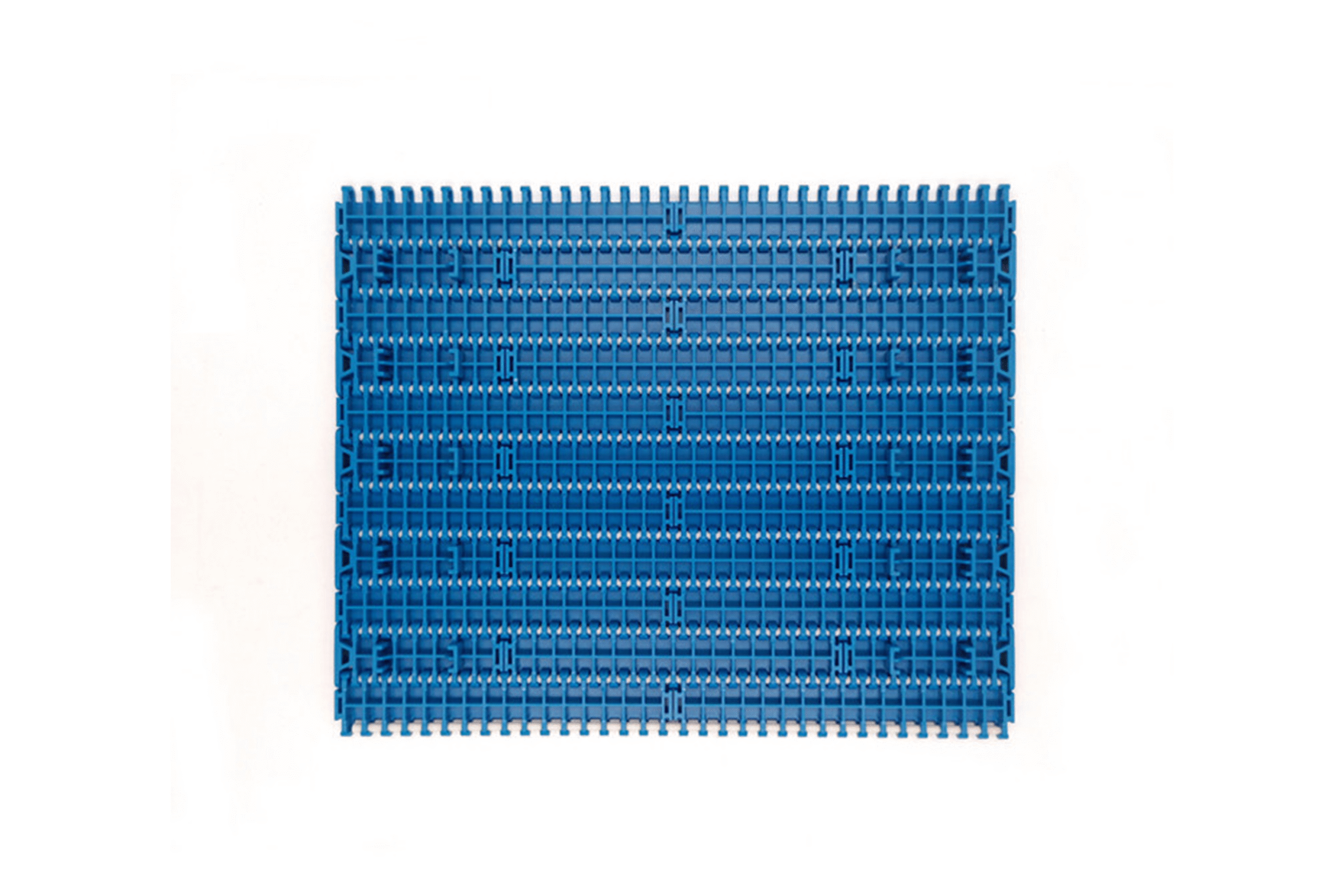

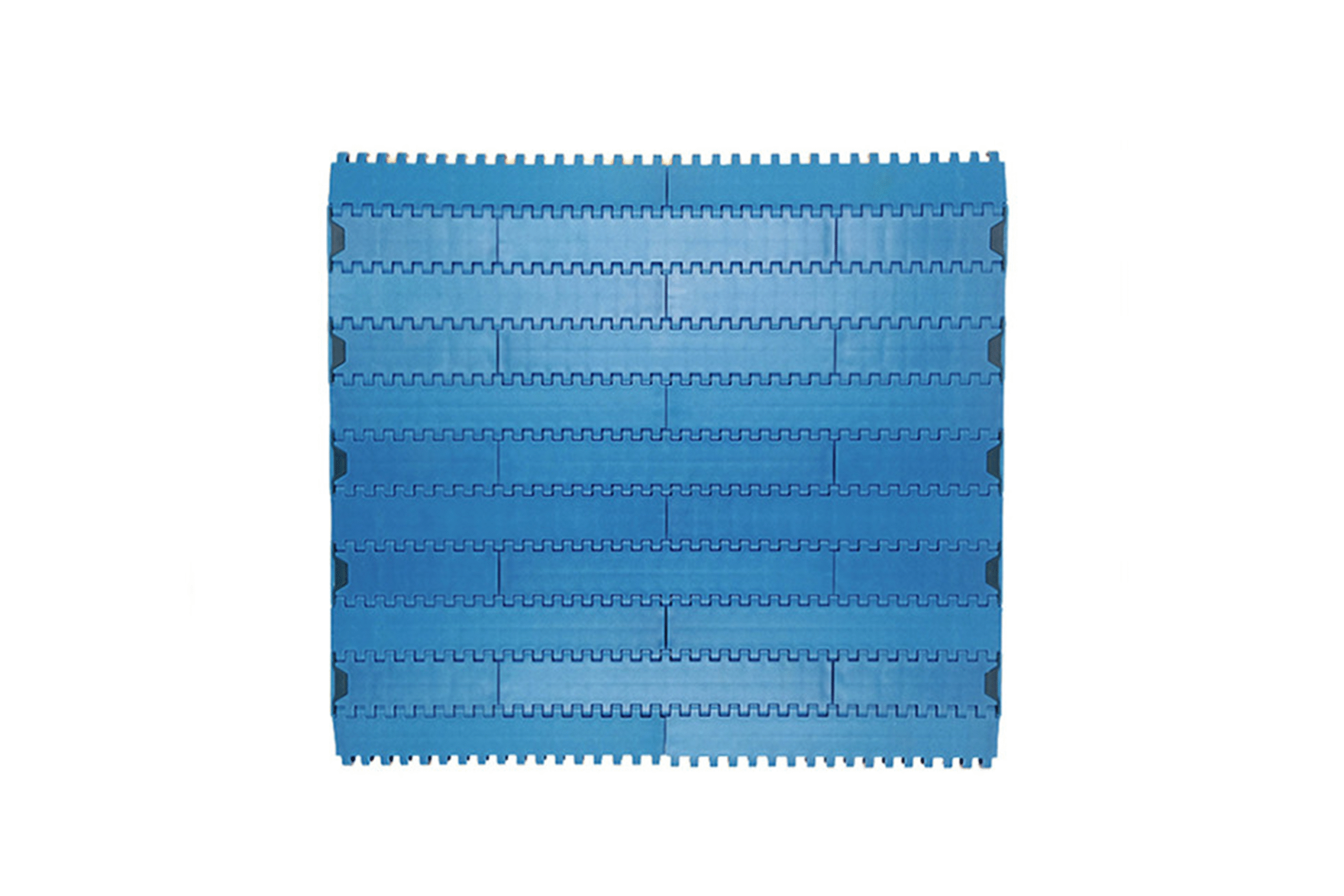

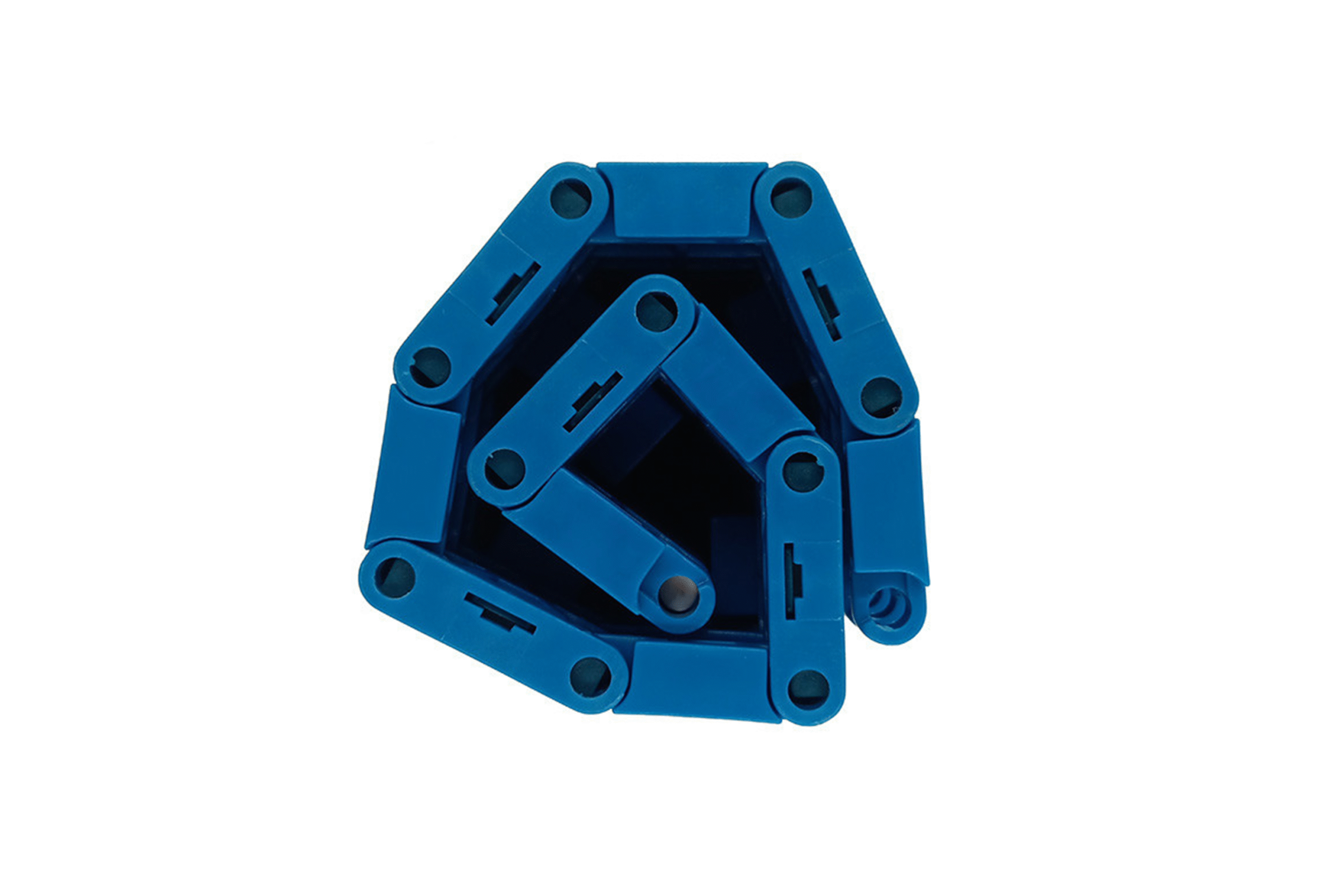

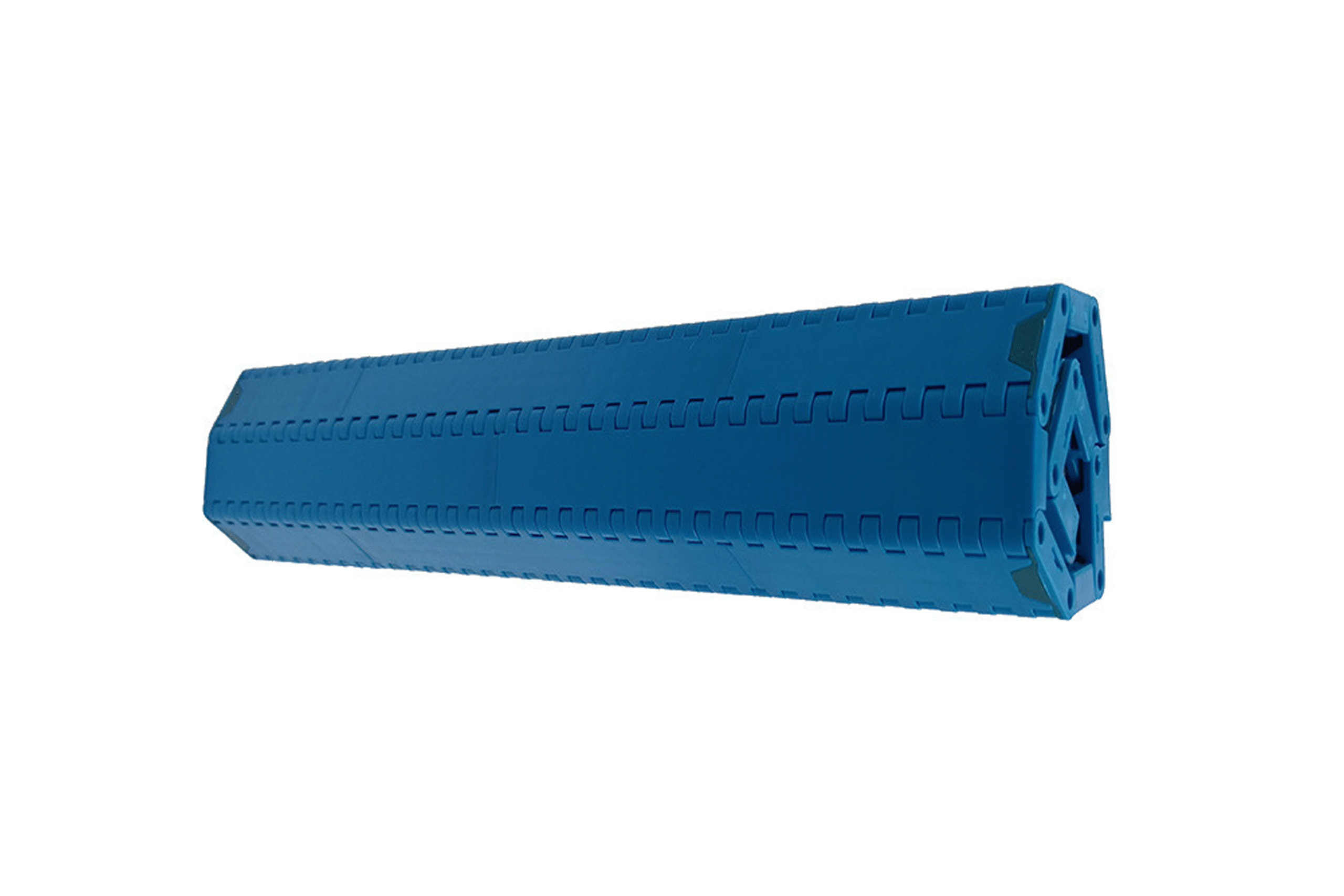

CY-25401A Flat Top
- BELT TYPE
- DESIGN
- CY-25401
- Flat Top
- NOMINAL PITCH
- 25.4 mm / 1.00 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 8.7 mm / 0.34 inch
- Pin Diameter
- 4.5 mm / 0.18 inch
- WIDTH
- The width value can be increased in multiples of 85mm (3.35")/The width value can be increased in multiples of 85mm (3.35") plus
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 22000 | 6.5 | 85/170 | W=85*N |
| POM | PA | 23000 | 6.6 | 85/170 | W=85*N |
| PP | PP | 11000 | 4.3 | 85/170 | W=85*N |
| PE | PE | 5000 | 4.6 | 85/170 | W=85*N |
