Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

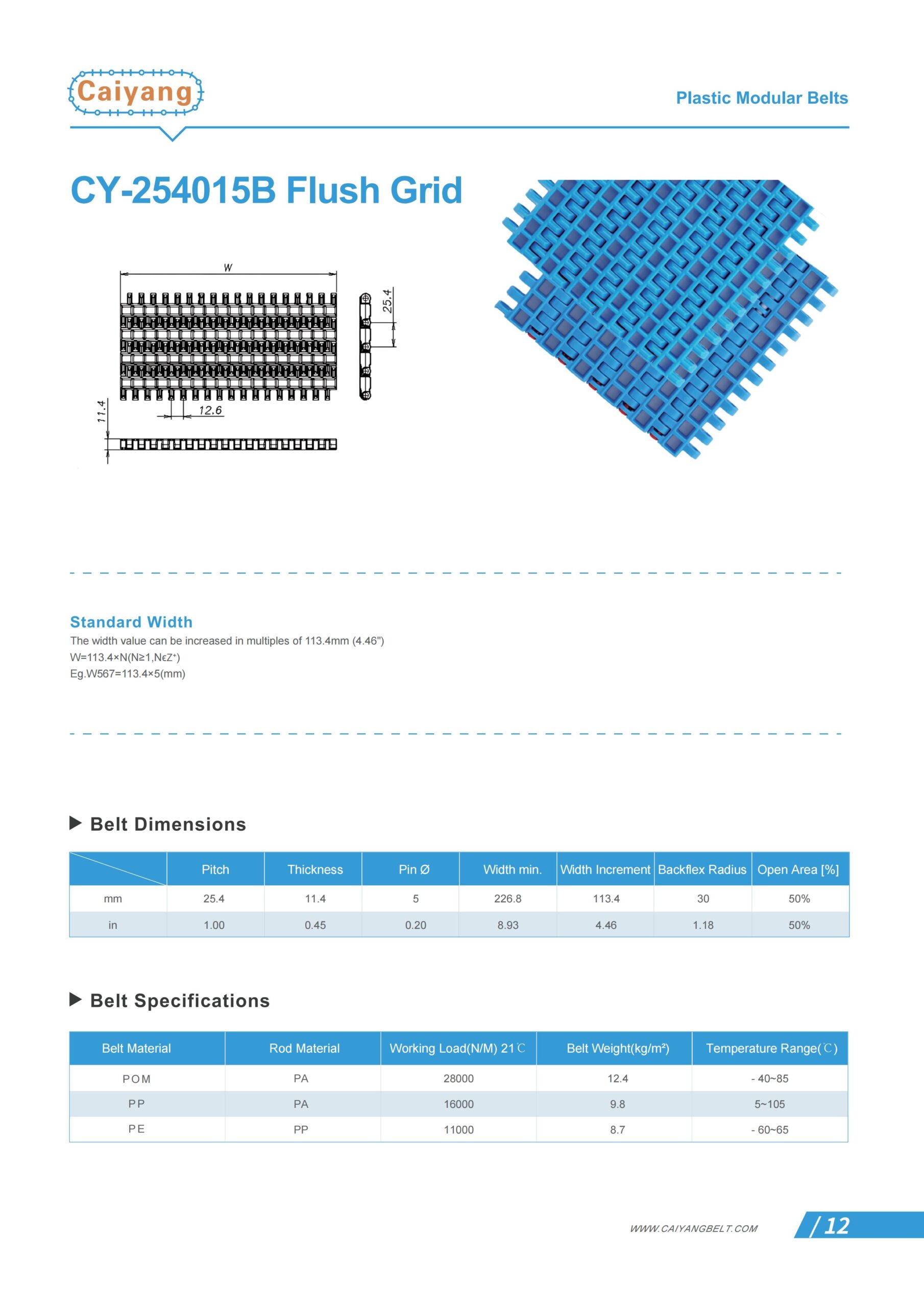

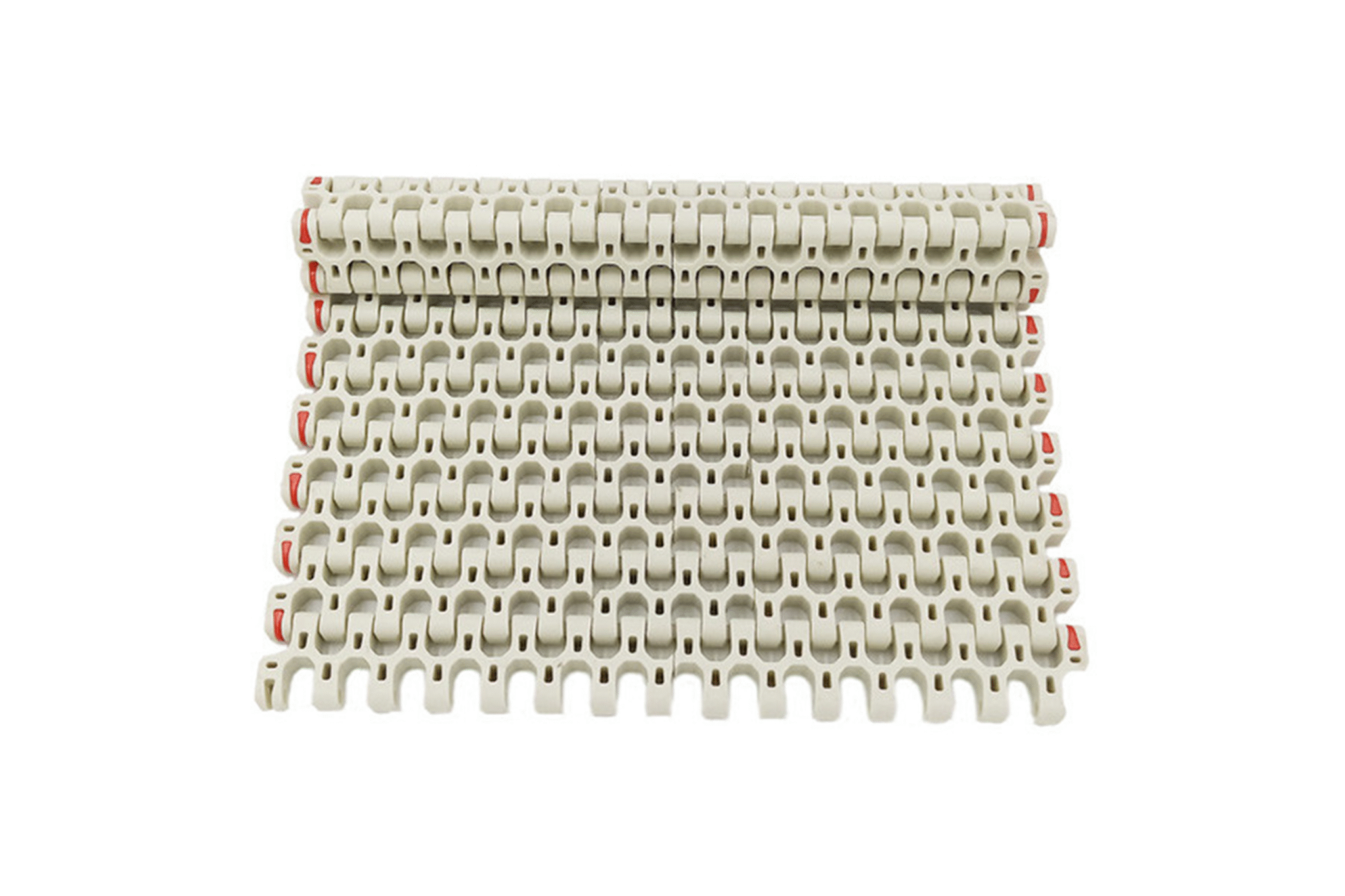

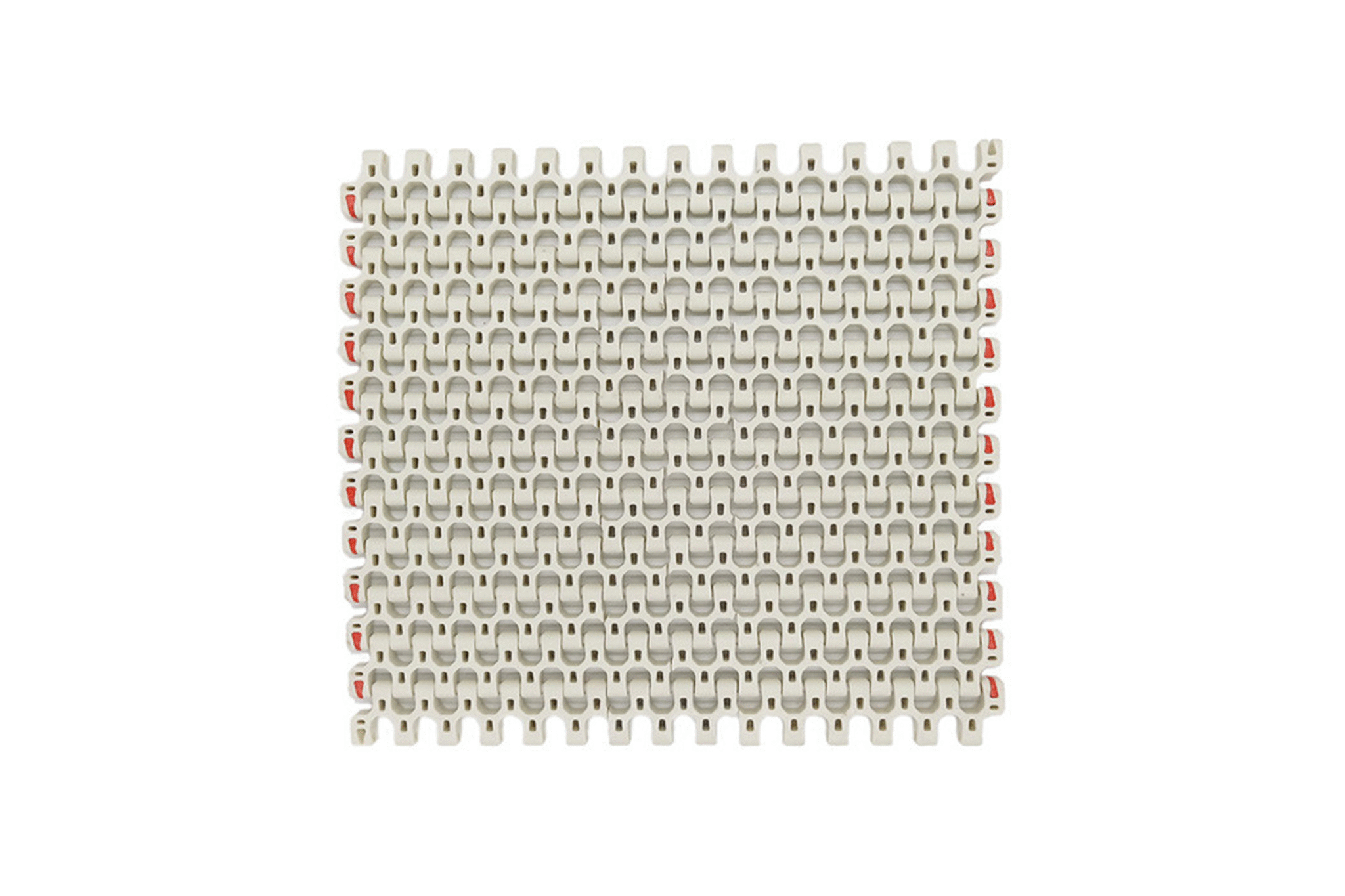

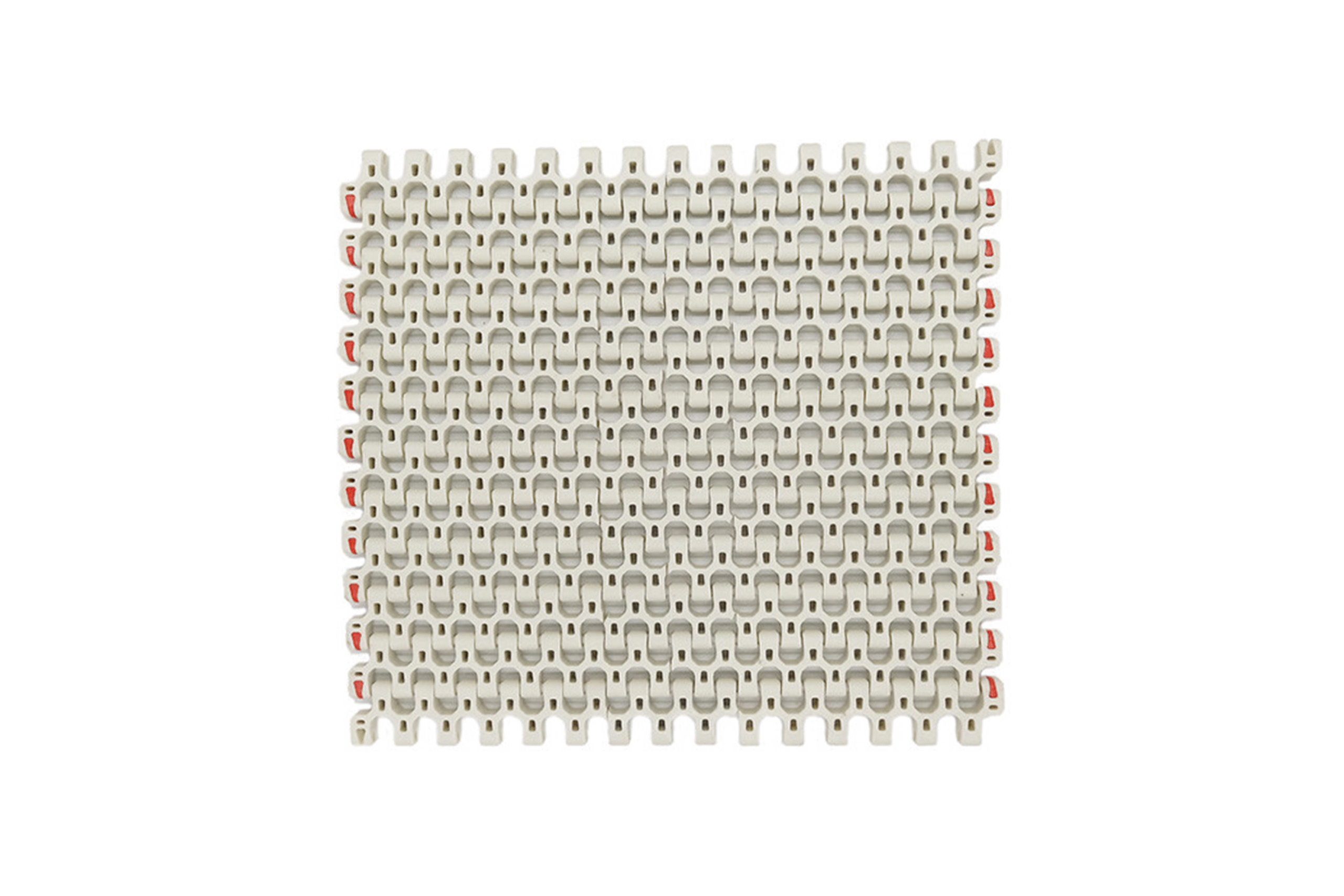

CY-254015B Flush Grid
- BELT TYPE
- DESIGN
- CY-254015
- Flush Grid
- NOMINAL PITCH
- 8 mm / 0.315 inch
- Open Area
- 50%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 11.4 mm / 0.45 inch
- Pin Diameter
- 5 mm / 0.20 inch
- WIDTH
- The width value can be increased in multiples of 113.4mm (4.46")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 28000 | 12.4 | 113.4/226.8 | W=113.4*N |
| PE | PP | 11000 | 8.7 | 113.4/226.8 | W=113.4*N |
| PP | PA | 16000 | 9.8 | 113.4/226.8 | W=113.4*N |
