Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

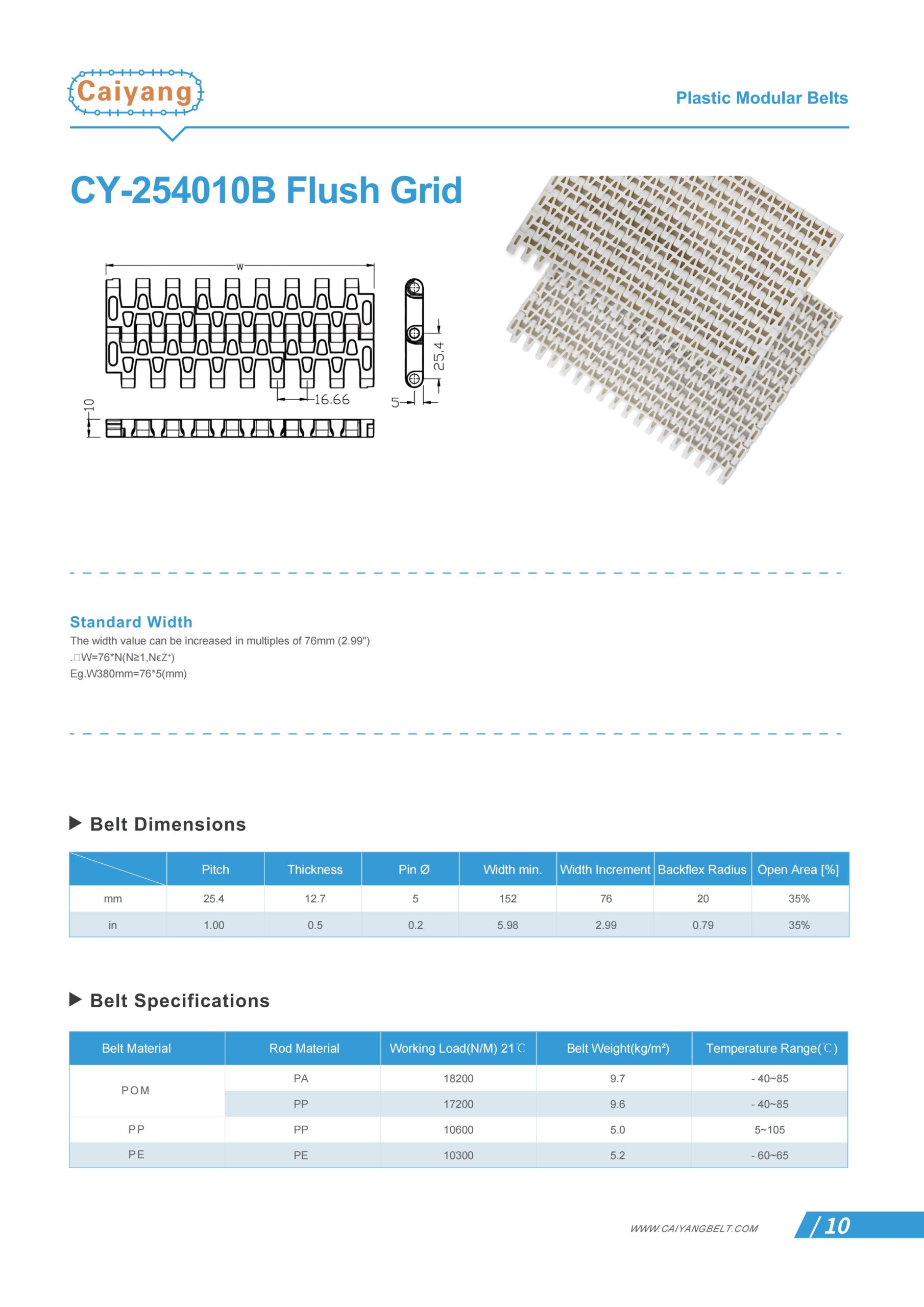

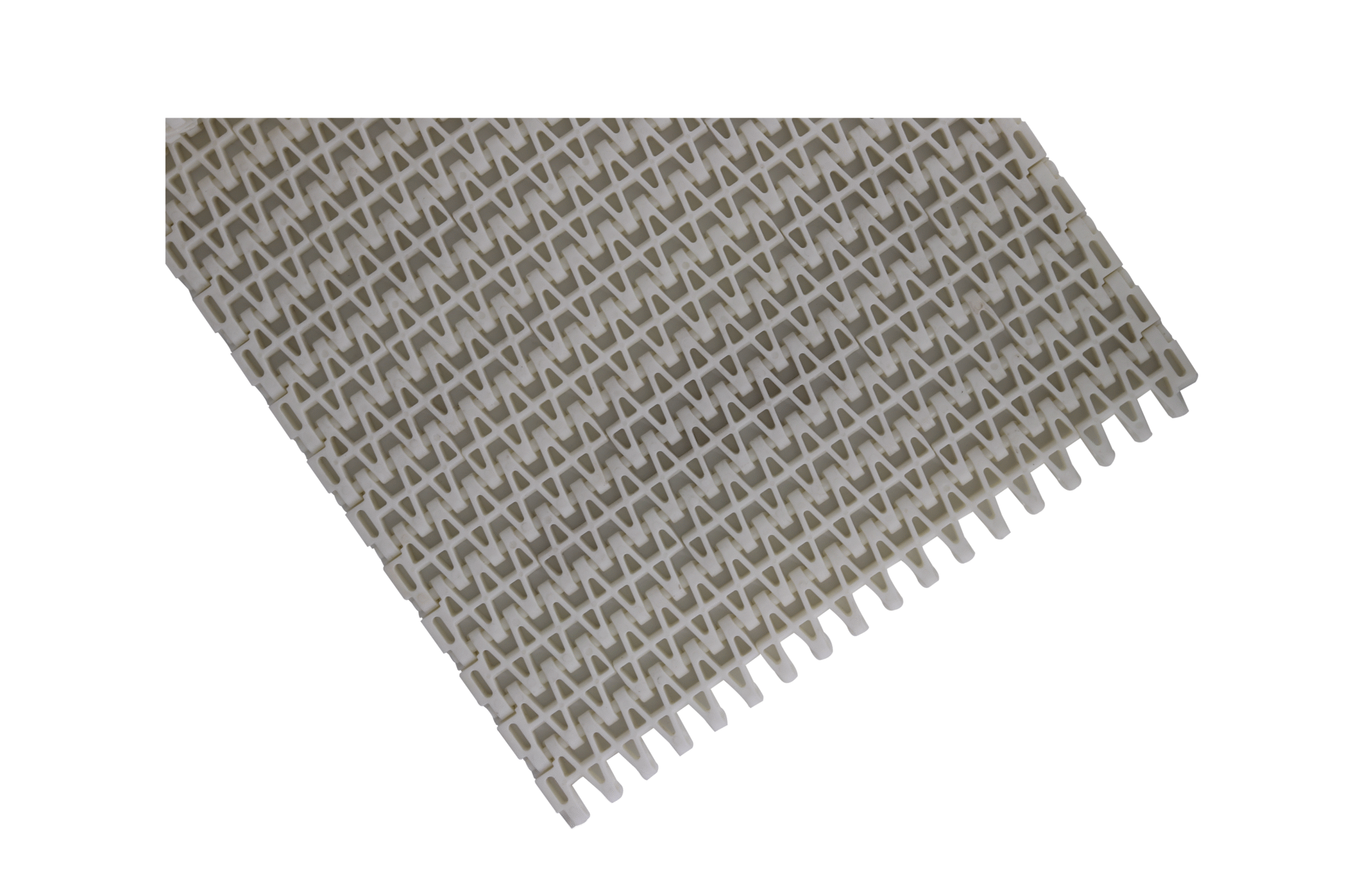

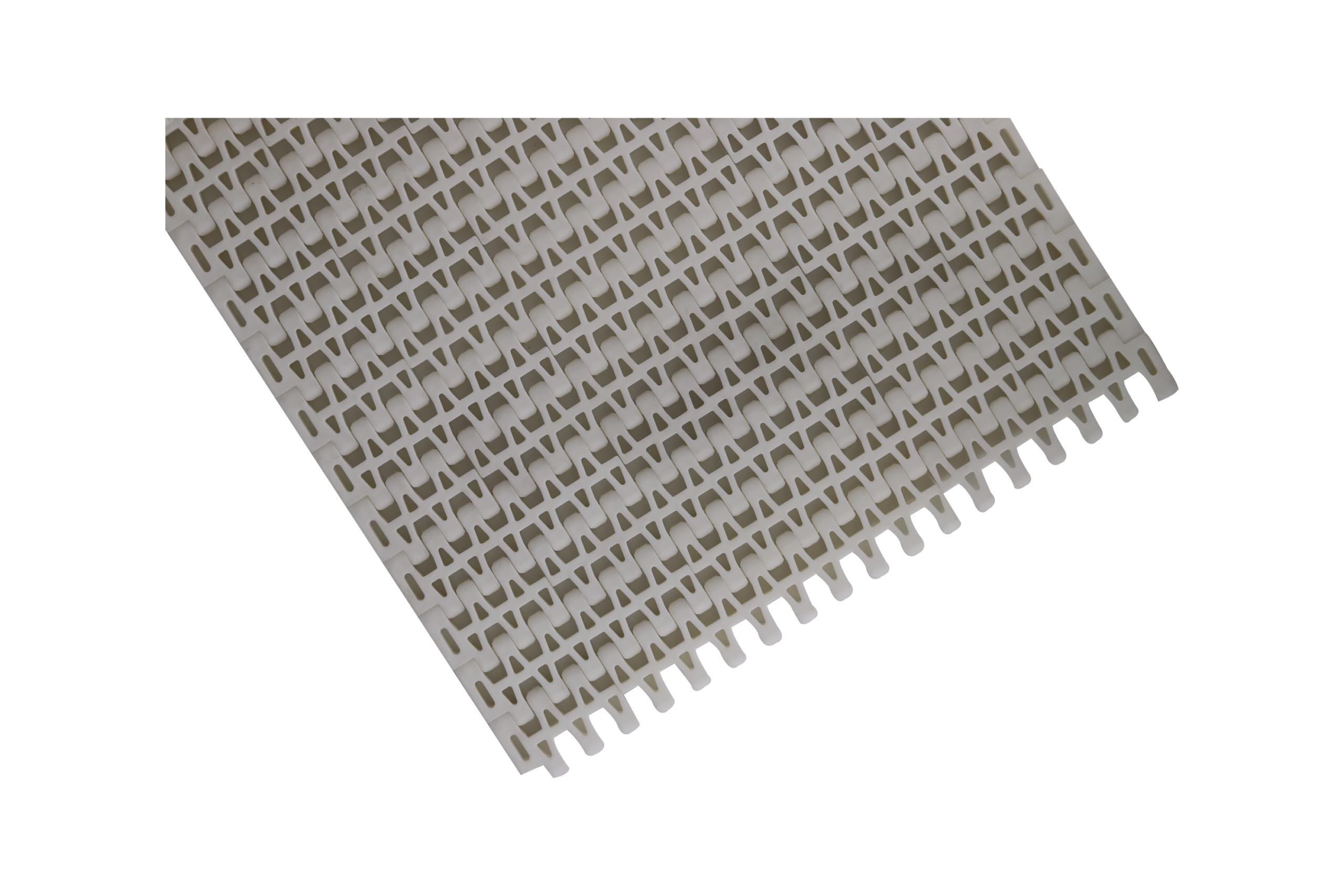

CY-254010B Flush Grid
- BELT TYPE
- DESIGN
- CY-254010
- Flush Grid
- NOMINAL PITCH
- 25.4 mm / 1.00 inch
- Open Area
- 35%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 12.7 mm / 0.5 inch
- Pin Diameter
- 5 mm / 0.2 inch
- WIDTH
- The width value can be increased in multiples of 76mm (2.99")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| PE | PE | 8000 | 5.1 | 50/100/300 | W=150*N+50 |
| POM | PP | 16000 | 7.1 | 50/100/300 | W=150*N+50 |
| POM | PA | 21900 | 7.2 | 50/100/300 | W=150*N+50 |
| PP | PP | 14000 | 4.6 | 50/100/300 | W=150*N+50 |
