Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

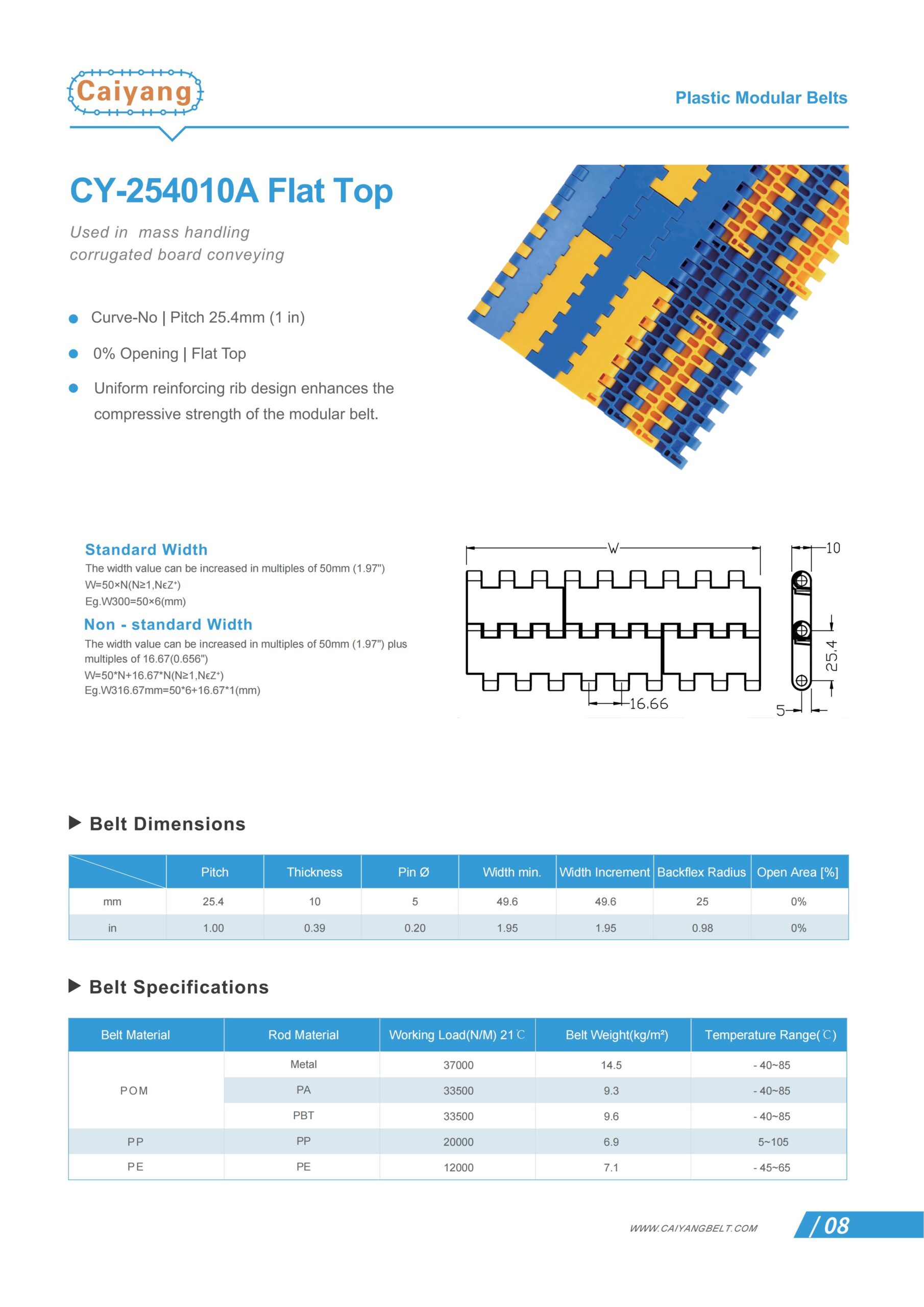

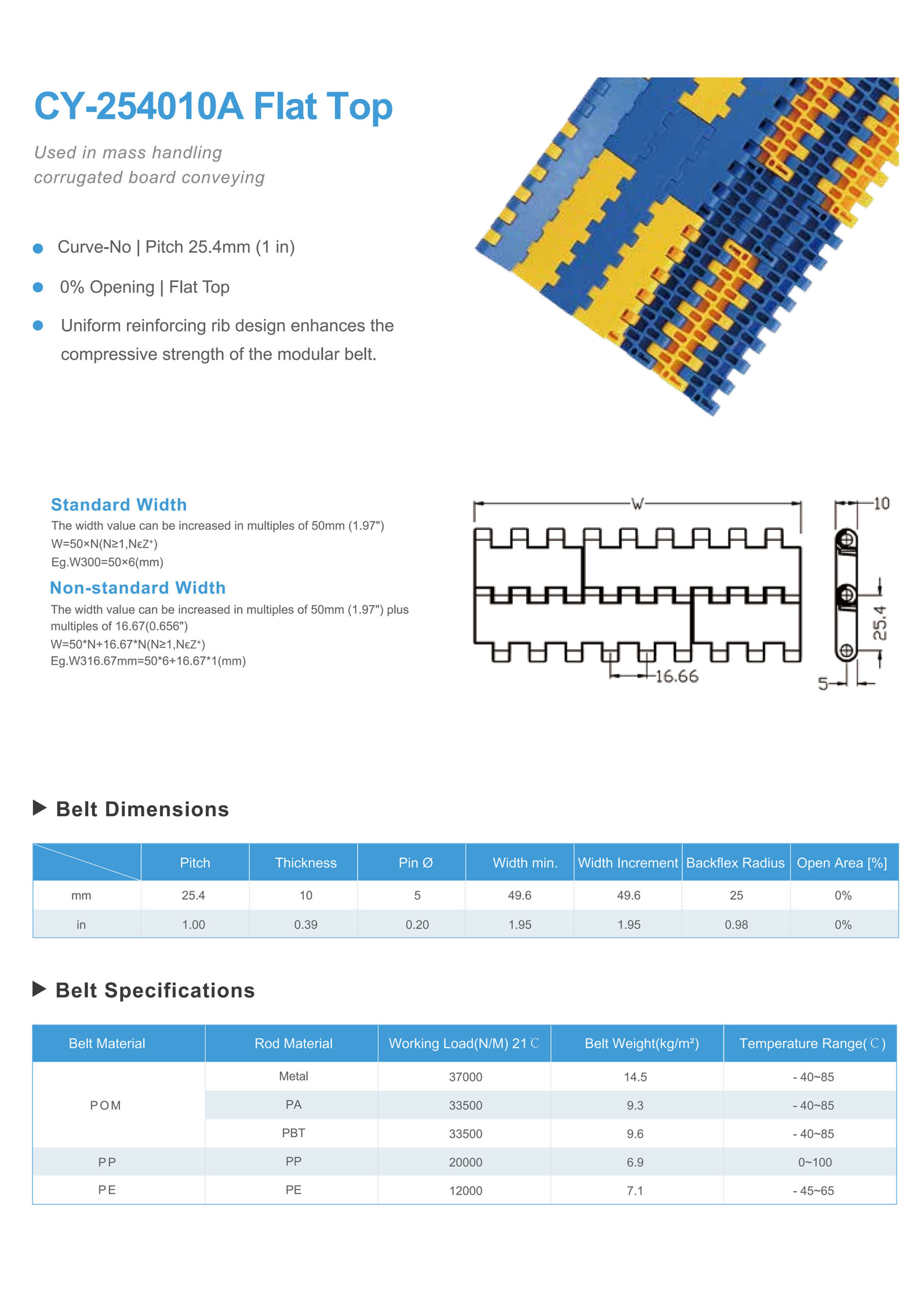

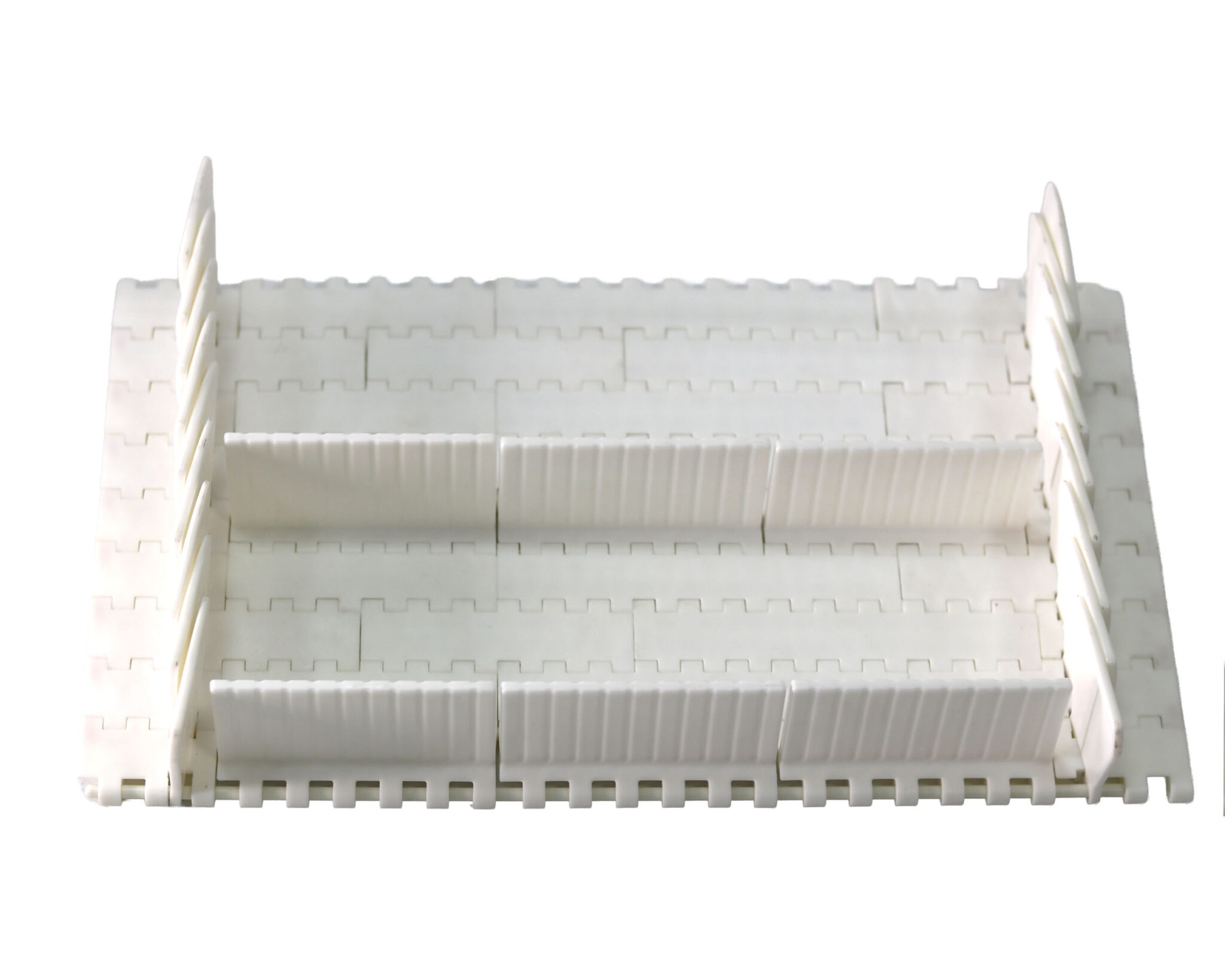

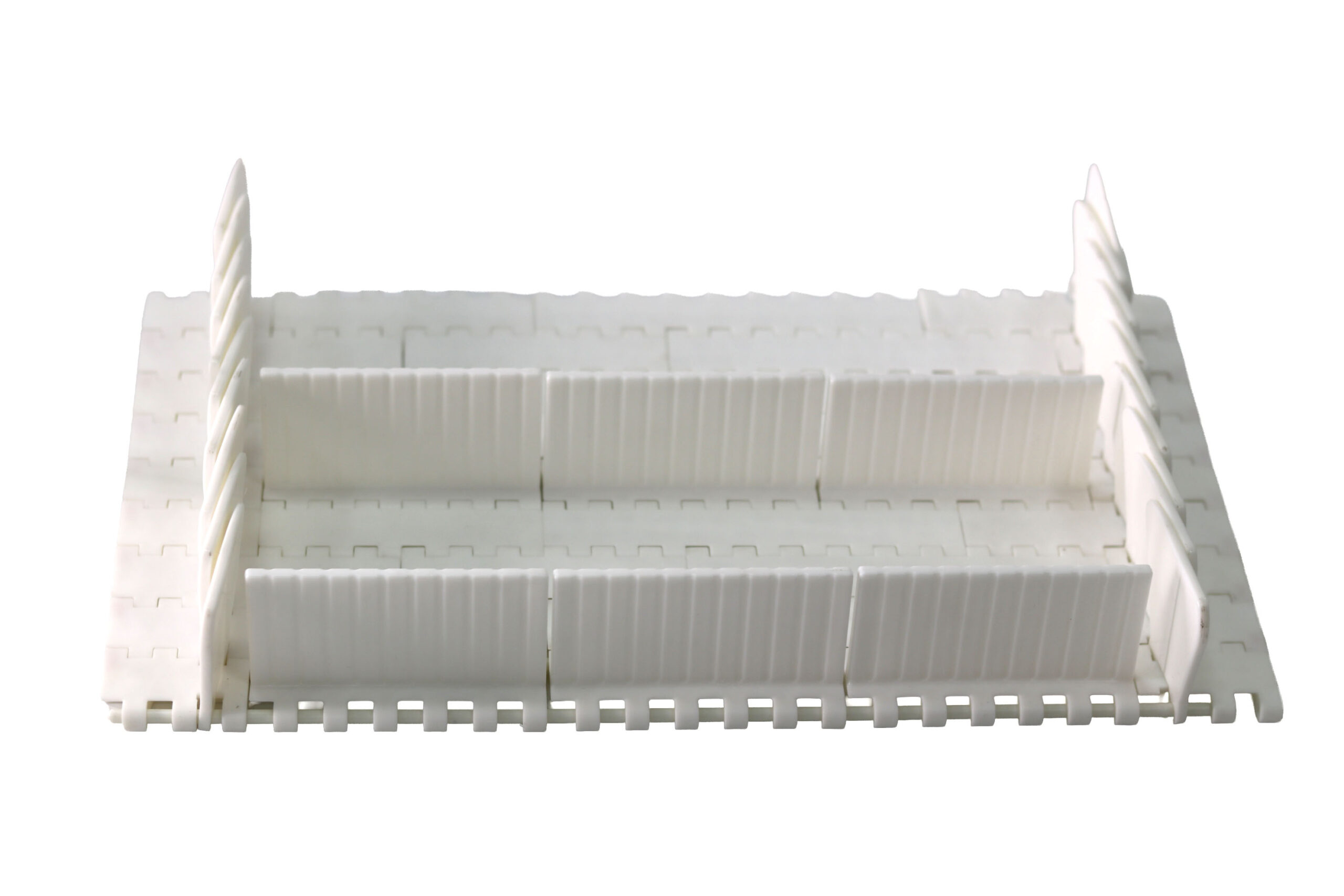

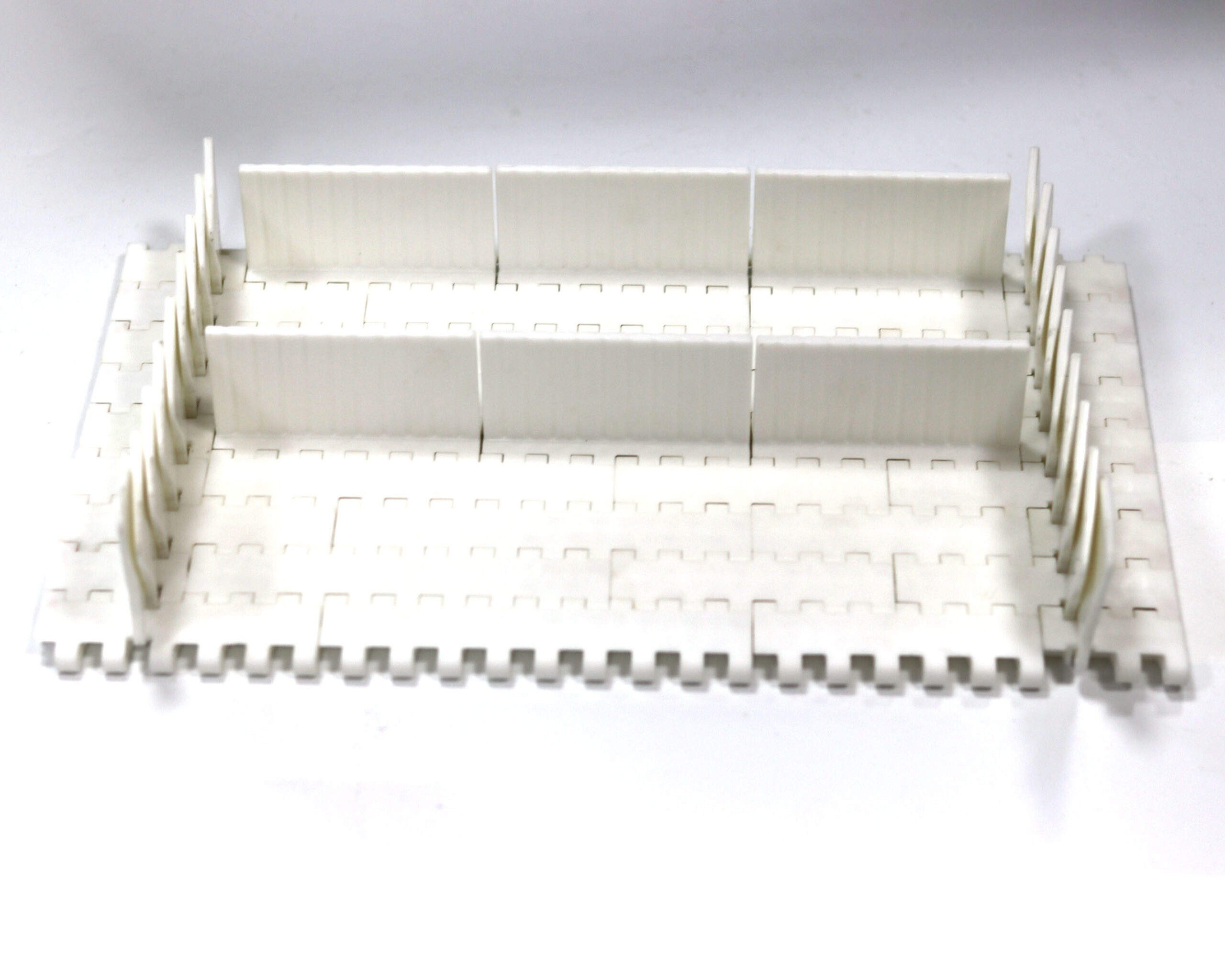

CY-254010A Flat Top
- BELT TYPE
- DESIGN
- CY-254010
- Flat Top
- NOMINAL PITCH
- 25.4 mm / 1.00 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 10 mm / 0.39 inch
- Pin Diameter
- 5 mm / 0.20 inch
- WIDTH
- The width value can be increased in multiples of 50mm (1.97") / The width value can be increased in multiples of 50mm (1.97") plus multiples of 16.67(0.656")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 18000 | 7.3 | 50/100 | W=50*N |
| POM | PA | 34000 | 7.4 | 50/100 | W=50*N |
| PP | PP | 14000 | 4.9 | 50/100 | W=50*N |
| PE | PE | 8000 | 5.2 | 50/100 | W=50*N |
