Product Introduction

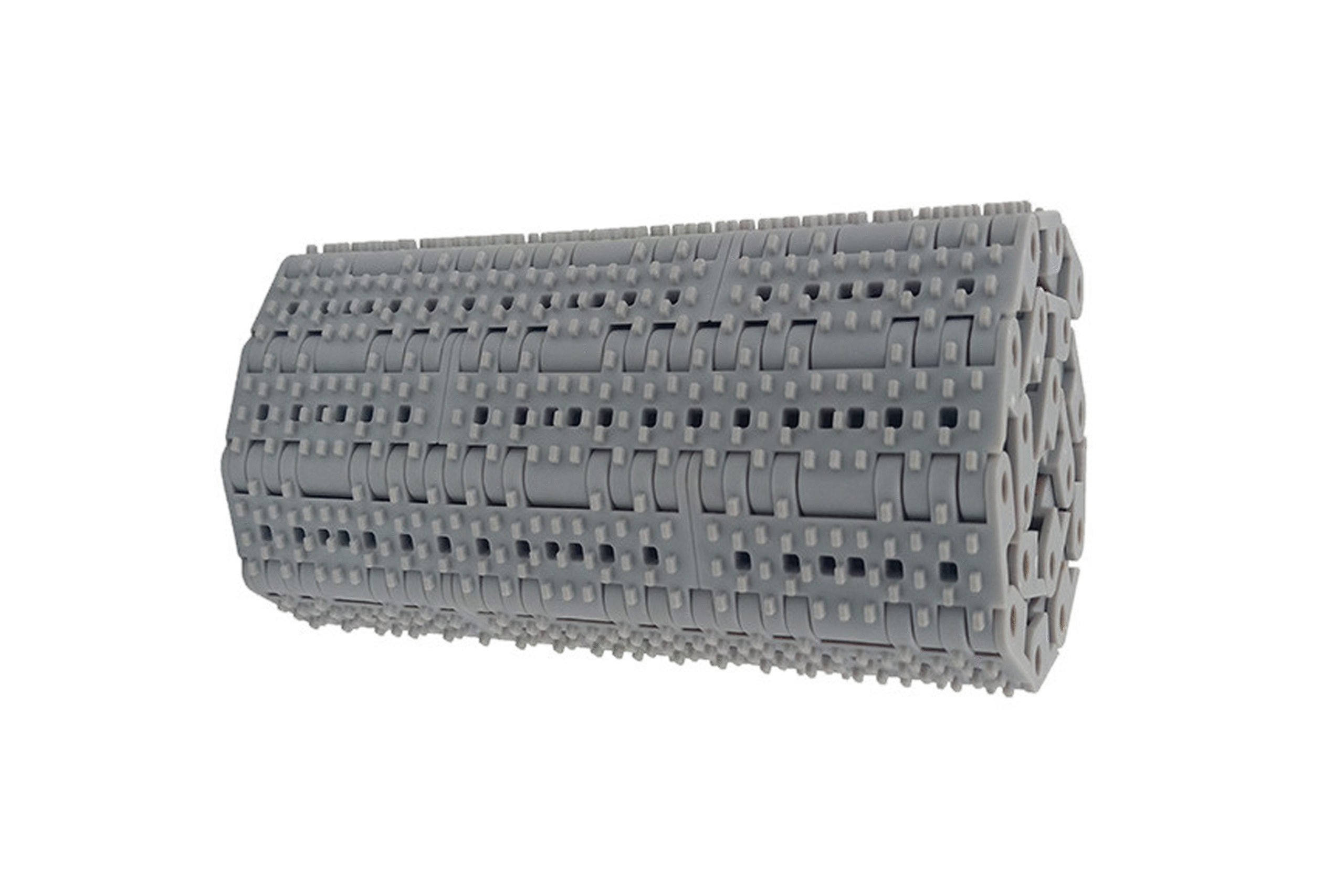

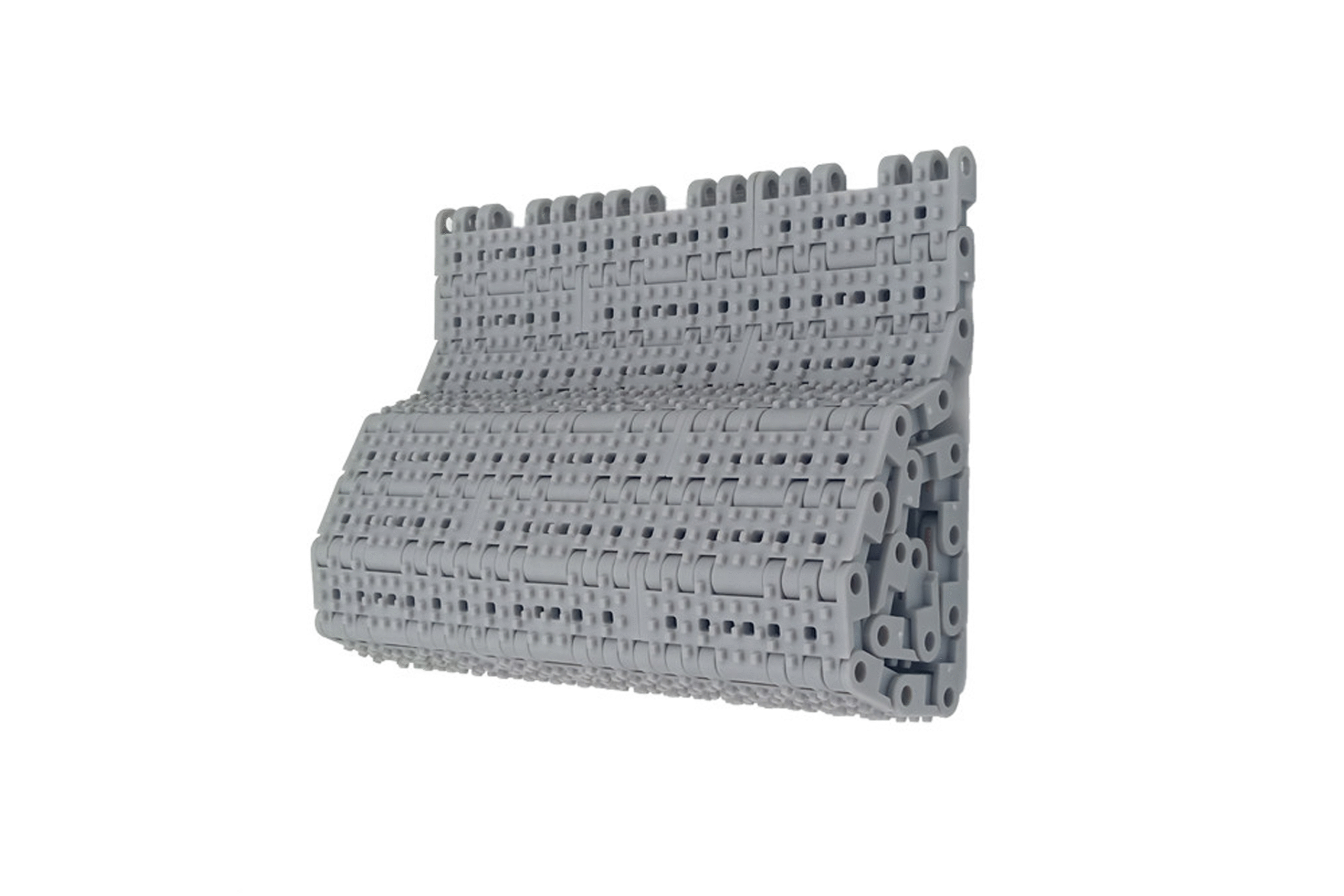

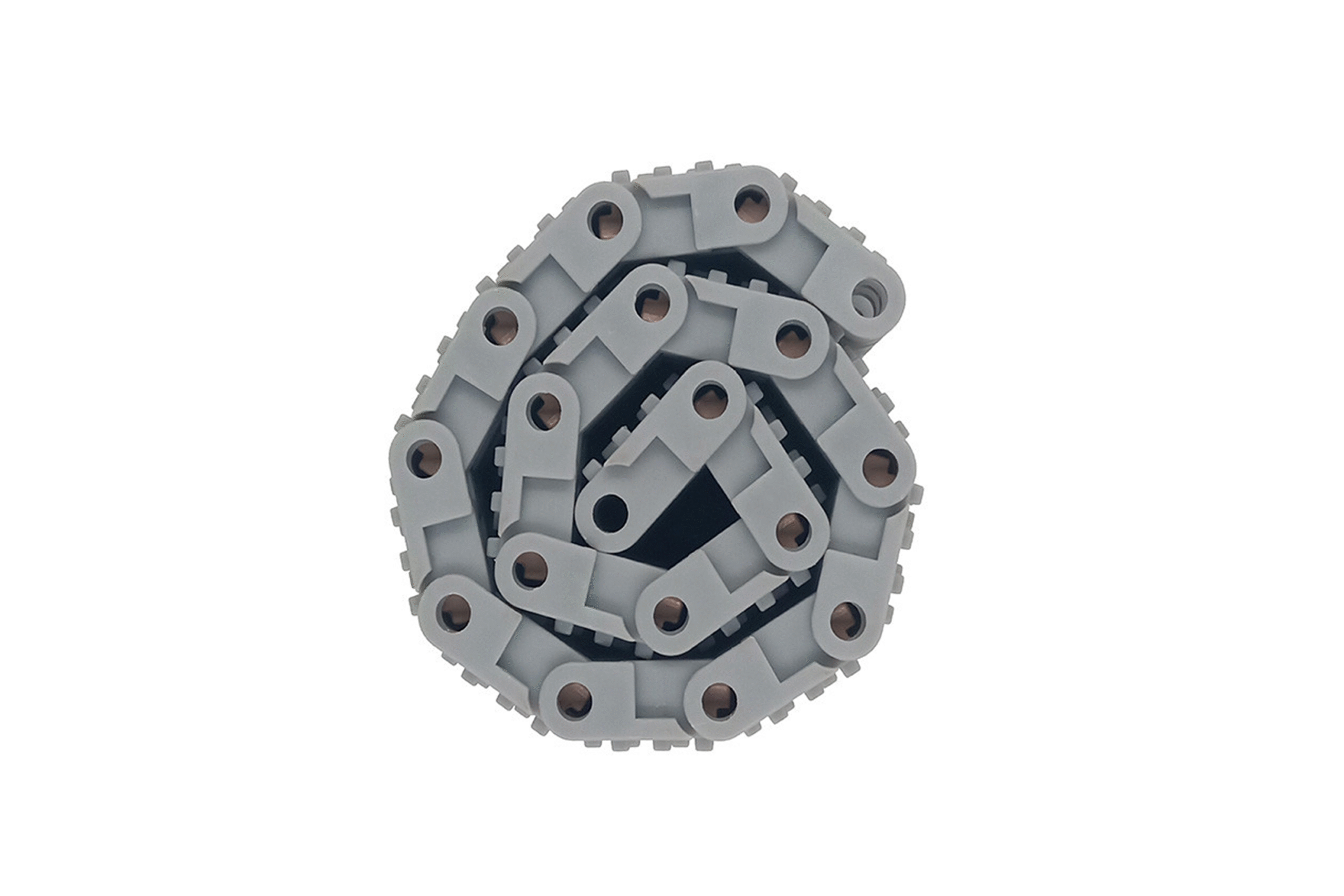

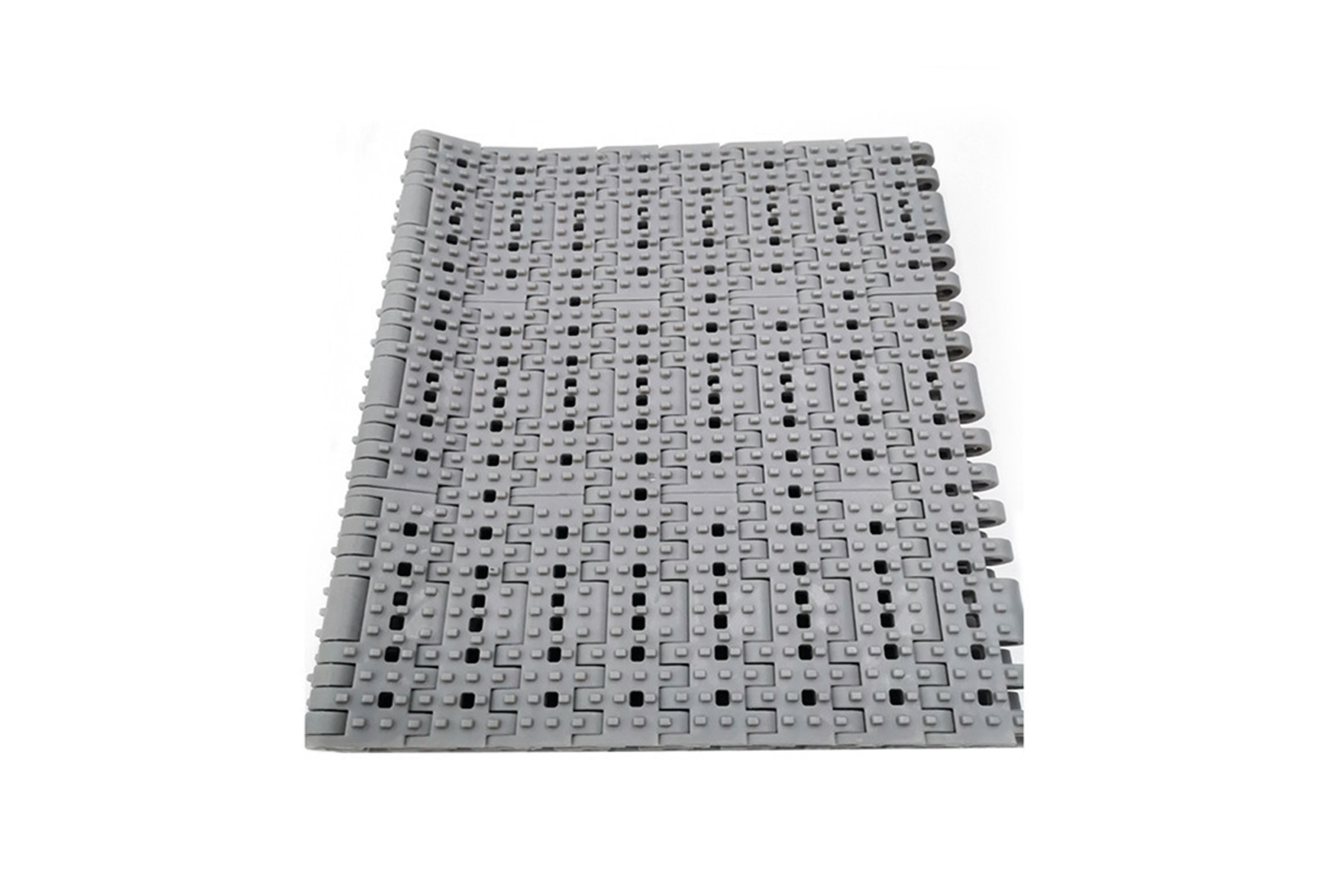

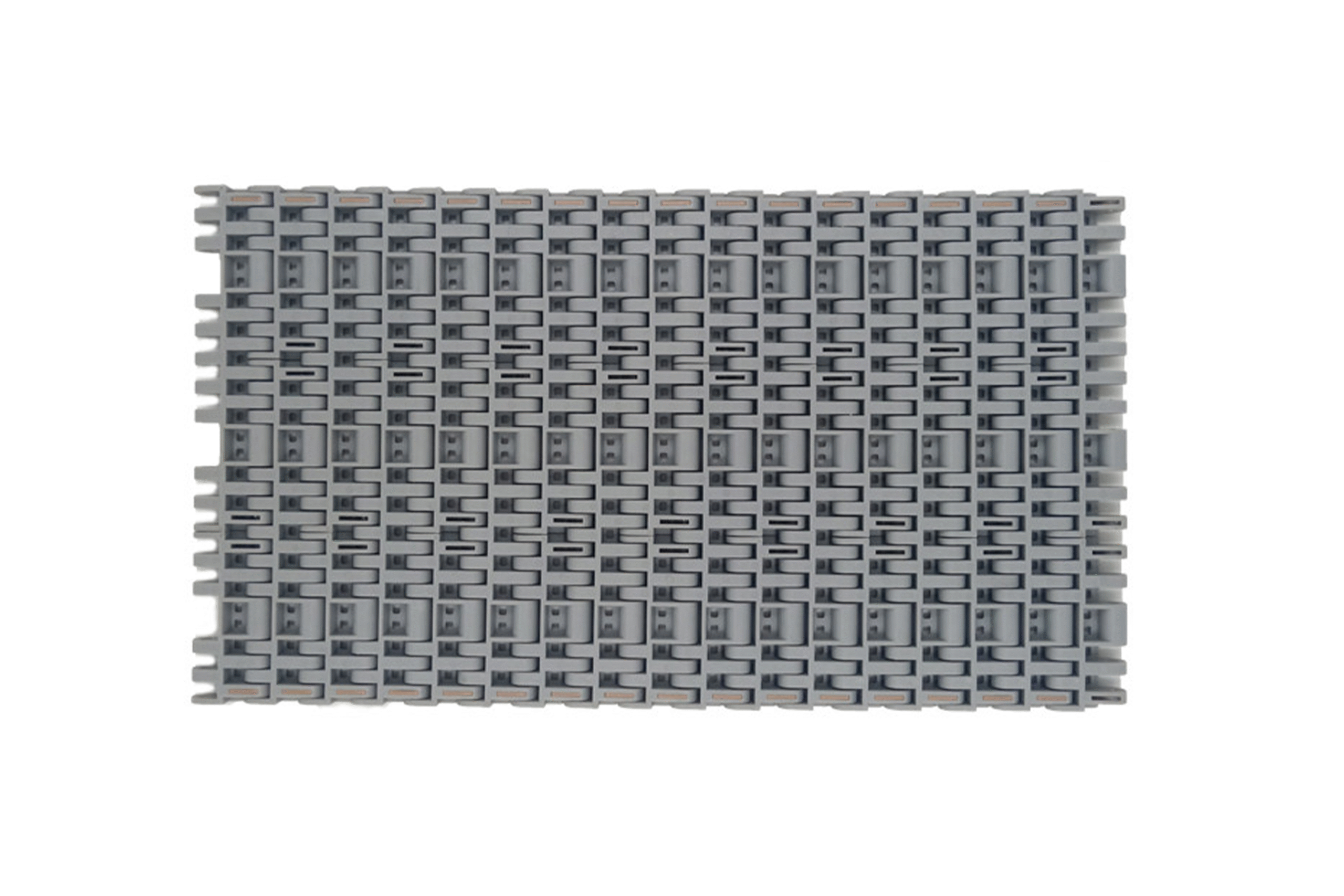

CY-25400T Perforated Nub Top
- BELT TYPE
- DESIGN
- CY-25400T
- Perforated Nub Top
- NOMINAL PITCH
- 25.4mm
- Open Area
- 8%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 12.2mm
- Pin Diameter
- 6mm
- WIDTH
- W=76*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 35000 | 13.3 | 76/152 | W=76*N |
| POM | PA | 43000 | 13.4 | 76/152 | W=76*N |
| PP | PP | 15000 | 8.5 | 76/152 | W=76*N |
The 25400 series heavy-duty conveyor belts are widely used in various applications. Due to their robust design, these belts are recommended for use in the glass manufacturing and automotive industries. Flat type is used for heavy-duty glass and PET conveying. Perforated type with 8% opening is used for can conveying. Perforated non-slip type is used for incline and downhill conveyors up to 20 degrees, suitable for conveying fruits, vegetables, and food. Flat grid type with 20% opening is used for heating and cooling conveyors.
