Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

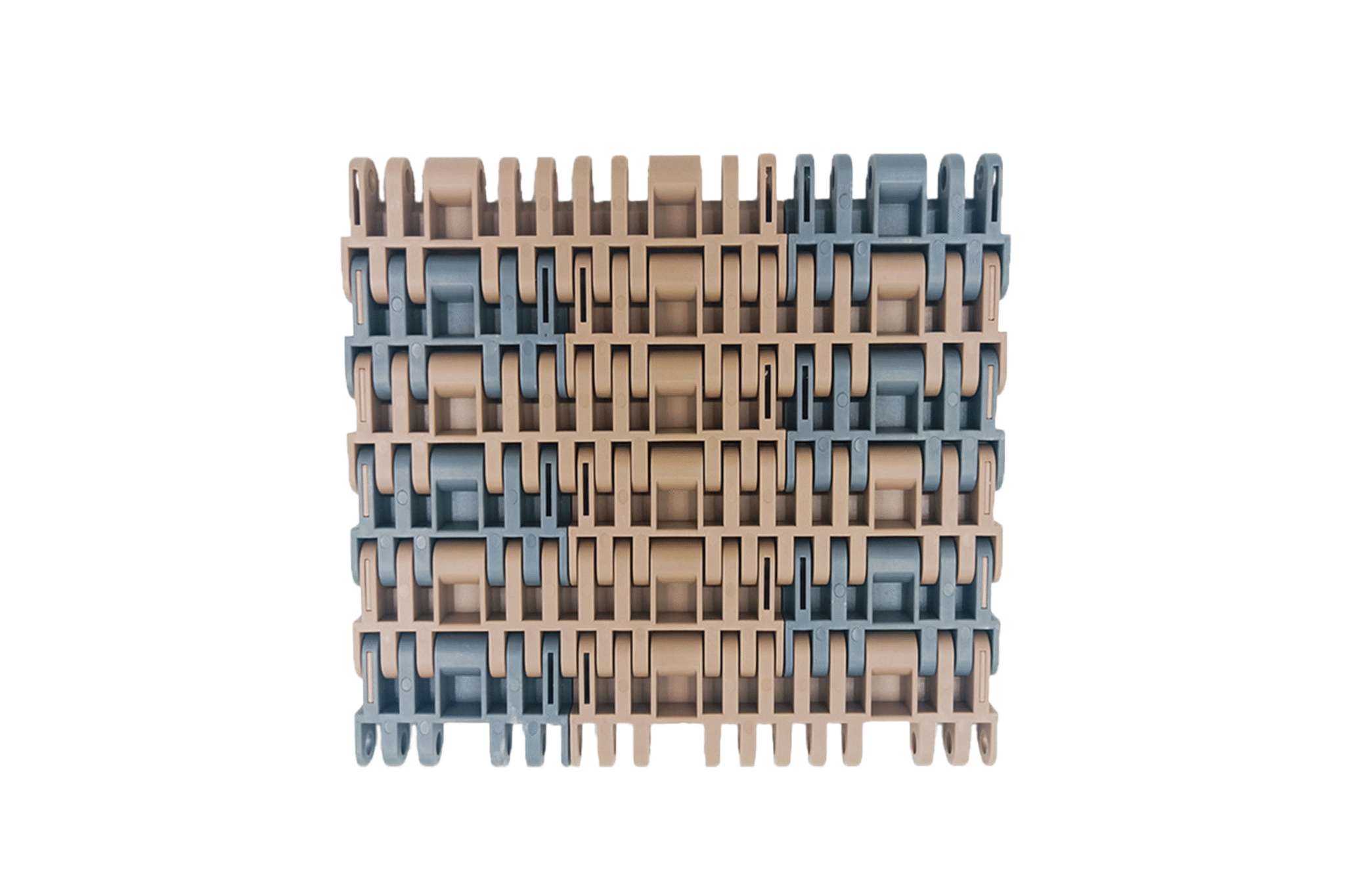

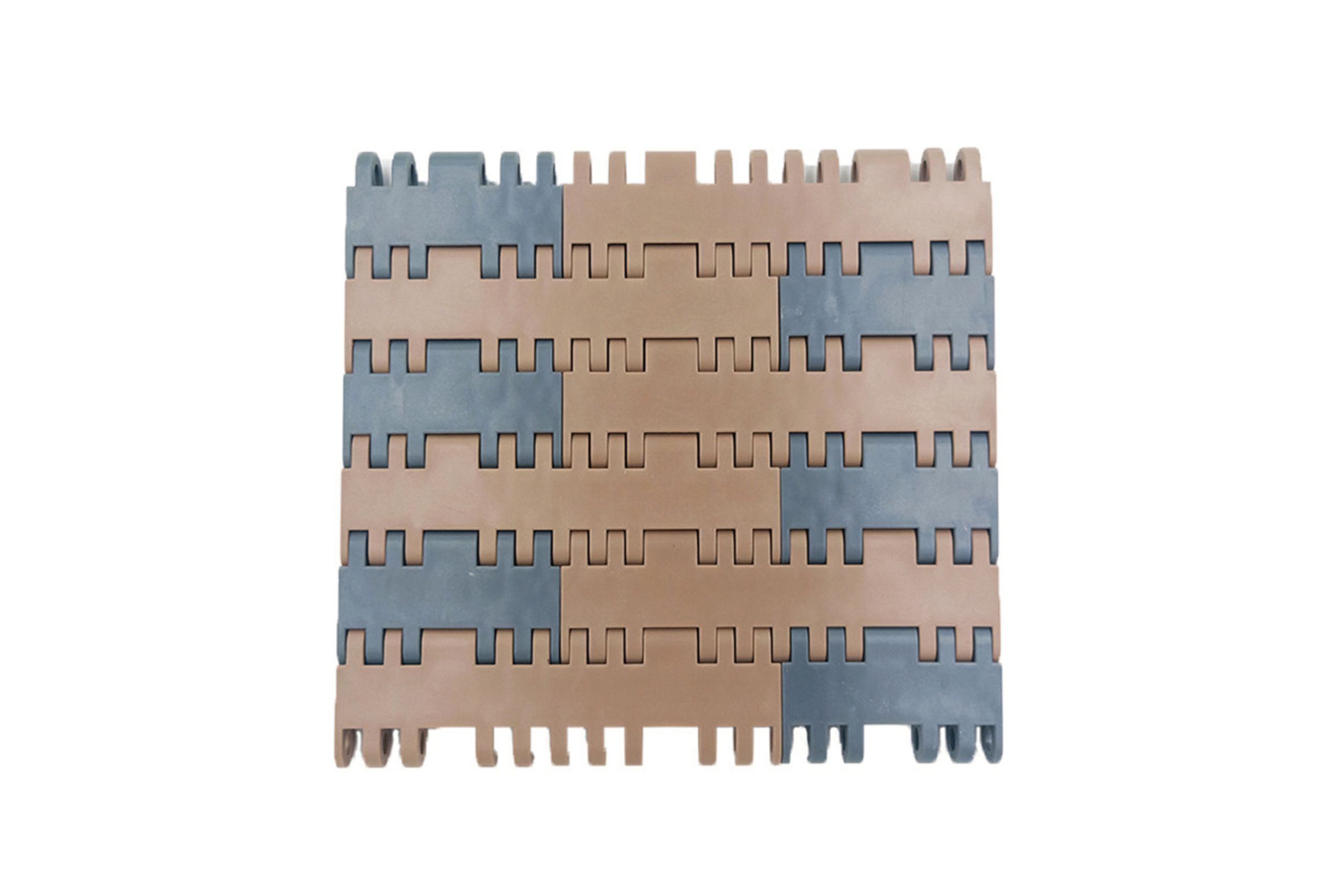

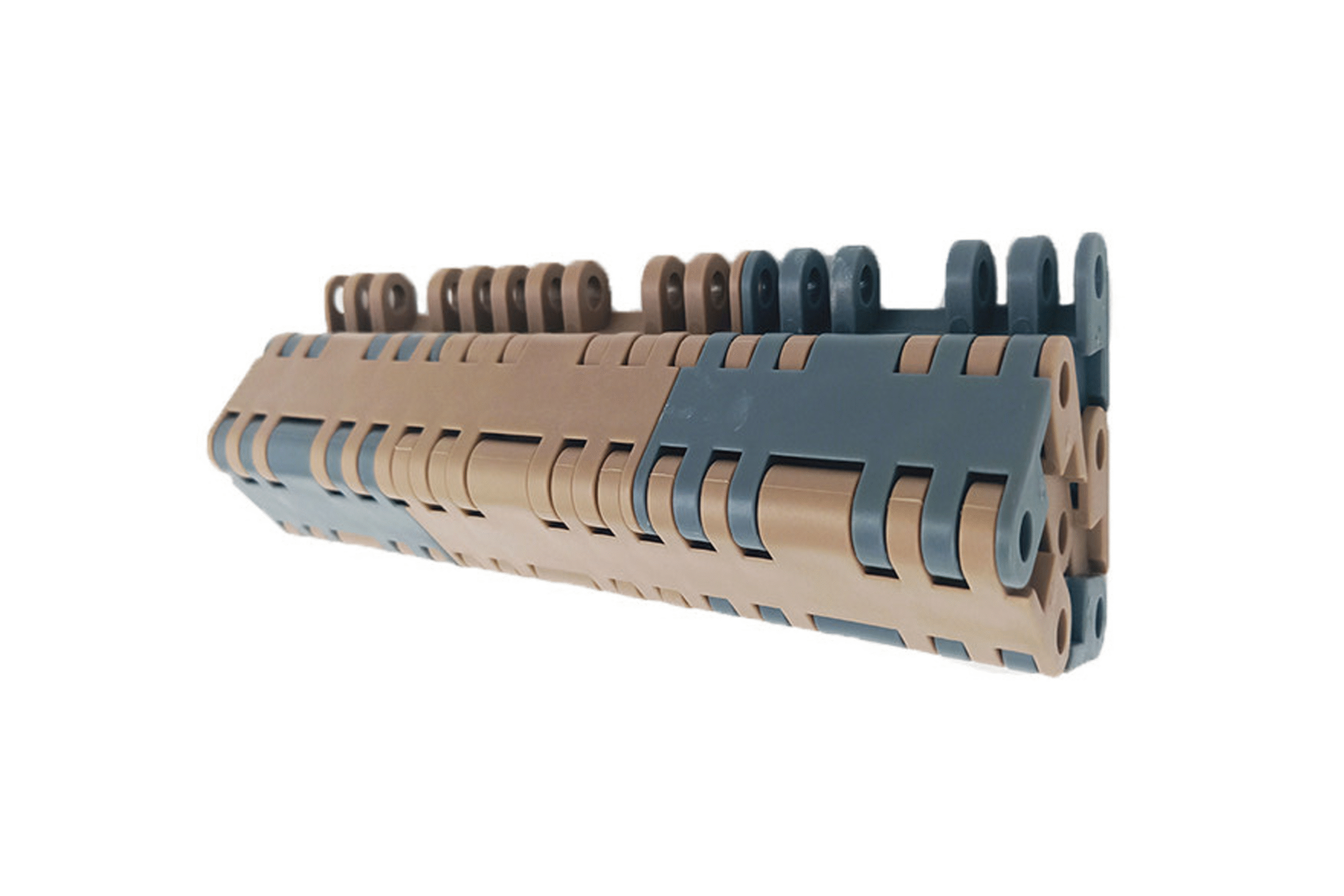

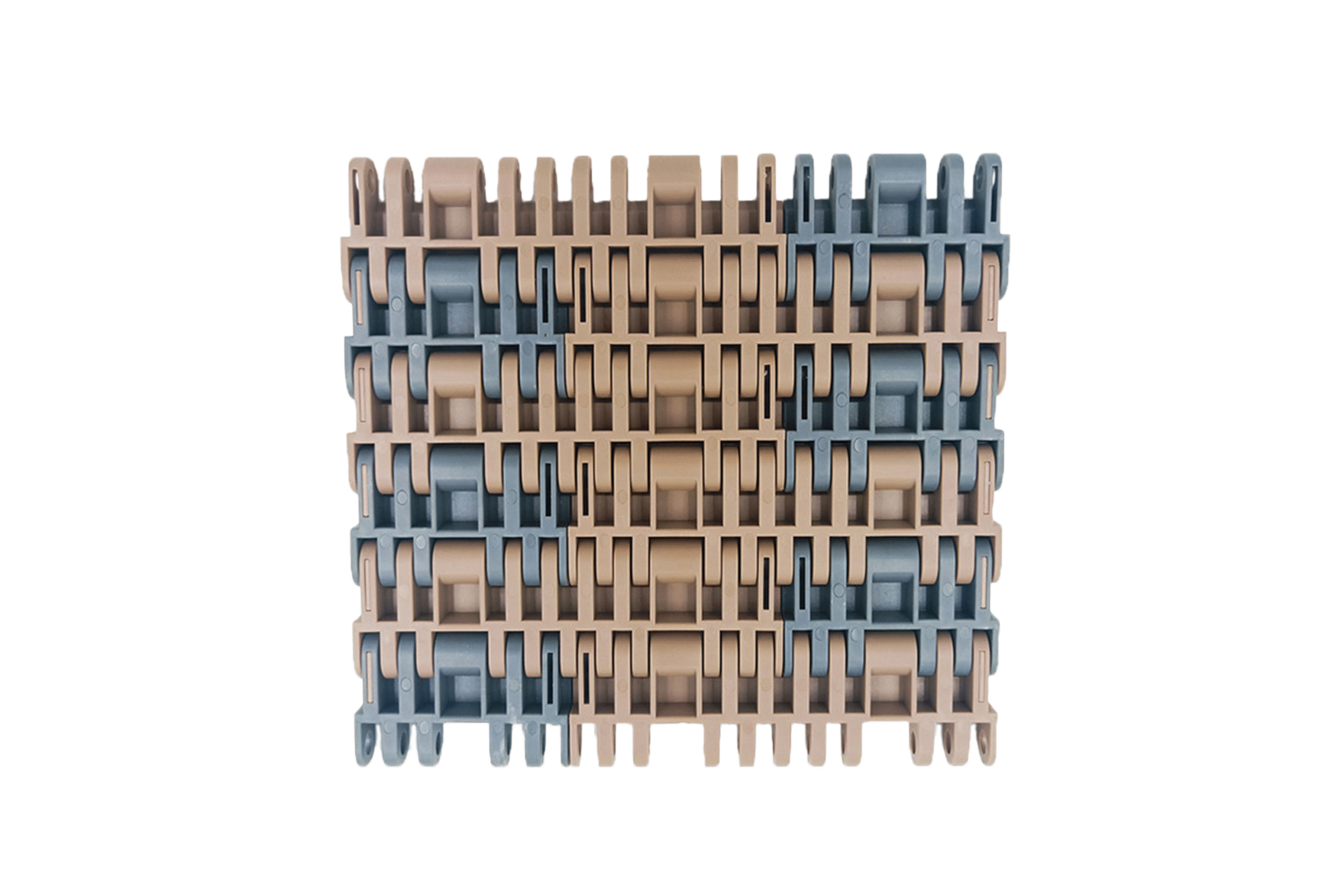

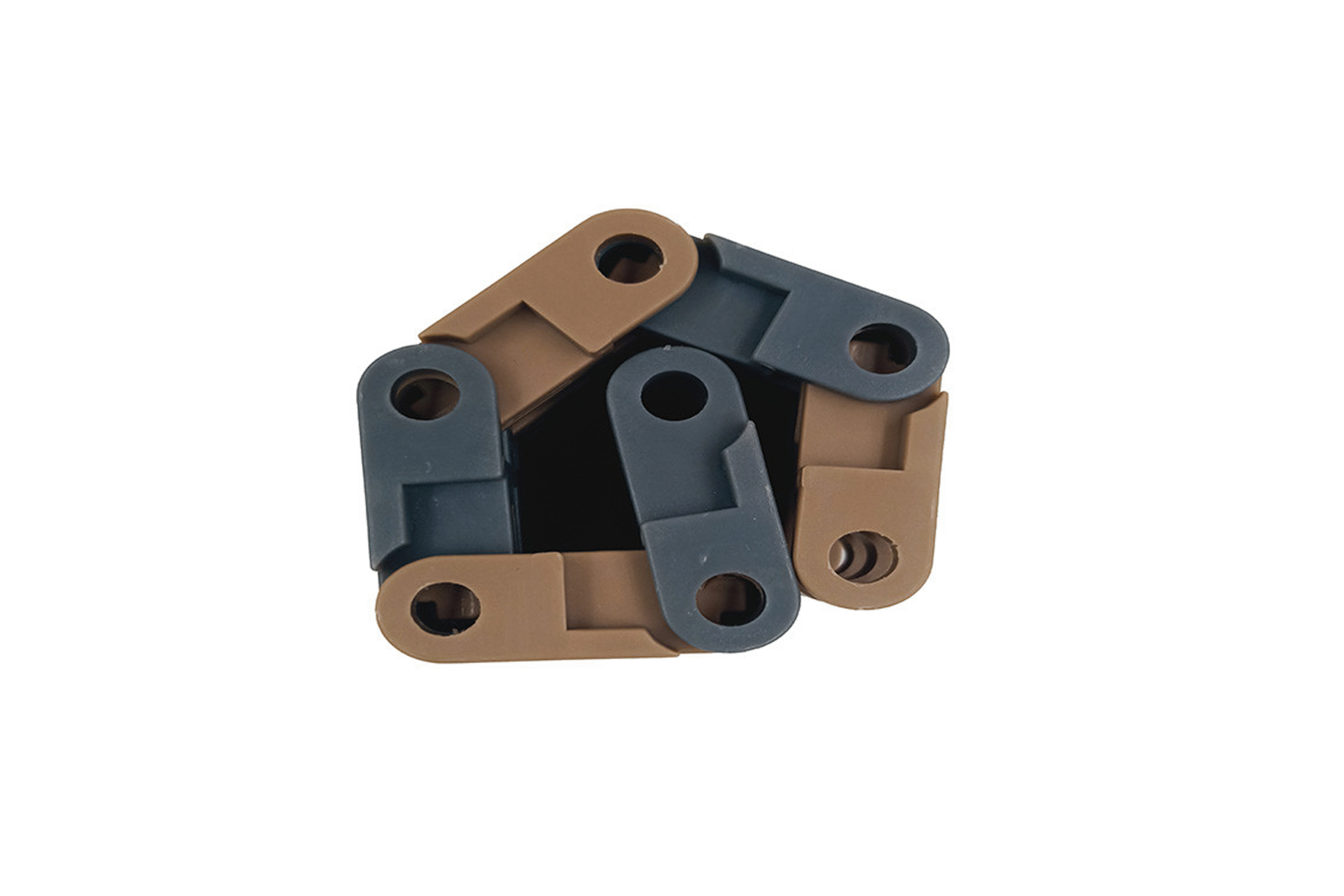

CY-25400A Flat Top
- BELT TYPE
- DESIGN
- CY-25400A
- Flat Top
- NOMINAL PITCH
- 25.4mm
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 12.2mm
- Pin Diameter
- 6mm
- WIDTH
- W=76*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 35000 | 13.4 | 76/152 | W=76*N |
| POM | PA | 43000 | 13.5 | 76/152 | W=76*N |
| PP | PP | 15000 | 8.6 | 76/152 | W=76*N |
