Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

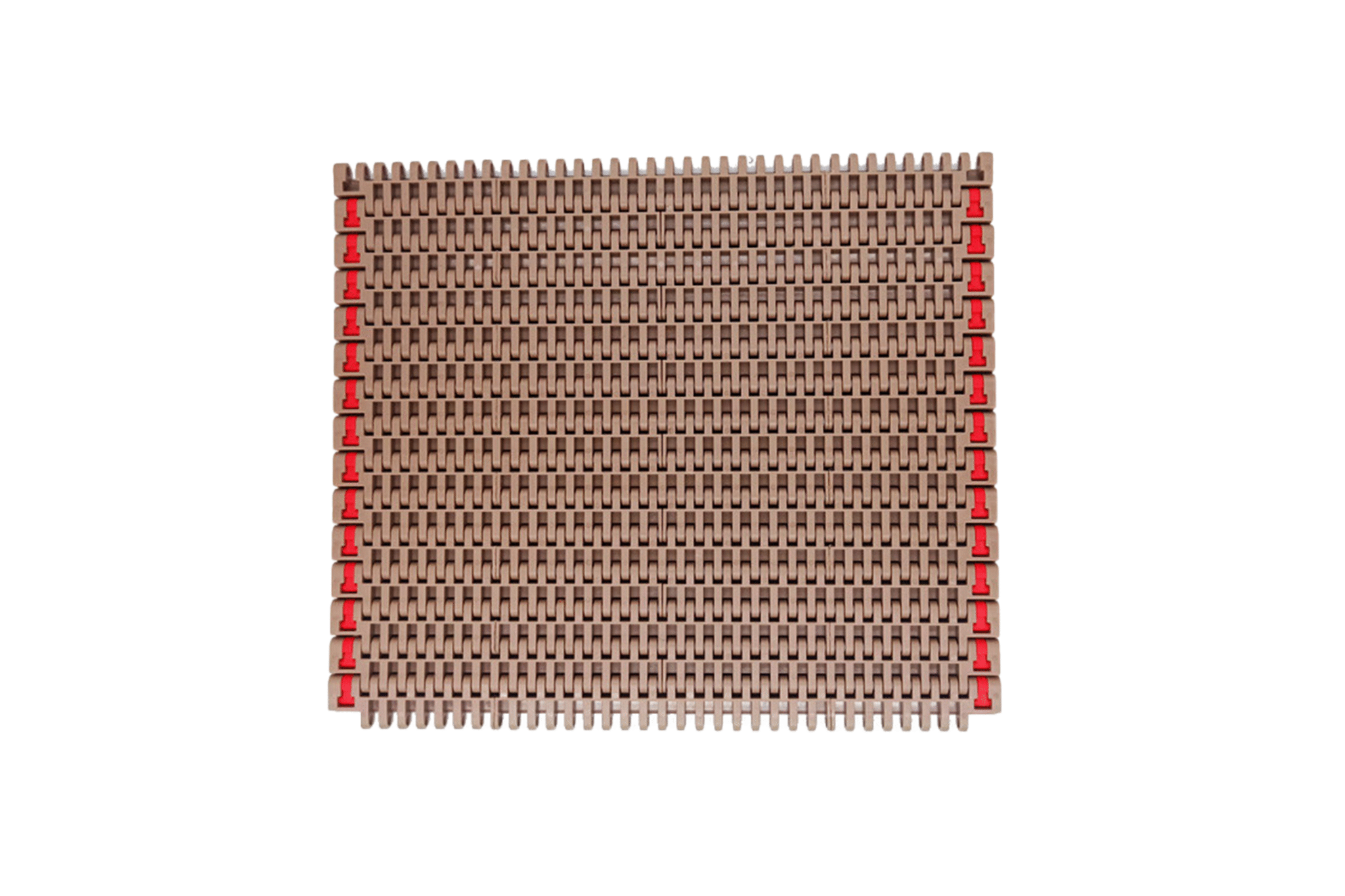

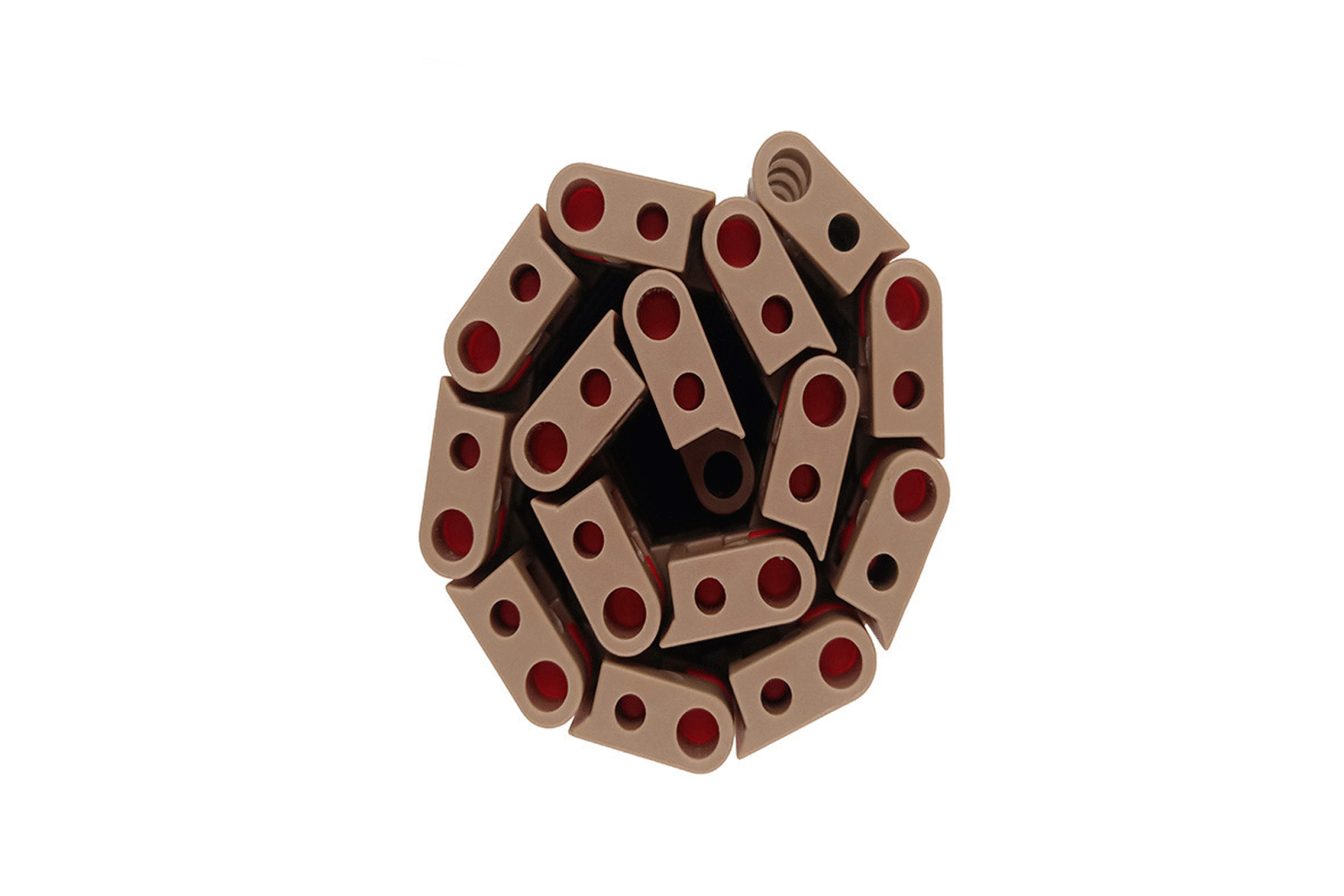

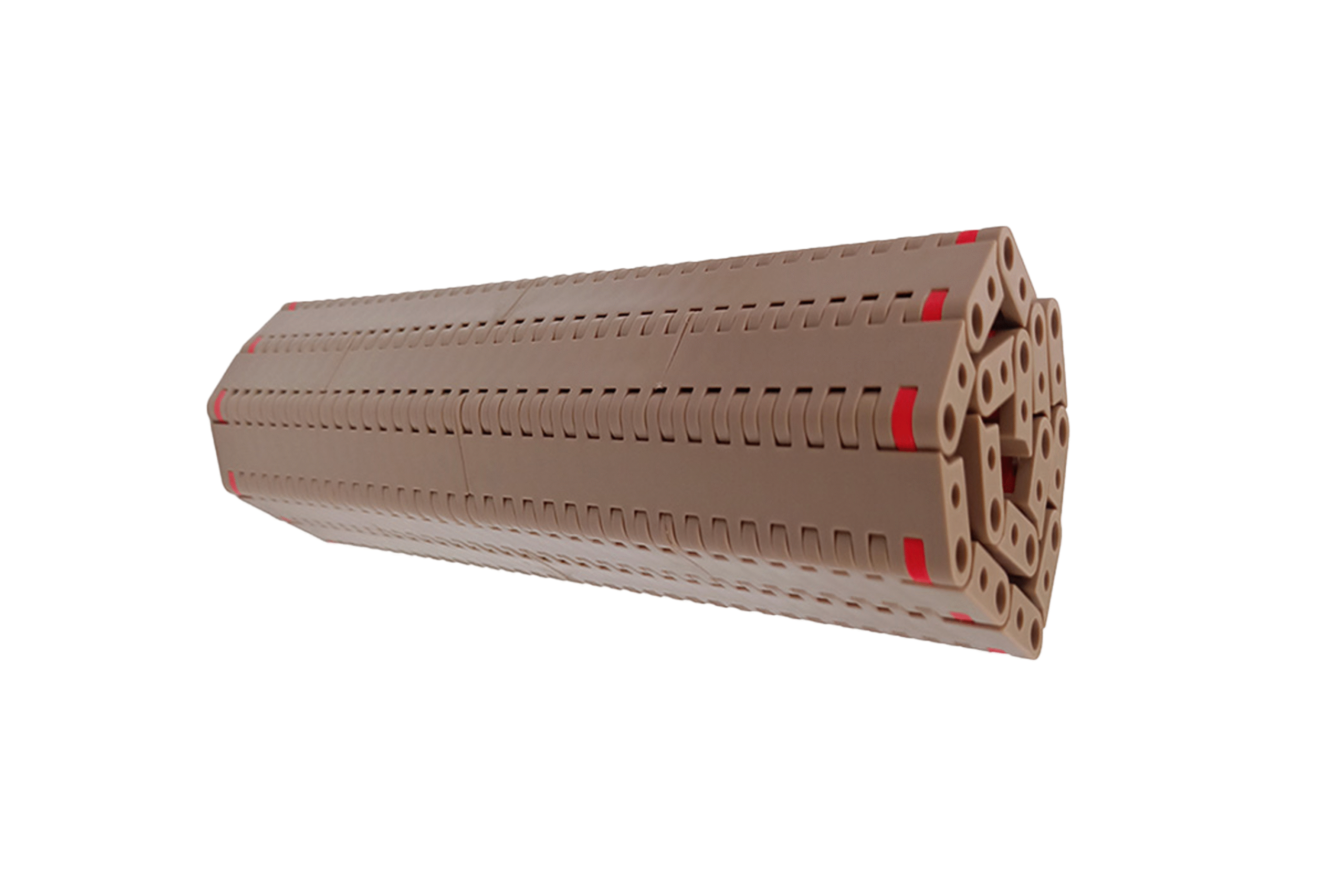

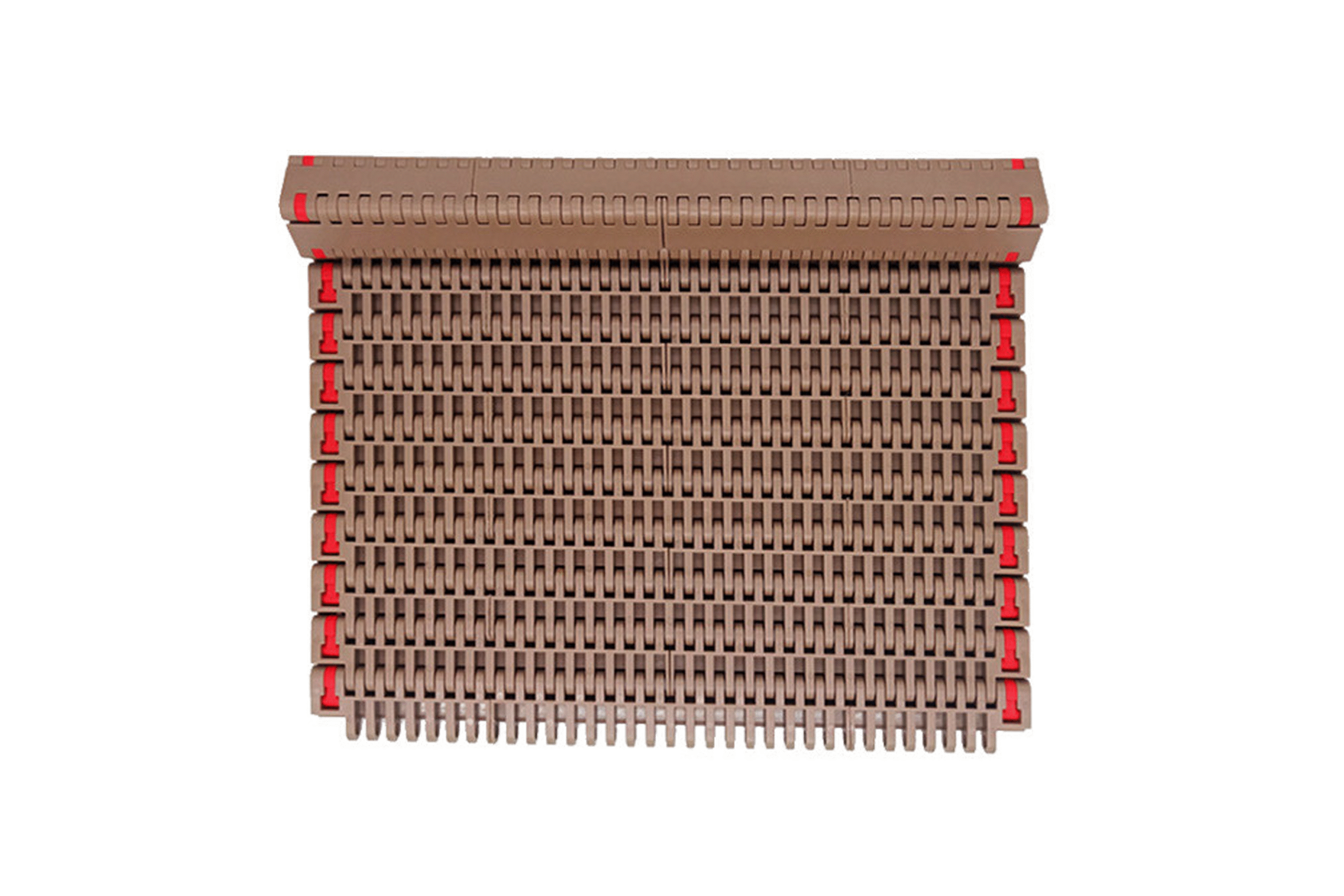

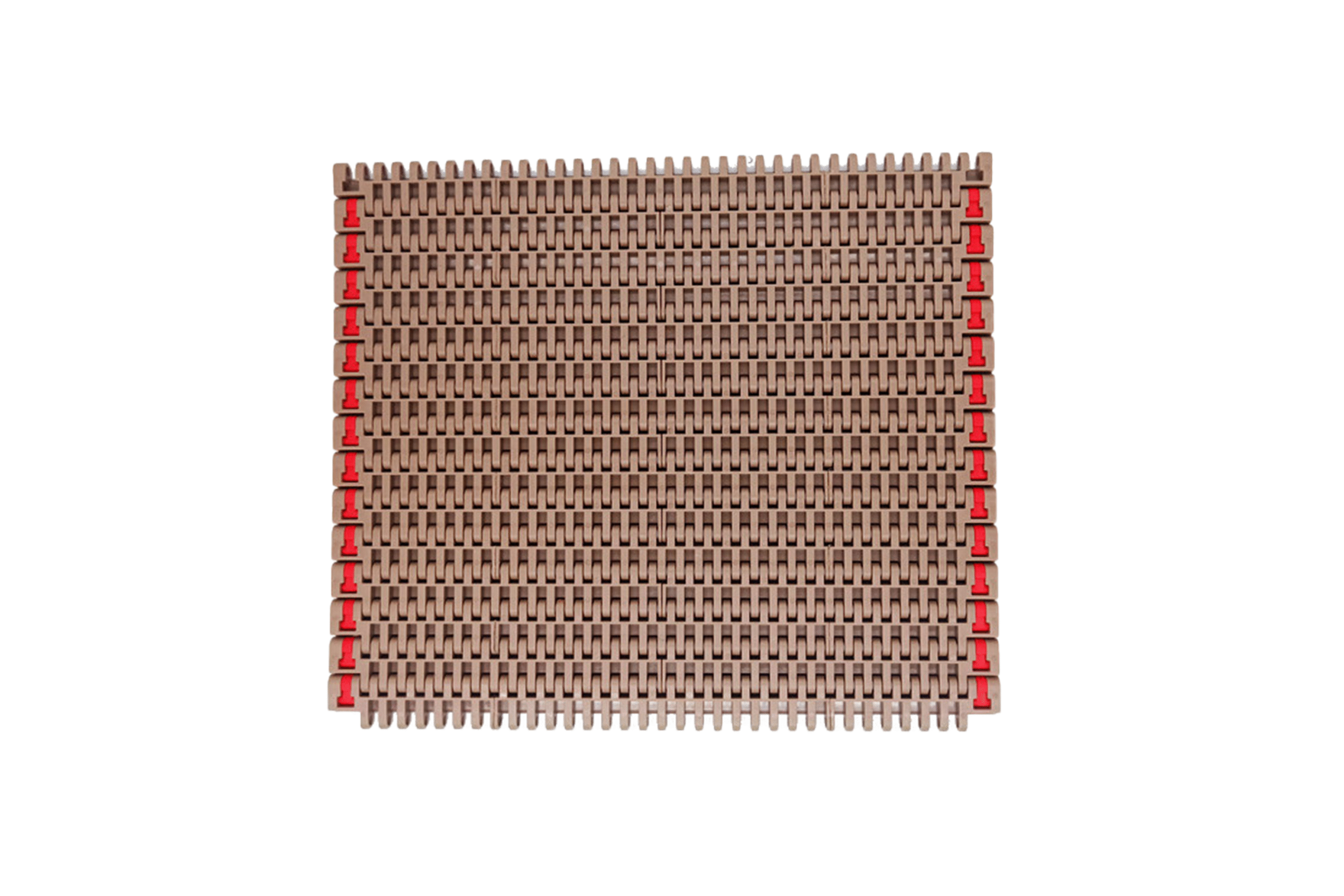

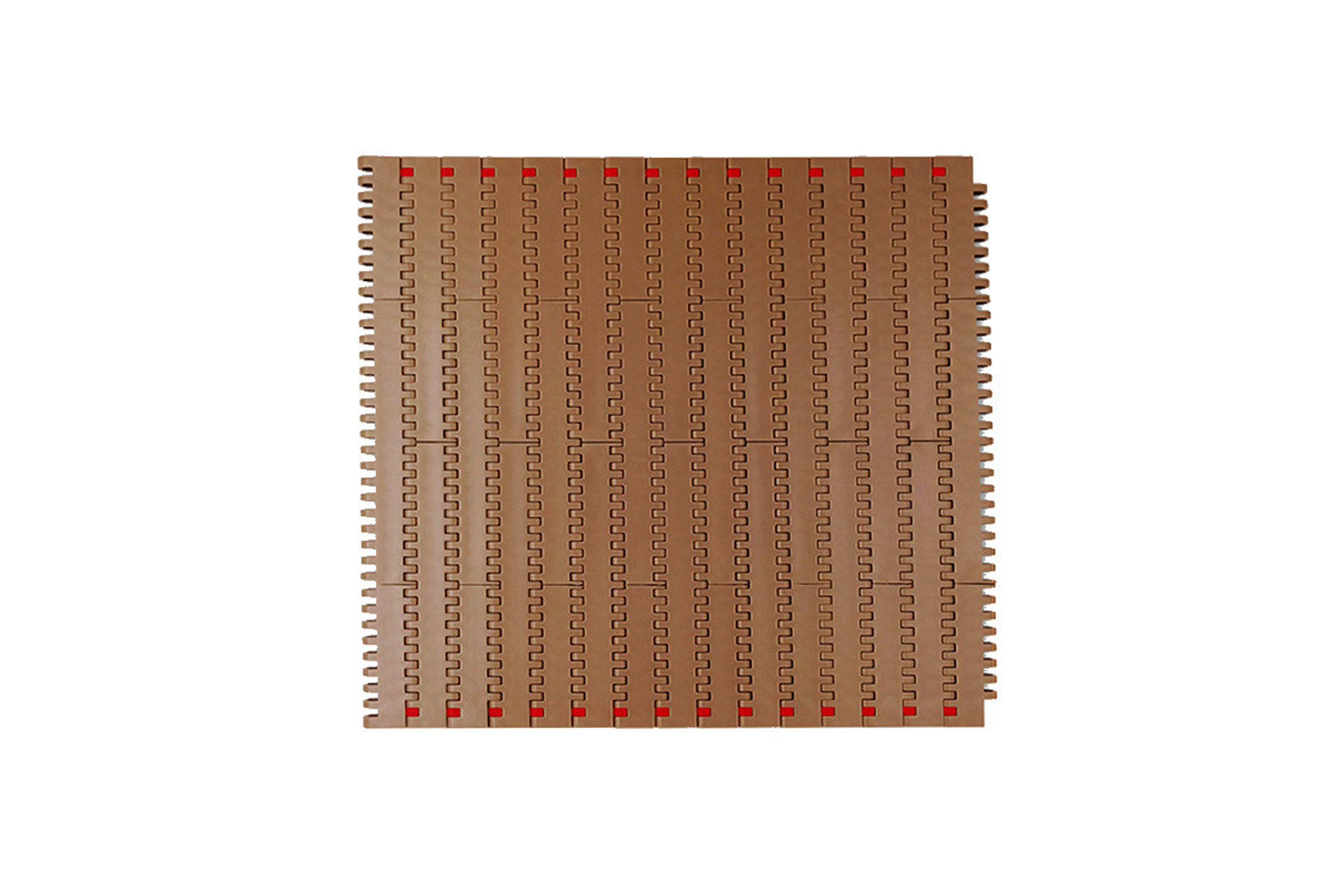

CY-19051A Flat Top
- BELT TYPE
- DESIGN
- CY-19051A
- Flat Top
- NOMINAL PITCH
- 19.5mm
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 8.7mm
- Pin Diameter
- 4.8mm
- WIDTH
- W=228+152
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PP | 29000 | 8.9 | 76/303.4/152 | W=228+152 |
| POM | PA | 30000 | 9 | 76/303.4/152 | W=228+152 |
| PP | PP | 16000 | 6.0 | 76/303.4/152 | W=228+152 |
