Modular plastic chain plate solution supplier

Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts

Product Introduction

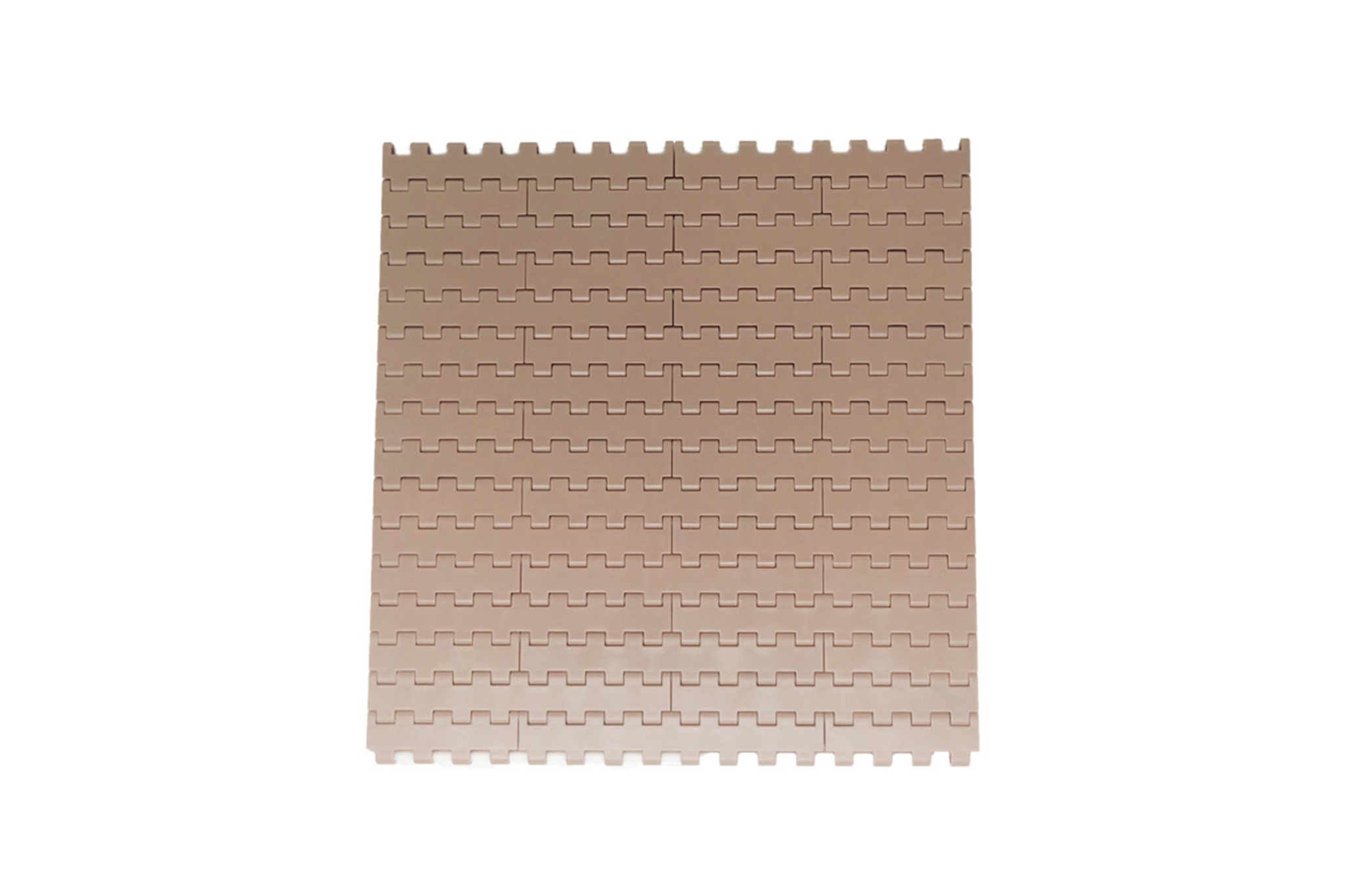

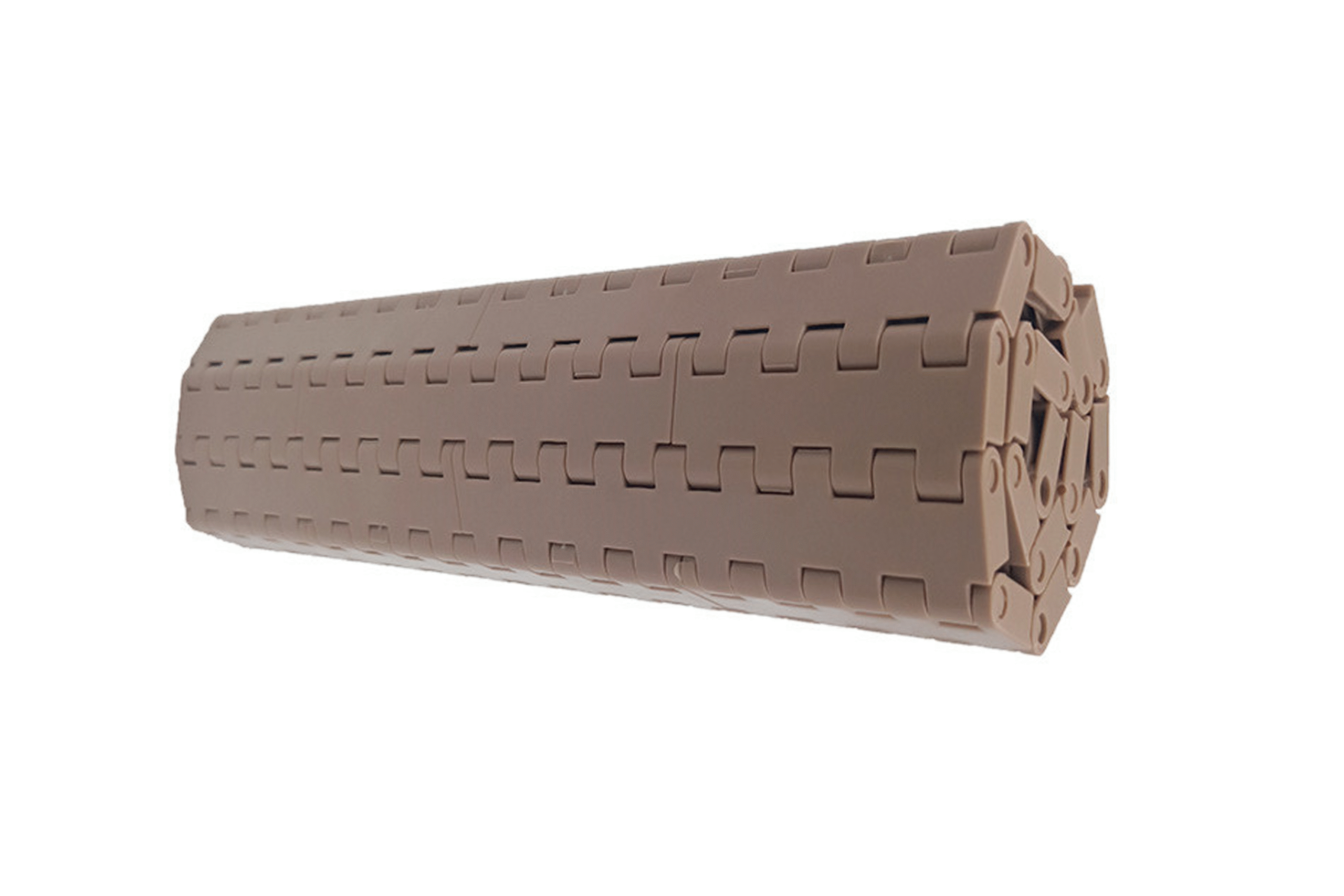

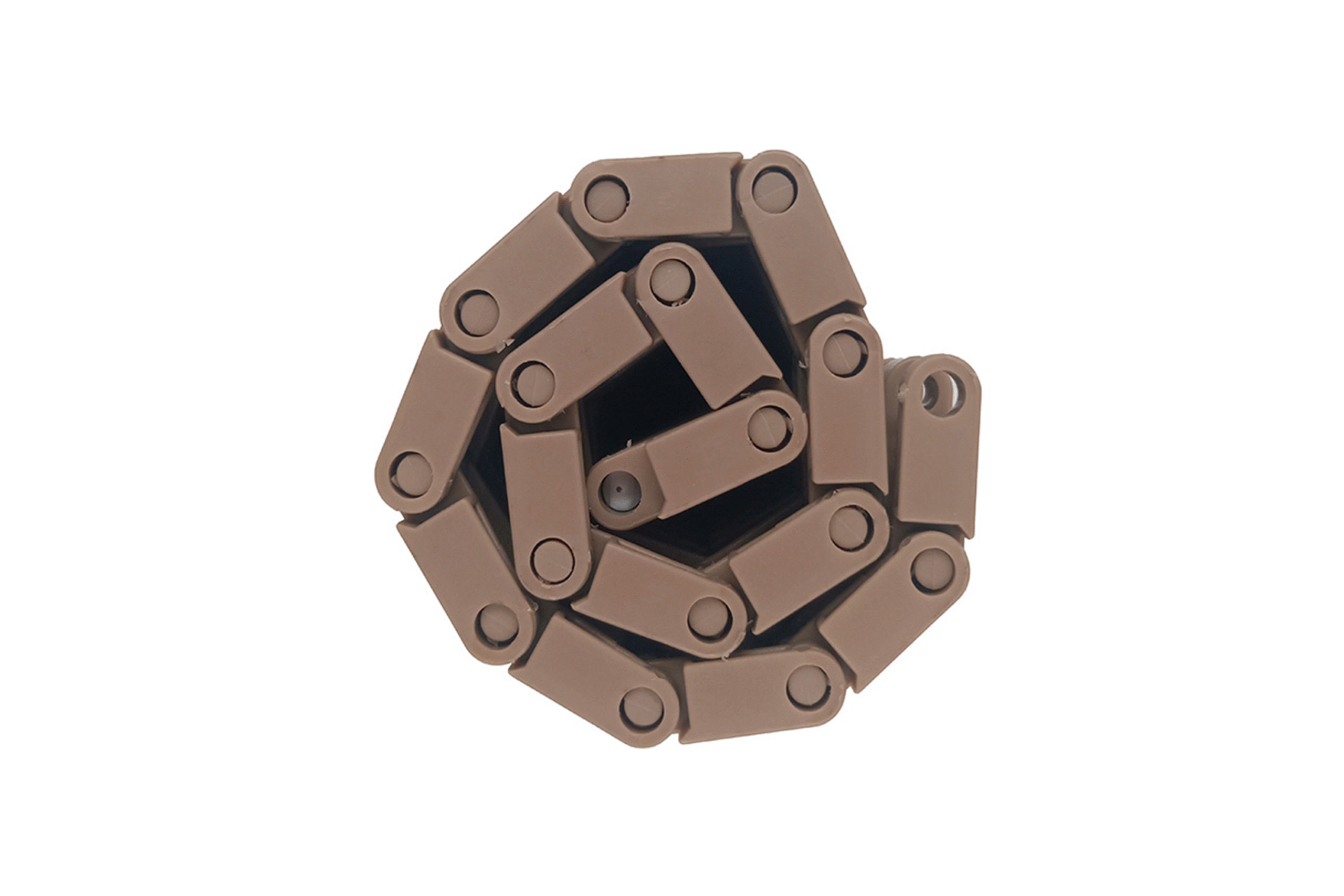

CY-19050A Flat Top

Technicial Specifications

Belt MaterialRod MaterialWorking Load(N/M) 21 ℃Belt weight(kg/㎡)Witdth of single Module(mm)Width increment (mm)
POMPP130006.7276/152W=76*N
POMPA140006.8276/152W=76*N
PPPP70005.376/152W=76*N

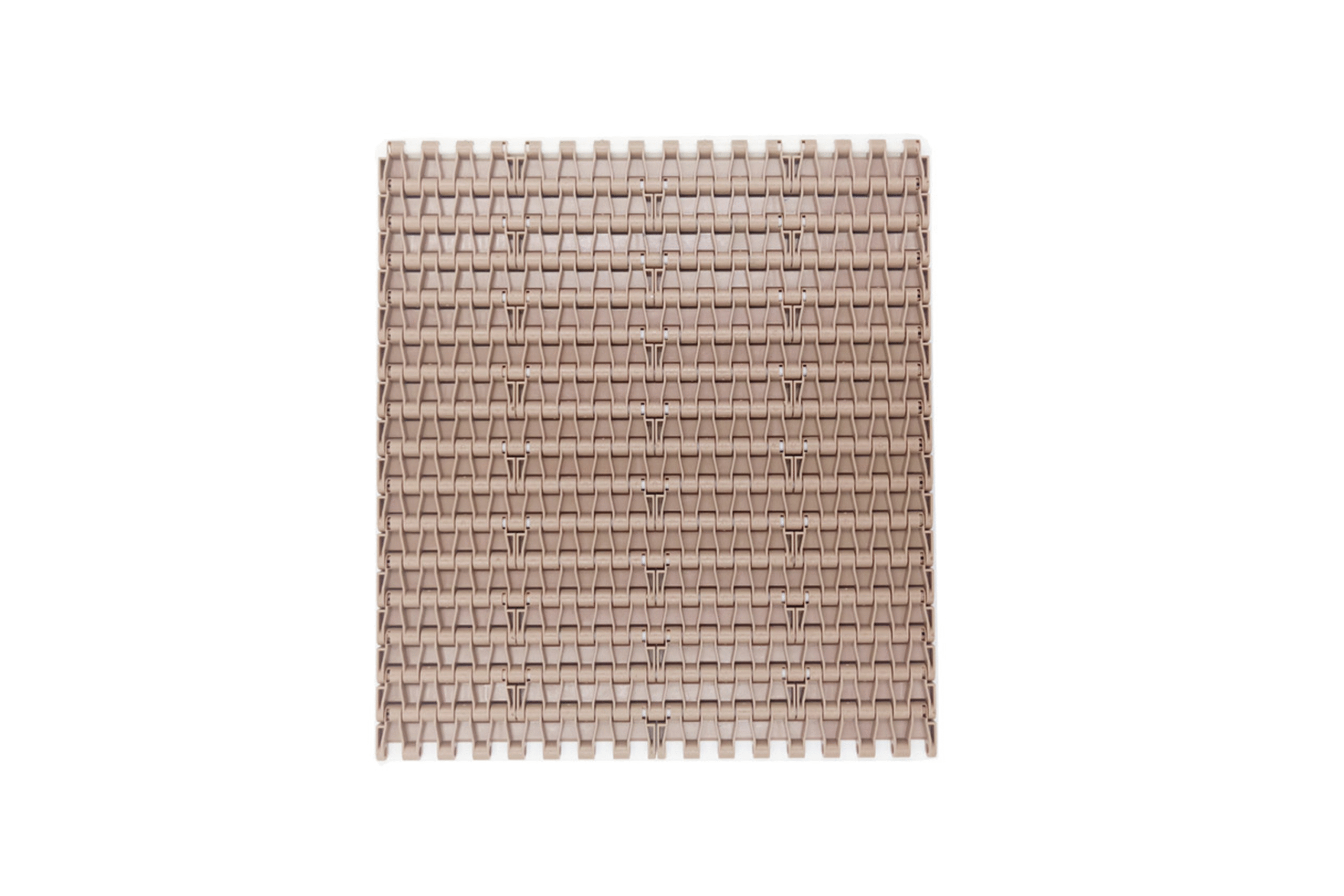

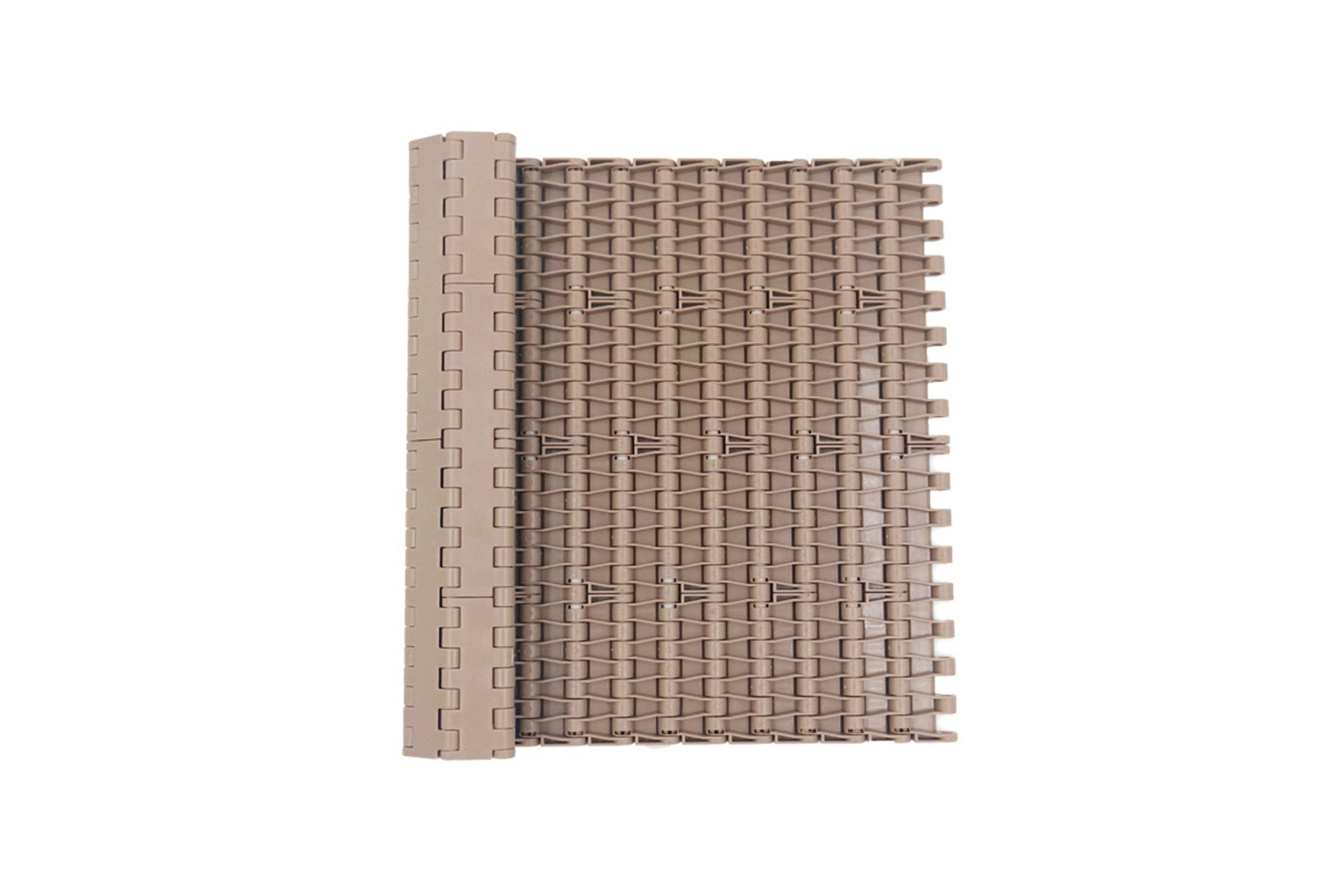

The 19050 series mesh conveyors are suitable for light and medium loads in can manufacturing, can conveying, and the food industry. The flat type is suitable for PET containers and other lightweight products, while the perforated type with a 16% opening ratio ensures optimal water and air flow, making it suitable for can manufacturing and processing. The vacuum-perforated type is used in vacuum conveyors in can-making production lines. Reinforced baffles are primarily used for conveying bottle caps.

Download

Product data sheet

Supporting Sprocket

2D & 3D CAD Model

belt
