Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

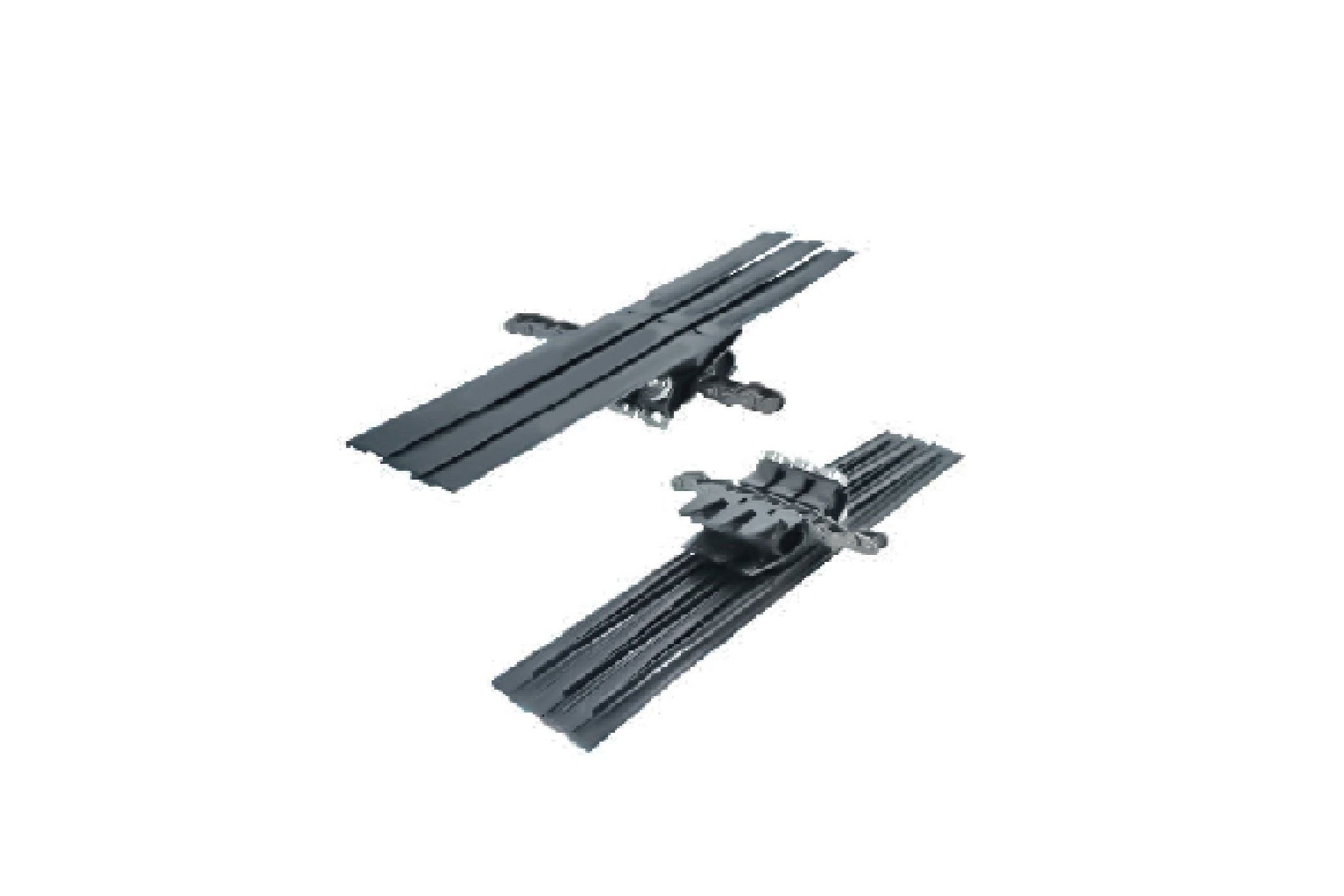

CY-1875 Sideflex split plastic tab with rubber
- BELT TYPE
- DESIGN
- CY-1875
- Sideflex split plastic tab with rubber
- NOMINAL PITCH
- 38.1
- Open Area
- NO
- Flight
- NO
- Sidewall
- Belt Thickness
- Pin Diameter
- WIDTH
- 406.4mm/16inch
Technicial Specifications
| Item | Anti-slip strip spacing AZ | Width（mm） | Width(inch) | Pitch | Rs （mm） | Rs （inch） | Rb （inch） | Rb （inch） | Weight （kg/m） |
|---|---|---|---|---|---|---|---|---|---|
| CY-1875FH-K1600 | 1、2、3…… | 406.4 | 16 | 38.1 | 750 | 30 | 250 | 10 | 9.9 |
| CY-1875FH-K2400 | 1、2、3…… | 609.6 | 24 | 38.1 | 800 | 31.5 | 250 | 10 | 11.3 |
| Characteristic | Colour | Body Material | Tensile load（N） | Speed(m/min) | Service temperature （℃） |
|---|---|---|---|---|---|
| 2 | Black | GF+PA6 | <2000 | <24M | -20~80 |
| 1 | Black | GF+PA6 | <4000 | <30M | -20~80 |
Download
If you have any inquiries or questions, welcome to contact us.
+86 18321599788
