Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

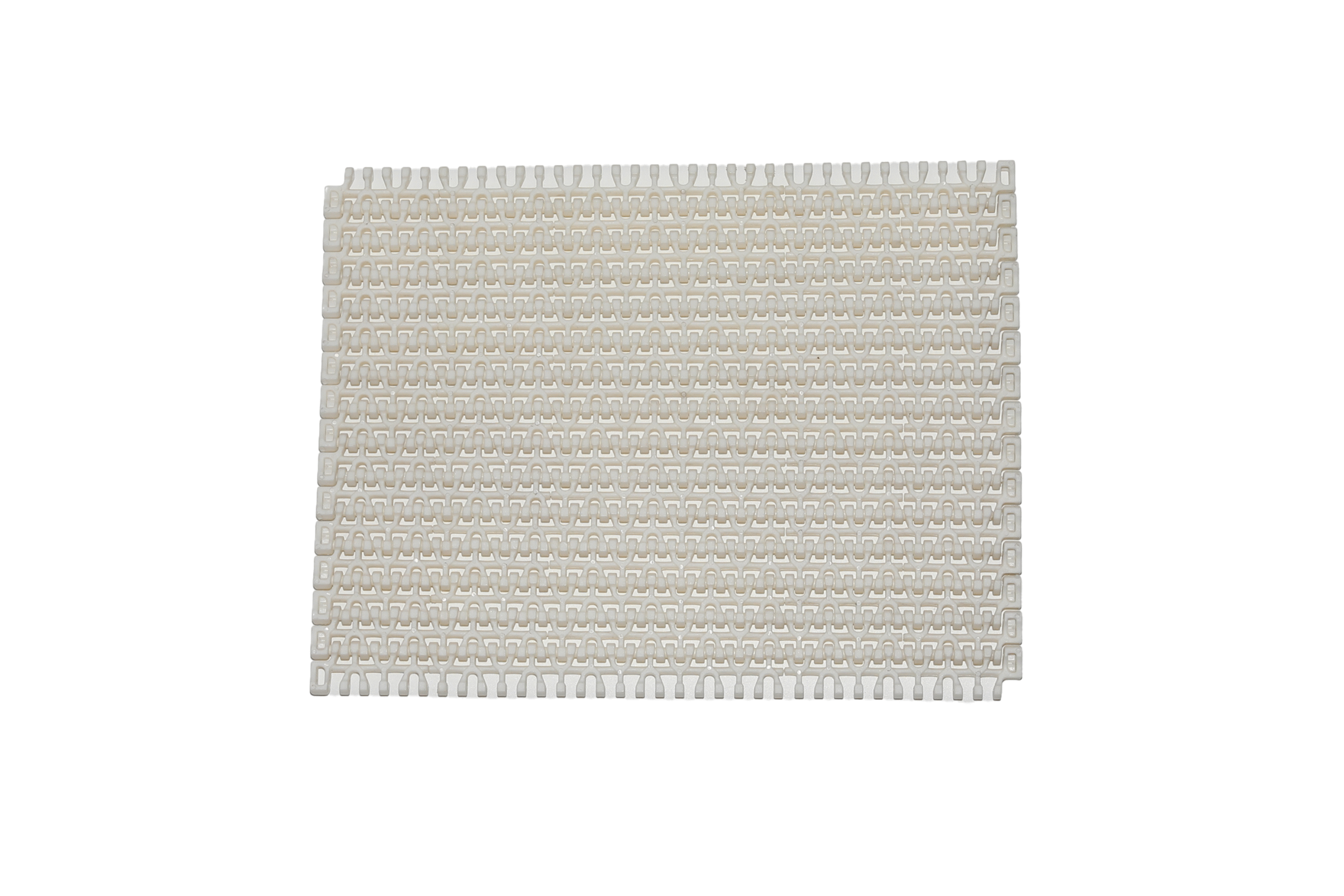

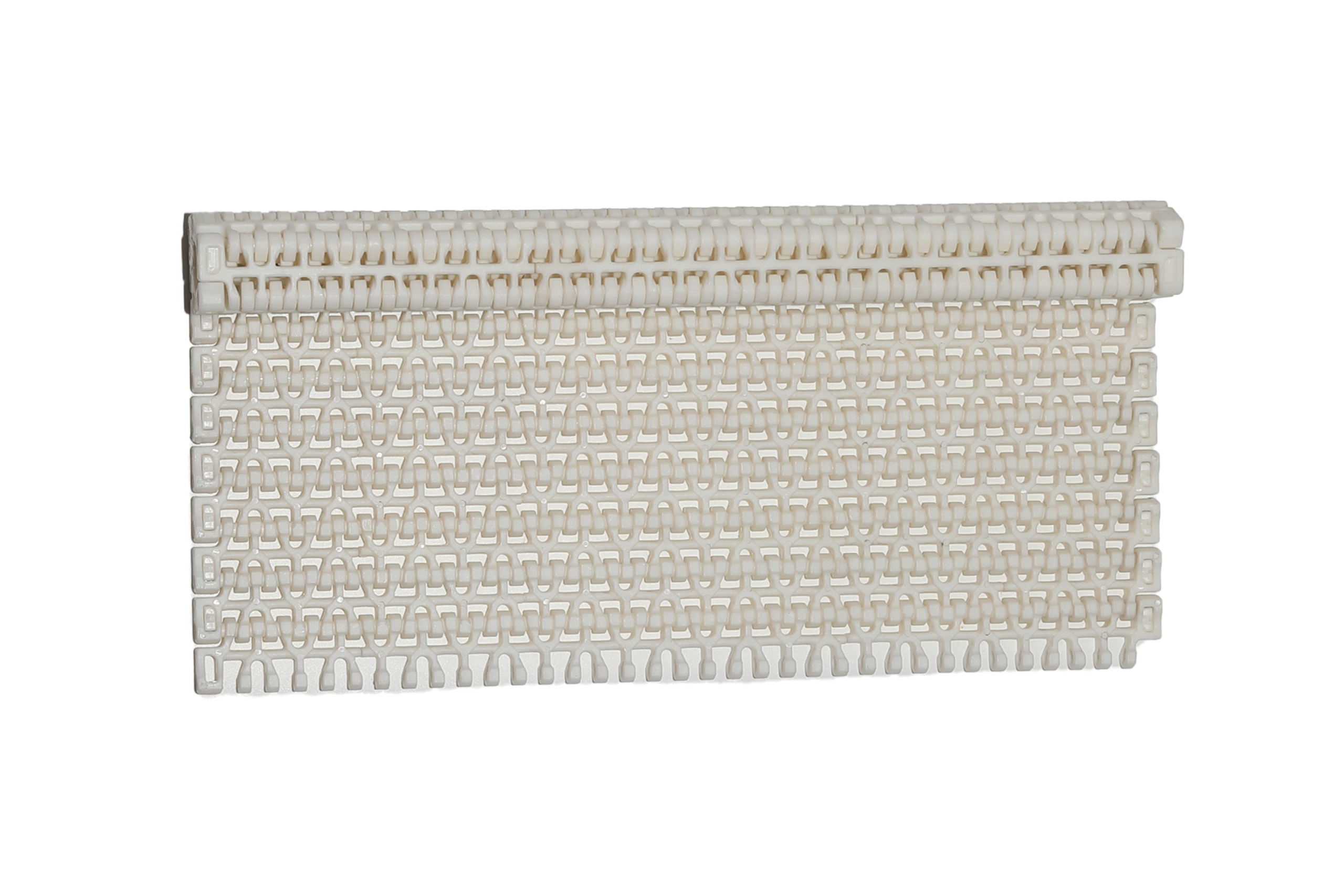

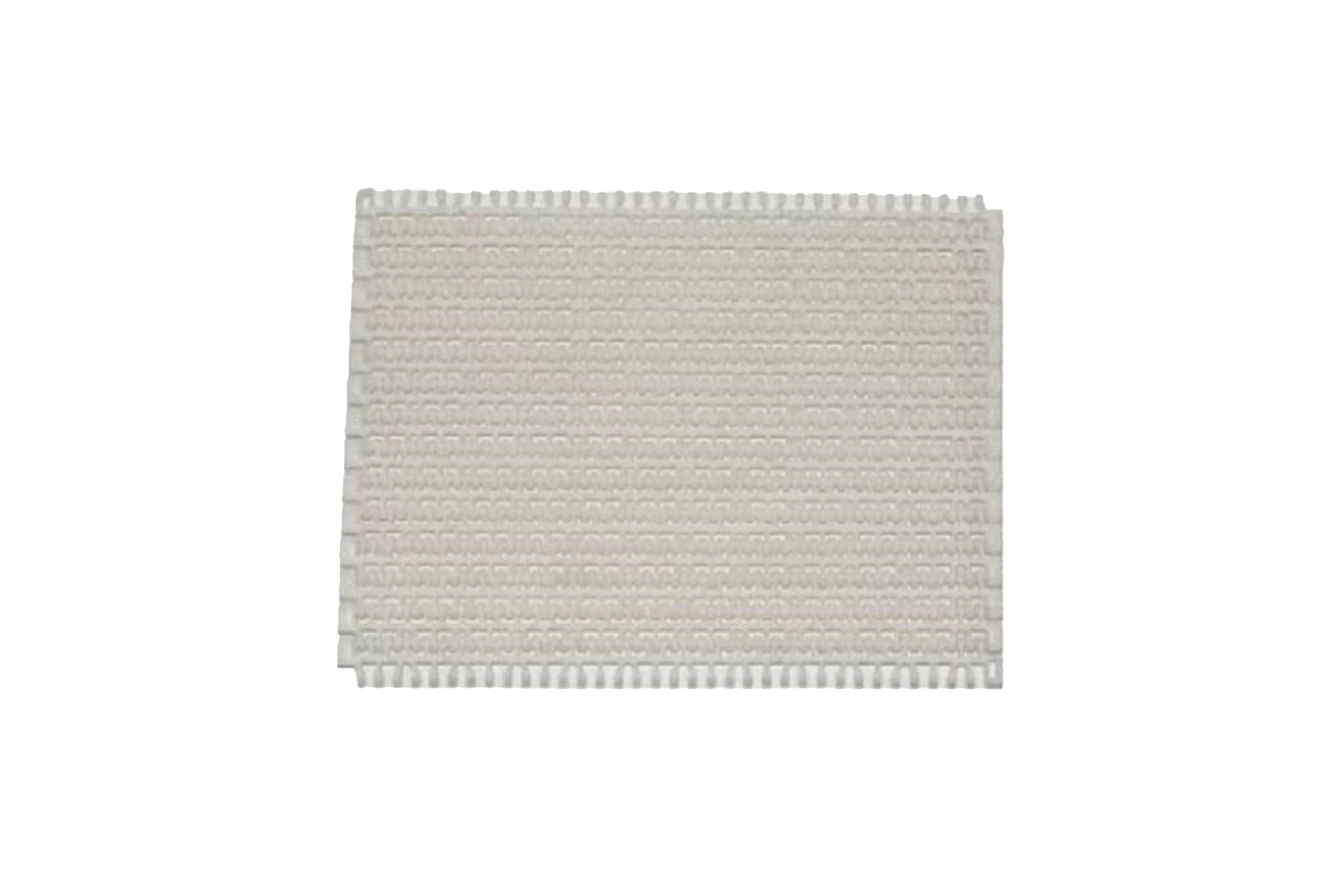

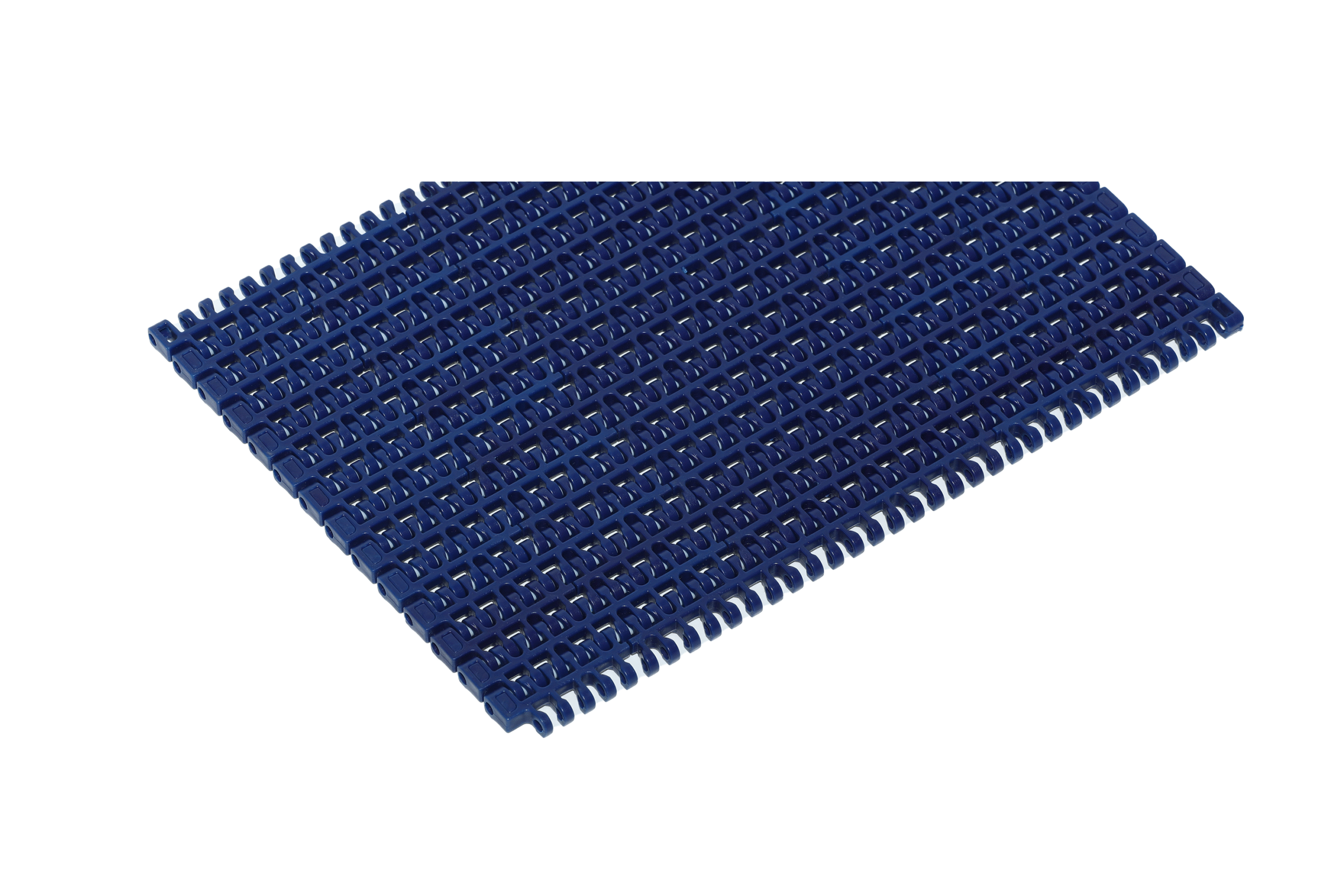

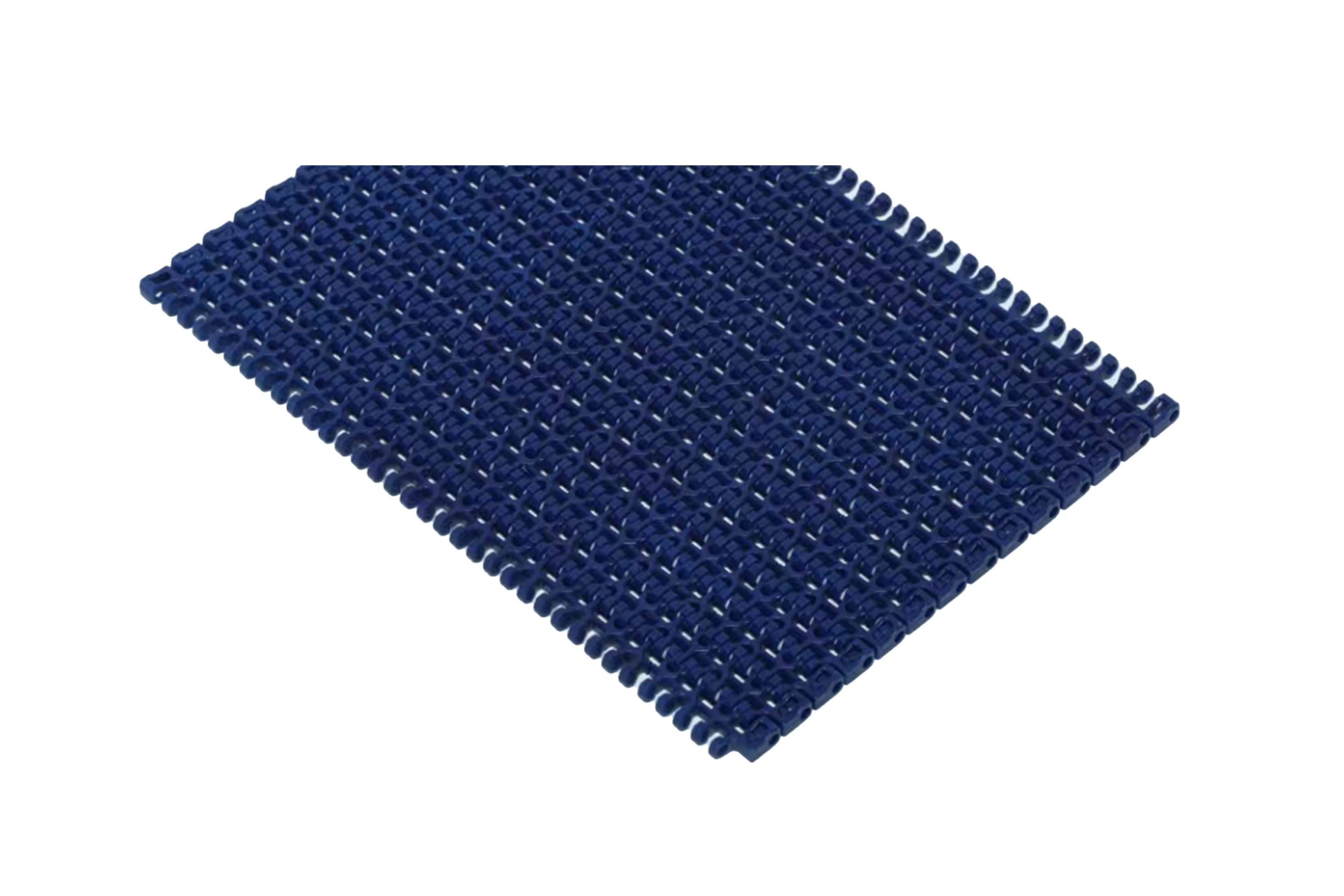

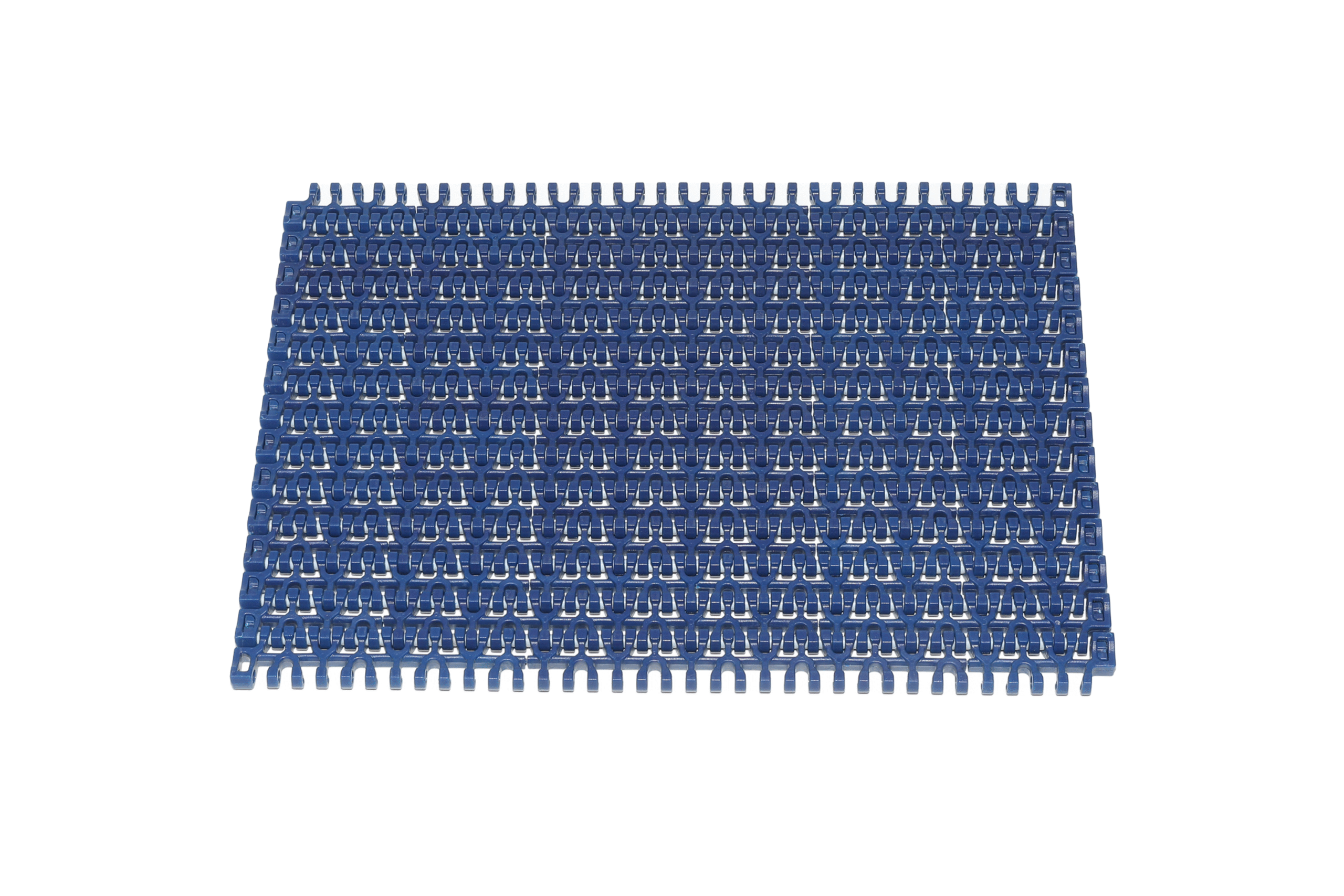

CY-15200B Flush Grid
- BELT TYPE
- DESIGN
- CY-15200B
- Flush Grid
- NOMINAL PITCH
- 15.24mm
- Open Area
- 28%
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 9mm
- Pin Diameter
- 4.5mm
- WIDTH
- W=152.4*N+152.4
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment (mm) |
|---|---|---|---|---|---|
| POM | PA | 12000 | 5.75 | 50.8/152.4/101.6 | W=152.4*N+152.4 |
| POM | PP | 14000 | 5.75 | 50.8/152.4/101.6 | W=152.4*N+152.4 |
| PP | PP | 9000 | 3.98 | 50.8/152.4/101.6 | W=152.4*N+152.4 |
| PE | PE | 7000 | 4.2 | 50.8/152.4/101.6 | W=152.4*N+152.4 |
