Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

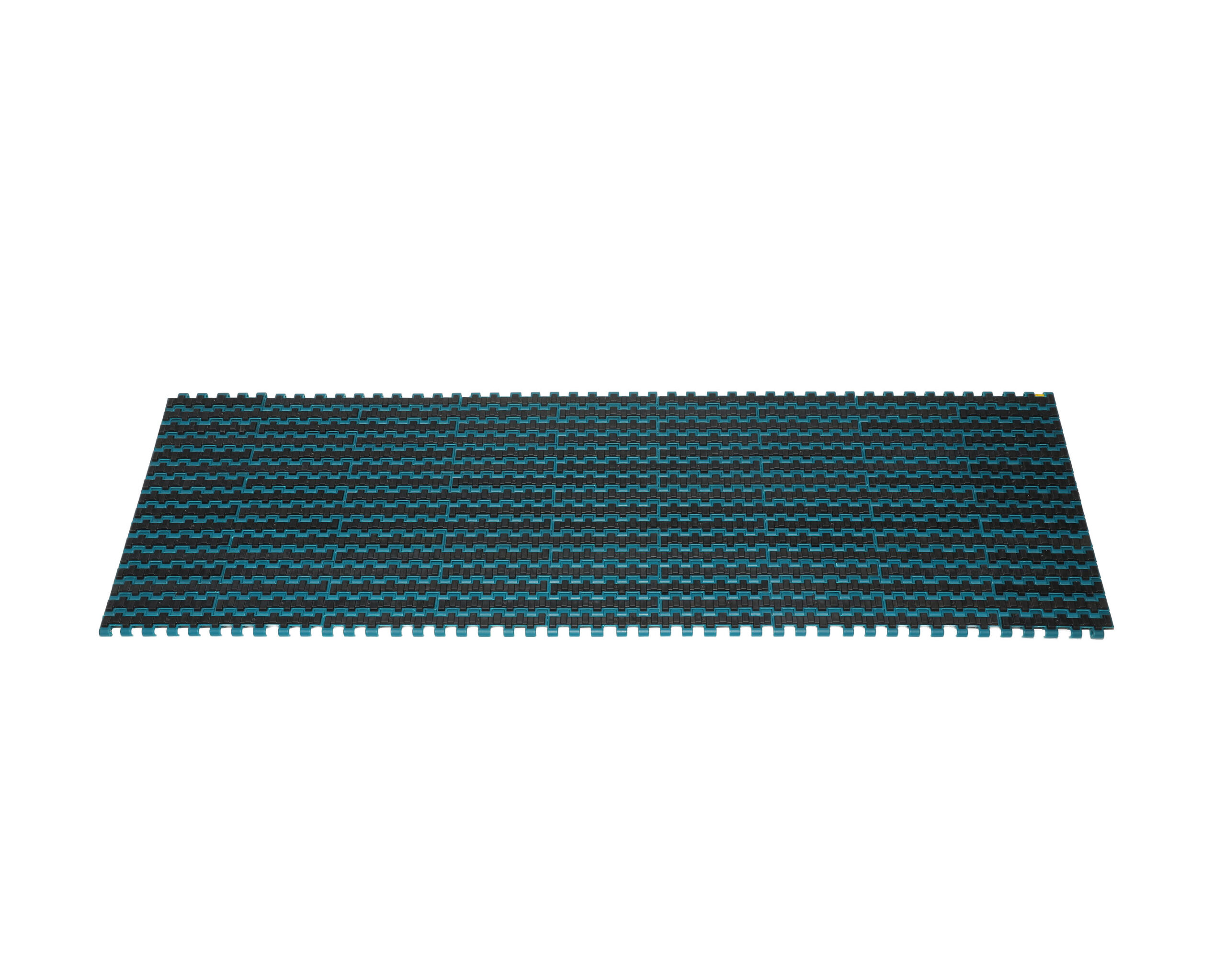

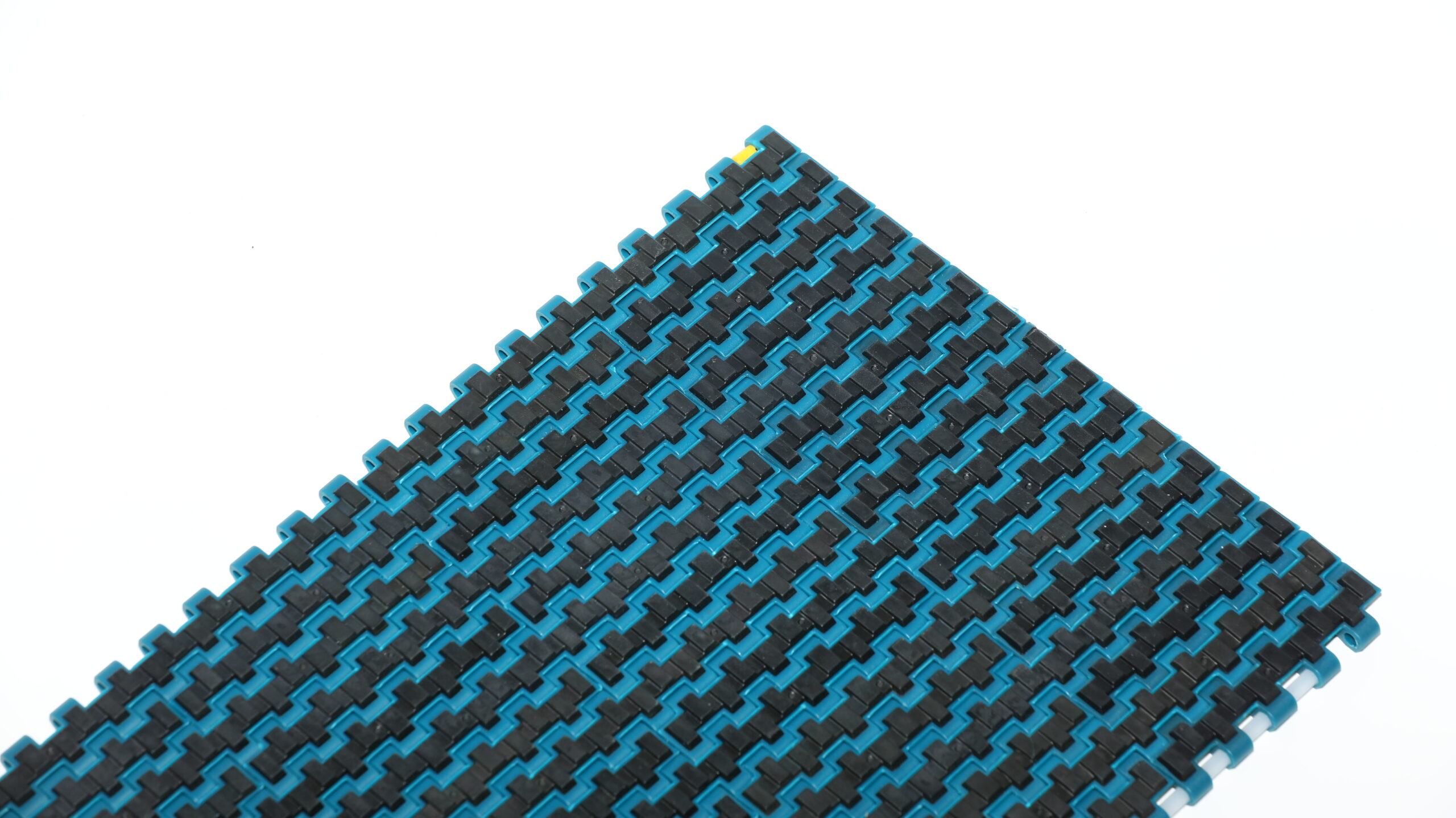

CY-15000J Rubber Top
- BELT TYPE
- DESIGN
- CY-15000J
- Rubber Top
- NOMINAL PITCH
- 15mm
- Open Area
- 0
- Flight
- NO
- Sidewall
- NO
- Belt Thickness
- 8.7mm
- Pin Diameter
- 4.5mm
- WIDTH
- W=85*N
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment |
|---|---|---|---|---|---|
| POM | PP | 13200 | 8.0 | 85/170 | W=85*N |
| POM | PA | 15000 | 8.2 | 85/170 | W=85*N |
| PP | PP | 7300 | 6.4 | 85/170 | W=85*N |
