Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts

Product Introduction

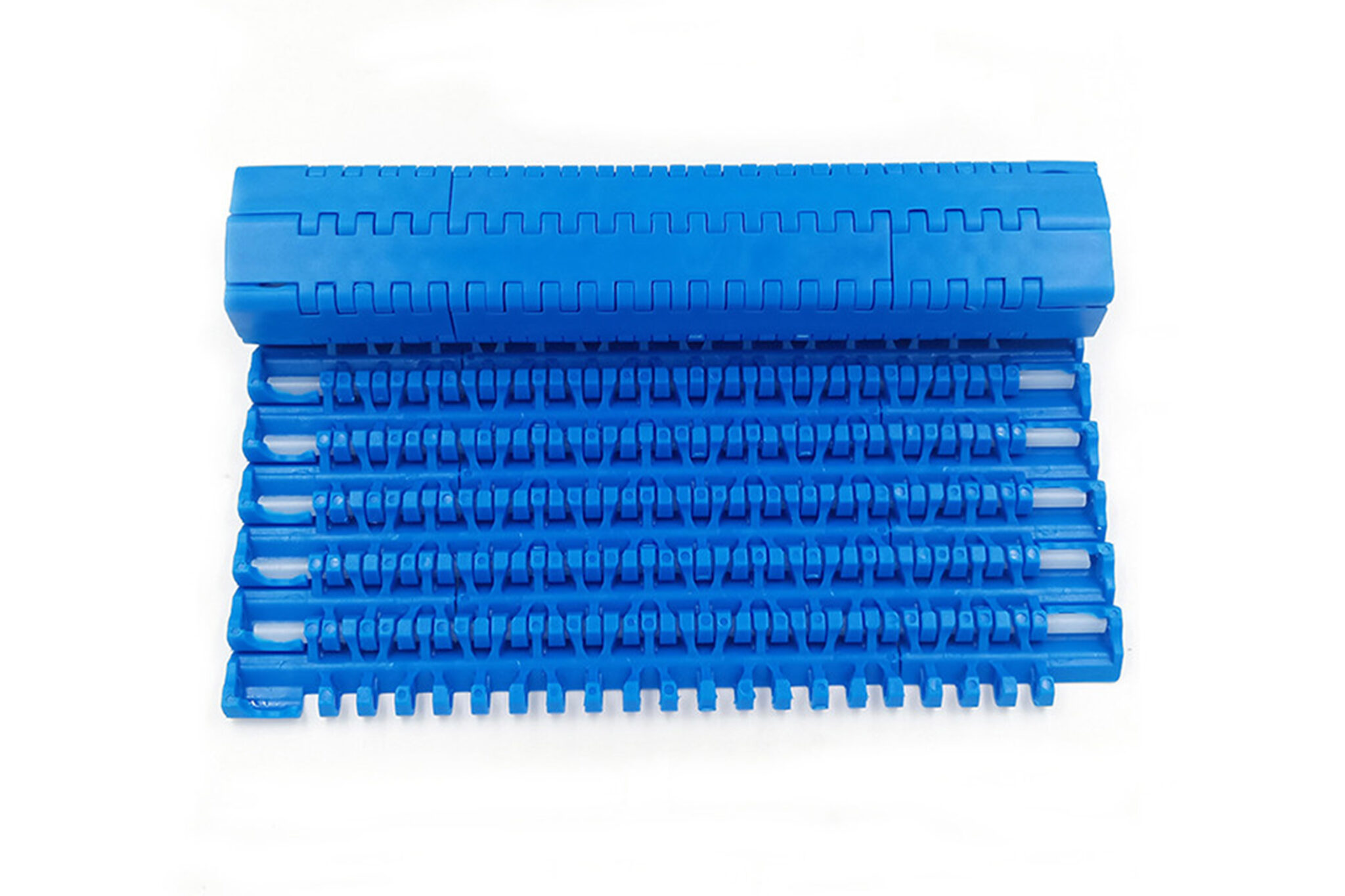

CY-15000A Flat Top

Technicial Specifications

Belt MaterialRod MaterialWorking Load(N/M) 21 ℃Belt weight(kg/㎡)Witdth of single Module(mm)Width increment
POMPP132006.876.2/152.4W=76.2*N
POMPA150006.976.2/152.4W=76.2*N
PPPP73005.176.2/152.4W=76.2*N
PEPE32005.376.2/152.4W=76.2*N

15mm pitch mesh chains prevent containers from tipping over and clogging at transition points. Standard mesh chains are suitable for the beverage industry, while antibacterial materials are suitable for food processing. Surface-sealed designs are suitable for conveying (unstable) glass and PET containers and other fragile products; a 26% open area ratio is suitable for canned goods conveying; a rubber top band is suitable for incline and descent conveyors in packaging and metering applications; a single-module dynamic transition system allows for automatic 90-degree transitions on the left and right sides, avoiding dead zones during transitions.

Download

Product data sheet

Supporting Sprocket

2D & 3D CAD Model

belt
