Product Introduction

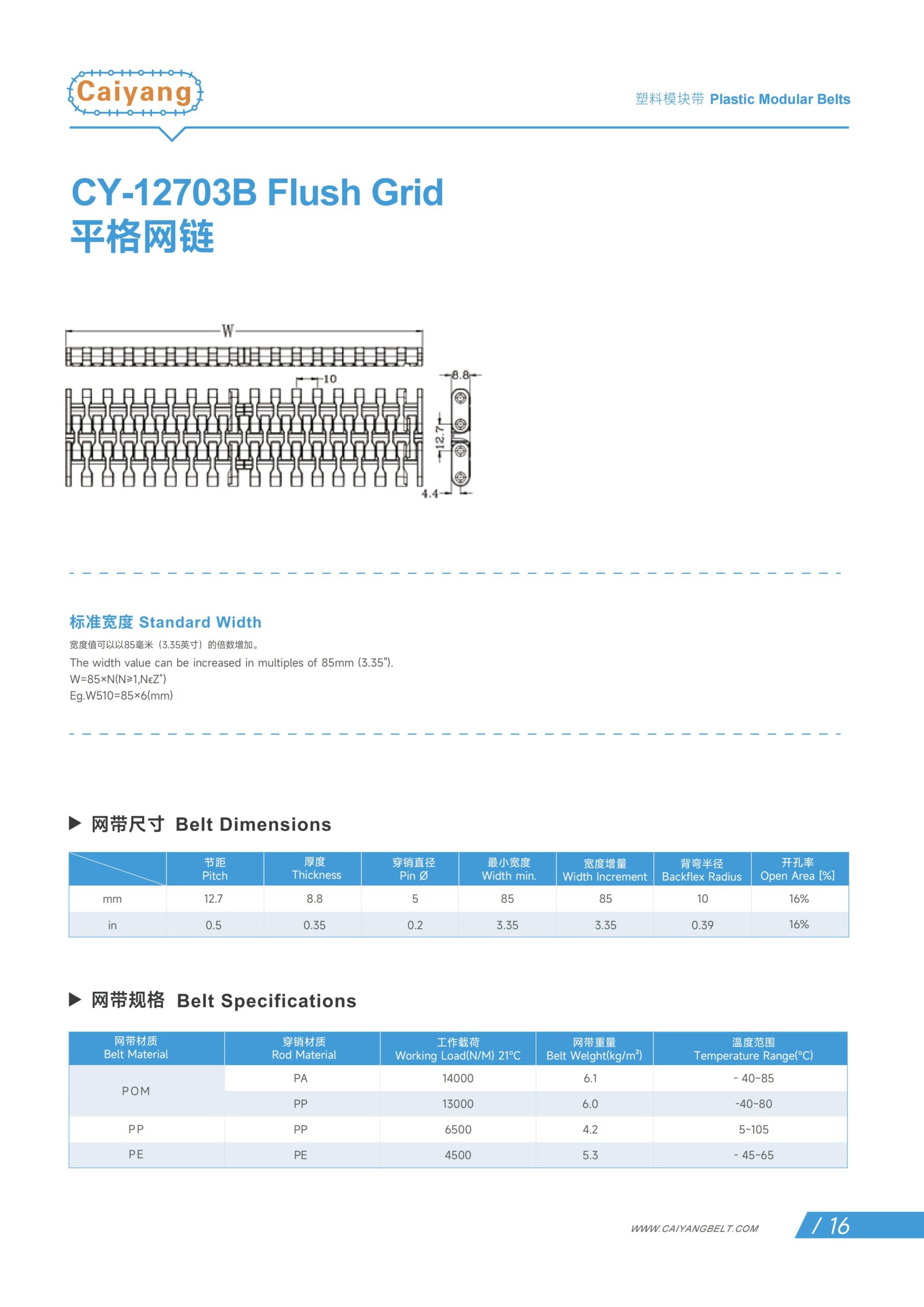

CY-12703B Flush Grid
- BELT TYPE
- DESIGN
- CY-12703
- Flush Grid
- NOMINAL PITCH
- 12.7 mm / 0.5 inch
- Open Area
- 16%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 8.8 mm / 0.35 inch
- Pin Diameter
- 5 mm / 0.2 inch
- WIDTH
- The width value can be increased in multiples of 85mm (3.35")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment |
|---|---|---|---|---|---|
| POM | PP | 13000 | 6.0 | 85/170 | W=85*N |
| POM | PA | 14000 | 6.1 | 85/170 | W=85*N |
| PP | PP | 6500 | 4.2 | 85/170 | W=85*N |
| PE | PE | 4500 | 5.3 | 85/170 | W=85*N |
|

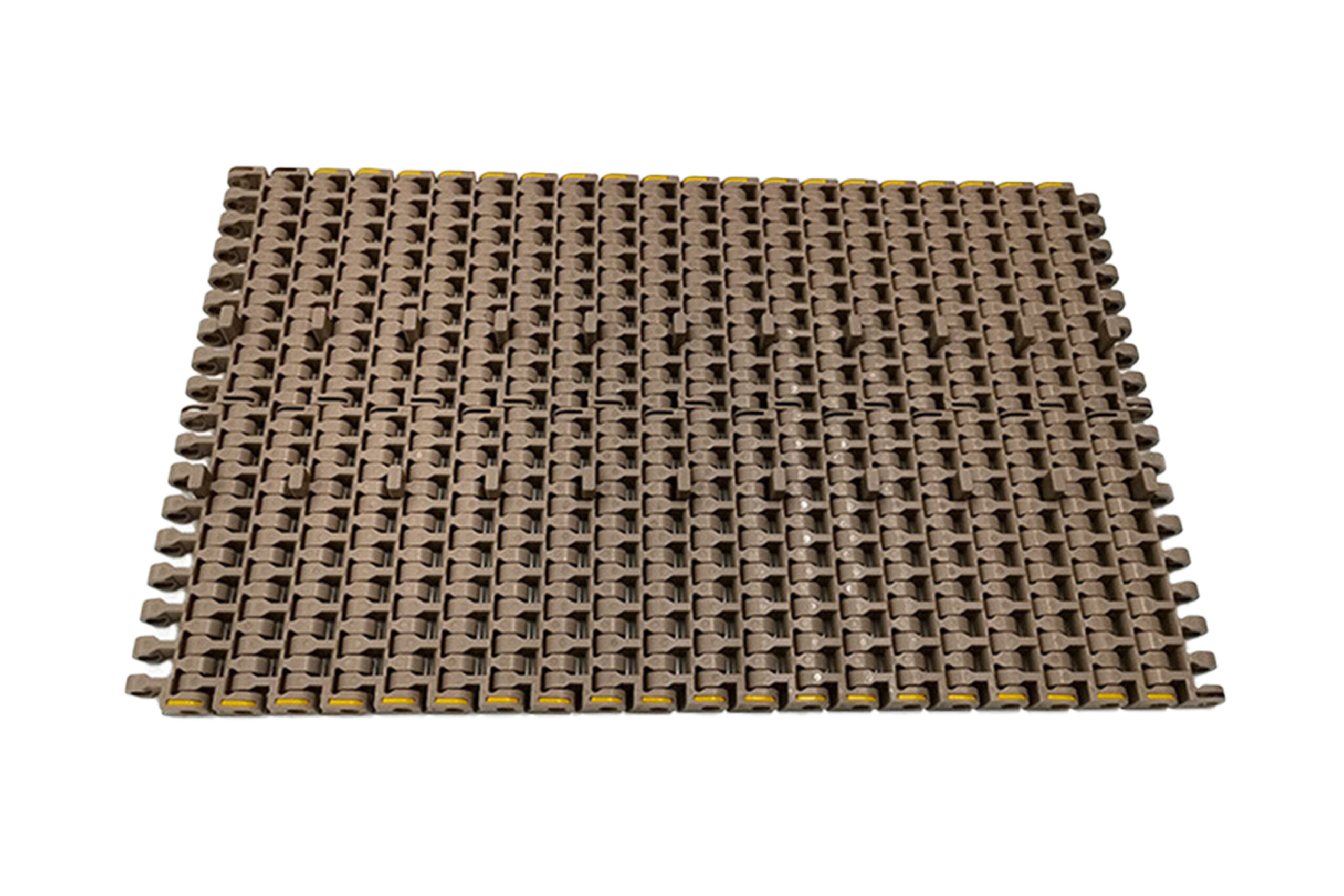

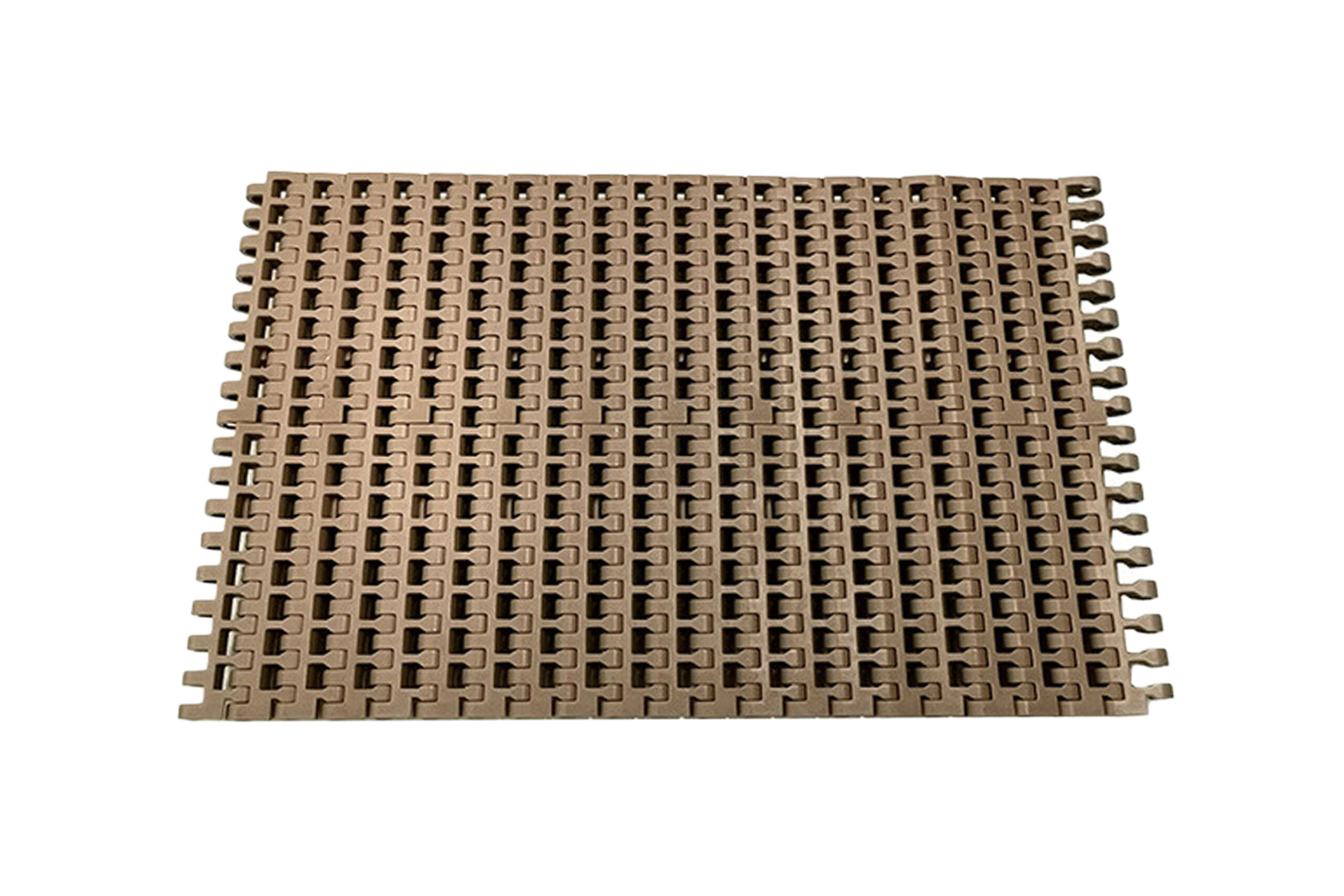

CY-12703B Flush Grid Module belt 12.7mm/0.5”
|
Suitable for the can-making and canning industries. A 16% open area ensures optimal water and airflow, allowing contaminants to fall off and maintaining a clean contact surface between the product and the conveyor belt.
