Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

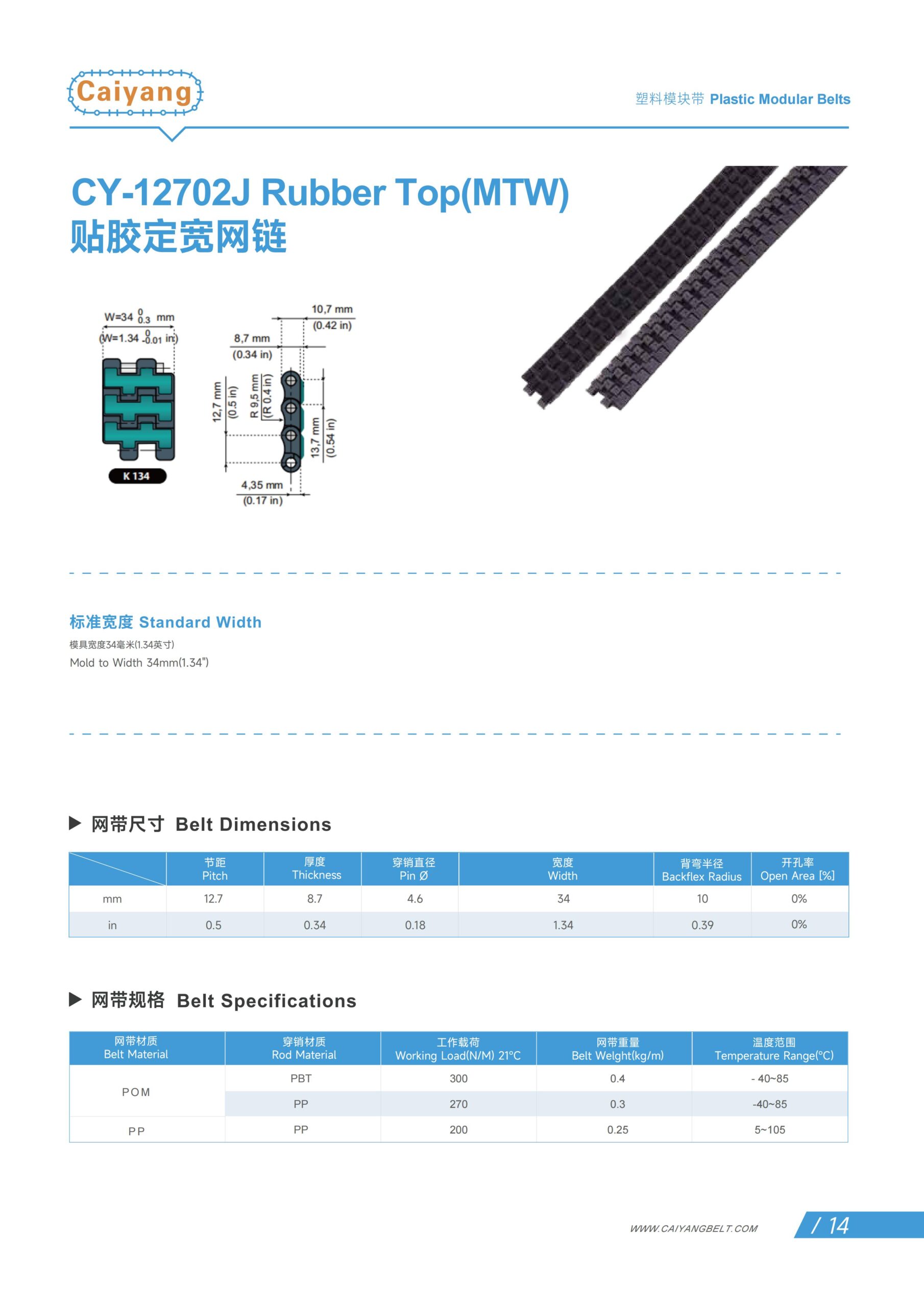

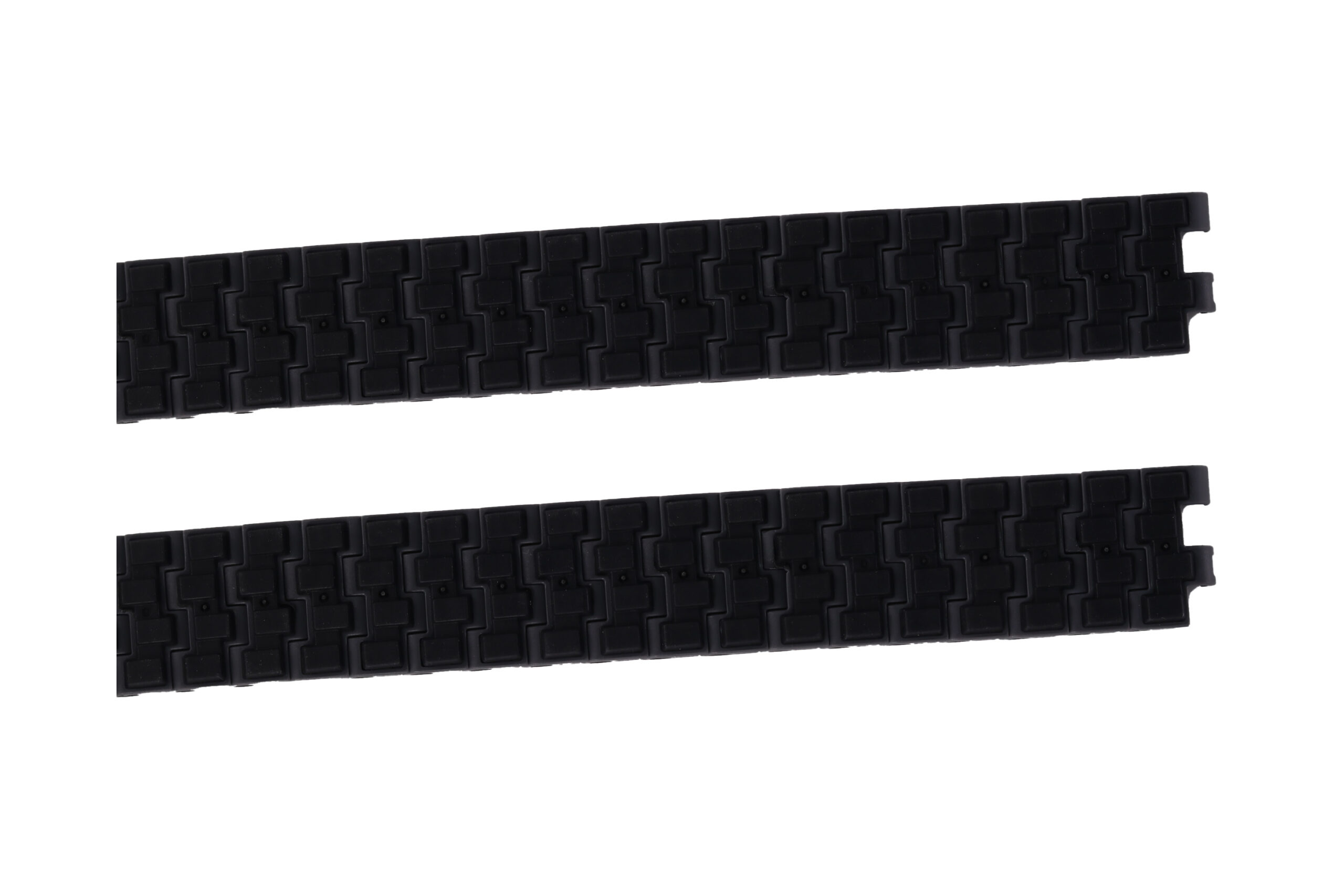

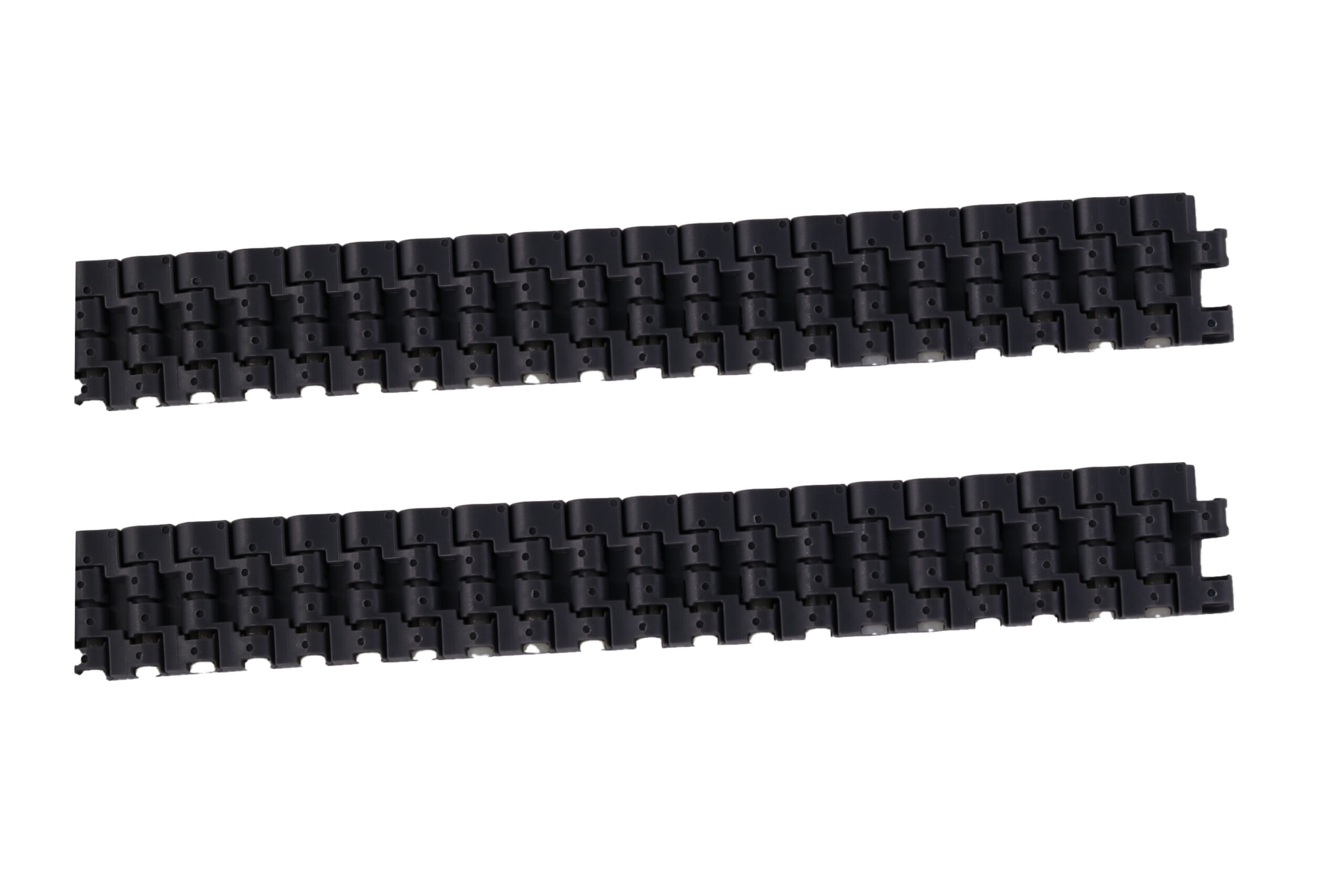

CY-12702J Rubber Top(MTW)
- BELT TYPE
- DESIGN
- CY-12702
- Rubber Top(MTW)
- NOMINAL PITCH
- 12.7 mm / 0.5 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 8.7 mm / 0.34 inch
- Pin Diameter
- 4.6 mm / 0.18 inch
- WIDTH
- Mold to Width 34mm(1.34")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Temperature Range(℃) |
|---|---|---|---|---|
| PA | PA | 2500 | 5.5 | -40~110 |
| POM | PA | 2300 | 5.5 | -40~85 |
Download
