Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

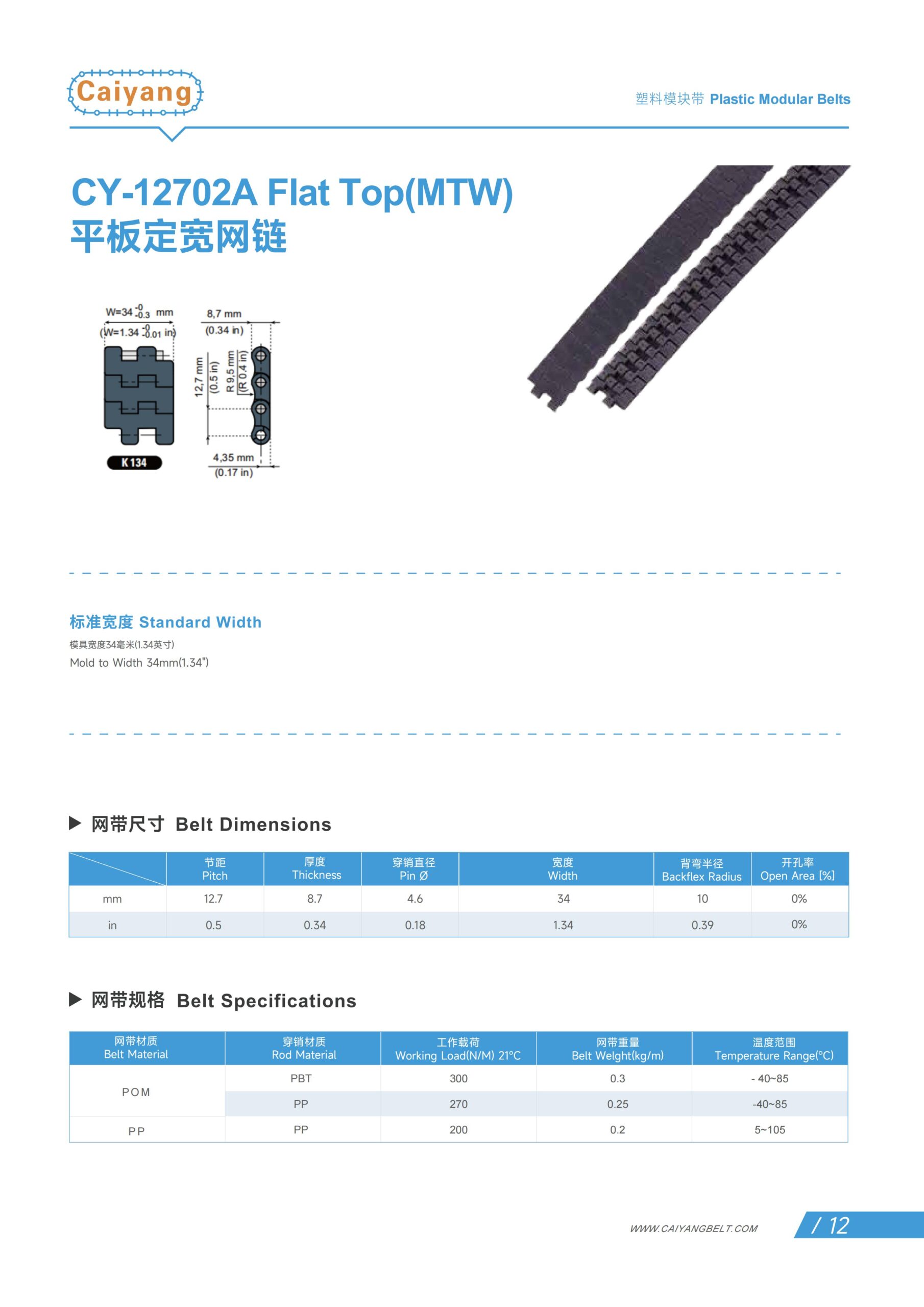

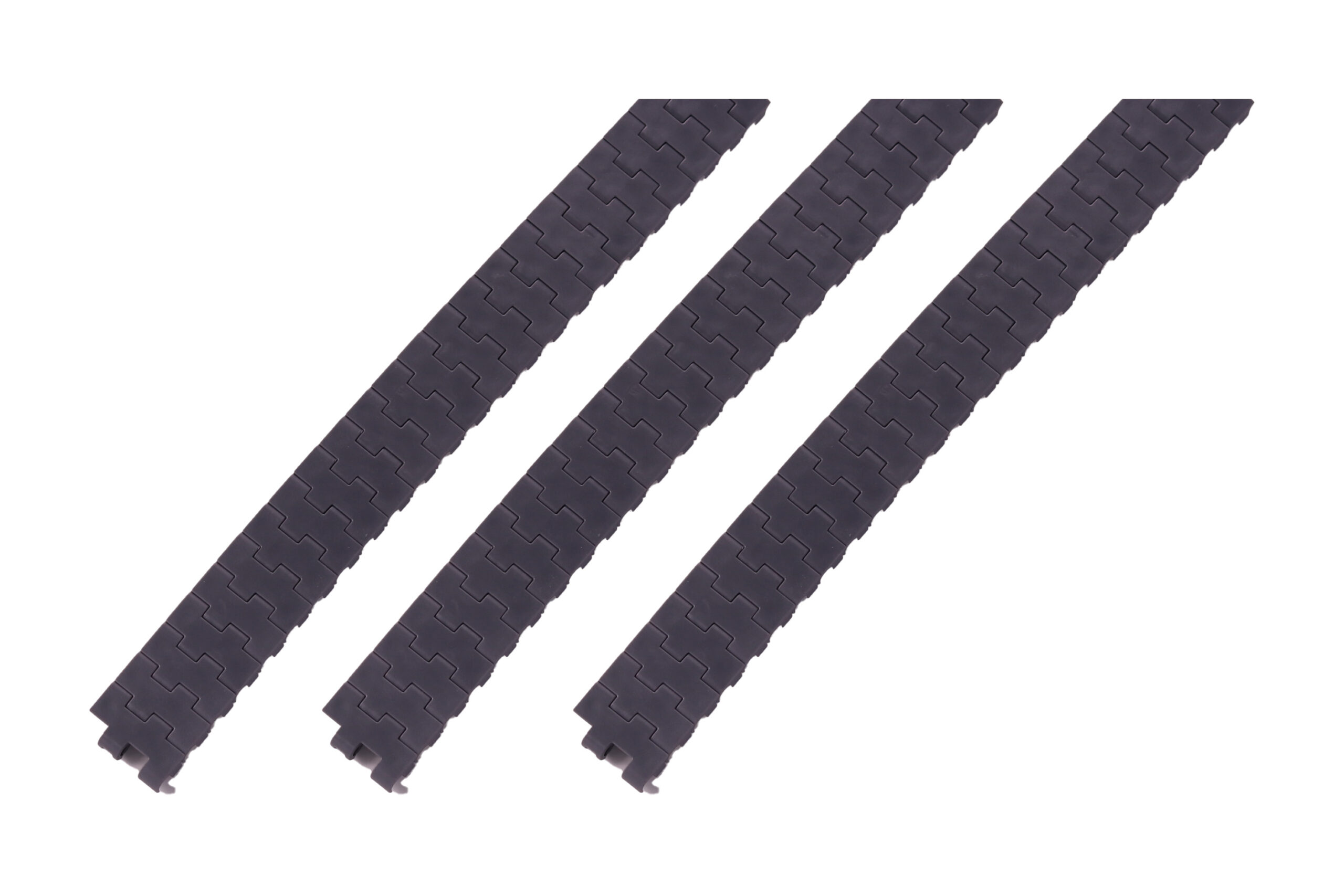

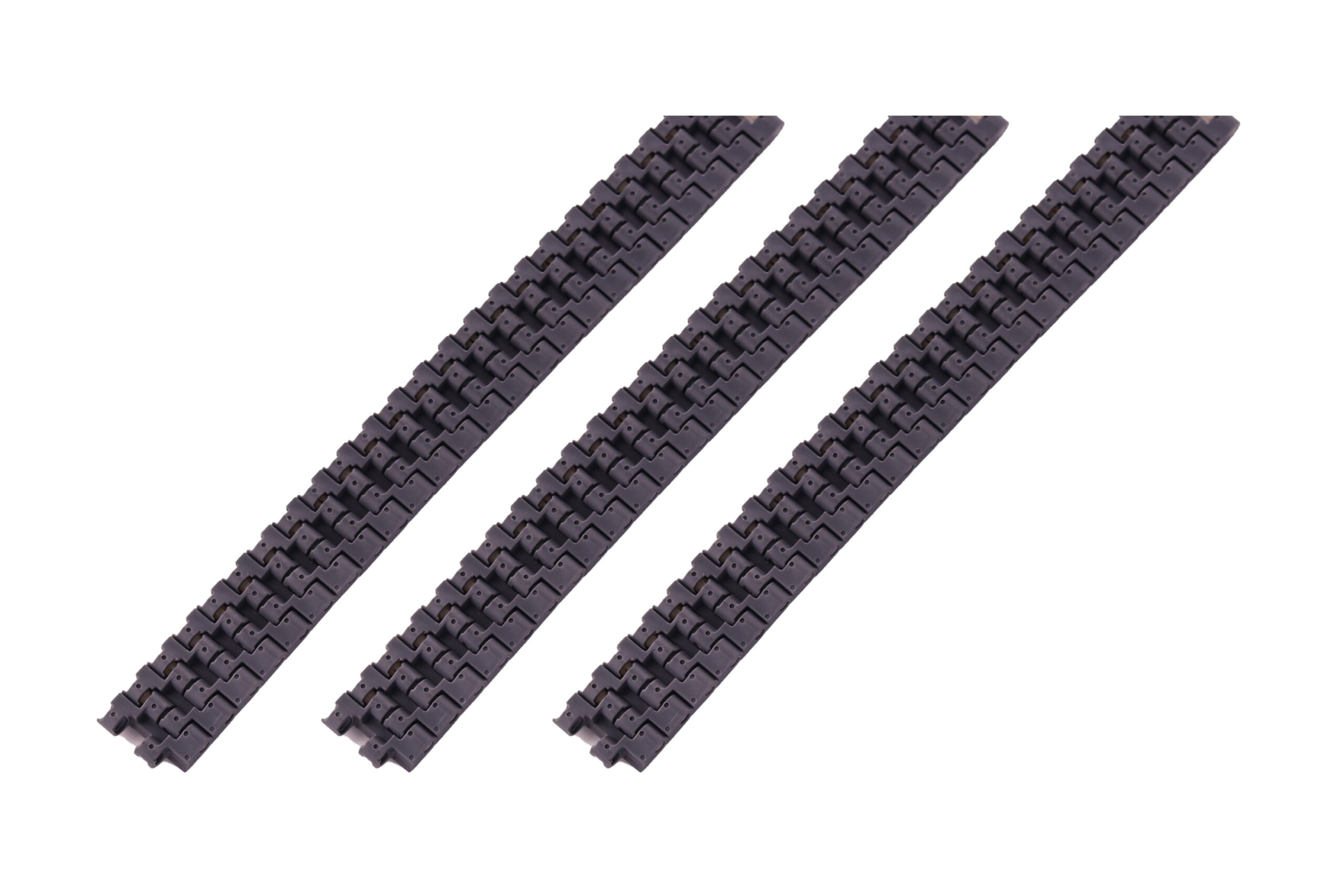

CY-12702A Flat Top(MTW)
- BELT TYPE
- DESIGN
- CY-12702
- Flat Top(MTW)
- NOMINAL PITCH
- 12.7 mm / 0.5 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 8.7 mm / 0.34 inch
- Pin Diameter
- 4.6 mm / 0.18 inch
- WIDTH
- Mold to Width 34mm(1.34")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment |
|---|---|---|---|---|---|
| POM | PP | 20000 | 8.8 | 51/85/170 | W=85*N |
| POM | PBT | 22000 | 9.0 | 51/85/170 | W=85*N |
| PP | PP | 17000 | 6.5 | 51/85/170 | W=85*N |
Suitable for conveying meat, poultry, seafood, fruit, etc., and can be installed on standard conveyor lines with a track width of 85mm.
