Product Details
Shanghai Caiyang Plastic Products Co., Ltd. is a professional manufacturer of
modular plastic conveyor belts
Product Introduction

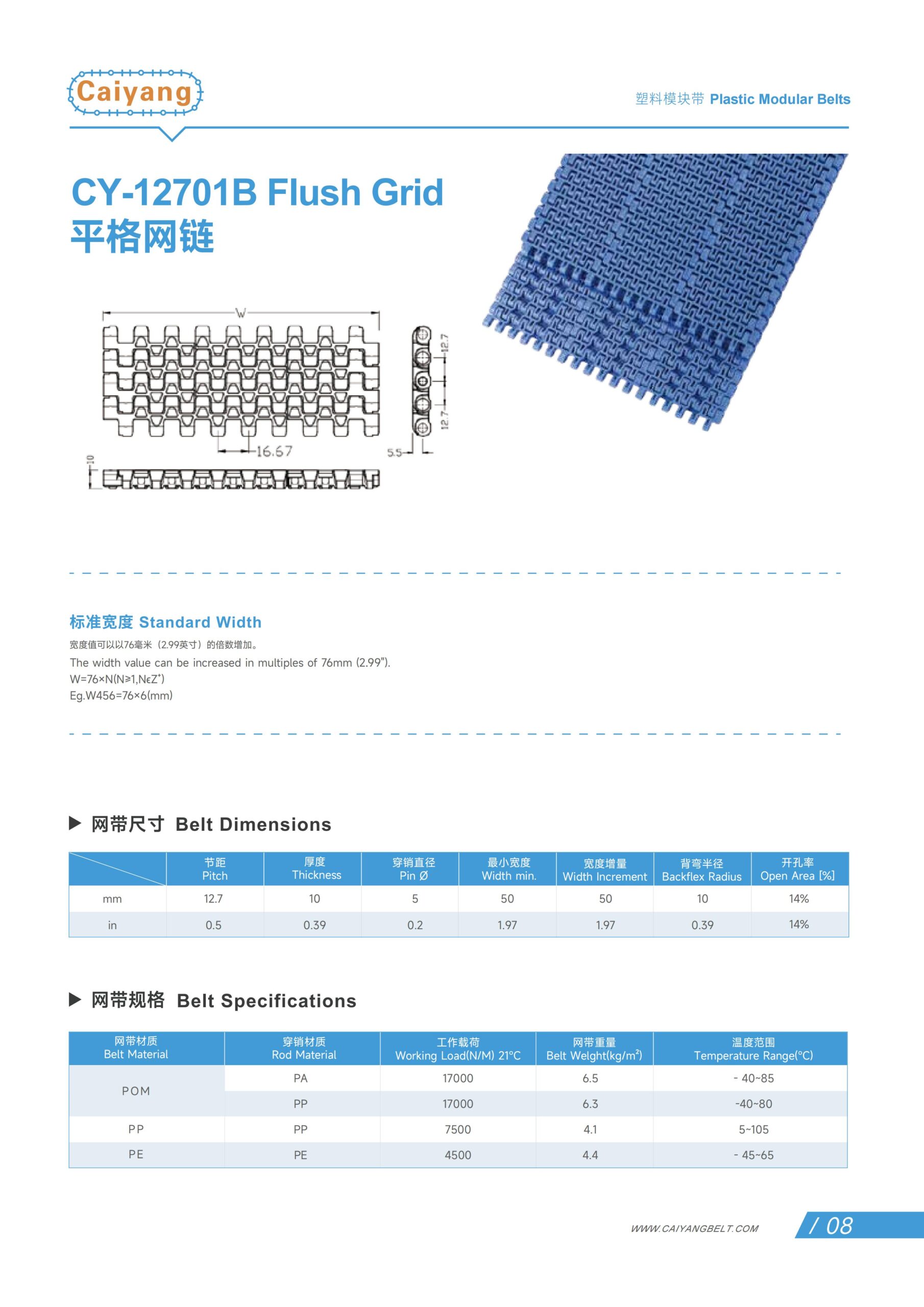

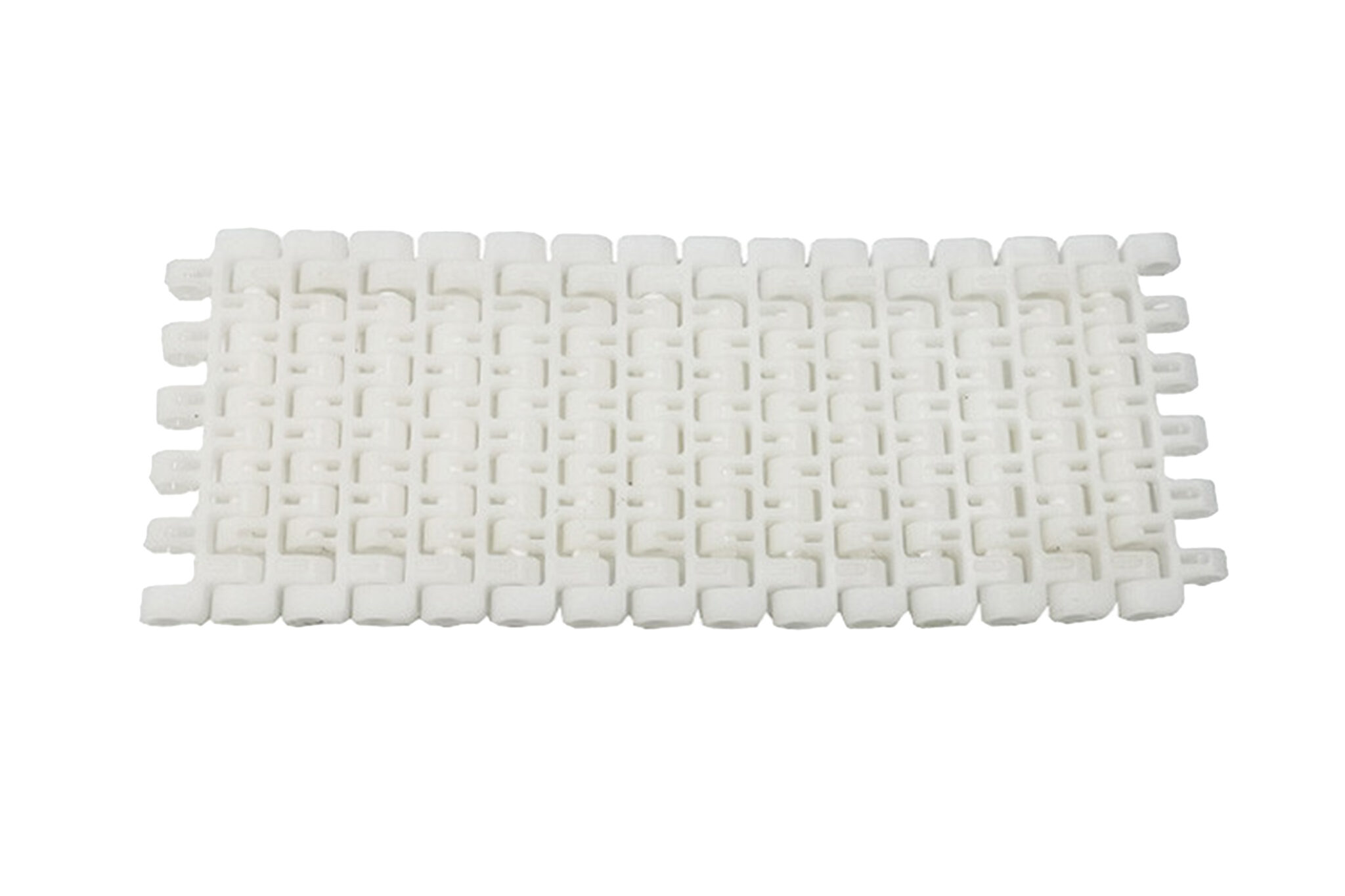

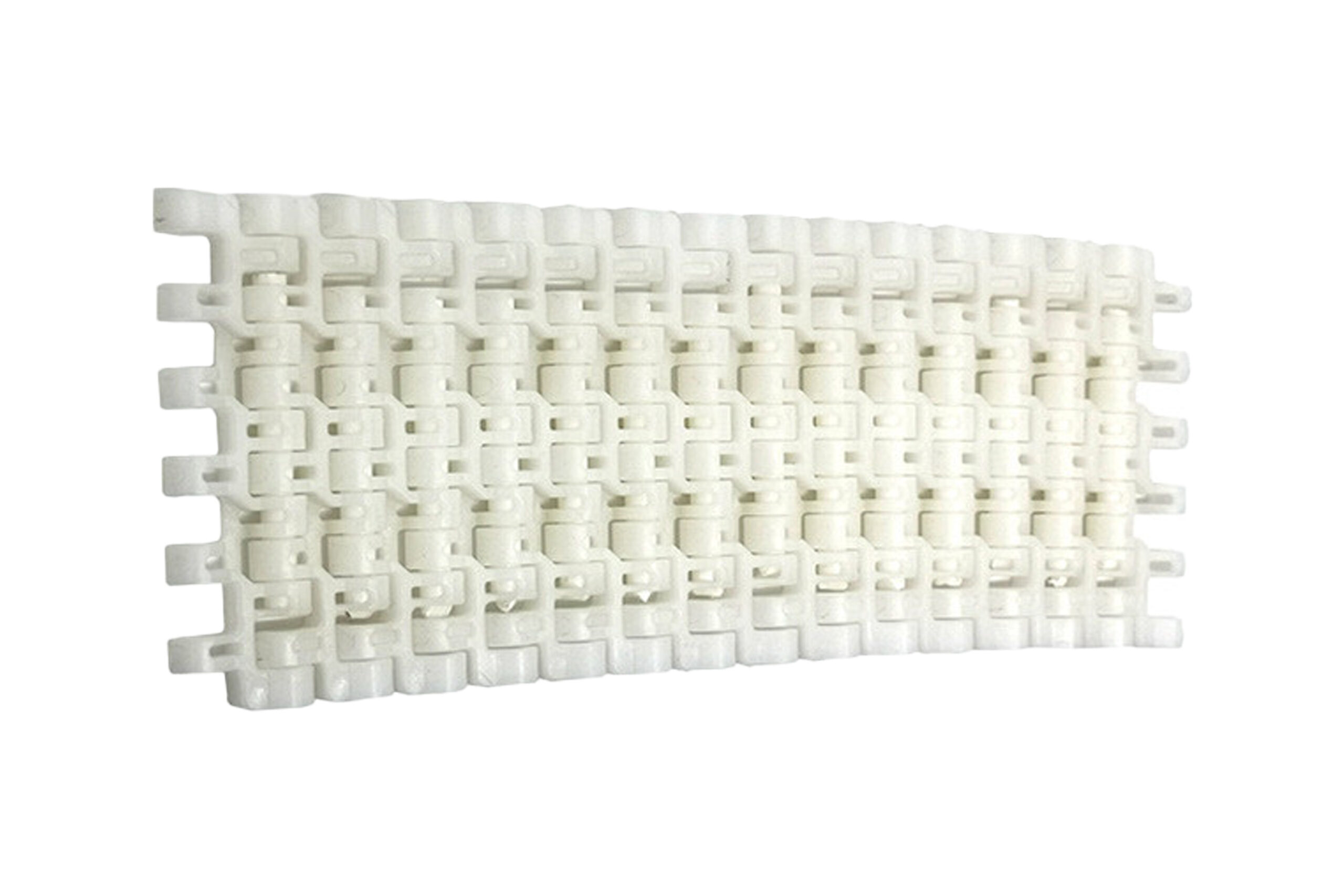

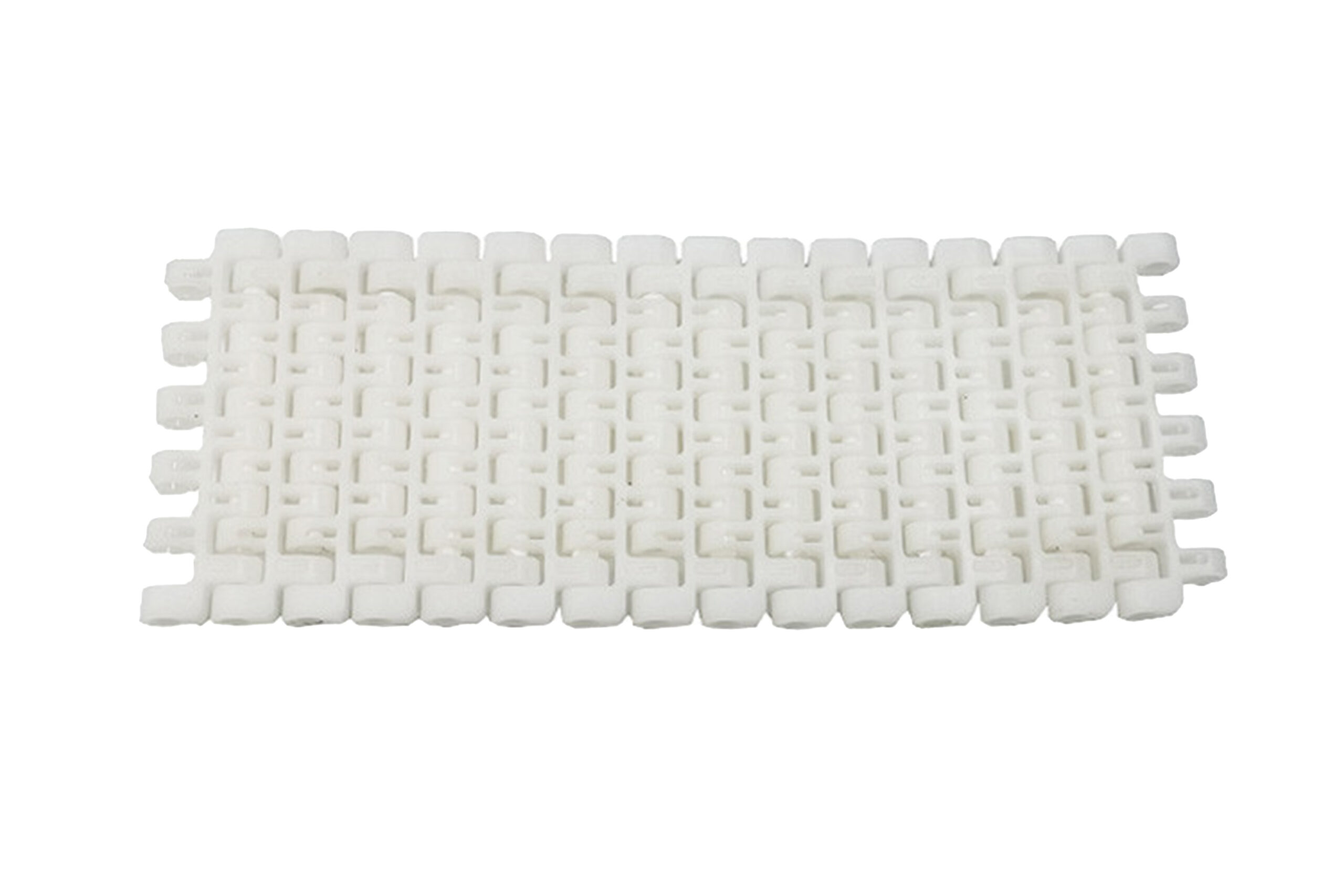

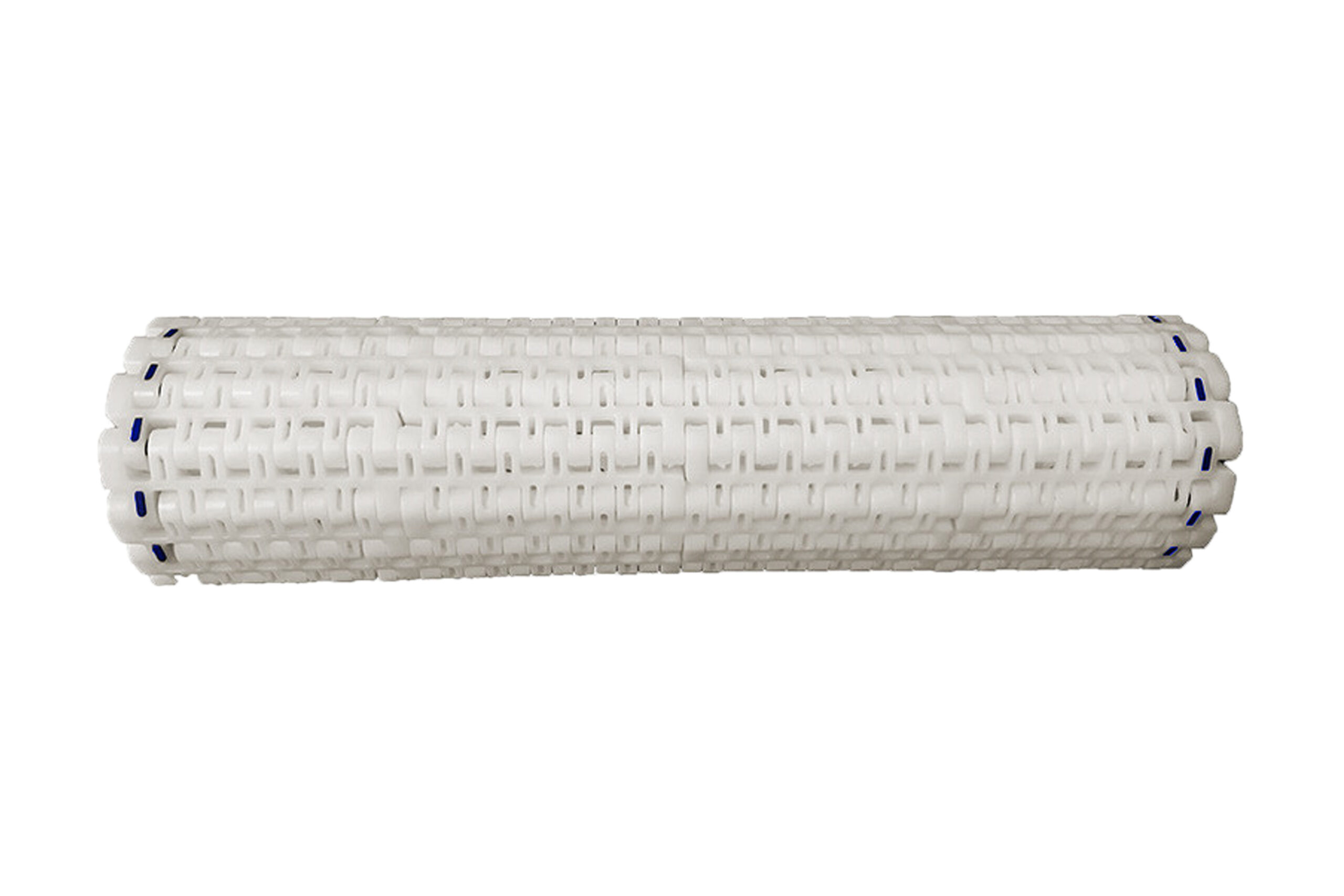

CY-12701B Flush Grid
- BELT TYPE
- DESIGN
- CY-12701
- Flush Grid
- NOMINAL PITCH
- 12.7 mm / 0.5 inch
- Open Area
- 14%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 10 mm / 0.39 inch
- Pin Diameter
- 5 mm / 0.2 inch
- WIDTH
- The width value can be increased in multiples of 76mm (2.99")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment |
|---|---|---|---|---|---|
| POM | PP | 15000 | 6.3 | 76/152 | W=76*N |
| POM | PA | 17000 | 6.5 | 76/152 | W=76*N |
| PP | PP | 7500 | 4.1 | 76/152 | W=76*N |
| PE | PE | 4500 | 4.4 | 76/152 | W=76*N |
Suitable for conveying meat, poultry, seafood, fruit, etc., and can be installed on standard conveyor lines with a track width of 85mm.
