Product Introduction

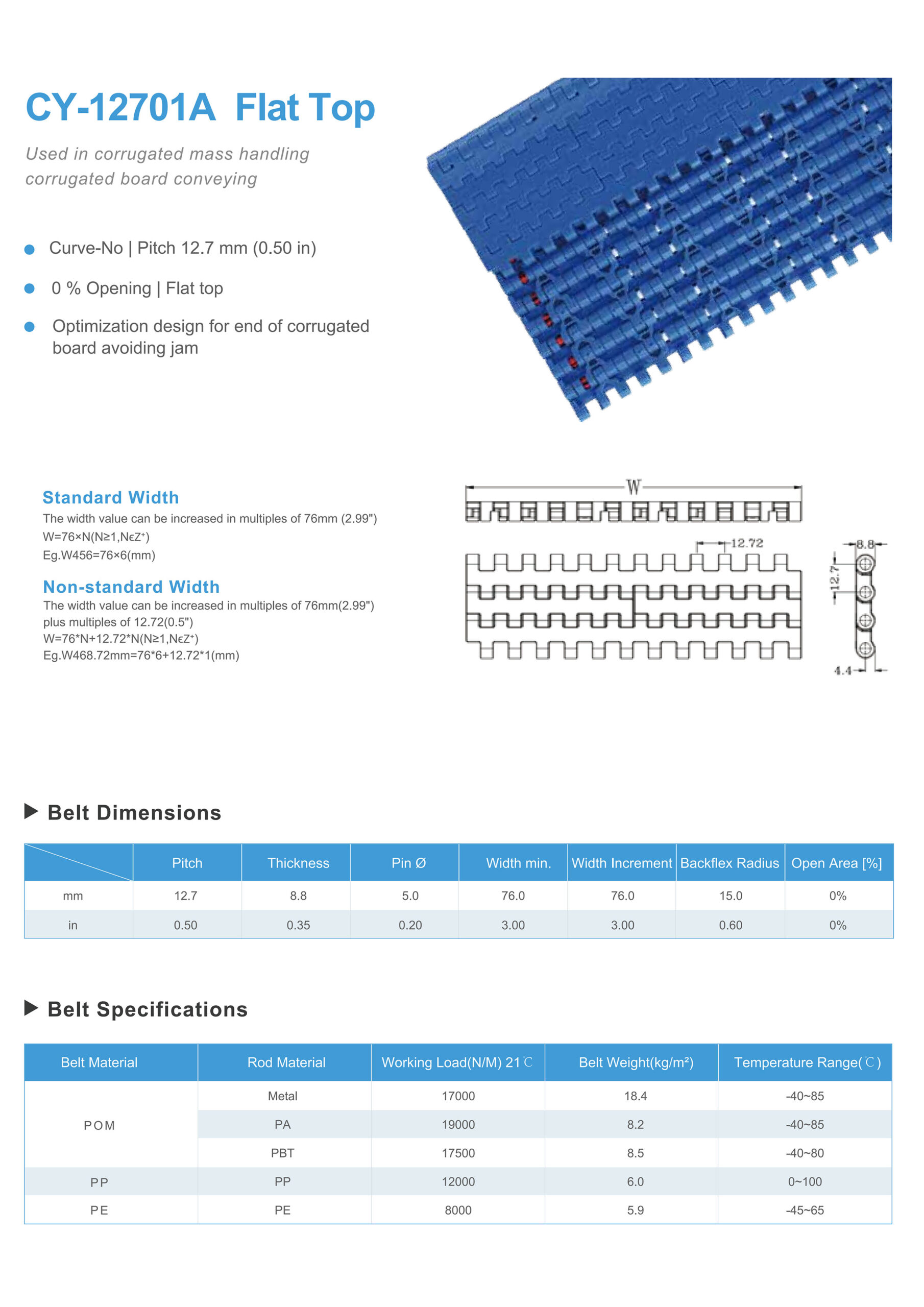

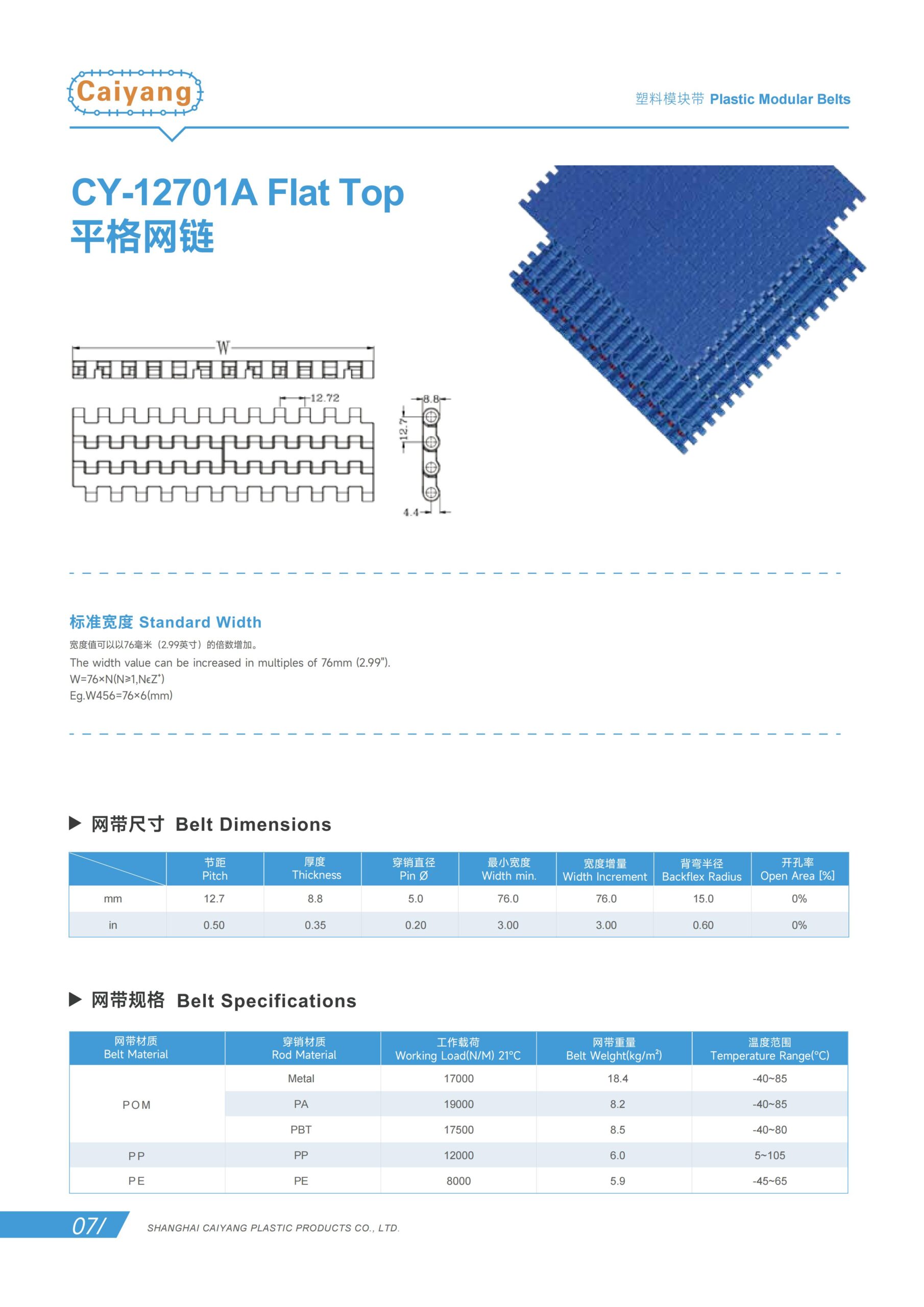

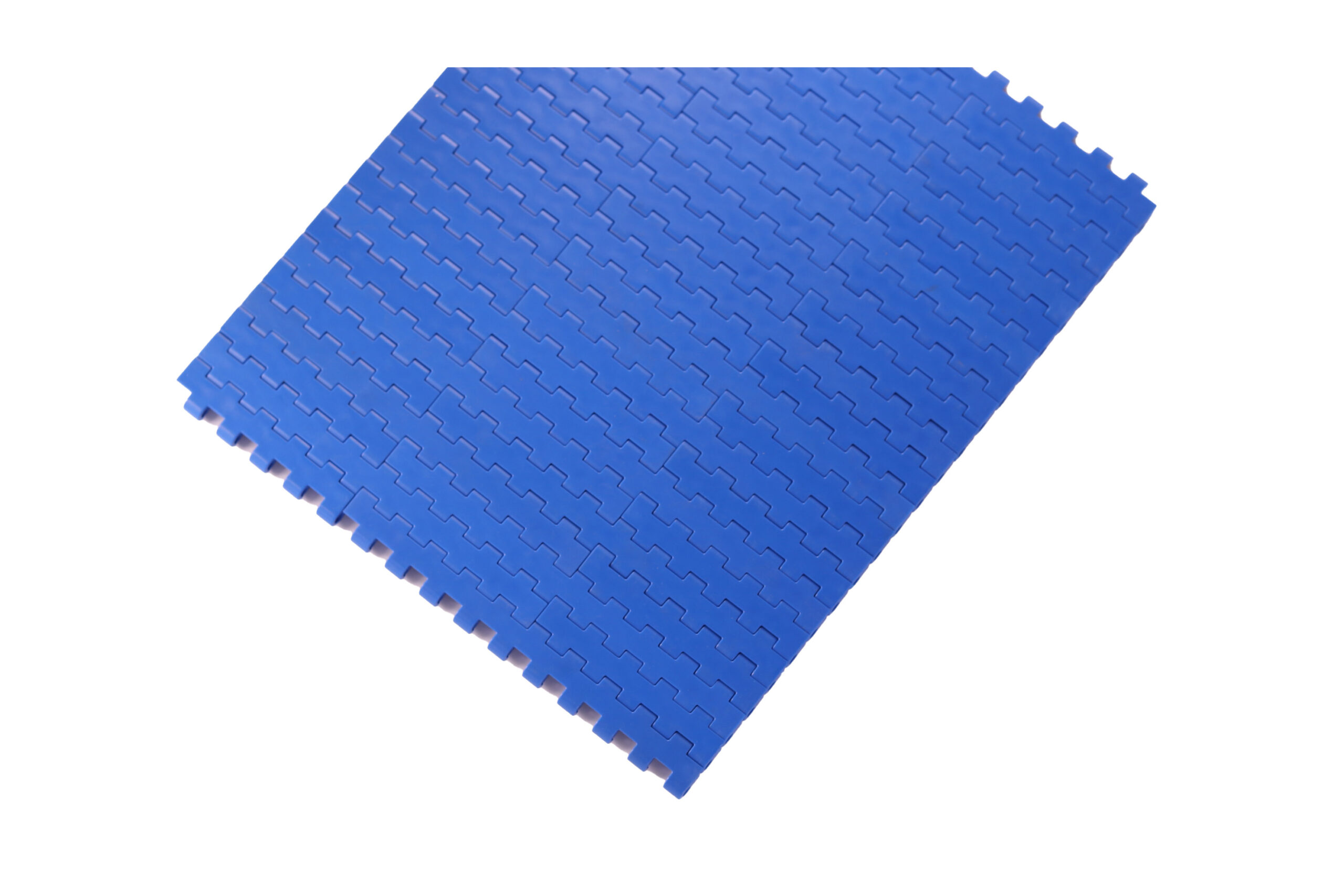

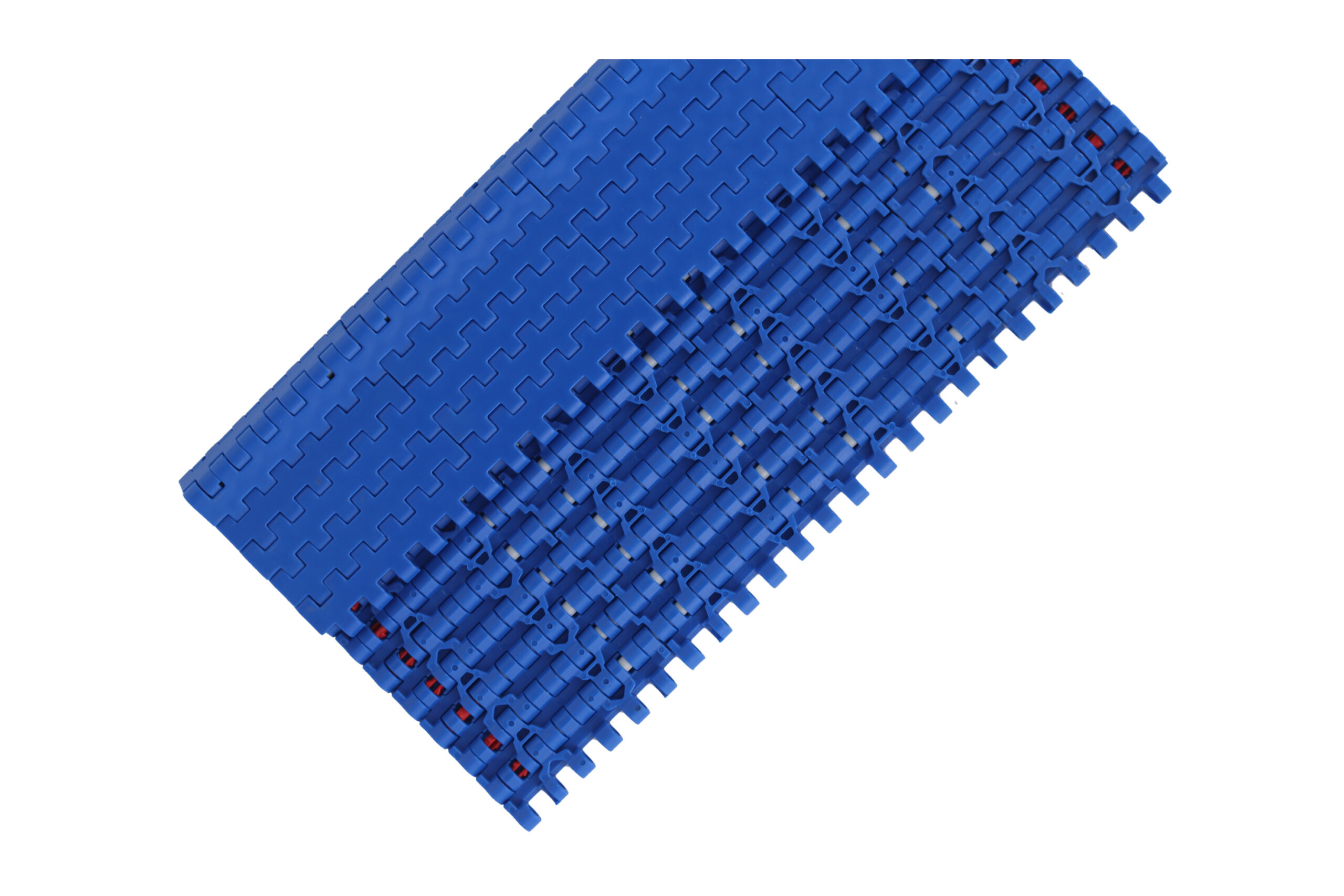

CY-12701A Flat Top
- BELT TYPE
- DESIGN
- CY-12701A
- Flat Top
- NOMINAL PITCH
- 12.7 mm / 0.50 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 8.8 mm / 0.35 inch
- Pin Diameter
- 5.0 mm / 0.20 inch
- WIDTH
- The width value can be increased in multiples of 76mm (2.99")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment |
|---|---|---|---|---|---|
| POM | PP | 17000 | 8.1 | 76/152 | W=76*N |
| POM | PA | 19000 | 8.2 | 76/152 | W=76*N |
| PP | PP | 12000 | 6.0 | 76/152 | W=76*N |
| PE | PE | 8000 | 5.9 | 76/152 | W=76*N |
Suitable for conveying meat, poultry, seafood, fruit, etc., and can be installed on standard conveyor lines with a track width of 85mm.
