Product Introduction

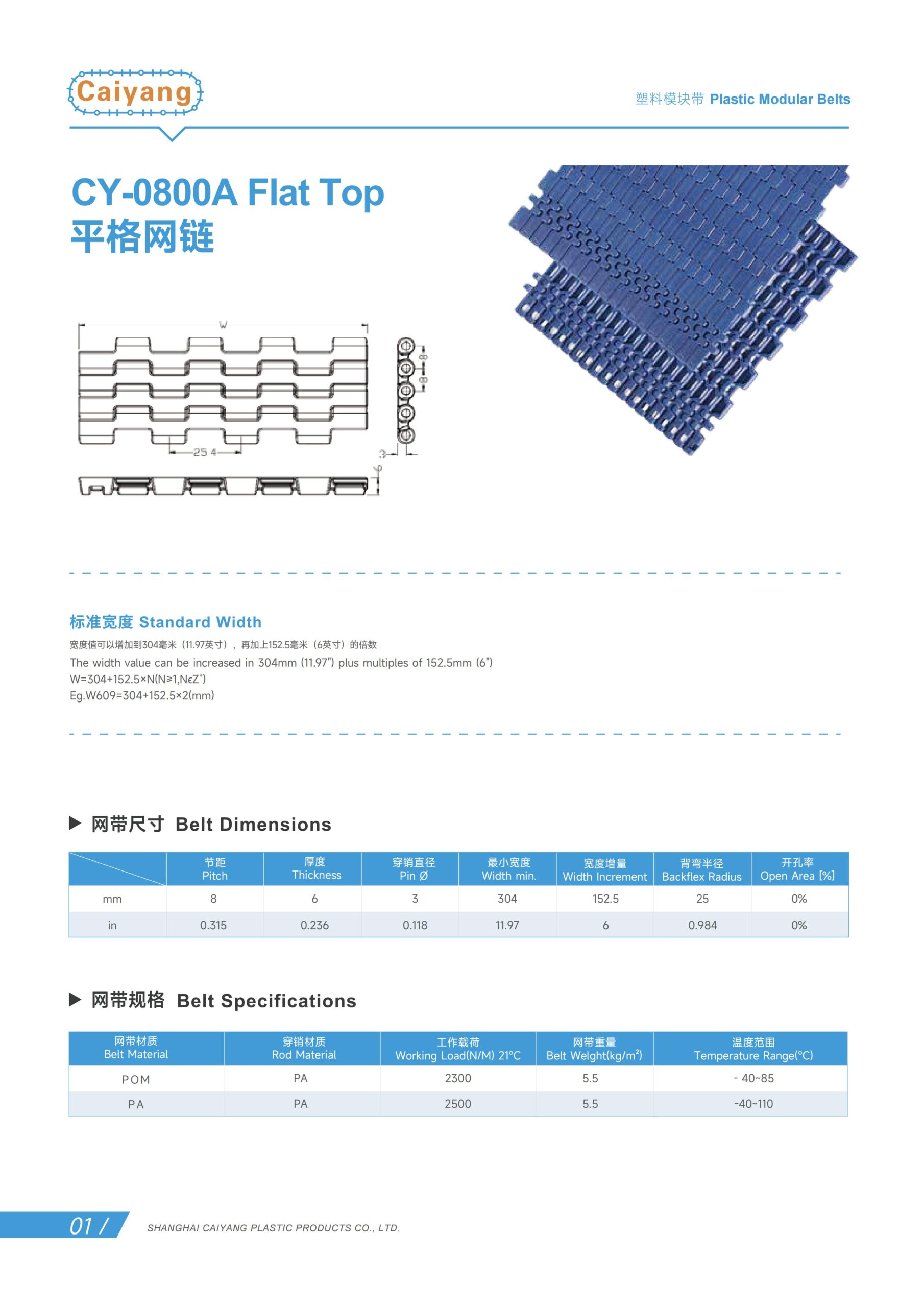

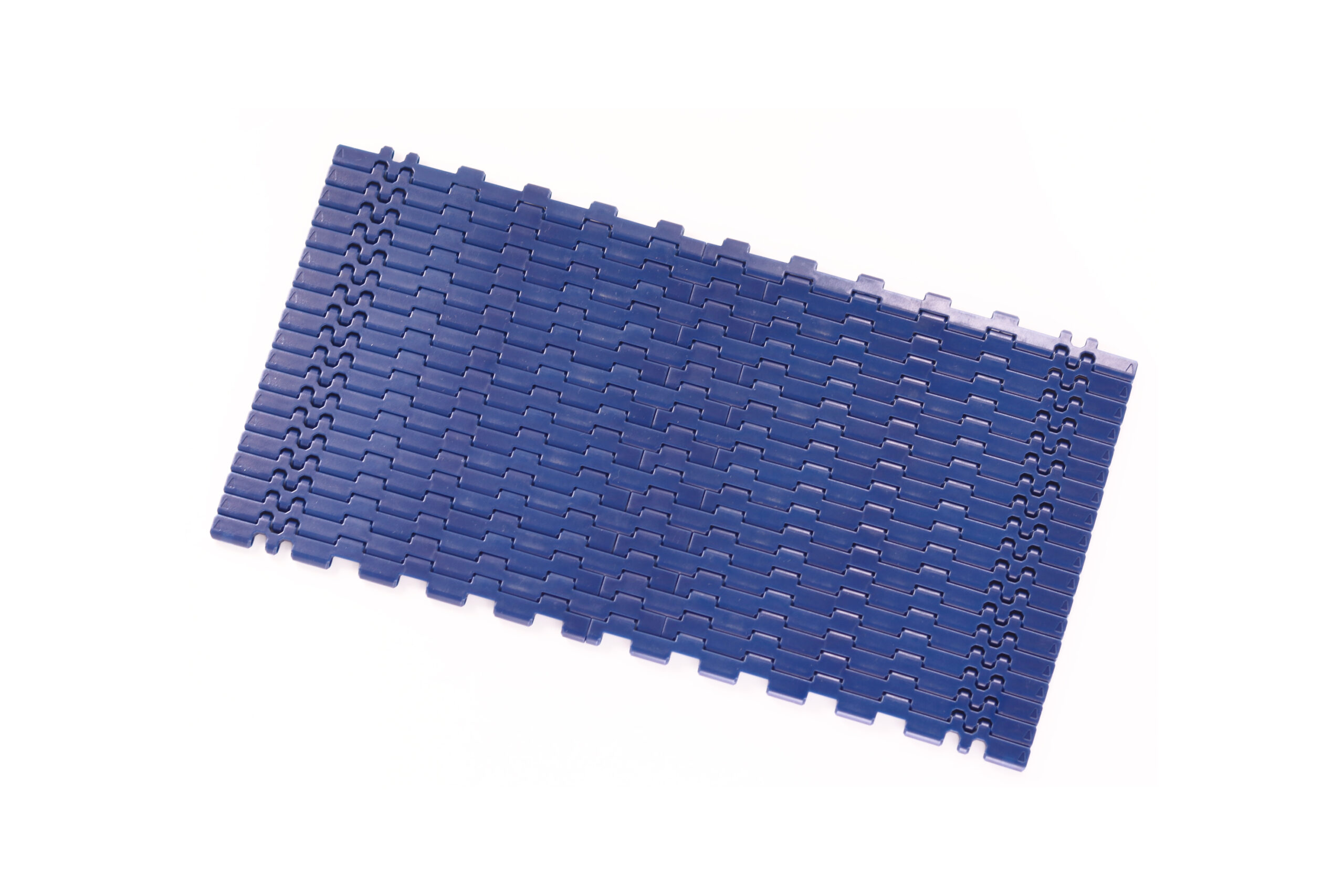

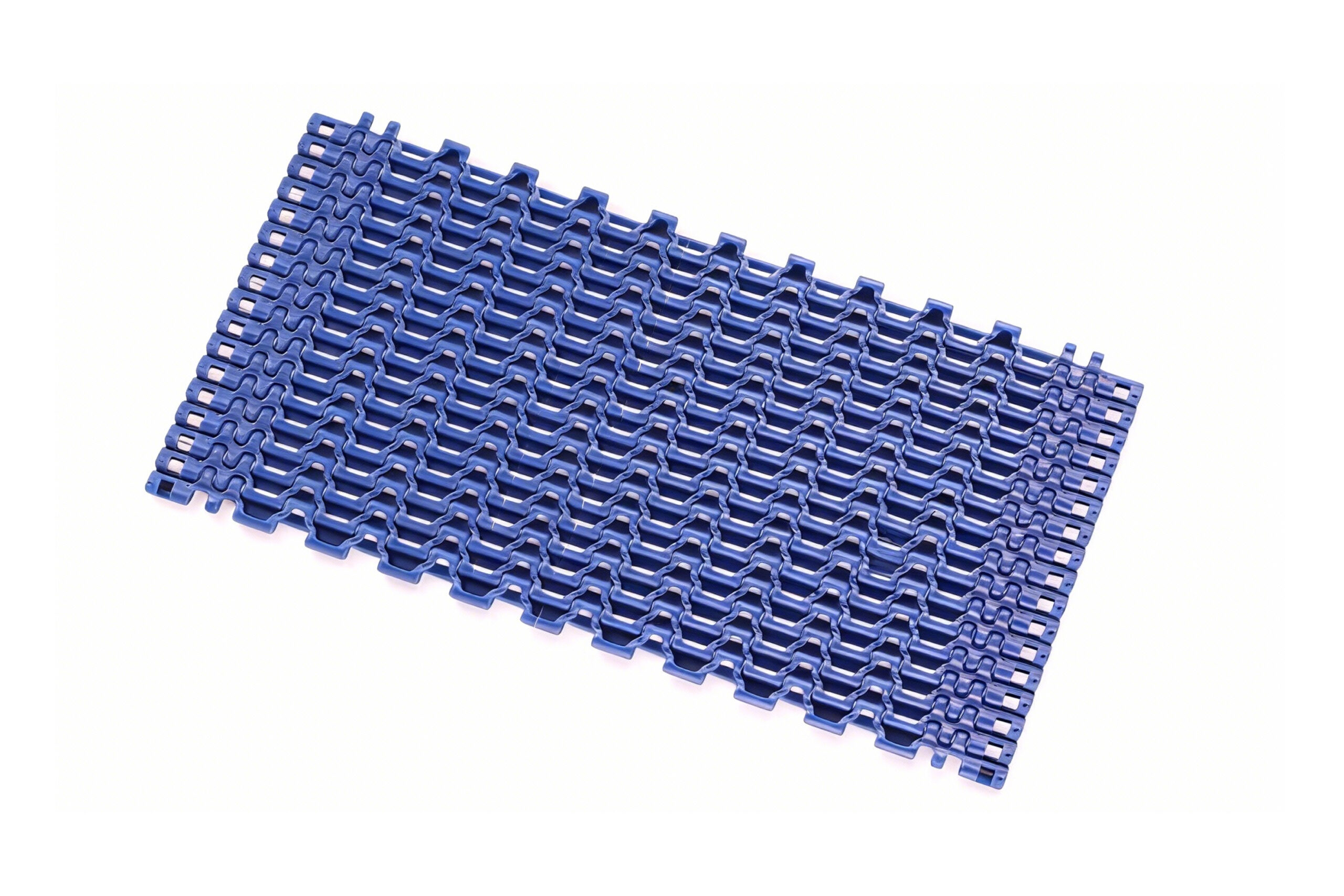

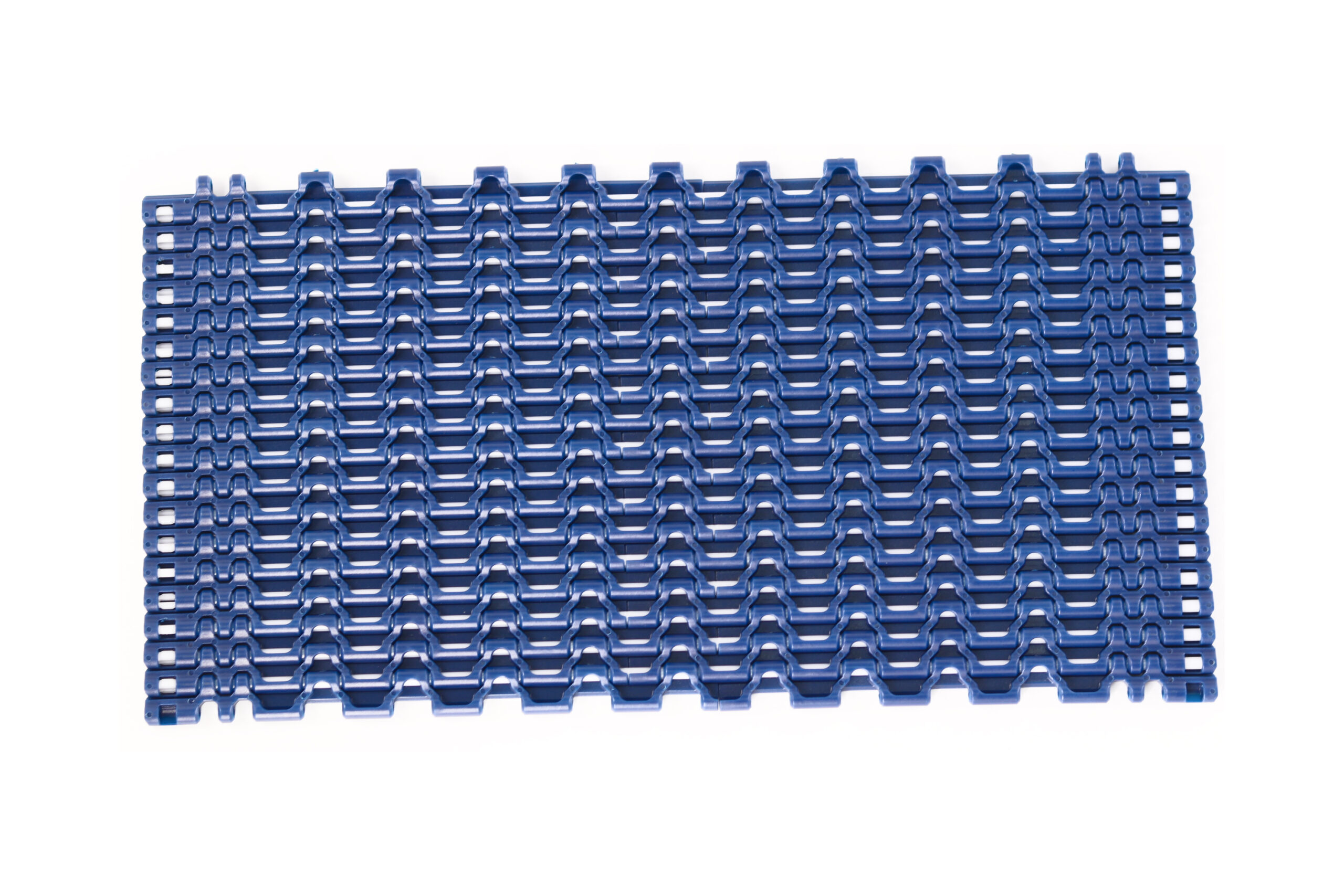

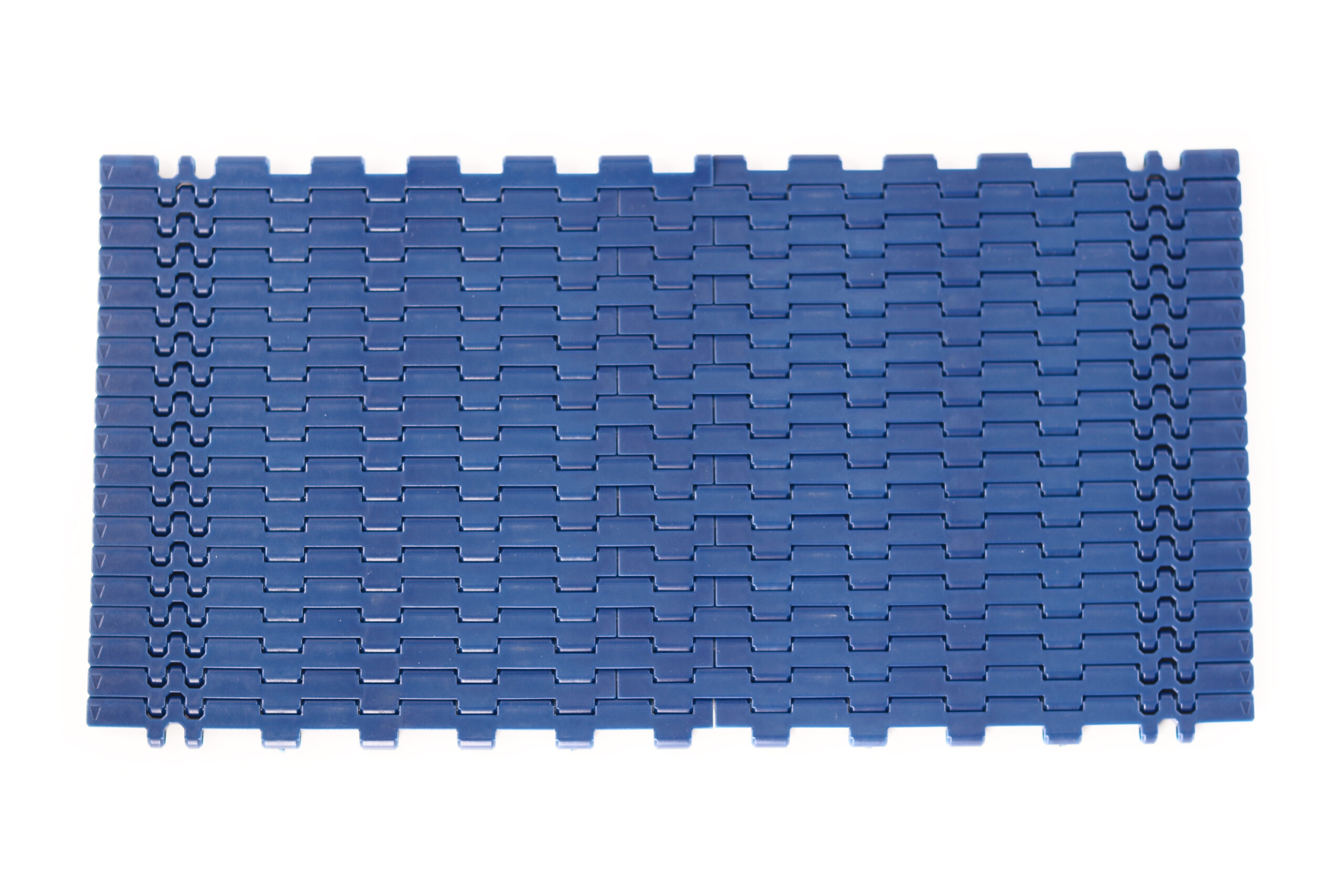

CY-0800A Flat Top
- BELT TYPE
- DESIGN
- CY-0800A
- Flat top
- NOMINAL PITCH
- 8 mm / 0.315 inch
- Open Area
- 0%
- Flight
- No
- Sidewall
- No
- Belt Thickness
- 6 mm / 0.236 inch
- Pin Diameter
- 3 mm/0.118'' inch
- WIDTH
- The width value can be increased in multiples of 50.8mm (2") plus 203mm(8")
Technicial Specifications
| Belt Material | Rod Material | Working Load(N/M) 21 ℃ | Belt weight(kg/㎡) | Witdth of single Module（mm） | Width increment |
|---|---|---|---|---|---|
| PA | PA | 2500 | 5.4 | 101.6 | W=101.6*N |
| POM | PA | 2500 | 4.6 | 101.6 | W=101.6*N |
Miniature pitch (8mm) flat straight conveyor chains are suitable for horizontal, uphill, or downhill conveying applications. They are ideal for conveying very small or unstable products, as the tiny pitch ensures smooth and seamless conveying operation with optimized chordal movement. Ultra-small pitch chains are suitable for conveying very small wheel diameters and knife-edge components.
